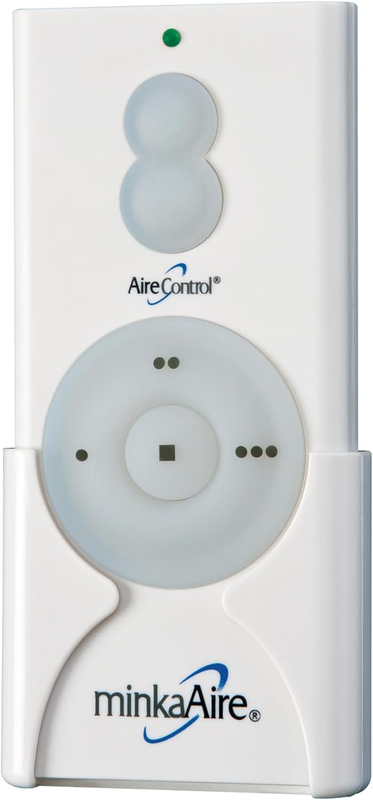

Hand-Held Remote Control System - RCS213
- COMPATIBILITY: This Minka-Aire remote control is designed to work specifically with 256-bit Minka-Aire Fans, eight dipswitches with a manual reverse switch on motor. These controls are NOT designed for use with non Minka-Aire fans.
- DESIGN: This Minka-Aire remote control features 3-Speed fan control.
- FUNCTIONALITY: This control has an On/Off switch and full range light dimmer with independent up/downlight control.
- RANGE: This control operates at a distance of 20-40' depending on quality/materials used in the construction of space in which the fan is hung.
- ADDITIONAL: Optional WCS213 wall control can be purchased separately.
Product description
TROUBLESHOOTING TIPS BE SURE TO CHECK FAN COMPATIBILITY FIRST
- Turn off power to your ceiling fan. Please use a small size tool to change the frequency settings on the back of the remote and return power to the ceiling fan.
- Within 60 seconds of turning the fan's power on, press and hold the stop button for 10 seconds.
- The fan's light will blink twice, and the fan will rotate for a short period of time and then shut off.
- If unsuccessful, please contact the manufacturer, as the issue may be the receiver in the fan and not the remote.
WHICH MINKA AIRE REMOTE IS RIGHT FOR YOUR FAN?
COMPATIBLE FANS:
Wave fans, Minka Aire fans with manual reverse switch on motor.
COMPATIBLE FANS:
Post 2015 Concept fans, Minka Aire fans with reverse via remote control.
COMPATIBLE FANS:
Minka Aire Concept Fans made before 2015, Milano and Ultra Max Series.
FREQUENCY DIPSWITCHES:
Two sets, eight switches.
FREQUENCY DIPSWITCHES:
Two sets, eight switches.
FREQUENCY DIPSWITCHES:
One set, four switches.
For Minka-Aire Fans ONLY
Will NOT work with non-Minka Aire fans.
For Minka-Aire Fans ONLY
Will NOT work with non-Minka Aire fans.
For Minka-Aire Fans ONLY
Will NOT work with non-Minka Aire fans.
Product description
BE SURE TO CHECK FAN COMPATIBILITY FIRST
- Turn off power to your ceiling fan. Please use a small size tool to change the frequency settings on the back of the remote and return power to the ceiling fan.
- Within 60 seconds of turning the fan's power on, press and hold the stop button for 10 seconds.
- The fan's light will blink twice, and the fan will rotate for a short period of time and then shut off.
- If unsuccessful, please contact the manufacturer, as the issue may be the receiver in the fan and not the remote.
WHICH MINKA AIRE REMOTE IS RIGHT FOR YOUR FAN?
| COMPATIBLE FANS: Wave fans, Minka Aire fans with manual reverse switch on motor. | COMPATIBLE FANS: Post 2015 Concept fans, Minka Aire fans with reverse via remote control. | COMPATIBLE FANS: Minka Aire Concept Fans made before 2015, Milano and Ultra Max Series. |
| FREQUENCY DIPSWITCHES: Two sets, eight switches. | FREQUENCY DIPSWITCHES: Two sets, eight switches. | FREQUENCY DIPSWITCHES: One set, four switches. |
| For Minka-Aire Fans ONLY Will NOT work with non-Minka Aire fans. | For Minka-Aire Fans ONLY Will NOT work with non-Minka Aire fans. | For Minka-Aire Fans ONLY Will NOT work with non-Minka Aire fans. |
| Item model number | RCS213 |
| Style | Contemporary |
| Power Source | AC & Battery |
| Control Method | Remote |
| Battery Cell Type | Alkaline |
| Batteries Included? | No |
| Usage | General Purpose |
| Material zinc | Number of Speeds 3 |
| Main Power Connector Type | Standard Wall Outlet |
| Finish | Painted |
| Number of Power Levels | 3 |
| Product Dimensions | 1"D x 2.75"W x 4.5"H |
| Efficiency | efficient |
| Model Name | Fan Control System |
| Description Pile | 1 A batteries |
| Mounting Type Ceiling Mount,Wall Mount | Controller Type Pull Chain, Remote Control |
| Finish Type | Painted |
| Included Components | RCS213 |
| Item Package Quantity | 1 |
| Indoor/Outdoor Usage | Indoor |
| Recommended Uses For Product | Air Circulation, Cooling |
| Room Type | Children's room |
| Number Of Pieces | 1 |
| Item Weight | 3.2 ounces |
| Blade Length | 40 Inches |
| Size | Remote Control |
| Number of Blades | 10 |
| Special Features | Remote Controlled |
| Special Feature | Remote Controlled |
| Part Number | RCS213 |
| Electric fan design | Ceiling Fan |
| Color | without Receiver |
| Is Discontinued By Manufacturer | No |
| Wattage | 240 watts |
| Is Cordless? | No |
| Global Trade Identification Number | 00706411041518 |
| Batteries | 1 A batteries required. |
| Voltage | 120 Volts |
| Batteries Required? | No |
| Speed | 3 RPM |
| Switch Type | Pull Chain |
