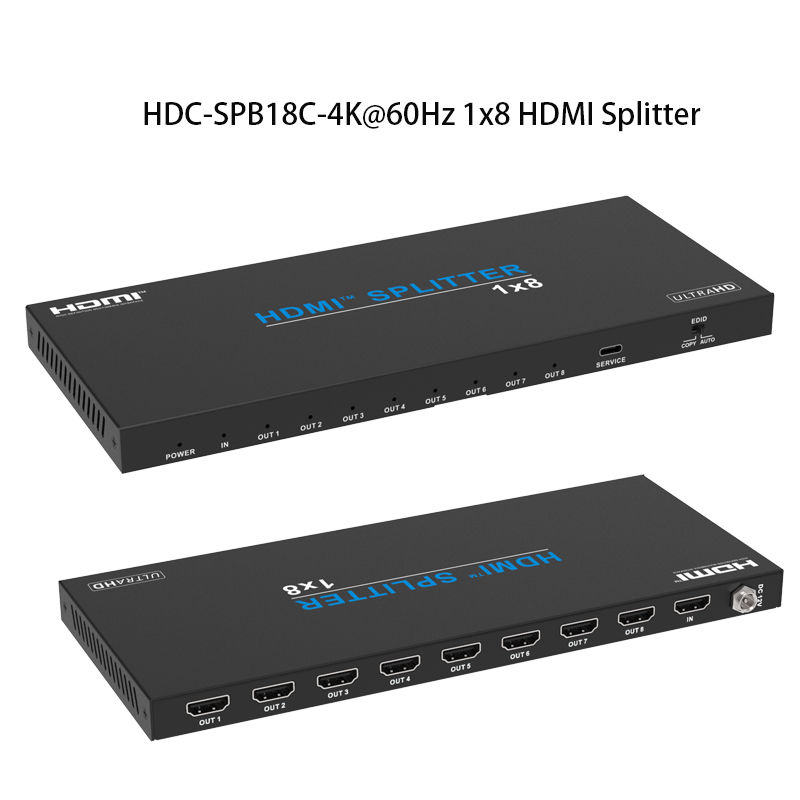

4K60 1x8 HDMI™ Splitter

1.Introduction

This HDMI™ 1x8 Splitter designed with 1x HDMI™ input and 8x HDMI™ output,

can distribute one HDMI™ signal source to eight display devices simultaneous- ly

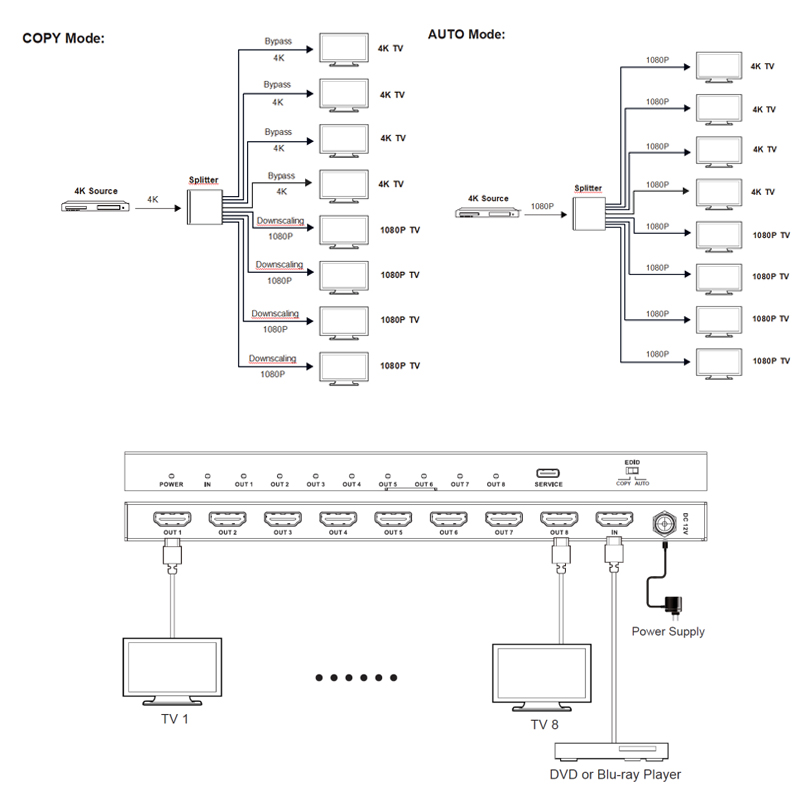

and quickly. Video resolution is up to 4K@60Hz 4:4:4. It supports advanced EDID

management, including two EDID modes: copy and auto.

The device is widely used in multimedia conference halls, television teaching,

large-screen display and other applications.

2.Features

☆ HDCP 2.2 compliant

☆ Video resolution is up to 4K@60Hz 4:4:4, as specified in HDMI™ 2.0

☆ Audio format up to PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1,

Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

☆ Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

☆ Support resolution downscaling from 4K to 1080p on each output

☆ Support CEC on HDMI™ OUT 1 port

☆ Advanced EDID management

☆ Compact design for easy and flexible installation

3.Package Contents

① 1× 4K60 1x8 HDMI™ Splitter

② 1× 12V/1A Multinational Locking Power Supply

③ 1× User Manual

4.Specifications

Technical

HDMI™ Compliance :HDMI™ 2.0

HDCP Compliance :HDCP 2.2

Video Bandwidth :18Gbps

Video Resolution (Input & Output) :480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz

Color Depth: 8-bit,10-bit,12-bit

Color Space :RGB, YCbCr_4:4:4, YCbCr_4:2:2

Audio Formats: PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X

HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG

ESD Protection :IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

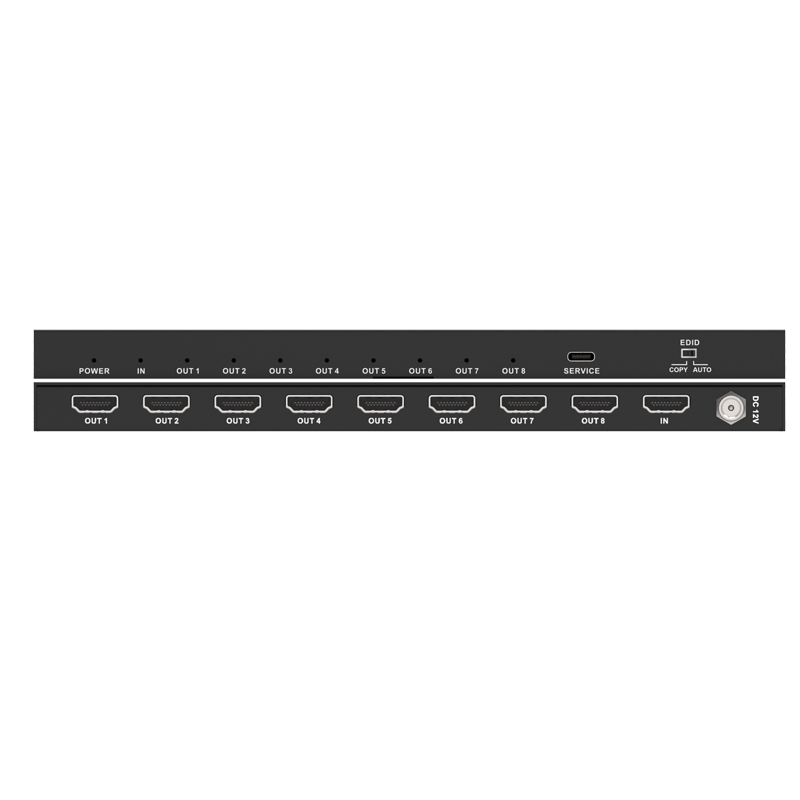

Connection

Input: 1× IN [HDMI™ Type A, 19-pin female]

Output :8× OUT [HDMI™ Type A, 19-pin female]

Control :1× SERVICE [USB Type C, update port]

Mechanical

Housing :Metal Enclosure

Color :Black

Dimensions: 242mm [W] × 102mm [D] × 16mm [H]

Weight :588g

Power Supply: Input: AC 100-240V 50/60Hz,     Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)

Power Consumption: 6.4W (Max)

Operation Temperature :0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature :-20°C ~ 60°C / -4°F ~ 140°F

Operating Humidity: 20%~80% relative humidity, non-condensing

Storage Humidity :10%~90% relative humidity, non-condensing

Recommended HDMI™ Cable

Video Resolution:4K60 1080p

HDMI™ Cable Length(IN / OUT):8m/26ft 15m/49ft

The use of “Premium High Speed HDMI™” cable is highly recommended.
