Feature:
High Quality, High Resolution, Clear Images
Certificate: CE, FCC, RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Supply USB output ports.


Specification:

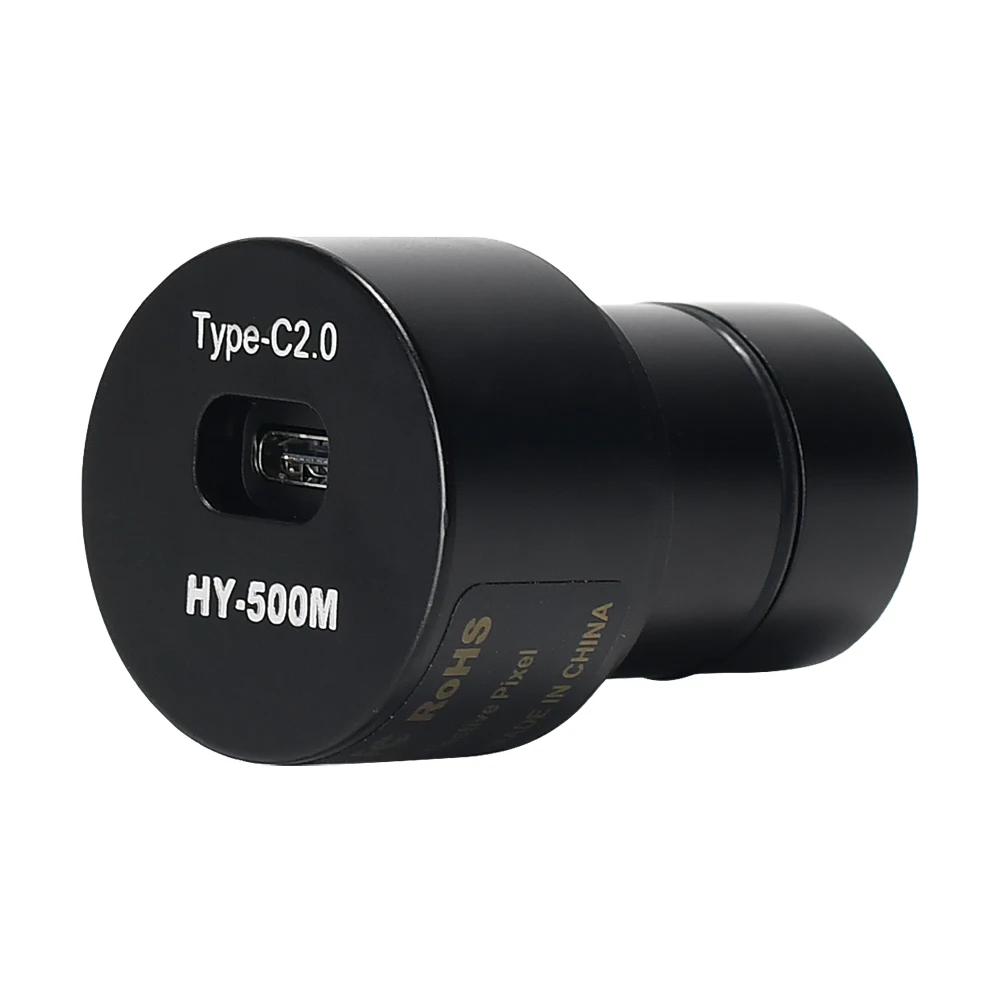

Model: HY-500M
Resolution: 2592x1944 Effective Pixel

Frame rate:

5MP: 2592x1944 HDR @ 30fps;3MP: 2084x1536 HDR @ 30fps;

2MP:1920x1080 HDR @ 30fps;2MP:1600x1200 HDR @ 30fps

1MP:1280x720 HDR @ 30fps

Shutter: Digital Shutter

SNR: 42.3dB

Pixel size: 2.2um x 2.2um

Scan: Progressive scan

White Balance: Auto/Manual

Working Temperature: 0°C~50°C

Interface: USB 2.0 (480 Mbit/s)

Spectral response: 1.4V/lux-sec@550nm

Software function: Image display, Image shooting, video recording, measurement, etc.

Working current: ≈200mA

Application: Microscope imaging, General image acquisition, macro imaging, etc.

Support OTG to Android Phone (OTG Cbale is not included)

Mini USB and Type C interface version will be sent randomly. Except for different interfaces and slightly different appearances, the effects and usage are the same.

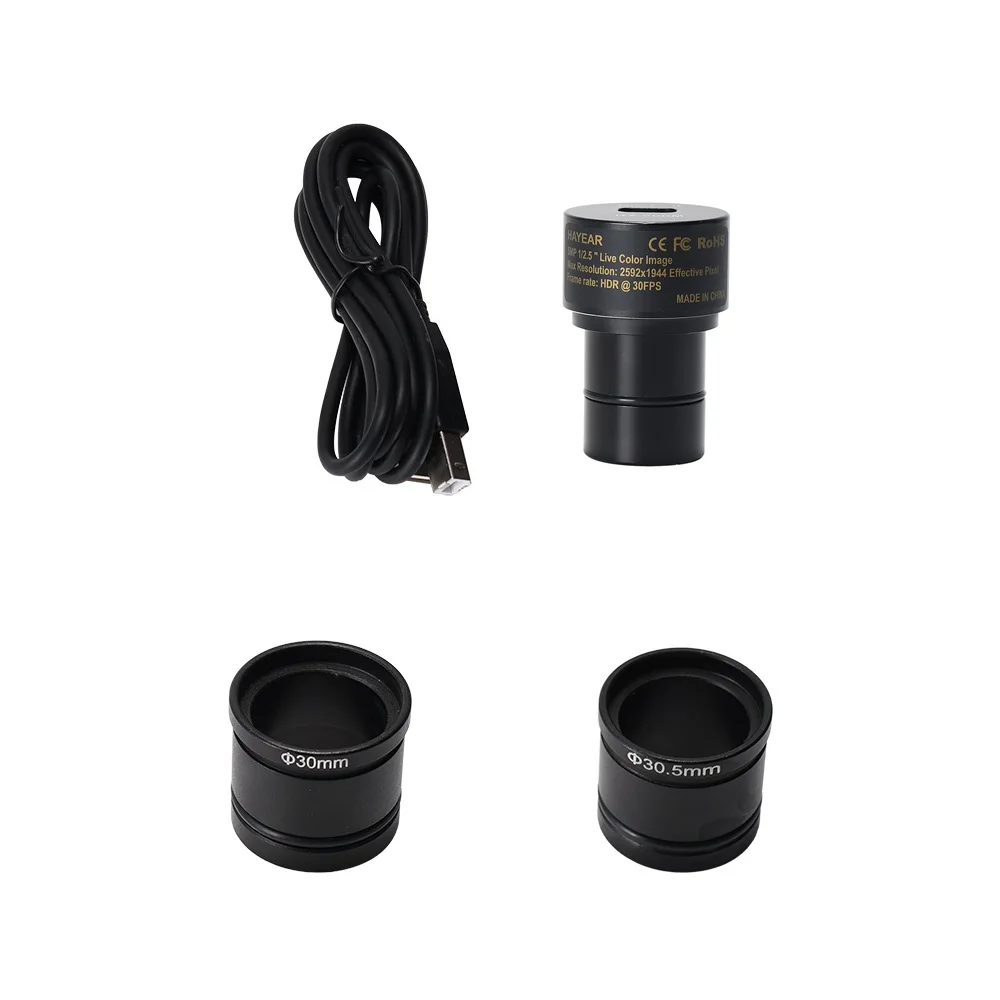

Package including:

1 x 5MP Digital Eyepiece

1 x TYPE-C line

1 x Software DISC

1 x 30/30.5mm Adapter
