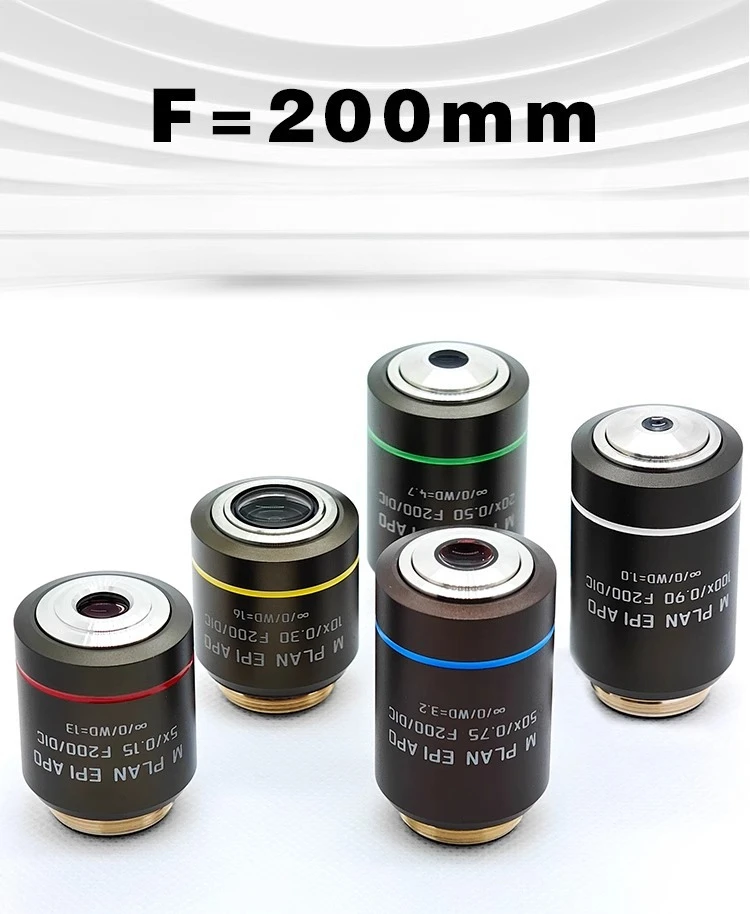

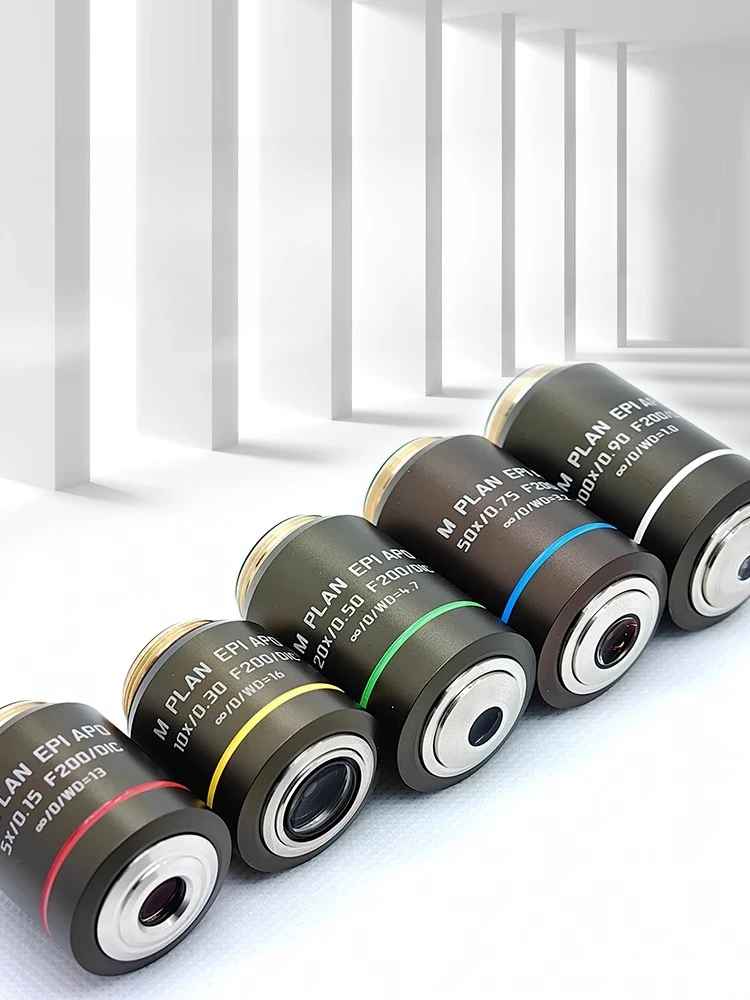

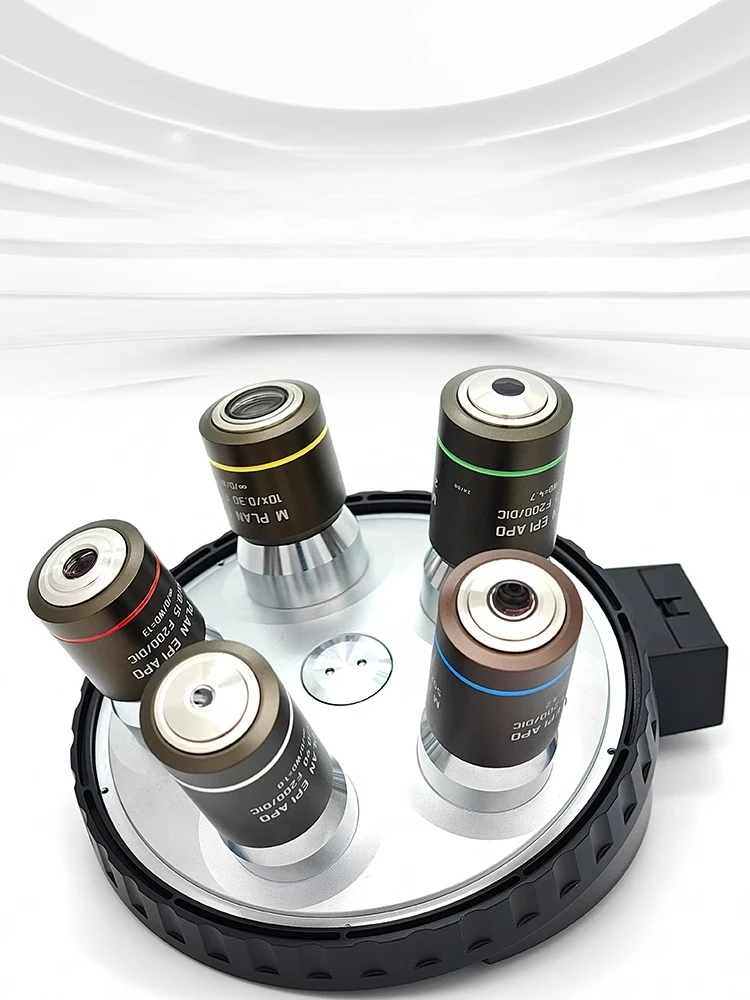

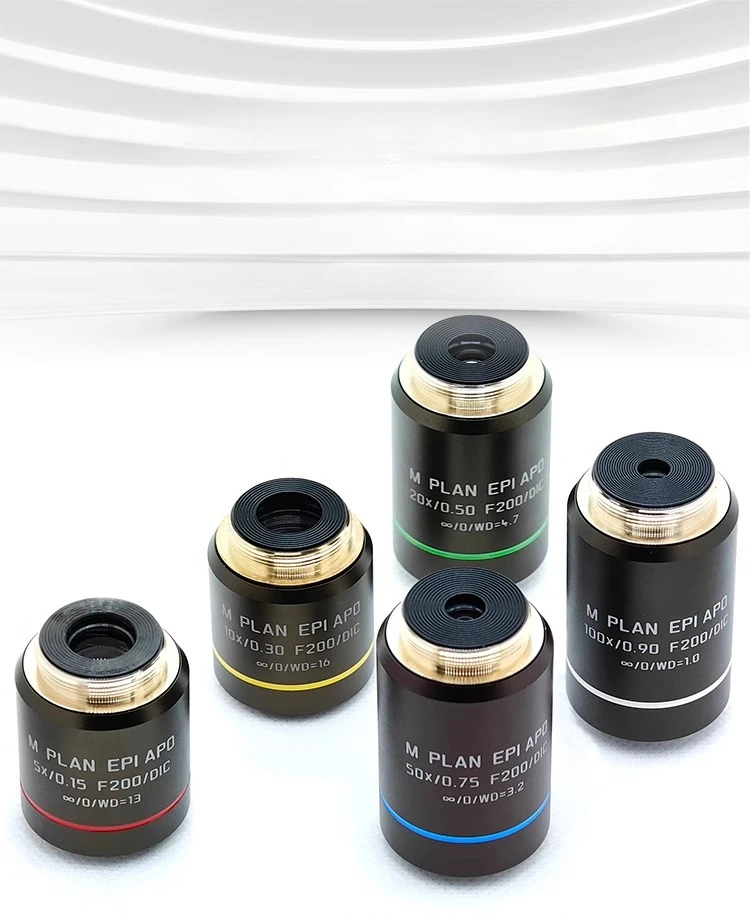

APO Plan Apochromatic Infinity-Focal-Length Objective Lens for Metalloscope 5X10X20X50X100X Tubelens F200
| Detailed Product Parameters | |||||
| Magnification | 5X | 10X | 20X | 50X | 100X |
| NAmm | 0.15 | 0.3 | 0.5 | 0.75 | 0.9 |
| WD(mm) | 13 | 16 | 4.7 | 3.2 | 1 |
| f’(mm) | 40 | 20 | 10 | 4 | 2 |
| R(μm) | 1.65 | 1.33 | 0.6 | 0.44 | 0.3 |
| DF(μm) | 15 | 3.9 | 1.45 | 0.49 | 0.37 |
| Field Number | 25 | 25 | 25 | 25 | 25 |
| Exit pupil diameter | 12 | 12 | 10 | 6 | 3.6 |
| Screw | W4/5''X1/36''(RMS) | ||||
Product Name: Metallurgical fully aplanatic achromatic infinity objective lens
Product Material: Pure copper material, with chrome plating on the surface

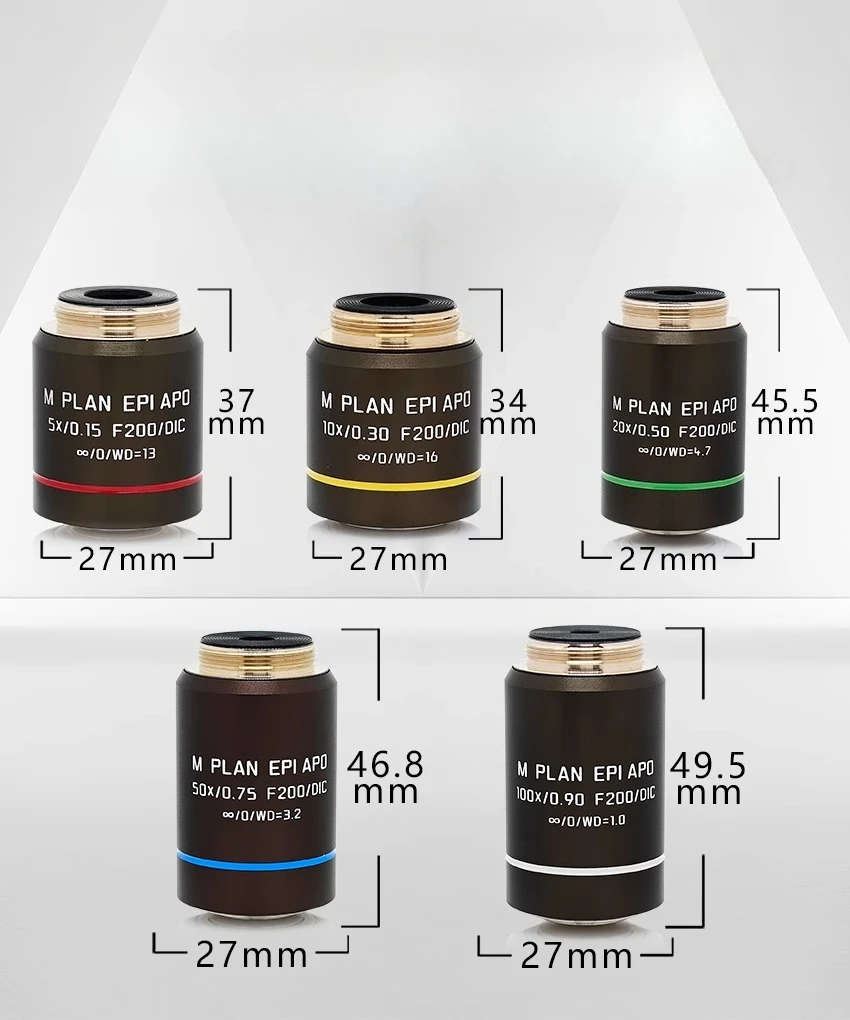

Product Specifications: Various size models are available

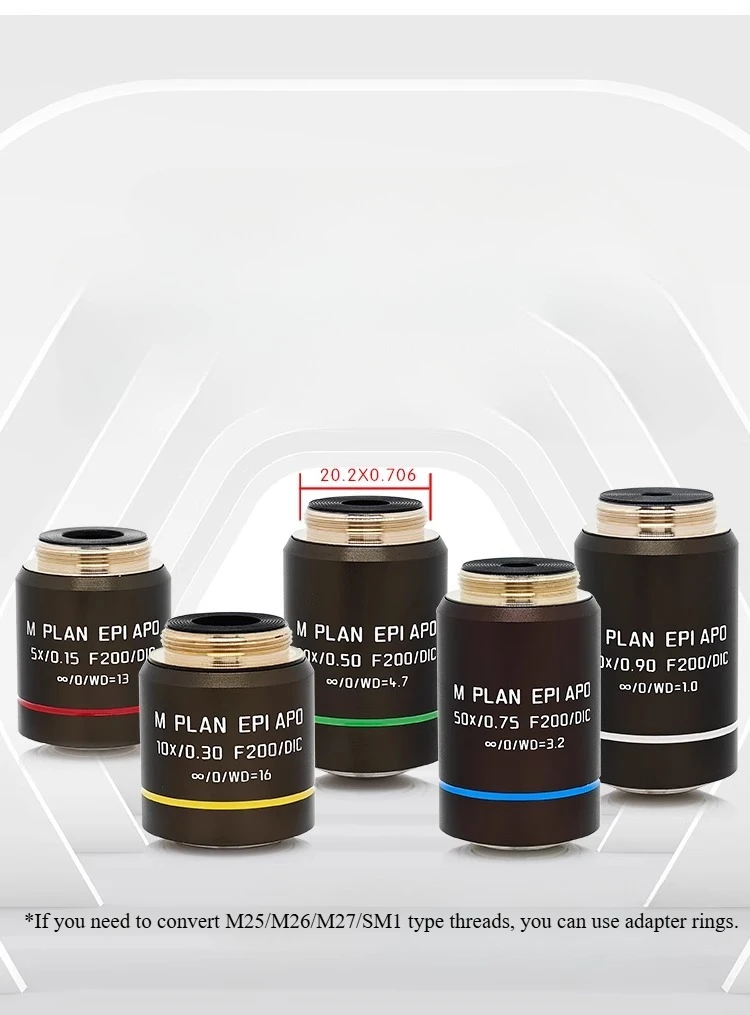

Thread Diameter: Standard RMS thread size
Product Usage: Applicable to metallographic microscopes and various optical imaging systems
