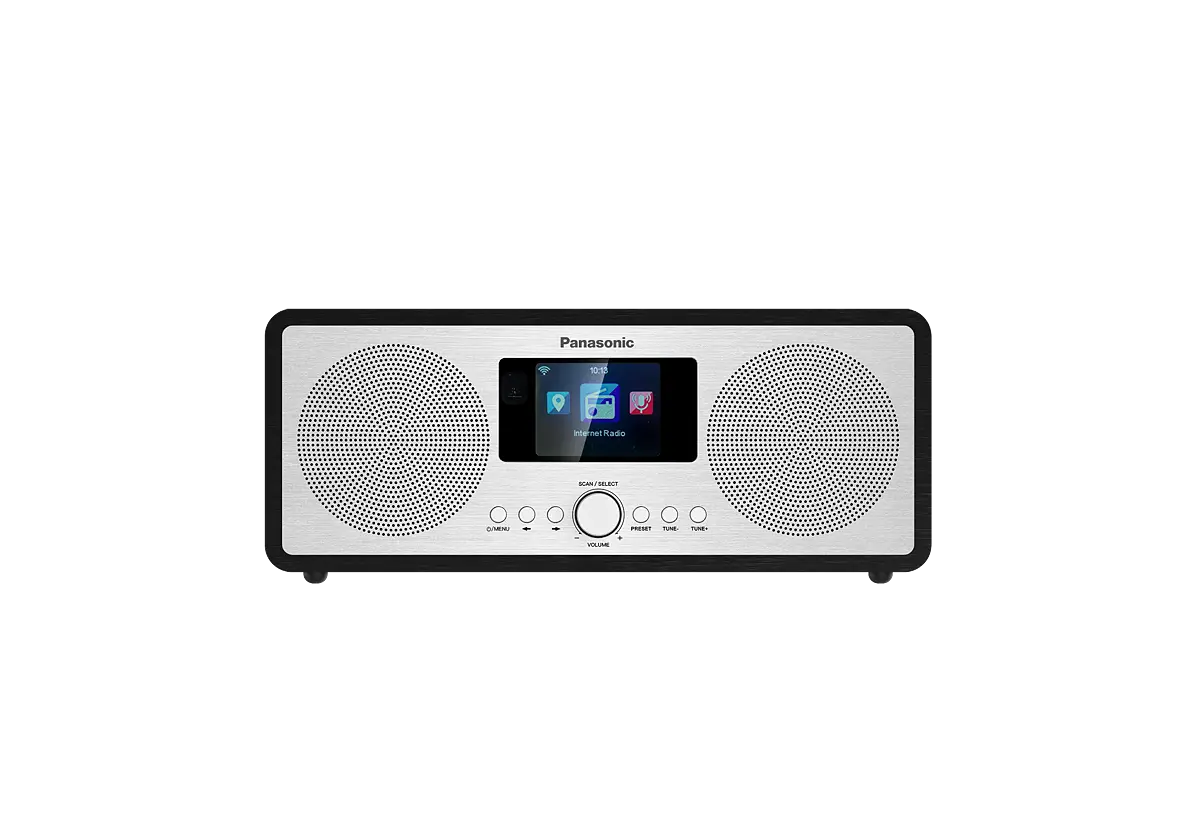

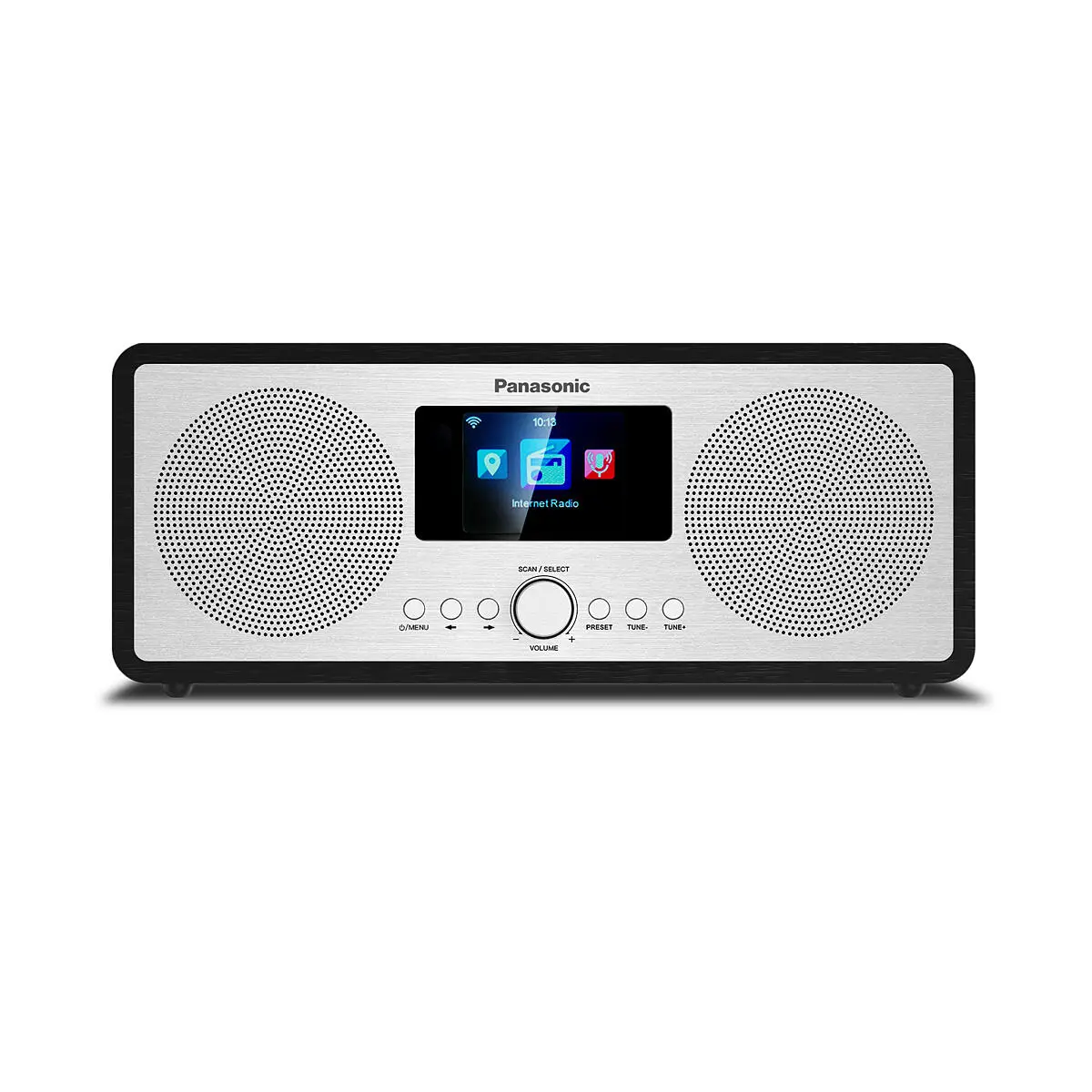

Panasonic RF-D40
Explore the world from home
The RF-D40 is for listeners with broad horizons, combining DAB digital and FM broadcasts with Internet radio. It opens up a world of listening pleasure by using Wi-Fi to connect to radio stations and podcasts across the globe. With built-in Bluetooth®, you can enjoy your favourite streaming apps from your phone in clear stereo sound.
Internet Radio (Wi-Fi)
Powerful sound (6W) in a compact design
DAB+ Digital Audio & FM Broadcasting
USB (playback and charge)
Bluetooth Connectivity

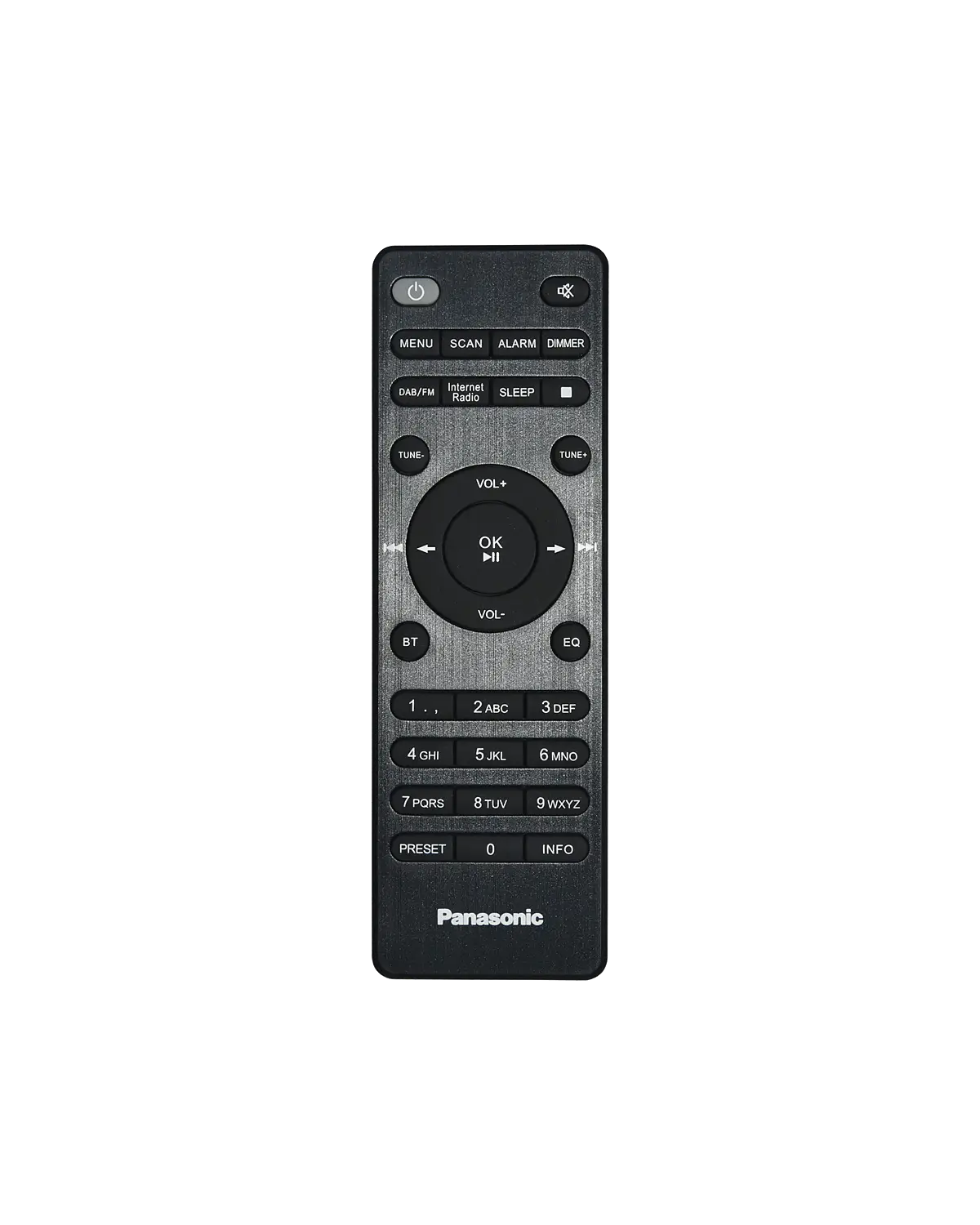

Convenient Operation with Remote Control

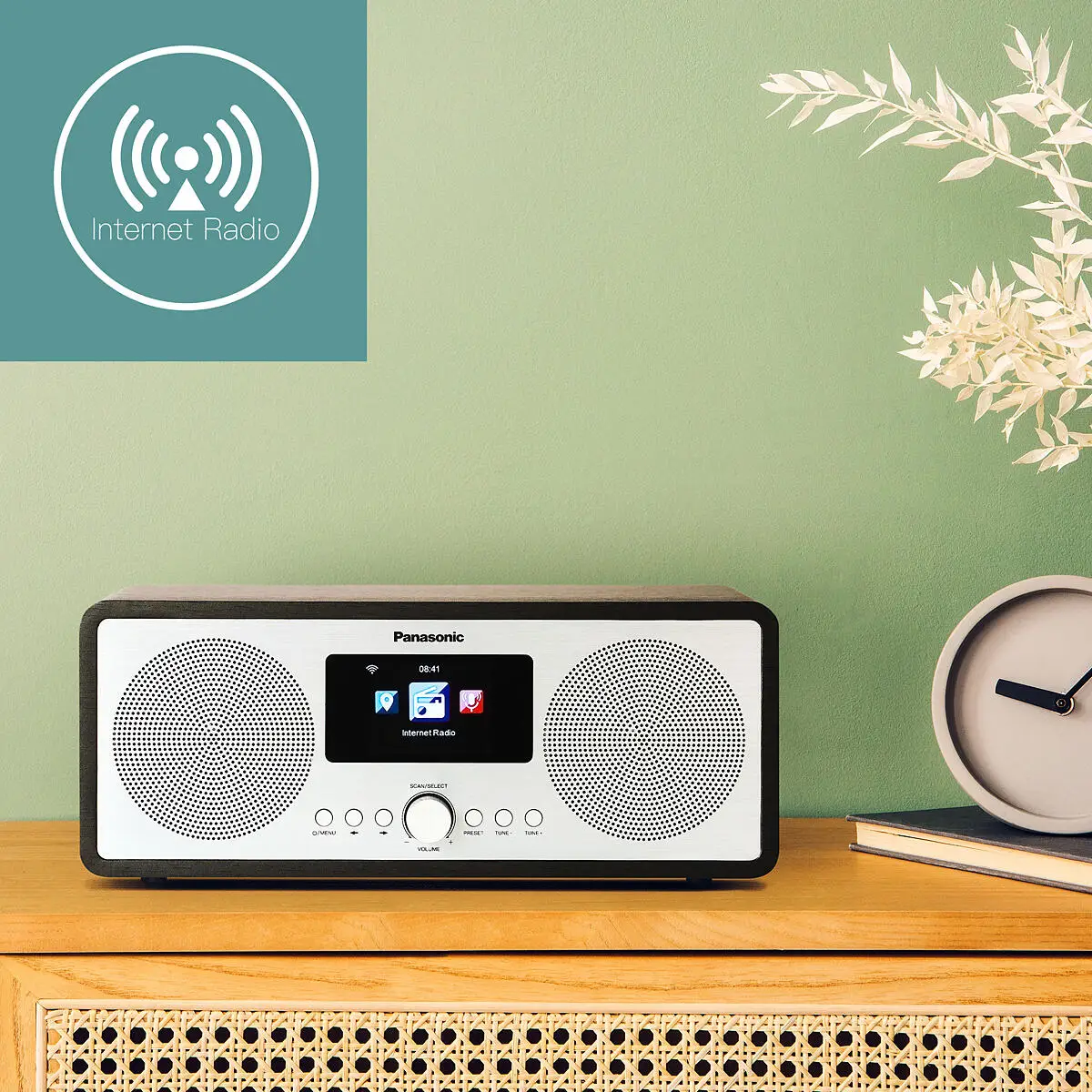

Internet Radio (via Wi-Fi): Listen to the world
With the RF-D40, you can explore your preferred music genres or tune in to radio stations from specific countries. Revisit special locations from the comfort of your home. Simply connect the radio to your home broadband and let it do the rest.

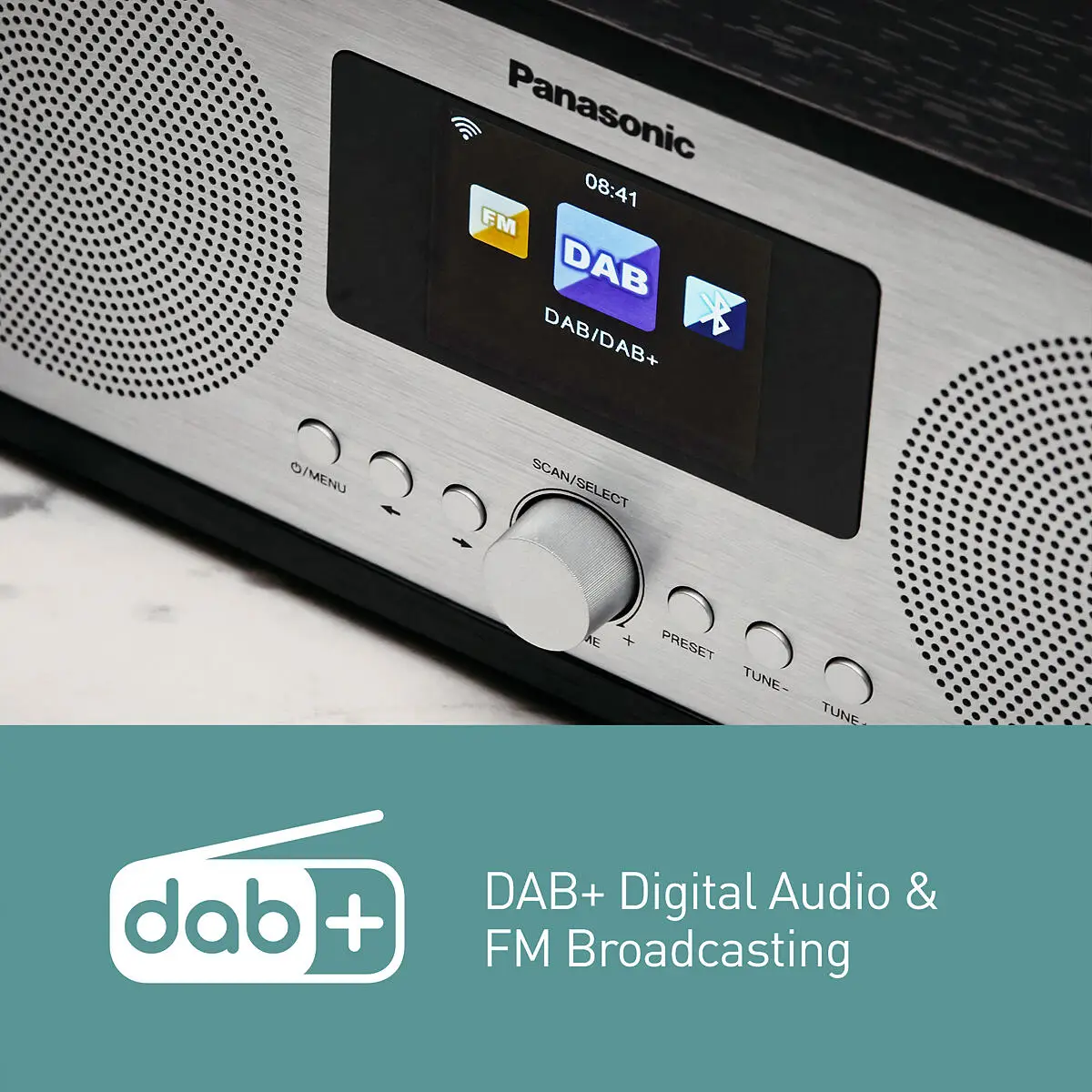

DAB+ Digital Audio & FM Broadcasting: Radio, the familiar friend
There’s nothing simpler or more comforting than switching on the radio and tuning in to your favourite station. The RF-D40 has you covered with 30 presets for both DAB and FM radio – all delivered with excellent clarity, thanks to a proper telescopic aerial.

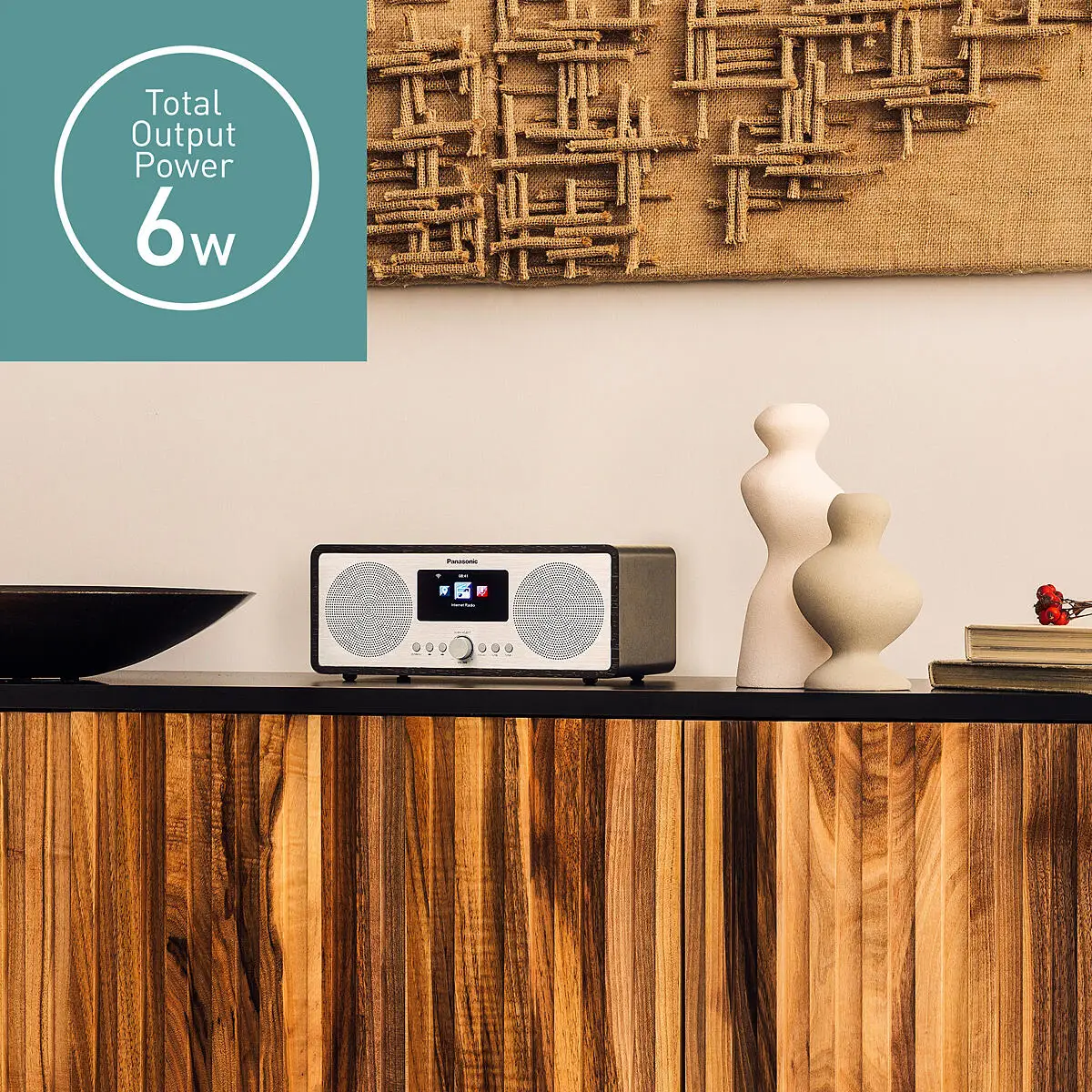

Powerful sound (6W): The world was made for stereo

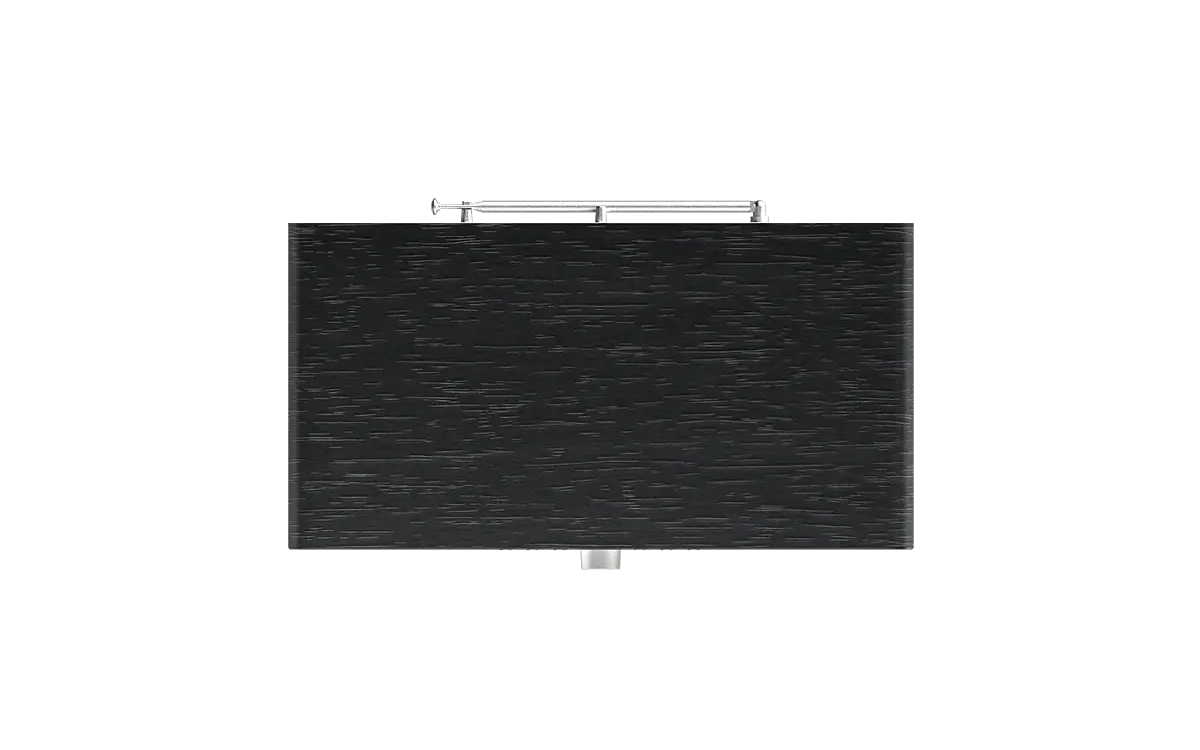

This compact radio is the perfect size for a bedroom, study, or kitchen shelf. Inside its wooden body, behind the stylish brushed aluminium fascia, are two full-range speakers delivering 6W of rich stereo sound.

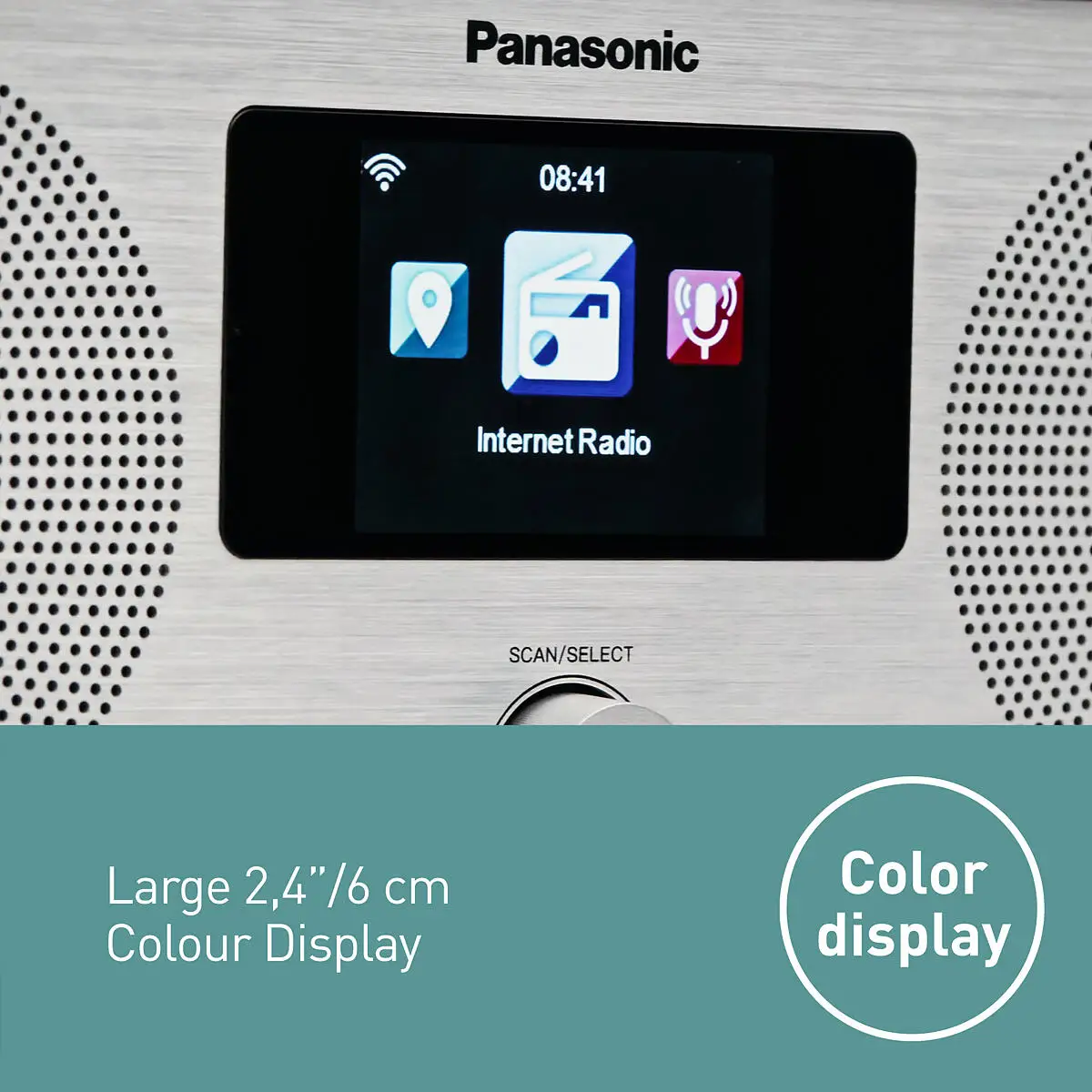

Large 2.4”/6cm colour display
With a world of listening at your fingertips, you’ll want to be sure you’re in the right place. The RF-D40 makes this easy with a clear colour screen and adjustable brightness, ensuring comfortable viewing in any setting.

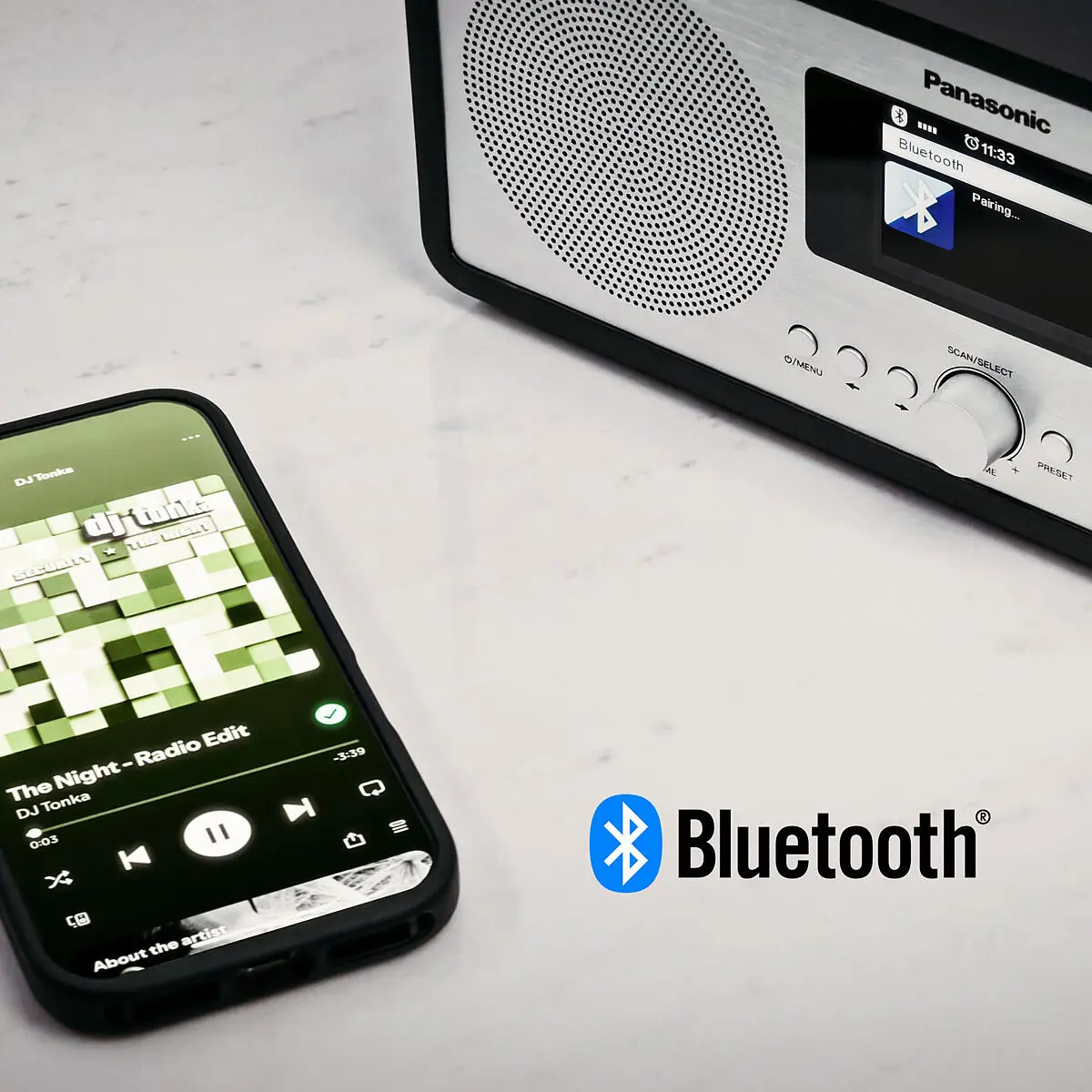

Bluetooth Connectivity: Wireless playback from mobile apps
With so much content available on our phones, you can now enjoy it in crystal-clear stereo sound. Connect your smart device via Bluetooth® 5.3 to stream your playlists through the RF-D40’s built-in speakers.
Explore the world from home
Panasonic RF-D40
Specifications
| Amplifier | Amp Type | CS85636SA | |
|---|---|---|---|
| RMS Output Power | Total RMS Stereo Mode Power | RMS 6W (THD 10%) | |
| Front Speaker (Left / Right) | Yes | ||
| Subwoofer | NA | ||
| Speaker System | Front Speaker (Left / Right) | Type | 3'' Full Range |
| Speaker Unit | 2 | ||
| Bass Expand | NA | ||
| Subwoofer | Type | NA | |
| Speaker Unit | NA | ||
| Wireless | NA | ||
| Network | Bluetooth | Version | V5.3 |
| Class | ClassB | ||
| Codec | SBC/AAC | ||
| Connectivity | 6 | ||
| DAB /FM | DAB memories | 30EA | |
| Frequency band (wavelength) | 174.928 -239.200MHz | ||
| Sensitivity *BER 4x10-4 | -98dbm | ||
| FM Frequency range | 87.50MHz to 108.00MHz (50kHz step) | ||
| Wi-Fi | Standard | Wi-Fi 802.11 b/g/n | |
| Network support | Yes | ||
| Frequency Band | 2.4G (2.4 ~ 2.4835G) | ||
| Chromecast built-in | NA | ||
| Smartphone App | NA | ||
| Terminal | HDMI | Input | NA |
| Output | NA | ||
| Audio Input | Optical Input | NA | |
| Coaxial Digital Input | NA | ||
| Dialogue Input (Pin Jack / φ3,5) | NA | ||
| Other | IR System Terminal | Yes | |
| USB Port | Yes | ||
| LAN | NA | ||
| Function | Sound Function | Surround | NA |
| SOUND MODE | Yes (Normal/POP/Flat/Classic) | ||
| Bass Boost | NA | ||
| Subwoofer Level Adjustment | NA | ||
| Clear-mode Dialogue | NA | ||
| Dialogue Level Control | Yes (0~30) | ||
| Low-volume Mode | NA | ||
| Auto Gain Control | Yes | ||
| Direct music mode with remote control | NA | ||
| Auto LIP Synchronization with HDAVI Control | NA | ||
| Decoder Function / Format | LPCM | NA | |
| Dolby Digital | NA | ||
| Dolby Digital + | NA | ||
| Dolby True HD | NA | ||
| Dolby Atmos | NA | ||
| DTS Digital Surround | NA | ||
| c ES | NA | ||
| DTS 96/24 | NA | ||
| DTS-HD HR | NA | ||
| DTS-HD High Resolution Audio | NA | ||
| DTS-HD Master Audio | NA | ||
| DTS : X | NA | ||
| DTS Virtual : X | NA | ||
| HDMI Function | CEC | NA | |
| Audio Return Channel(for HDMI Output)*¹ | NA | ||
| LPCM Multi Channel Input (HDMI Input) | NA | ||
| 1080p, Deep Colour, x.v. Colour | NA | ||
| 4K Pass through | NA | ||
| FULL HD 3D COMPATIBLE | NA | ||
| HDMI UP Conversion | NA | ||
| HDR10 Pass Through | NA | ||
| HDR10+ Pass Through | NA | ||
| Dolby Vision Pass Through | NA | ||
| USB Function | Service Use | NA | |
| Customer Software Update | Yes | ||
| USB Host Play | Yes | ||
| USB system (Format) | FAT16/FAT32/exFAT | ||
| Playback Format | MP3/AAC | ||
| Main Unit Setting | Wall Mountable | NA | |
| Matching TV Size | NA | ||
| General | Main Unit | Power Supply | AC Adaptor |
| Power Consumption *² Normal Use | Yes (6W) | ||
| Power Consumption *² Network Standby Off | Yes (General mode 0.43W) | ||
| Power Consumption *² Network Standby On | Yes (Bluetooth 0.6W, DAB mode 0.69W, Wi-Fi mode 0.65W) | ||
| Subwoofer | Power Supply | NA | |
| Power Consumption *² Normal Use | NA | ||
| Power Consumption *² Network Standby Off | NA | ||
| Power Consumption *² Network Standby On | NA | ||
| Display | 2.4" LCD Display | ||
| Dimmer | Yes | ||
| Auto OFF | Yes | ||
| Dimension | Main Unit (W x H x D) | For table top layout | 268 x 108 x 160mm |
| For wall mount layout | NA | ||
| Subwoofer (W x H x D) | NA | ||
| Weight | Main Unit | 1.4kg | |
| Colour | Black | ||
| Accessories | Remote Control | Yes | |
| Dry Batteries for Remote Control | Yes (2x AAA) | ||
| AC Cord | NA | ||
| Wall Mount Bracket | NA | ||
| IR System Cable | NA | ||
| Operating Instruction | Yes | ||
| Quick Setting Guide | NA | ||
