Descriptions:

This product is a 1-channel relay module board, which is 5V active low. The Relay Module receives the infrared remote control signal of two keys, and output thought the 1 channel 5V Relay after decoded by the MCU. And the load of the Relay are 250VAC-10A、125VAC-10A、30VDC-10A、28VDC-10A, which can drive the most of household appliances or other devices to achieve the ability of control these devices.

Features:

This relay module is 5V active low, comes with a remote controllers.
The 1 channel 5V Relay Module is level triggered, and suitable for IO port output.
It is a 1-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.
It is also able to control various appliances and other equipments with large current.
The output contact rating: 250VAC-10A、125VAC-10A、30VDC-10A、28VDC-10A, which can drive the most of household appliances or industrial control.
Standard interface can be directly connected with microcontrollers.
With the LED indicator light (For Connection, disconnection).
The Relay has normally closed contact and normally open contact.
With the relay coil absorber diode protection.
Active-low signal input, VCC, GND power supply input terminal.
Adopts the opto-isolator, safe and reliable, high anti-interference.
With compact portable design for easy carry.
Applications: Support all MCU control, industrial circle, PLC control, household appliances control, smart home control, etc.


Specifications:

Working voltage: 5V
Control distance: 8m

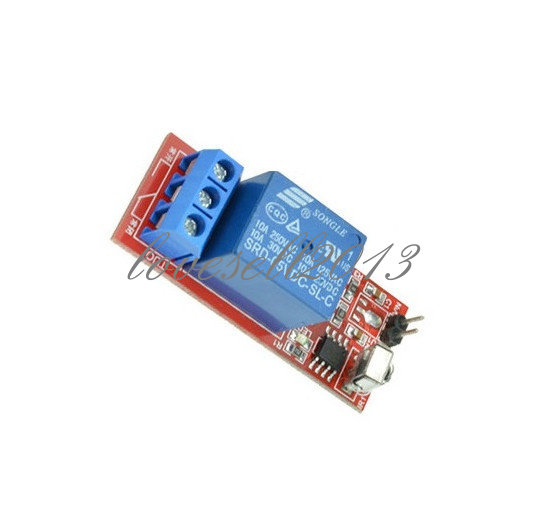

The Relay Board has the 3mm screw holes for easy installation.
Relay Module interfaces: VIN + Positive pole 5V, GND Negative electrode; the middle port of the three ports is Community port, the other two ports are normally open port and normal close port (the front end circuit of the relay output and input is insulative).

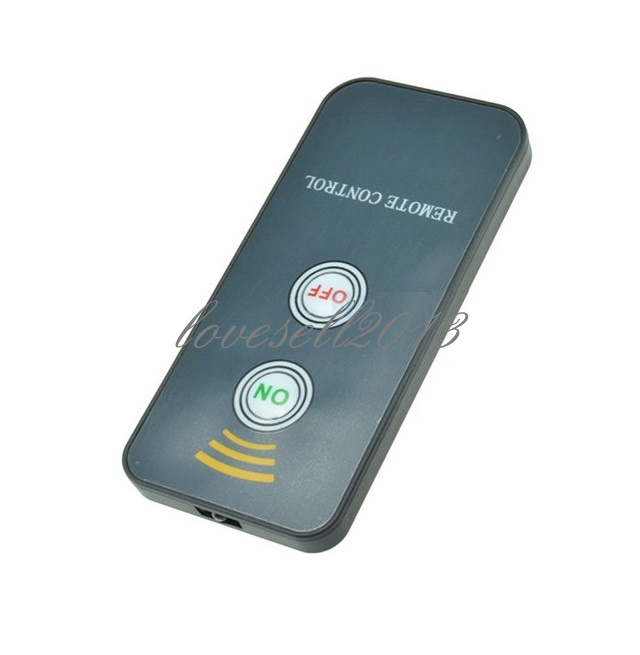

Color: Blue (Relay Module), Black (Remote Controller)
Main item size: 5.0 * 2.0 * 1.8cm / 1.97 * 0.79 / 0.28in (Relay Module), 8.5 * 4.0 * 0.7cm / 3.35 * 1.57 * 0.28in (Remote Controller)
Main item weight: 15g / 0.53oz (Relay Module); 14g / 0.5oz (Remote Controller)
Package size: 11.5 * 7.5 * 3.0cm / 4.53 * 2.95 * 1.18in
Package weight: 33g / 1.17oz



Package Included:

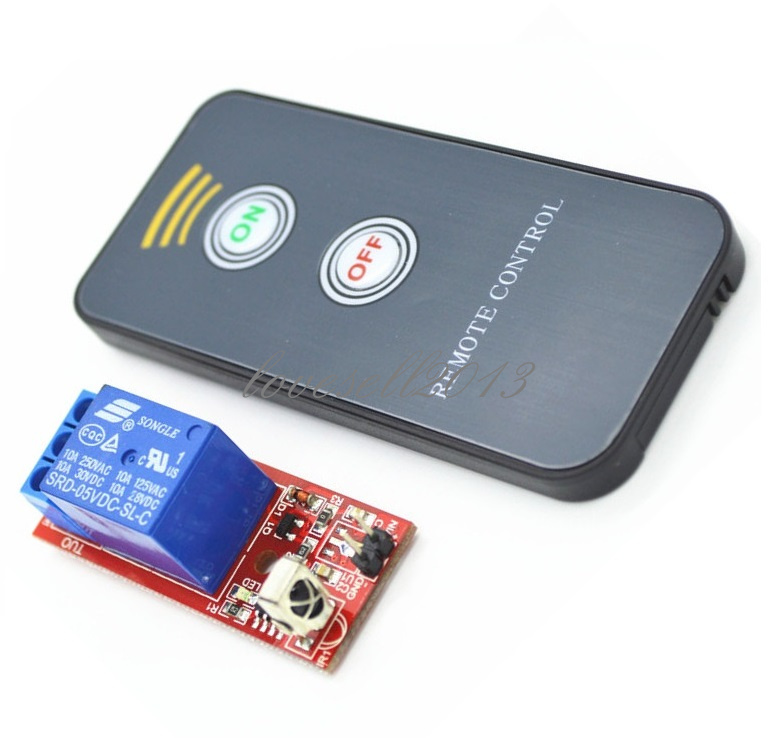

1 x 1 Channel Infrared Switch Relay Driving Module Board 5V Active Remote Controller
