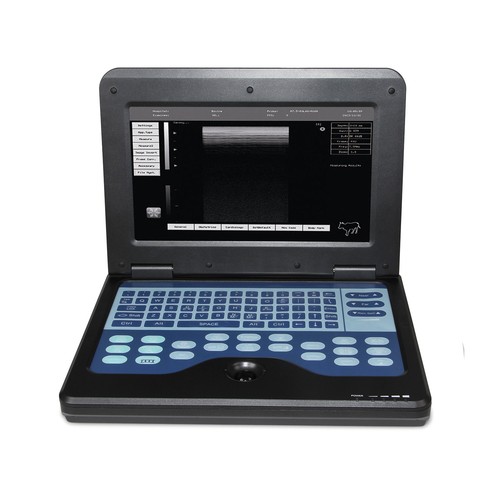

CONTEC cms600p2vet ultasound machine with convex and linear probes
1.Introduction
CMS600P2VET is a notebook veterinary B-ultrasound diagnostic system. Its embedded operation system greatly improves the product performance, achieving stronger data process ability and fast process speed. Pop-up menu and keyboard design bring more convenient to users. The device is applicable to the measurement and calculation of the obstetric for swine, bovine, sheep, equine, cat, dog and other animals.
2.MAIN FEATURES:
- Simple and easy image management function, reports can be printed and output
- Perfect for Large animals such as swine, bovine, sheep, equine use.
- Can be connected with video printer, ink-jet printer, laser printer.
- Multi-frequency rectal linear probe(5.0/6.5/7.5/8.5/10 Mhz)The center frequency is 7.5MHz.
- Realizing image real-time, freeze, memory, calling up and large capacity cine loop; possessing functions such as multi-level scanning depth, dynamic range, focus number, focus distance, focus position adjusting, etc.
- Display mode: B, 2B, 4B, BM, M.
- Display depth: 0-240 mm
- Image process: controllable frame correlation, gamma correction, histogram, up and down flip, left and right flip, positive and negative image conversion.
Safety
- Focus mode: focus number and focus position can be adjusted.
- Software is updated through U-disk.
- Interface:USB,Video,VGA
3.Performance
Monitor:10.1 inch TFT LCD
Display resolution :1024*600
Focus mode: focus number and focus position can be adjusted.
Measurement and calculation: Distance, circumference, area, volume, angle, ratio and gestational age for swine, equine, bovine, sheep, dog and cat.
Character display: date, time, animal name, animal type, hospital, serial number, frame rate, depth, total gain, dynamic range, frame correlation, probe frequency, magnification times and functional menu.
Image processing: controllable frame correlation, gamma correction, histogram, up and down flip, left and right flip, positive and negative image conversion.
Safety
Type of protection against electric shock: class Ⅱ equipment
Degree of protection against electric shock: type BF applied part
Operational voltage: DC15V, 4A
Power consumption: ≤45 VA
Interface:USB,Video,VGA
4.YOUR ULTRASOUND KIT INCLUDE:
Ultrasound scanner with 10.1 inch LCD display.
3.5 MHz convex probe
7.5MHz Linear Probe
Rechargeable Li-lon battery.
Power adapter
Power cord
Screwdriver
Carrying bag
5.Physical characteristic
Dimension: 292 mm(L)×232 mm(W)×45 mm(H)
Weight: about 2.3 kg (with probe)
6.Optional configuration：
Multi-frequency micro convex probe (2.0/ 2.5/3.5/4.0/5.0 MHz.) The center frequency is 3.5Mhz. Mainly applied to the in vitro diagnosis of small animals,such as dog,cat.
Multi-frequency 7.5MHz rectal probe (A7.5-80L40-A16A Mainly applied to the in vivo diagnosis of large animals)
Puncture frame —— The puncture frame is installed on the probe, realizing cytology biopsy, histology biopsy, cyst aspiration and treatment by using puncture needle.
Video printer, ink-jet printer, laser printer —— Printing of reports and images.
Cart —— It can carry the B-ultrasound device for convenient movement.
