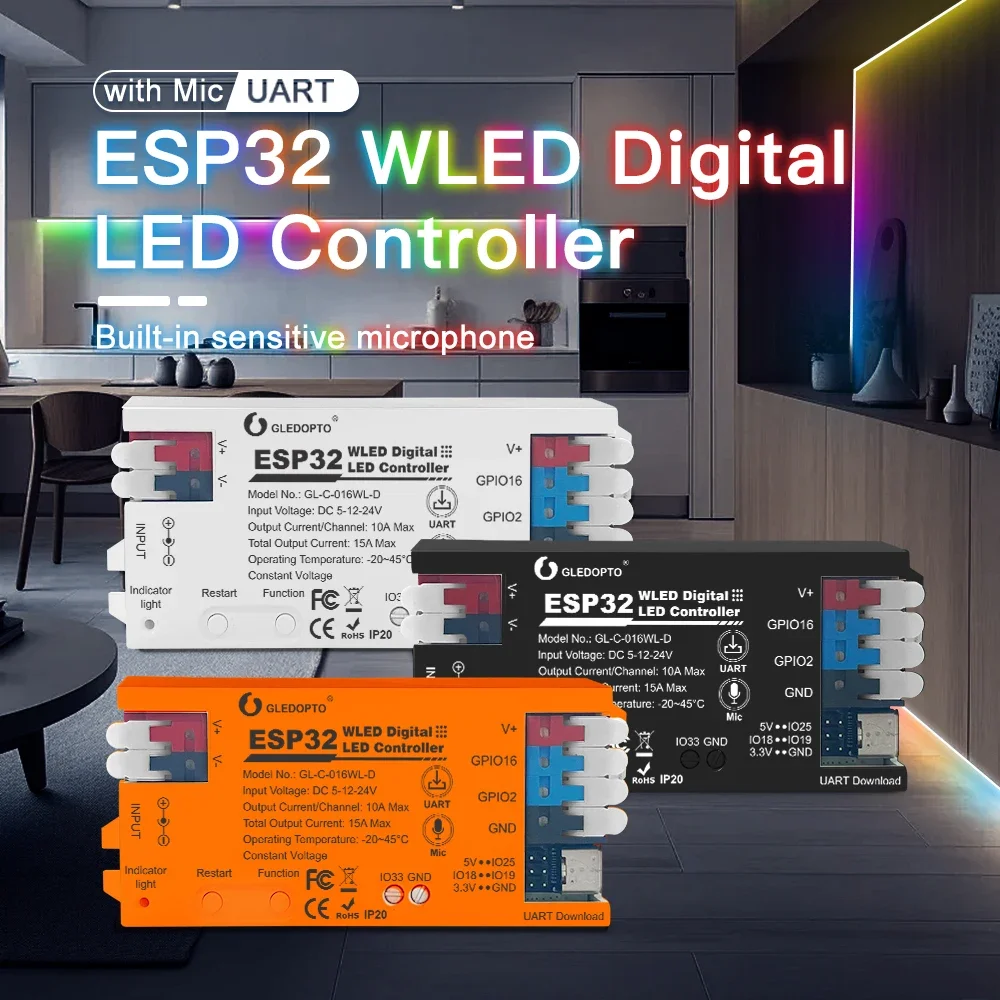

1PCS Gledopto ESP32 ESP8266 WLED Controller LED App Dynamic Lighting DIY USB Type-C Digital Download PWM 5 IN 1 / Relay Switch / Pixel WS2811 WS2812 WS2815 SK6812 RGB IC LED Strip For Mic UART
ATTENTION:
The chip of this controller is ESP32 ESP 8266. Carefully confirm the chip version information of the firmware before updating. Incorrect firmware updates will cause damage to the product.
Features:

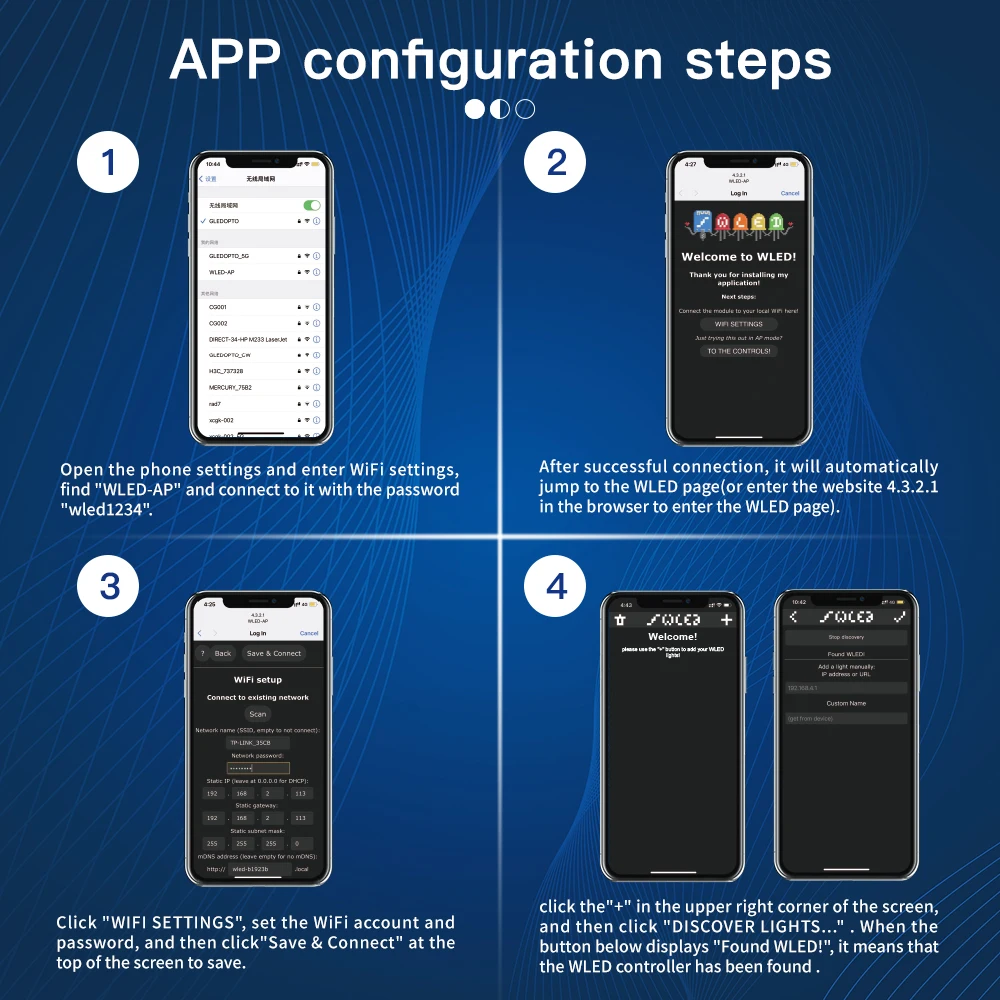

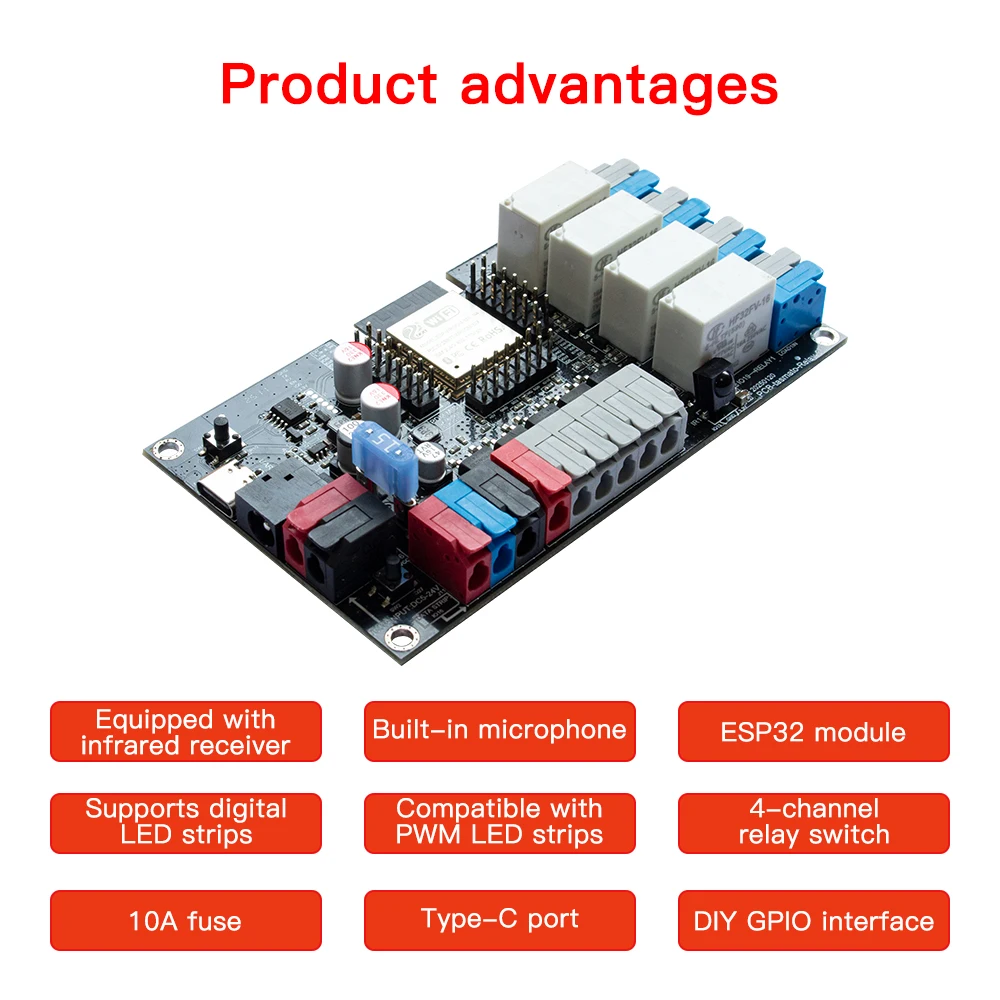

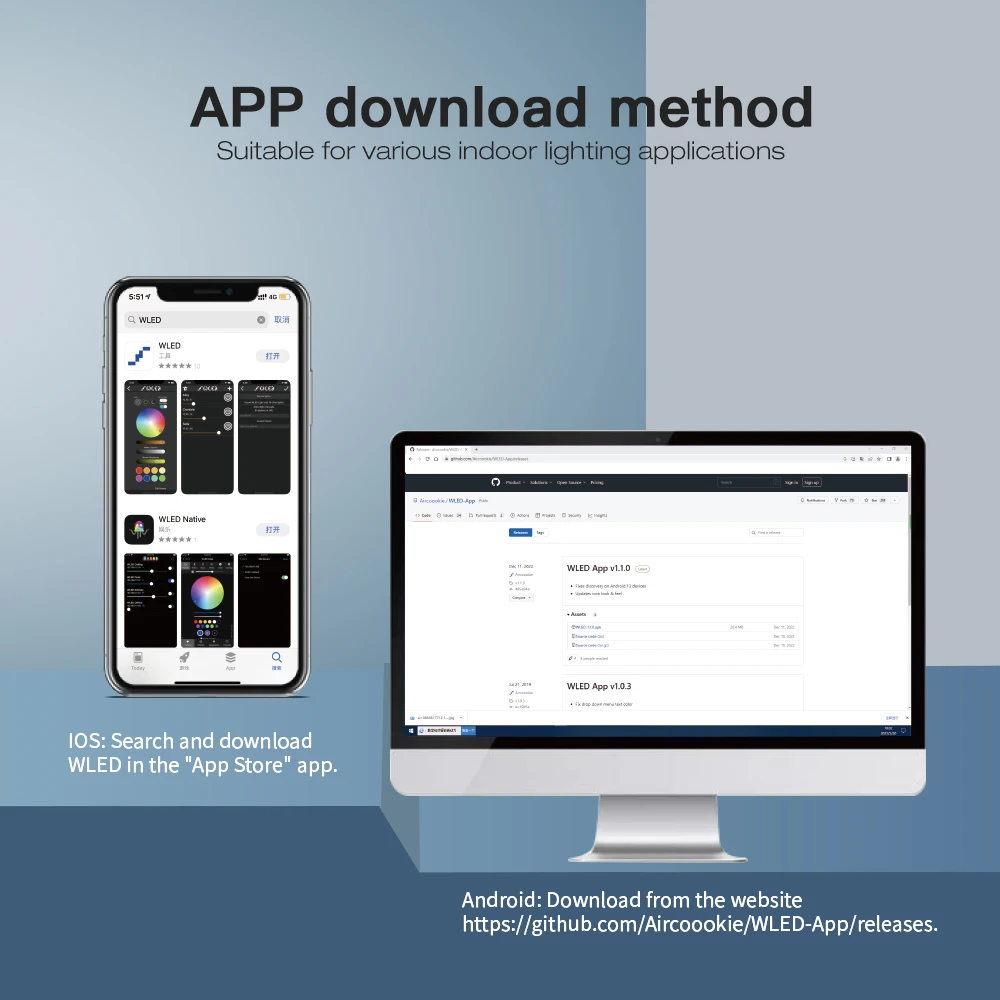

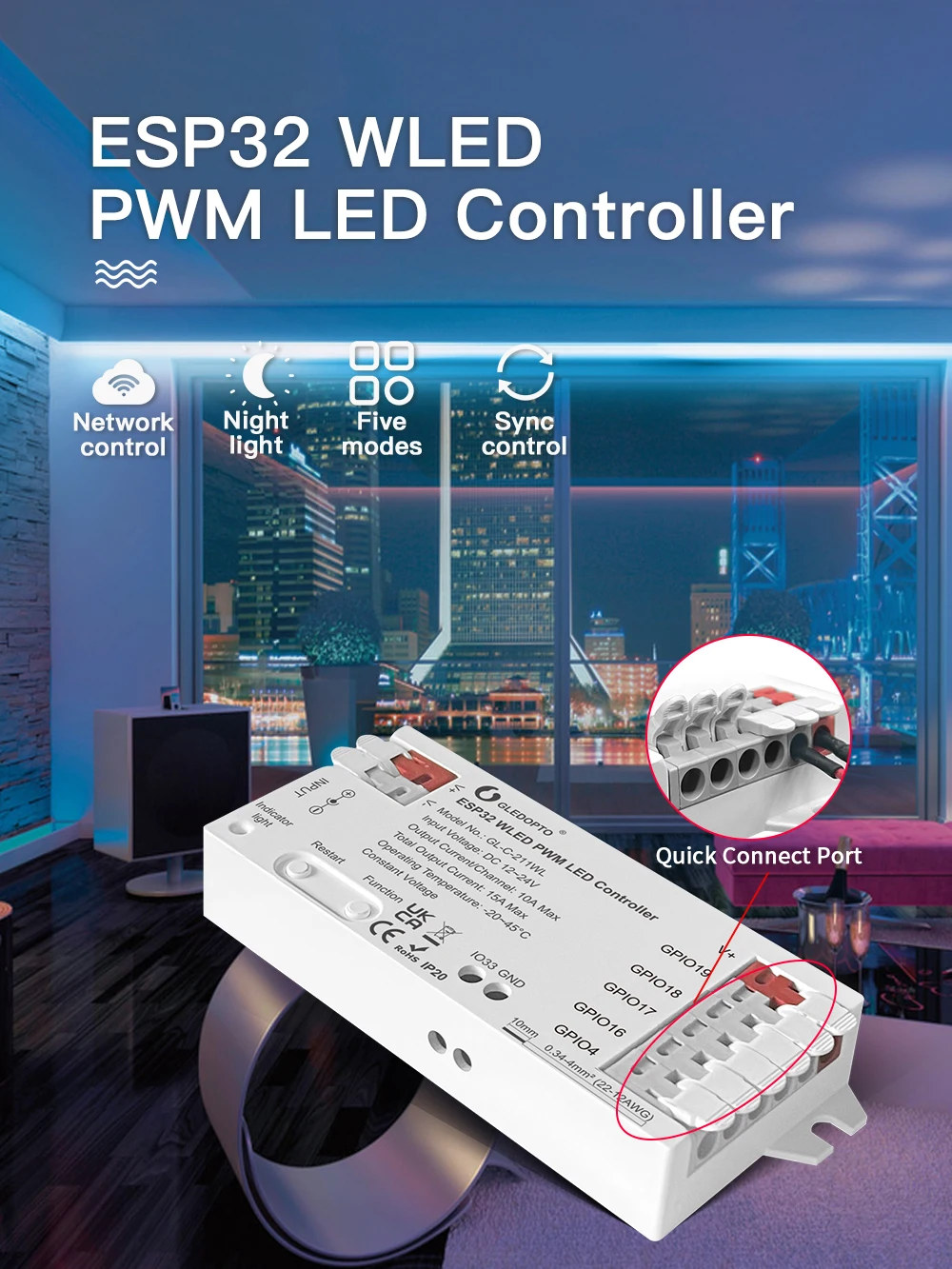

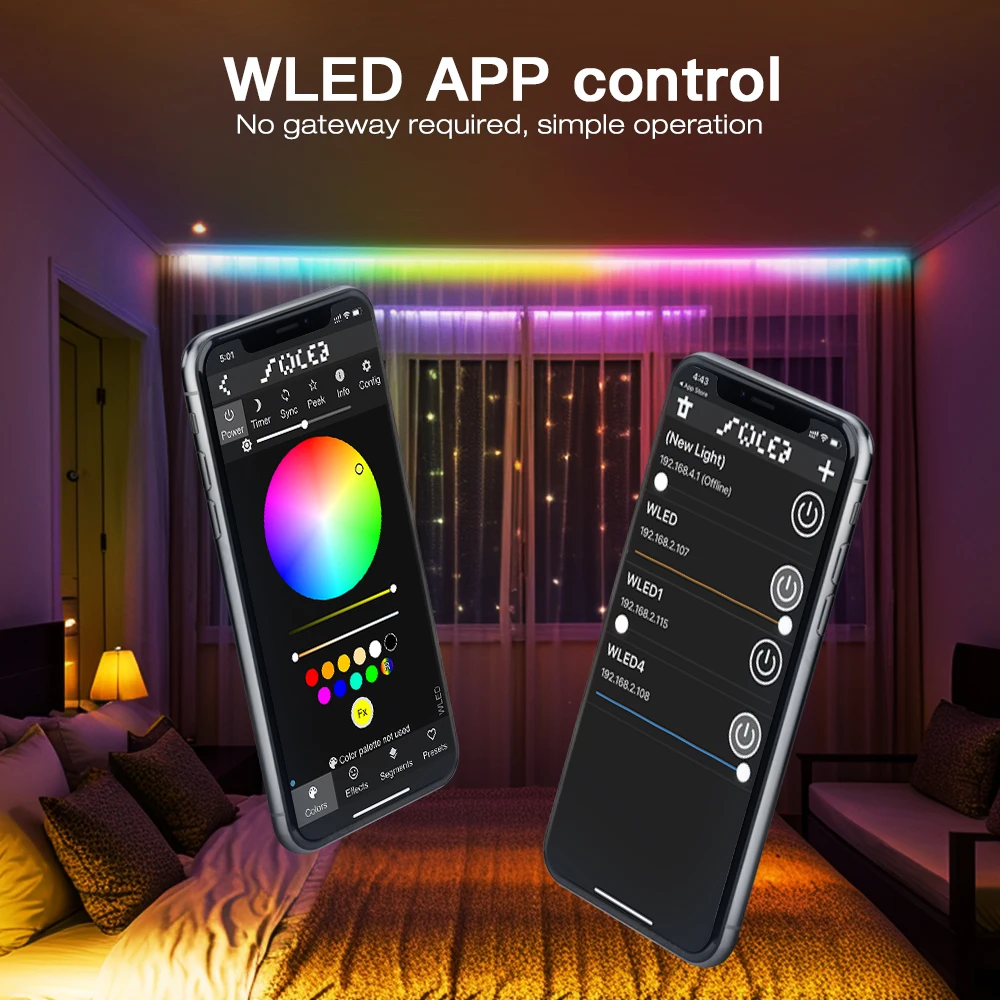

Powerful ESP32 Chip, Smooth Operation: Equipped with a high-performance ESP32 chip, this state-of-the-art LED strip controller ensures perfect functionality. It easily connects to the WLED app via Wi-Fi, bypassing the need for a gateway, offering intuitive intelligent control and a hassle-free user experience.

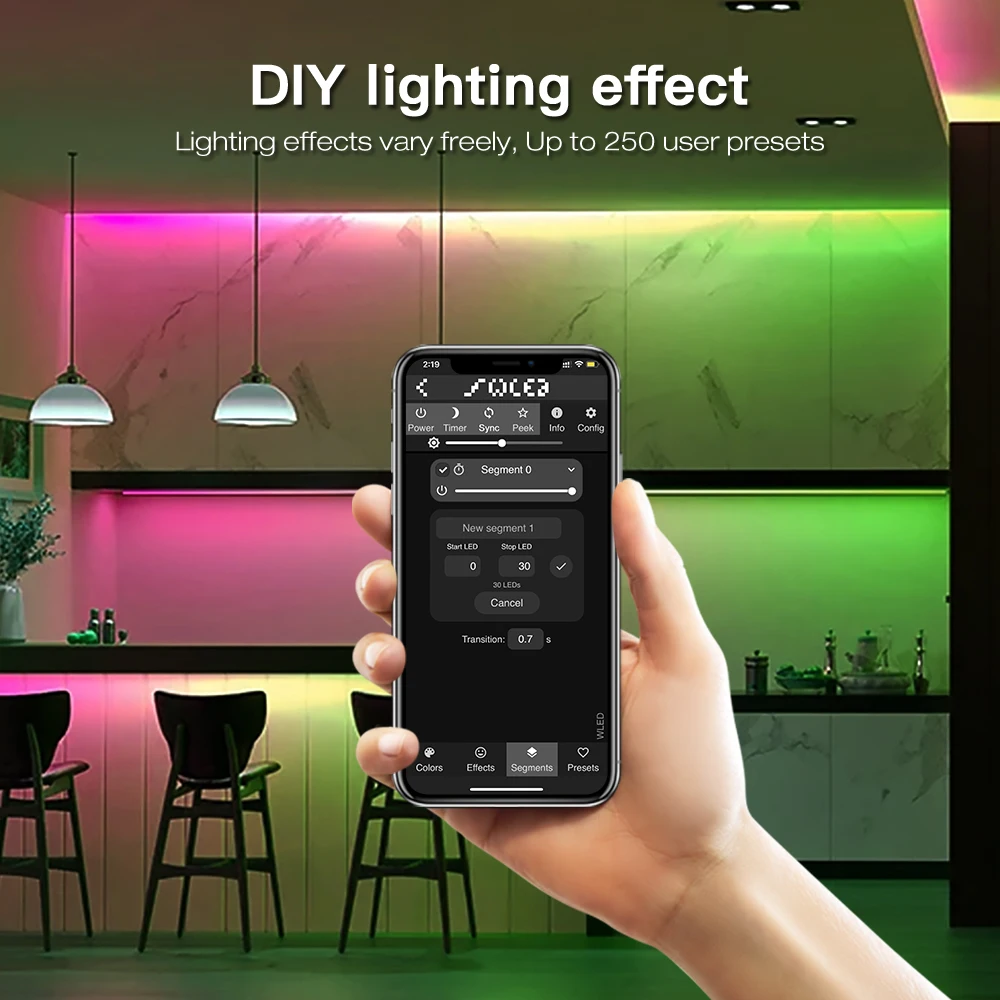

DIY Dynamic Modes, Instant Ambience: Featuring over 100 preloaded dynamic modes, this controller allows you to easily transform any space - whether you're seeking a cozy, romantic vibe or a lively, energetic atmosphere. A single click brings your creative lighting ideas to life, adding a magical touch to your daily routine.

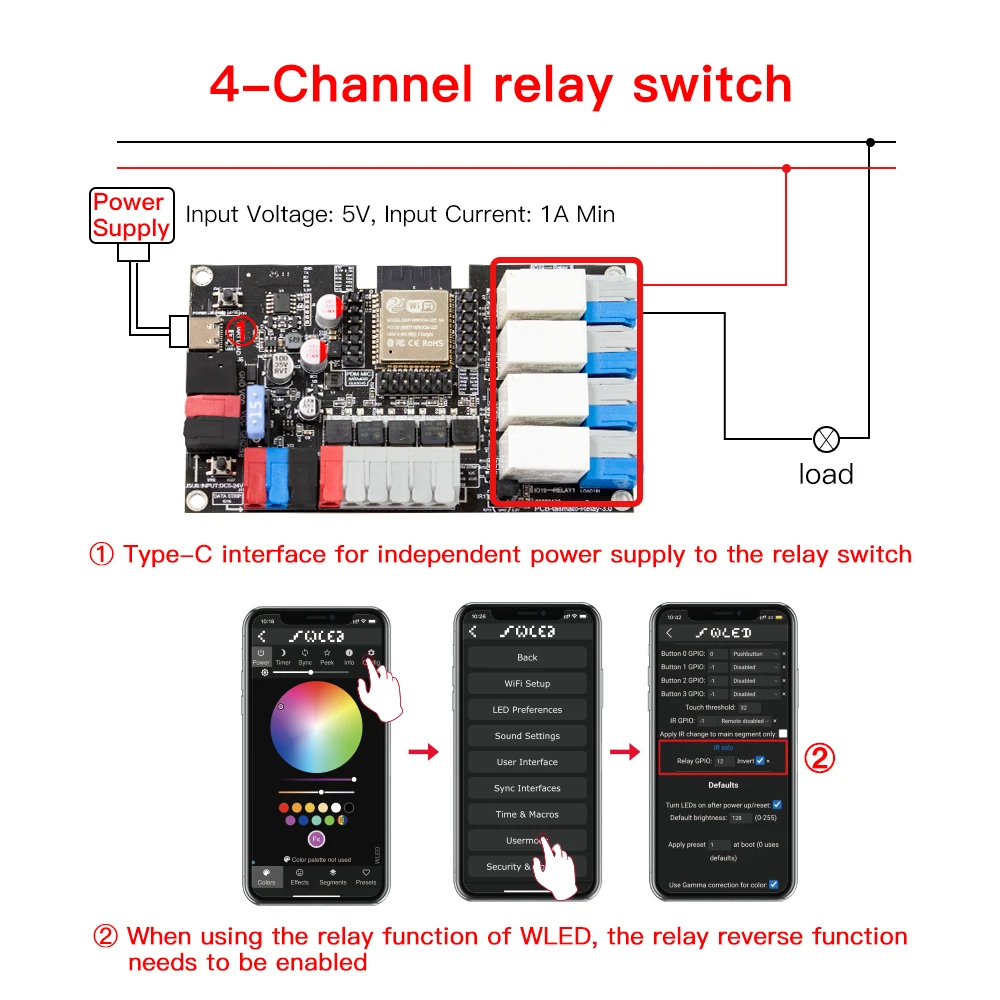

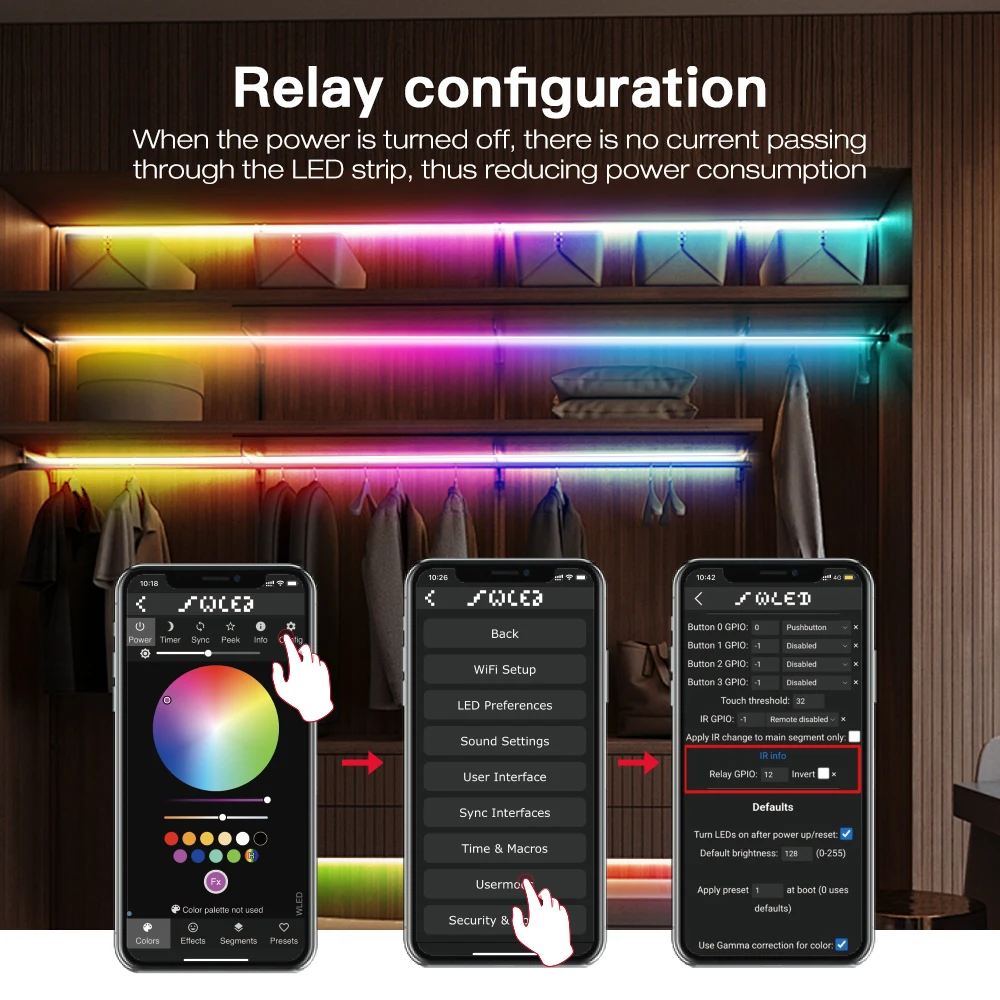

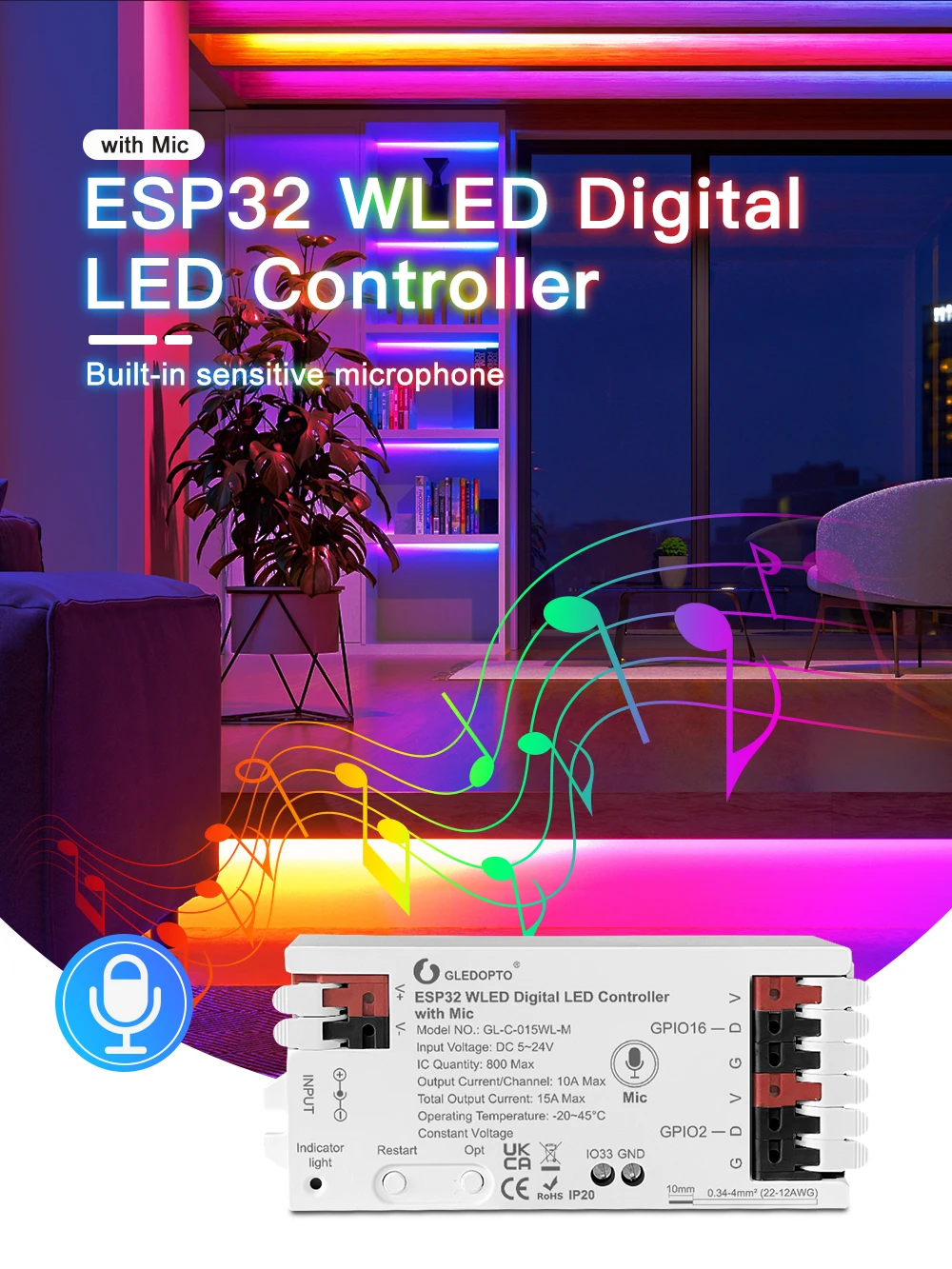

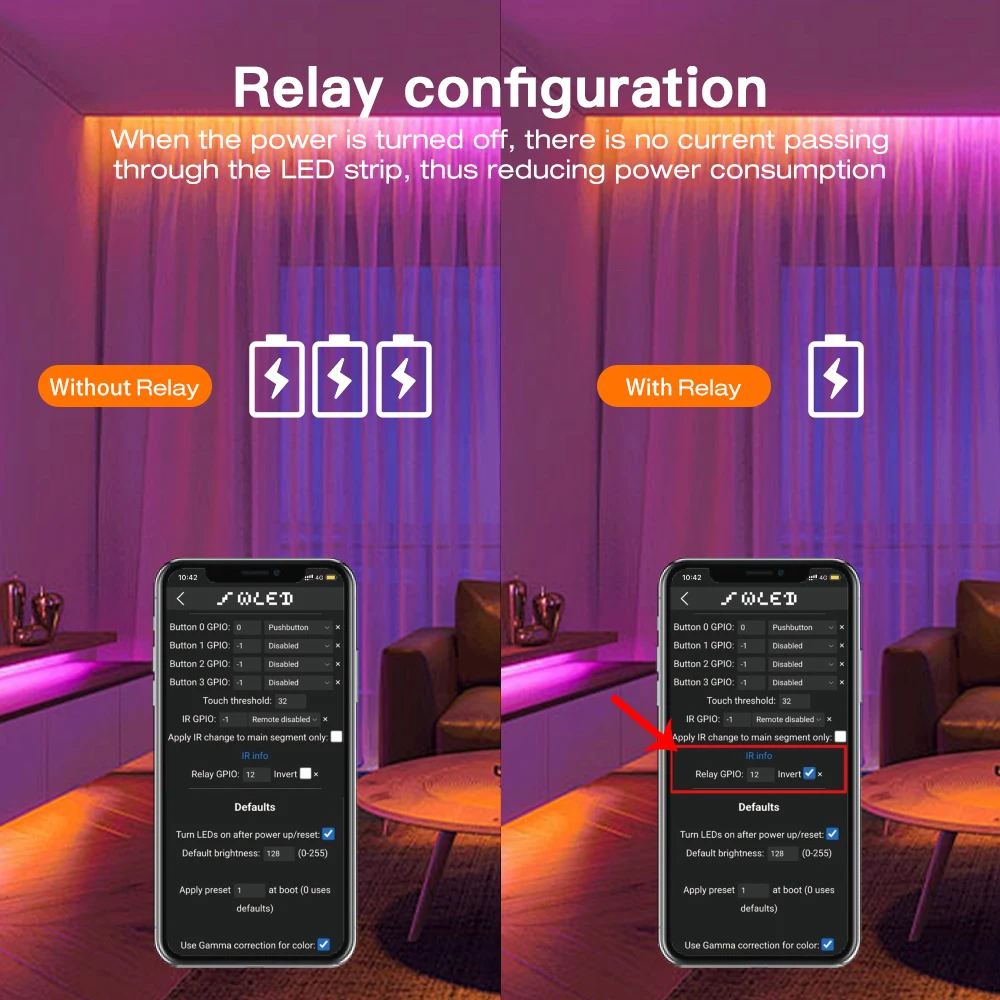

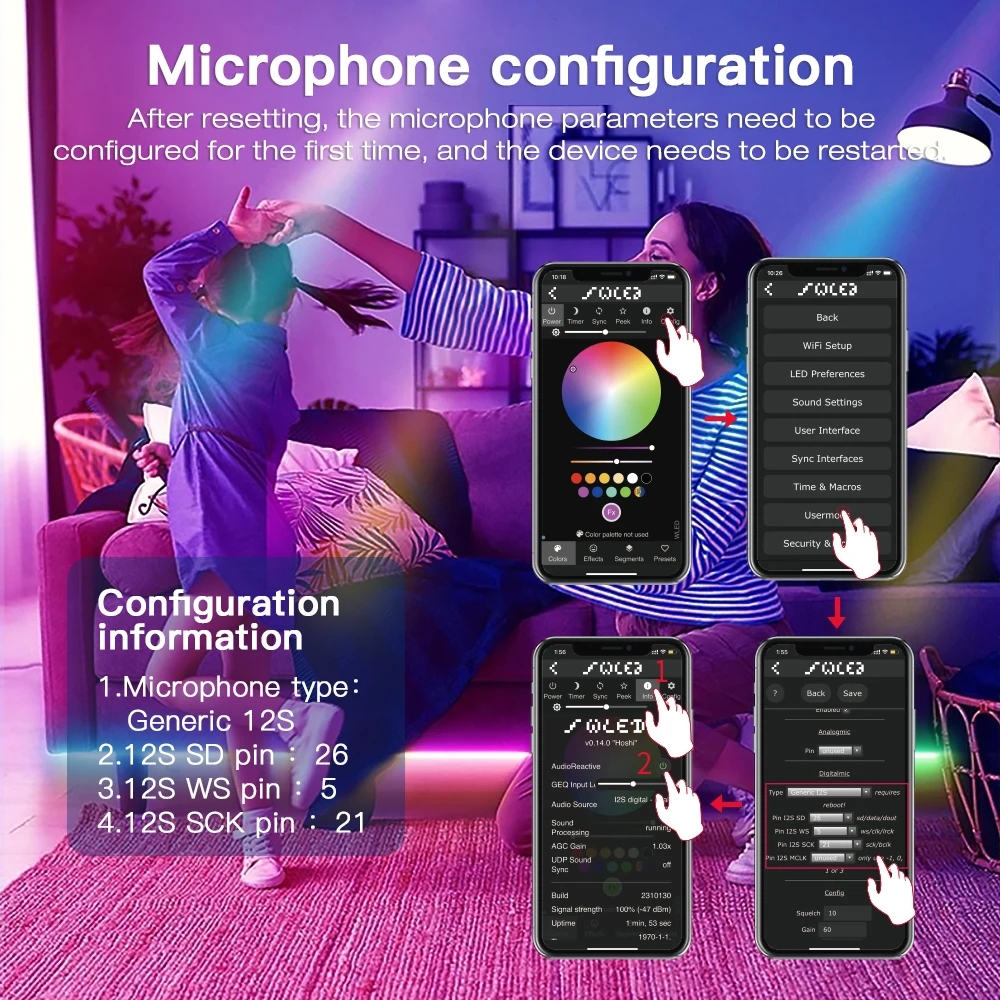

Built-in microphone, eco-friendly design: The built-in microphone synchronizes your lights with musical rhythms, creating a captivating audio-visual experience. Compatible with the WLED remote control, it also includes a built-in relay to minimize standby power consumption, making it energy efficient and environmentally friendly.

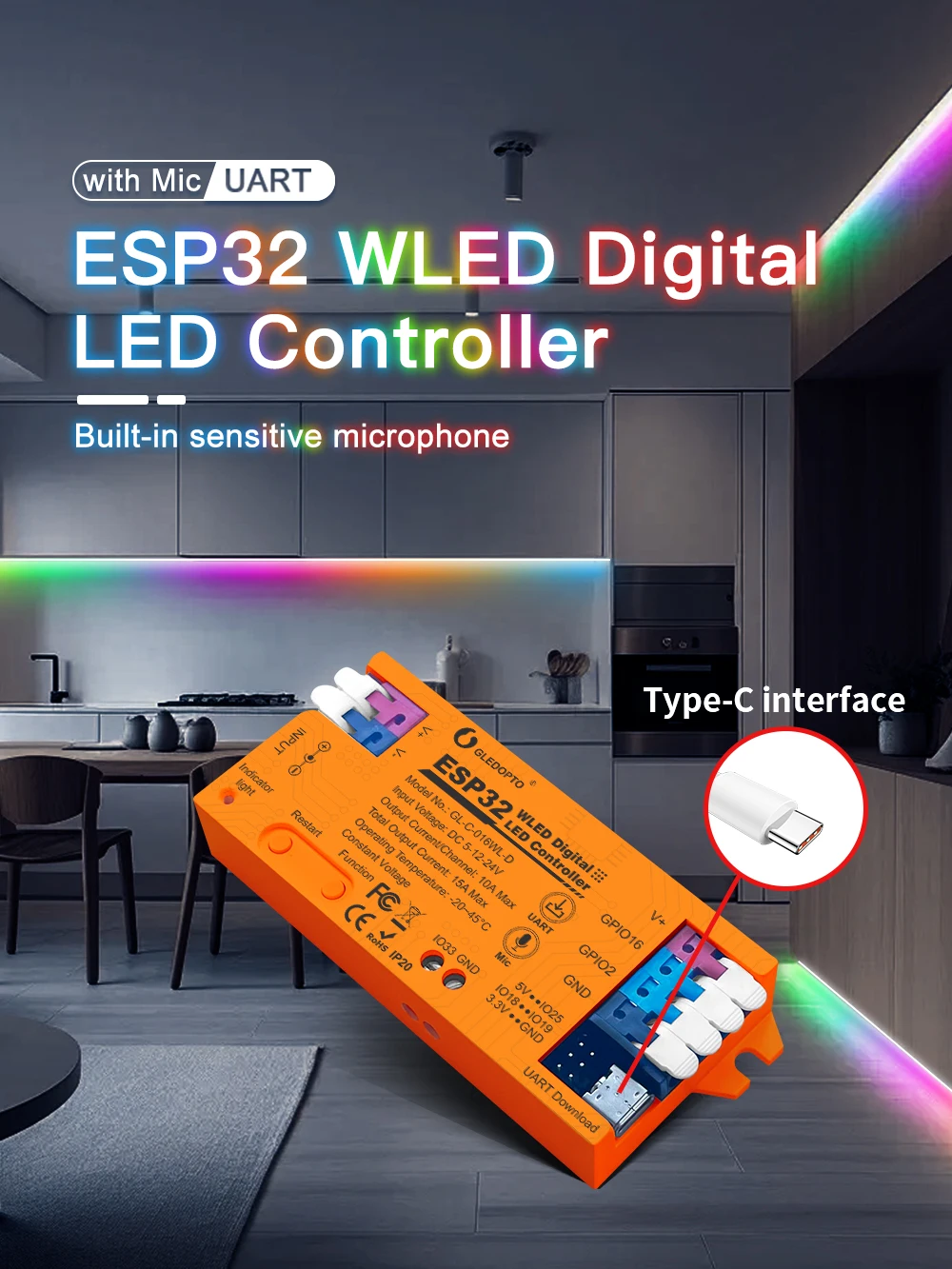

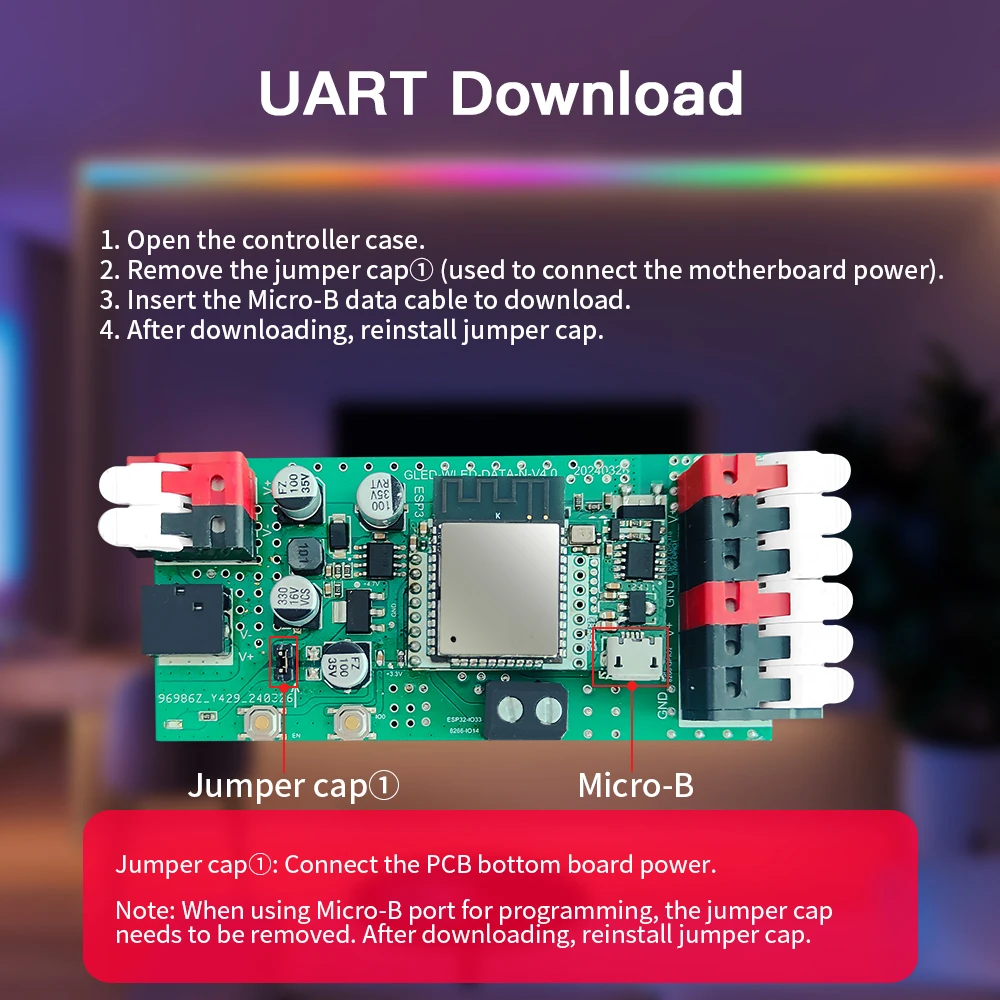

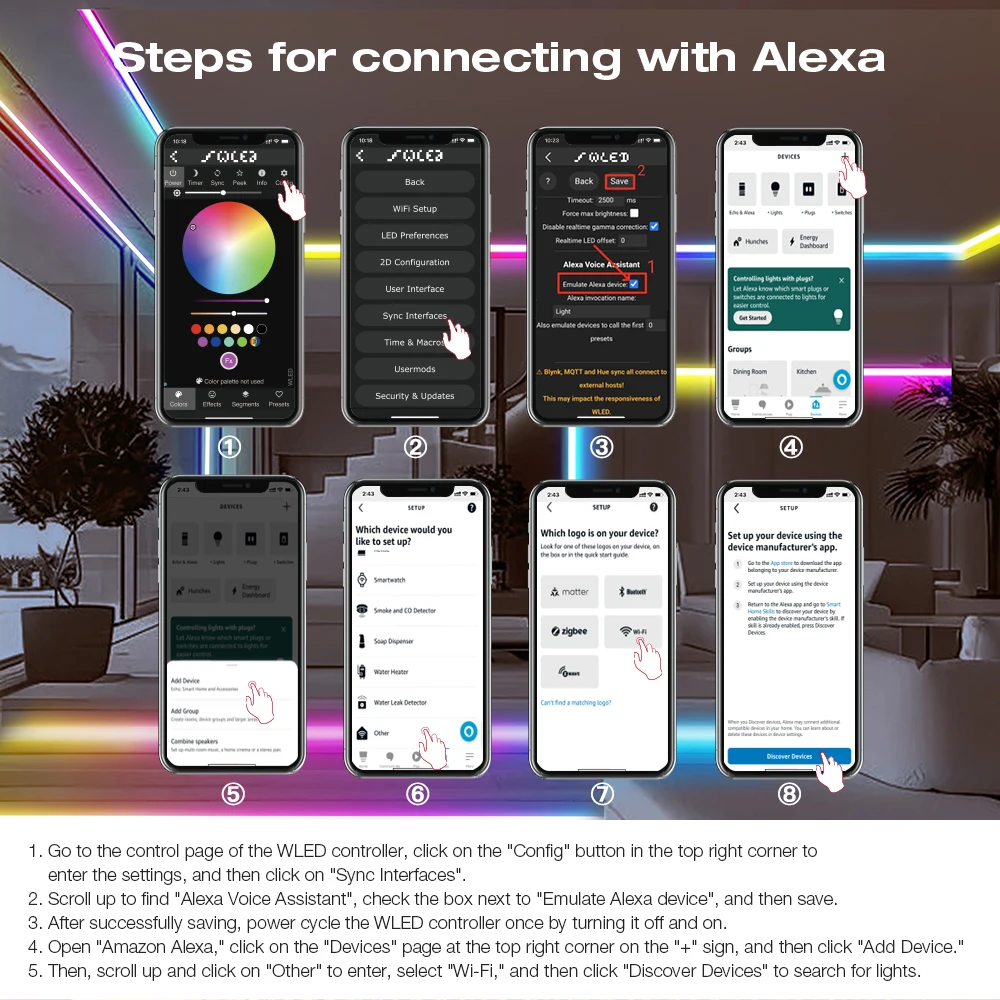

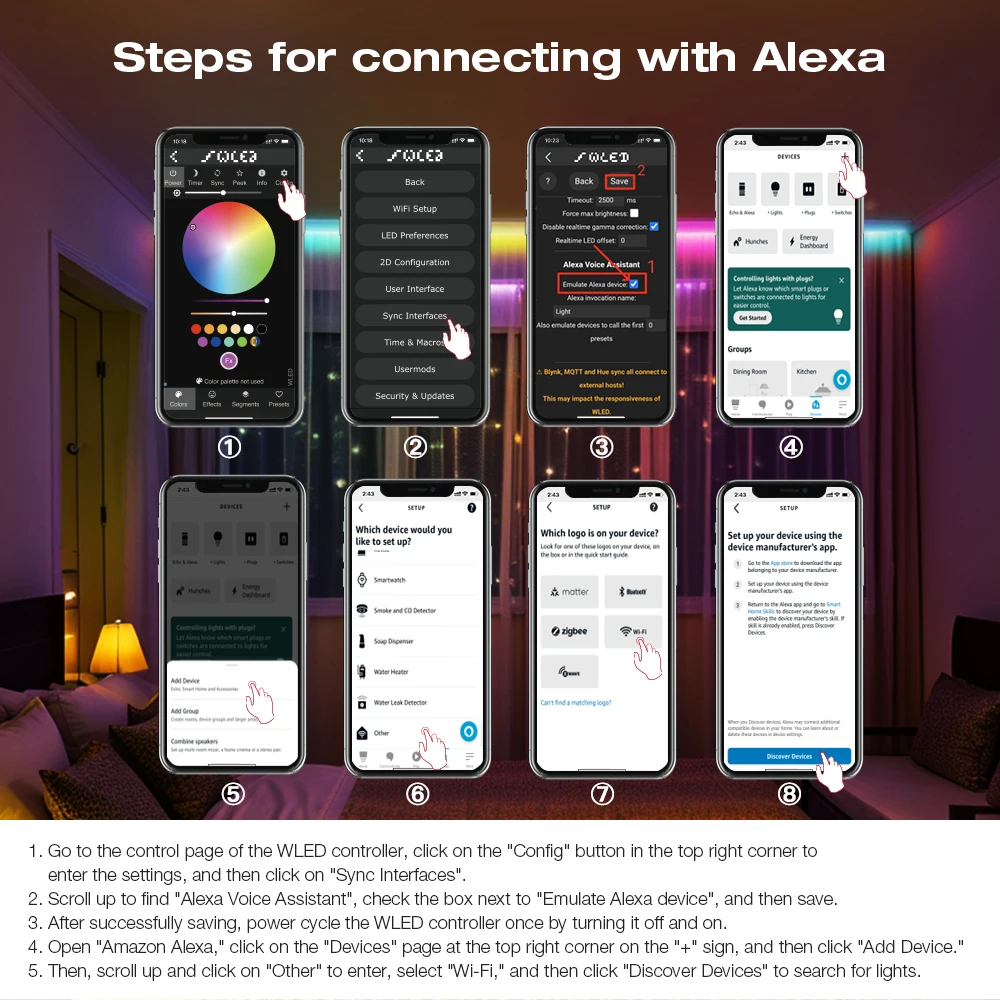

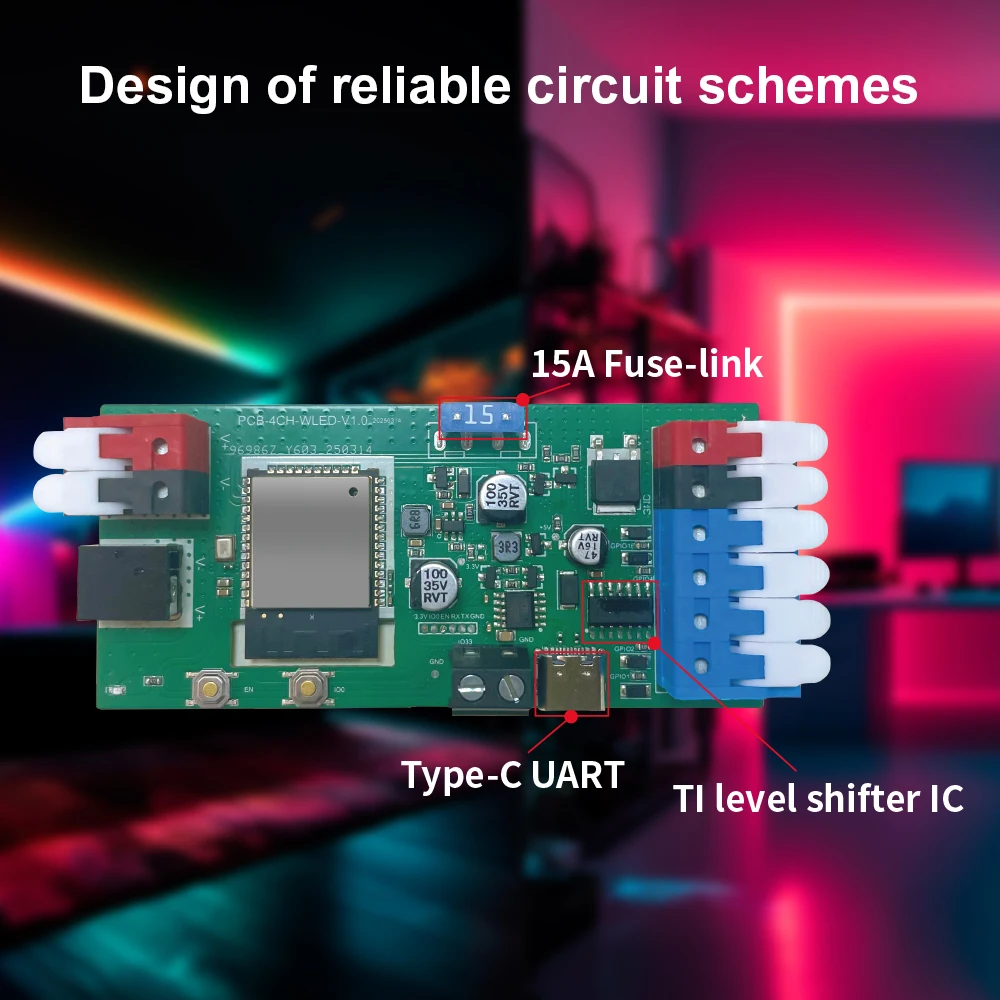

Easy Updates, Smart Integration: The updated exposed Type-C UART interface simplifies firmware updates. It's fully compatible with Alexa, seamlessly integrating with your smart home setup and enhancing your connected lifestyle.

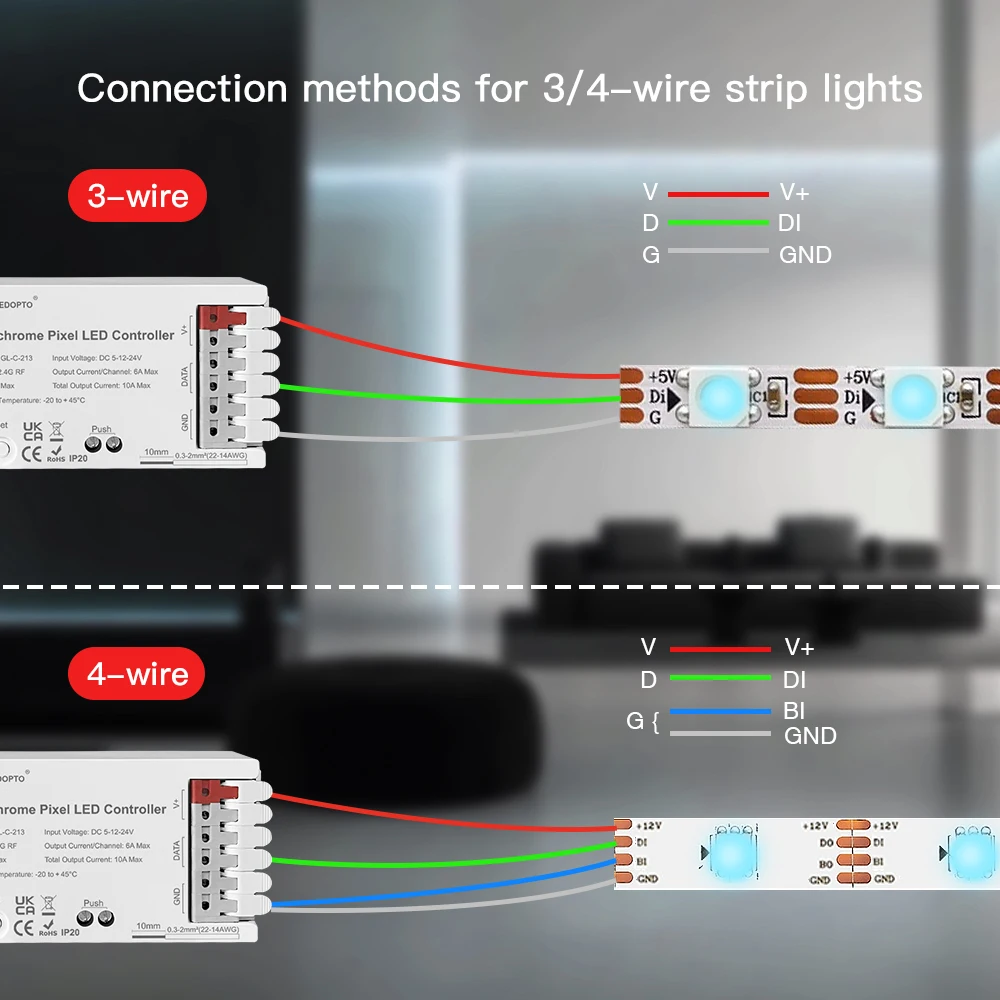

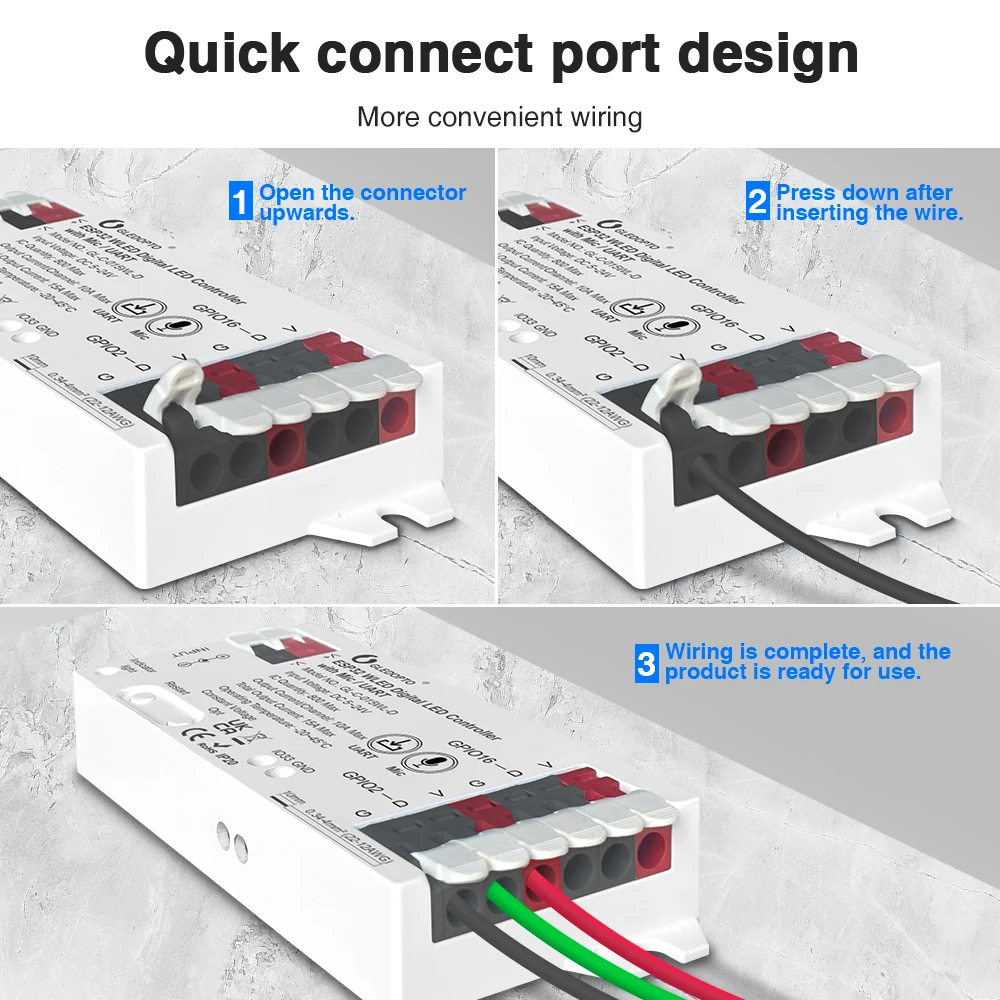

Quick Installation, Unlimited Creativity: Enhanced terminal blocks make installation faster and eficiente.Com multiple DIY ports, it is highly compatible with addressable LED strips such as WS2811, WS2812, and SK6812, allowing you to connect a variety of DIY devices and unleash your creativity with endless possibilities.
Questions and answers or more information, please contact us online and we will reply you in time.

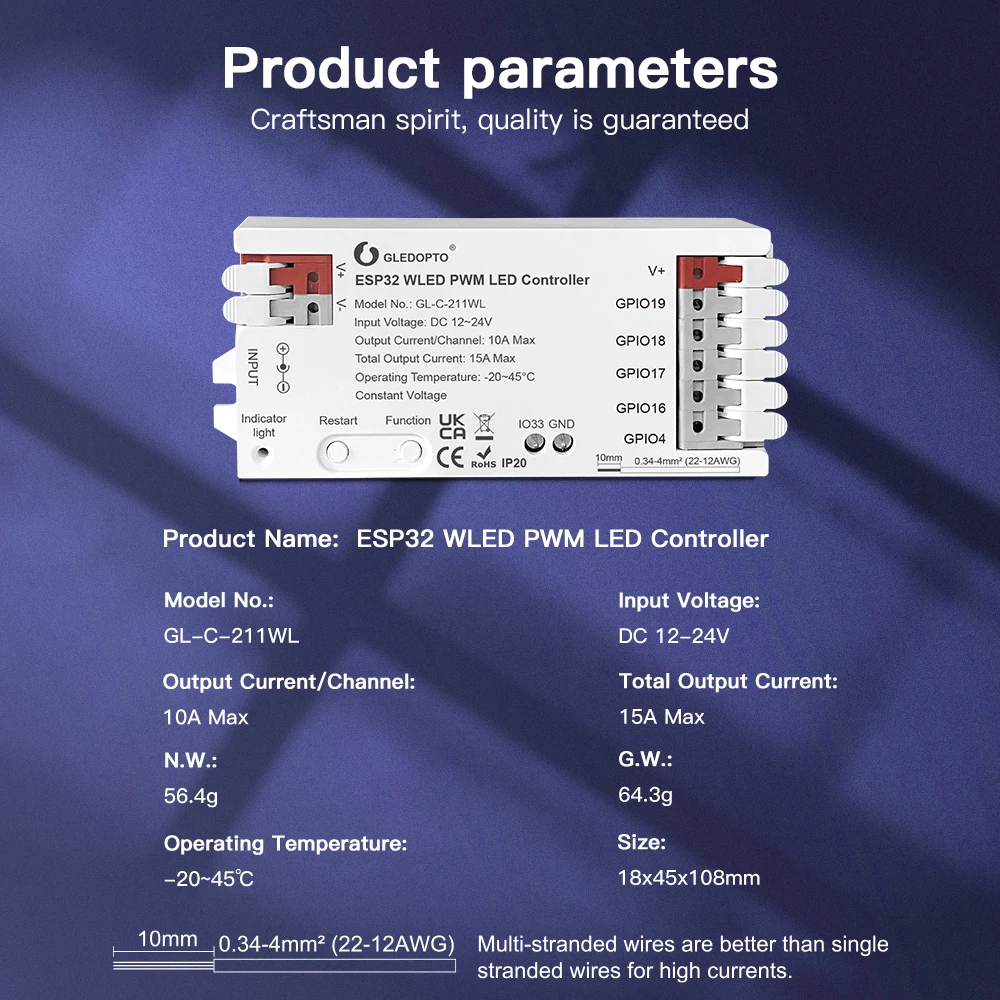

Product model:

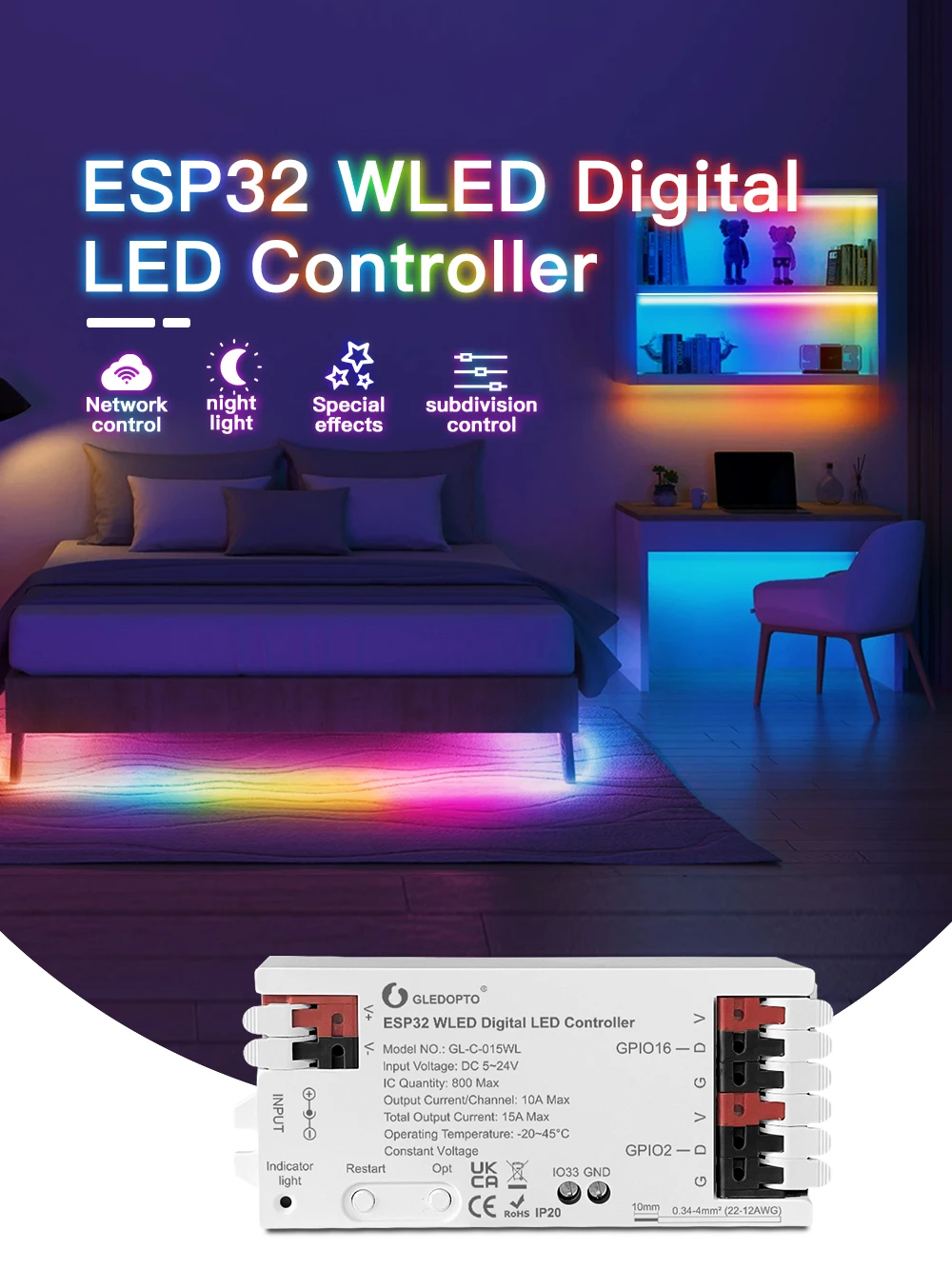

Product Name: ESP32 ESP8266 WLED Strip Light Controller with Microphone and UART

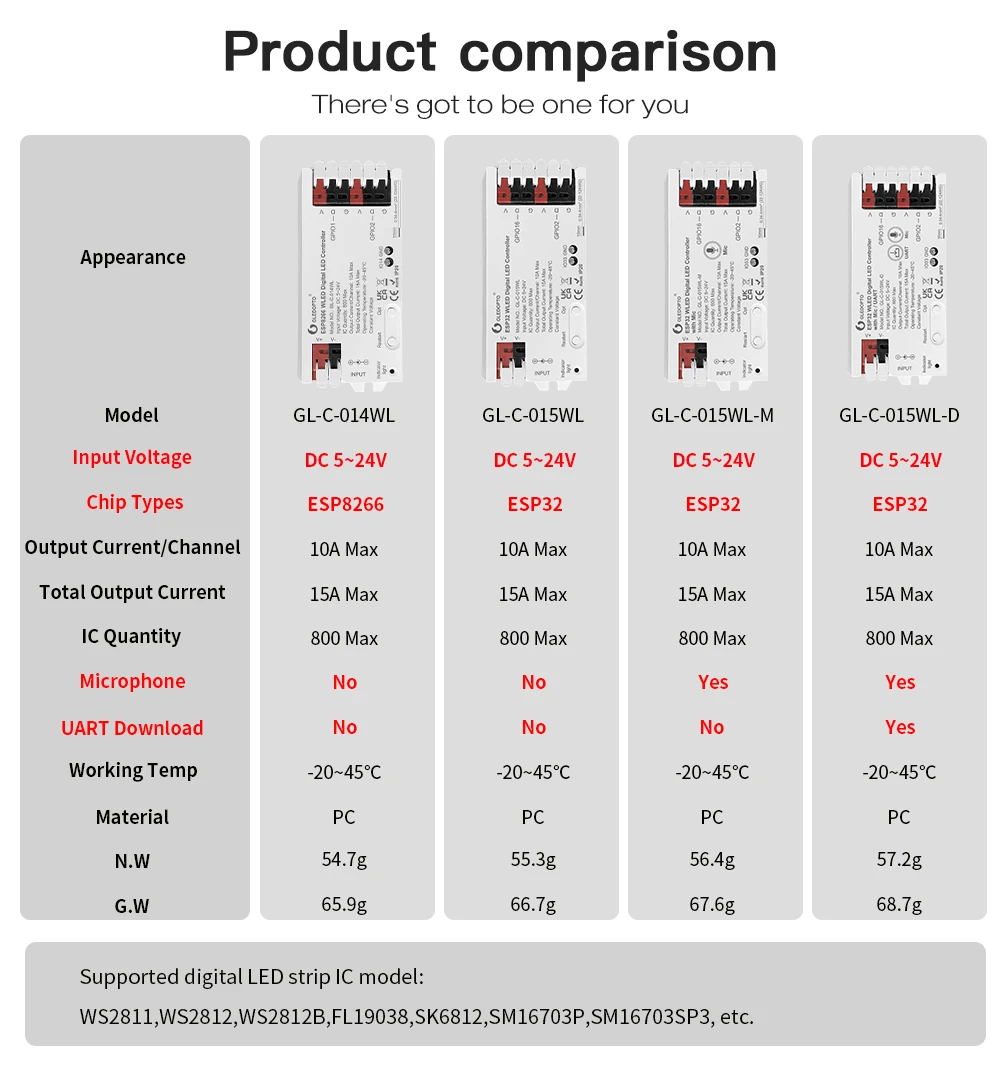

Model No.:GL-C-014WL / 015WL / 015WL-M / 015WL-D / 016WL-D / 017WL-D / 211WL / 001DM / 213

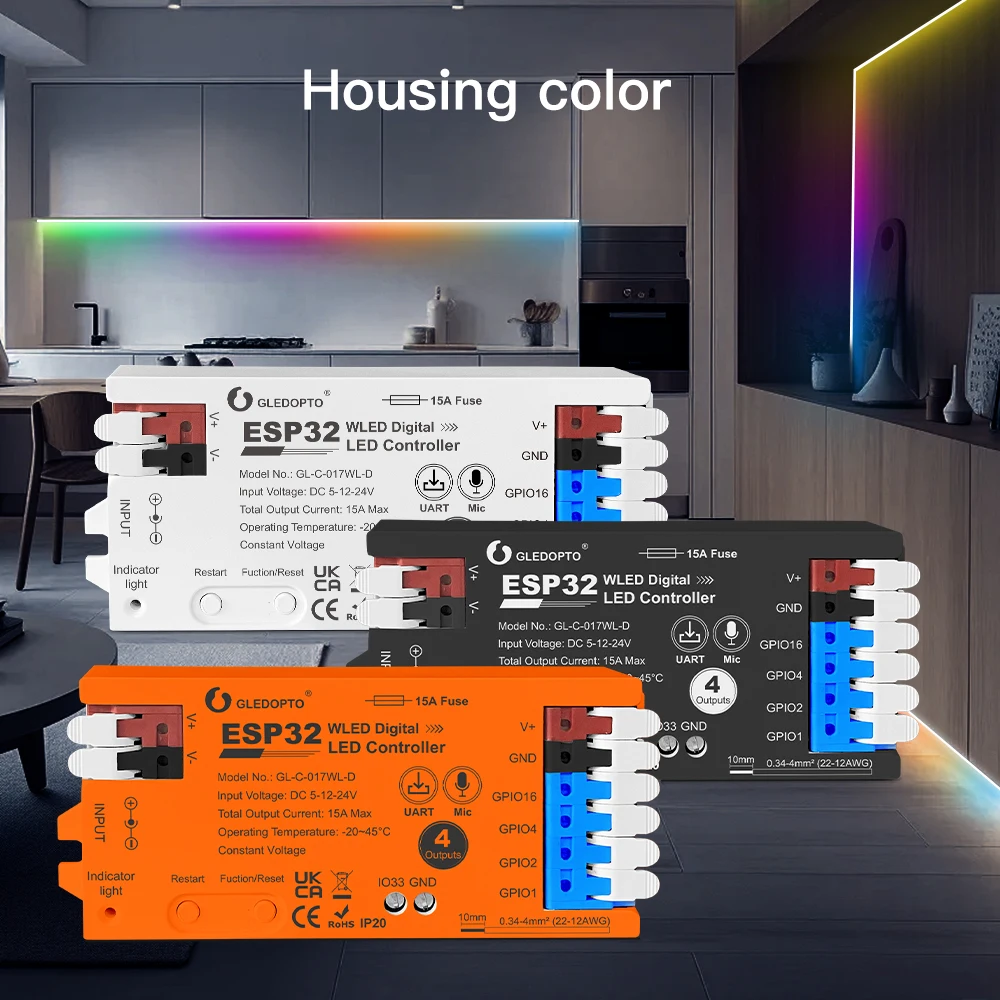

Color: Orange/White/Black
Voltage: DC 5-24V
IC Quantity: 800 Max.
Total current: 15A max.
Size: 108*45*18mm
Operating Temperature: -20-45°C

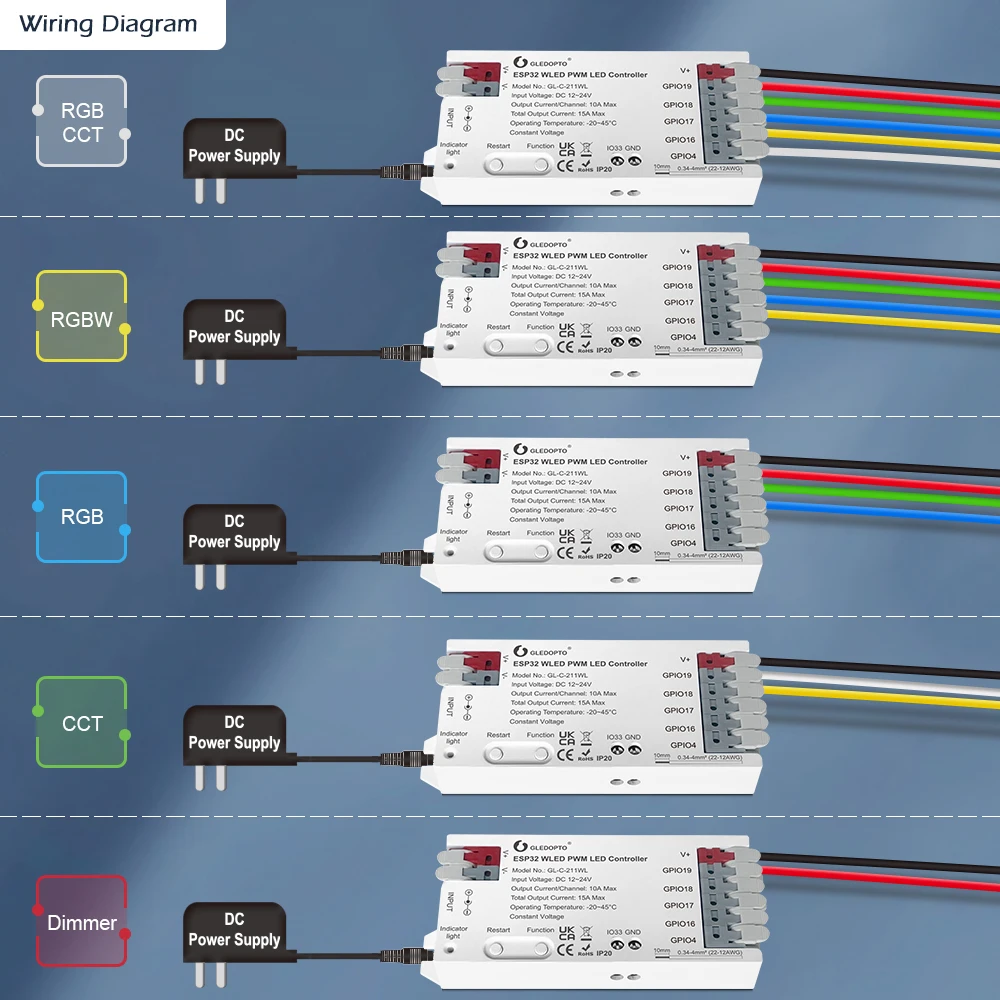

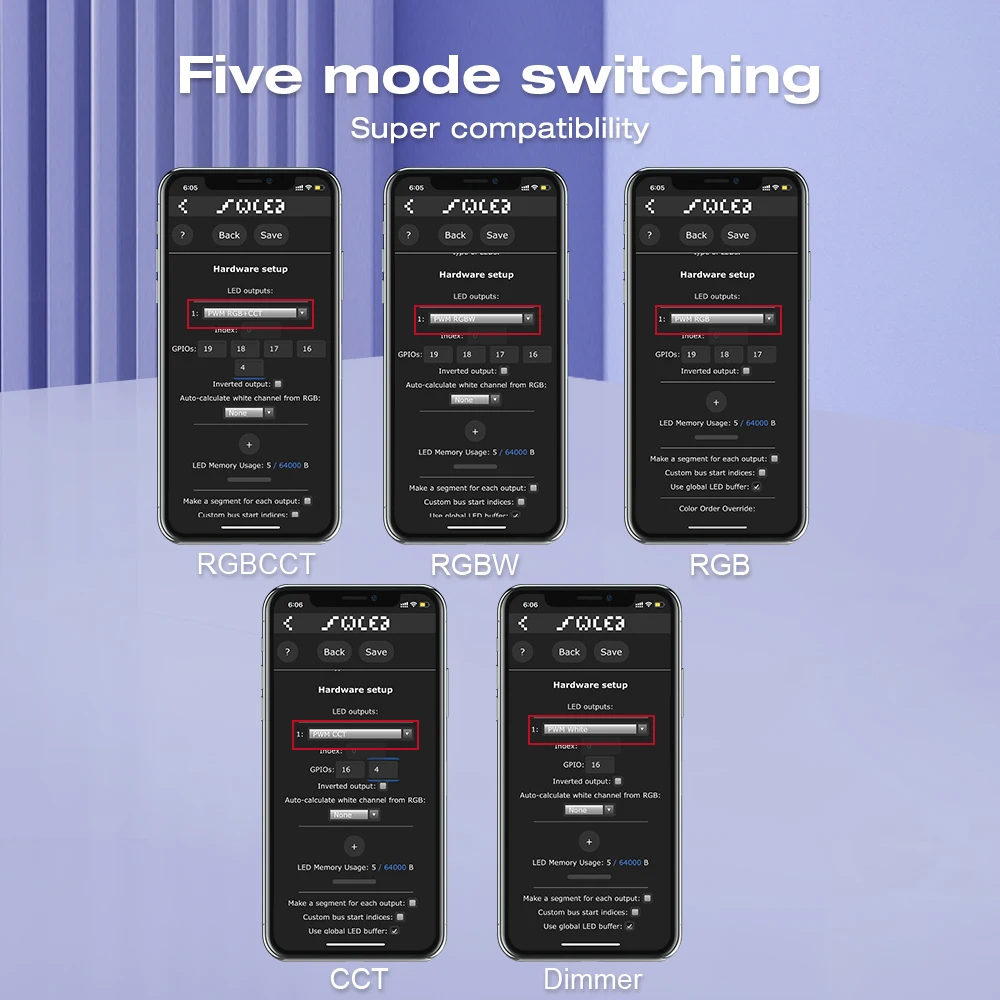

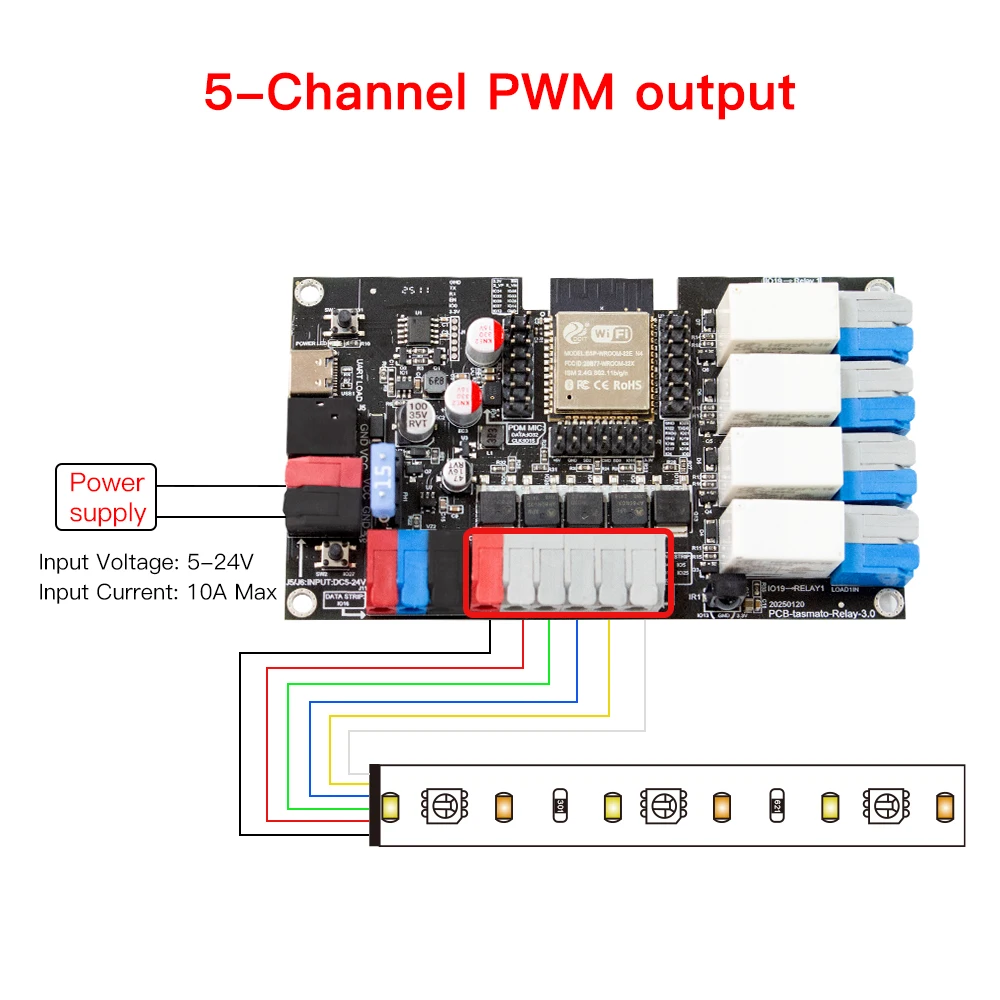

Supported Range: PWM 5 IN 1 / Pixel WS2811, SK6812, SM16703P, WS2812, etc. / Relay Switch
Attention:
1. Check if the input voltage of the constant voltage power supply agrees with the controller, and check the connection of both cathode and anode.
2. The Working voltage is DC5~24V, the controller will break if the voltage is higher than 24V.
3. The non-professional user cannot disassemble the controller directly, otherwise it may cause fire and electric shock.
4. The working temperature is -20~60°C.Do not use the device for direct sunlight, humidity and other areas of high temperature.
5. Do not use a controller around the metal area and high magnetic field, otherwise it will adversely affect the control distance.
6. When the 15A device loads a, the cable diameter should be greater than 1.5mm2.
