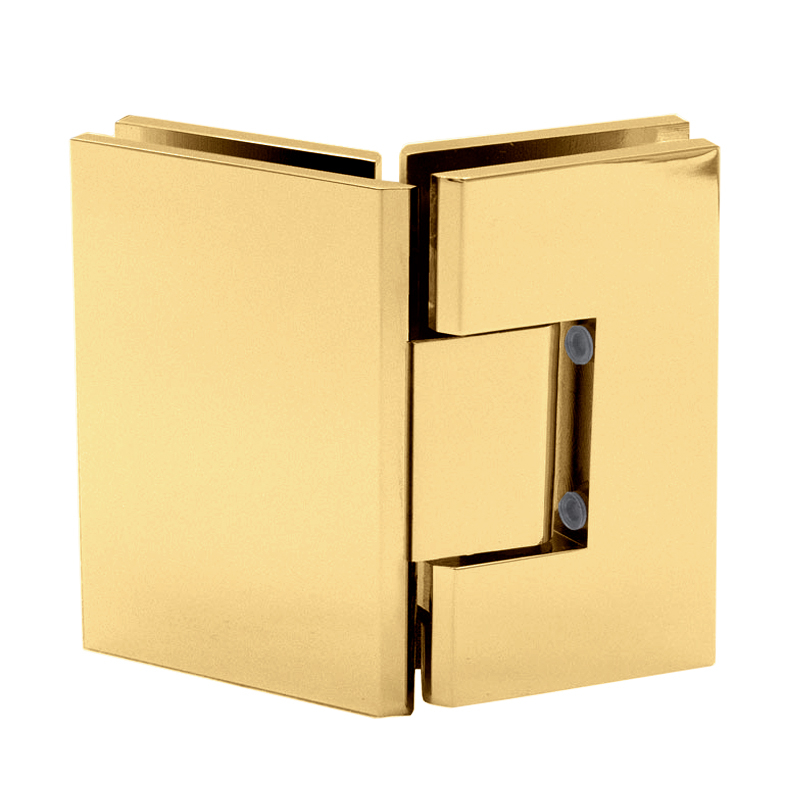

FHC Venice Series 135 Degree Glass To Glass Hinge, Brass, Satin Brass Finish VEN135SB FHC Venice Series 135 Degree Glass To Glass Hinge, Brass, Satin Brass Finish
FEATURES
- Constructed from Brass material with a Satin Brass finish.
- Features a 135 Degree Hinge Angle for shower door mounting.
- Self-Centering Closing Type within 15 Degree of Closed Position.
- Accommodates Glass Thickness from 3/8" to 1/2".
- Supports Maximum Door Weight of 110 lbs with 2 hinges.
- Includes Hinge, Glazing Gaskets, and Mounting Screws.
- Designed for Monolithic Tempered Glass Type Required only.
DESCRIPTION
This FHC Venice Series hinge mounts shower doors in residential bath and commercial hotel applications. It uses Brass material with a Satin Brass finish. It is a Glass-to-Glass Hinge Type with a 135 Degree Hinge Angle. The hinge features a Dual-Degree Pivot Pin, factory set at 90 Degree with secondary +5 Degree adjustment. Closing is Self-Centering Within 15 Degree of Closed Position. It requires a Cutout Required and fits Monolithic Tempered Glass Only, supporting Glass Thickness from 3/8" (10mm) to 1/2" (12mm). For 2 hinges, Maximum Door Weight is 110 lbs and Maximum Door Width is 36" (914mm). For 3 hinges, Maximum Door Weight is 140 lbs. Dimensions: Overall Hinge Height is 3-15/16", Hinge Leaf Width Door Side is 2-5/16", Hinge Leaf Width Fixed Panel Side is 2-5/16", and Hinge Body Depth is 2-11/16". The Profile is HD Square. Included items are: Hinge, Glazing Gaskets, Mounting Screws, Hex Head / Cross Head Cover Plate Screws, and Fabrication Template. The Satin Brass finish offers a specific aesthetic.
SPECS
| Finish | Satin Brass |
| Material | Brass |
| Glass Thickness | 3/8" (10mm) to 1/2" (12mm) |
| Closing Type | Self-Centering Within 15 Degree of Closed Position |
| Hinge Type | Glass-to-Glass |
| Profile | HD Square |
| Overall Hinge Height | 3-15/16" (100mm) |
| Cutout Required | Yes |
| Glass Type Required | Monolithic Tempered Glass Only |
| Hinge Angle | 135 Degree |
| Hinge Body Depth | 2-11/16" (68mm) |
| Hinge Leaf Width Door Side | 2-5/16" (59mm) |
| Hinge Leaf Width Fixed Panel Side | 2-5/16" (59mm) |
| Maximum Door Weight with 2 Hinges | 110 lbs |
| Maximum Door Weight with 3 Hinges | 140 lbs |
| Maximum Door Width 2 and 3 hinges | 36" (914mm) |
| item_length_width.length | 5 |
| item_length_width.length.unit | inches |
| item_length_width.width | 5 |
| item_length_width.width.unit | inches |
| Description | Venice Series 135 Degree Glass To Glass Hinge |
| finish_type | Satin Brass |
