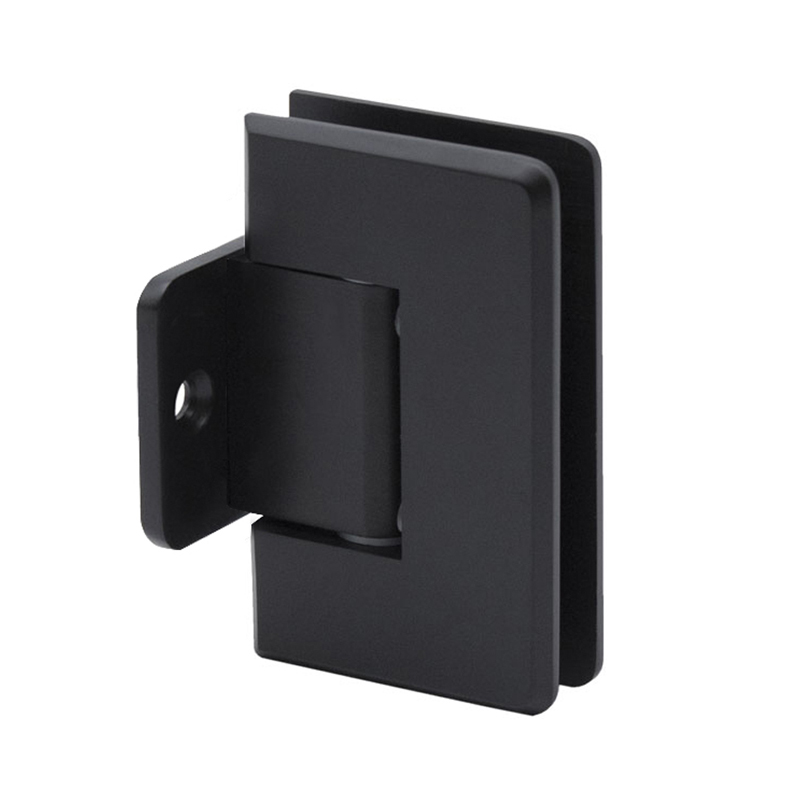

FHC Carolina Pony Wall Mount Hinge Brass Stainless Matte Black Finish CLN280MB FHC Carolina Pony Wall Mount Hinge Brass Stainless Matte Black Finish
FEATURES
- Material Brass With Back Plate Stainless Steel construction.
- Finish Matte Black finish for aesthetic integration.
- Mount Type Pony Wall Mount design for glass doors.
- Compatibility Fits Tempered Glass Only, 3/8" to 1/2" thickness.
- Closing Self-Centering Within 15 Degrees Closed Position.
- Capacity Supports Maximum Door Weight up to 110 lbs with 2 hinges.
- Dimensions Hinge Height is 3-15/16" and Back Plate Width is 2-1/8".
DESCRIPTION
The FHC Carolina Pony Wall Mount Hinge for 3/8" or 1/2" Glass is a wall mount hinge designed for securing shower doors in Residential Bath And Commercial Hotel Applications. The main body is constructed from Brass material with a Back Plate made of Stainless Steel, and it features a Matte Black finish. This hinge uses a Pony Wall Mount type installation and is compatible only with Tempered Glass, supporting thicknesses ranging from 3/8" to 1/2" using specific glazing gaskets a Thick Gasket for 3/8" glass and a Thin Gasket for 1/2" glass. The hinge mechanism employs a Self-Centering Within 15 Degrees Closed Position and adheres to a Standard Closing Position. Critical dimensions include a Hinge Height of 3-15/16", a Hinge Width of 2-5/16", a Back Plate Width of 2-1/8", and a Back Plate Height of 1-5/8". The required Glass Gap is 7/16". For door support, it handles a Maximum Door Weight of 110 lbs with 2 hinges or 140 lbs with 3 hinges, with a Maximum Door Width of 36" for both configurations. The unit includes the Hinge, Glazing Gaskets, Wall Mounting Screws, Hex Head Screws, Cross Head Cover Plate Screws, and a Fabrication Template. The packaging notes that gaskets are supplied in a plastic bag, not attached to the hinge.
SPECS
| Finish | Matte Black |
| Material | Brass With Back Plate Stainless Steel |
| Hinge Width | 2-5/16" (59mm) |
| Glass Thickness | 3/8" to 1/2" (10 to 12mm) |
| Closing Type | Self-Centering Within 15 Degrees Closed Position |
| Back Plate Height | 1-5/8" (41mm) |
| Back Plate Width | 2-1/8" (54mm) |
| Gaskets Included | Yes |
| Mount Type | Pony Wall Mount |
| Overall Hinge Height | 3-15/16" (100mm) |
| Closing Position | Standard Closing Position |
| Glass Gap | 7/16" (11mm) |
| Glass Type Required | Tempered Glass Only |
