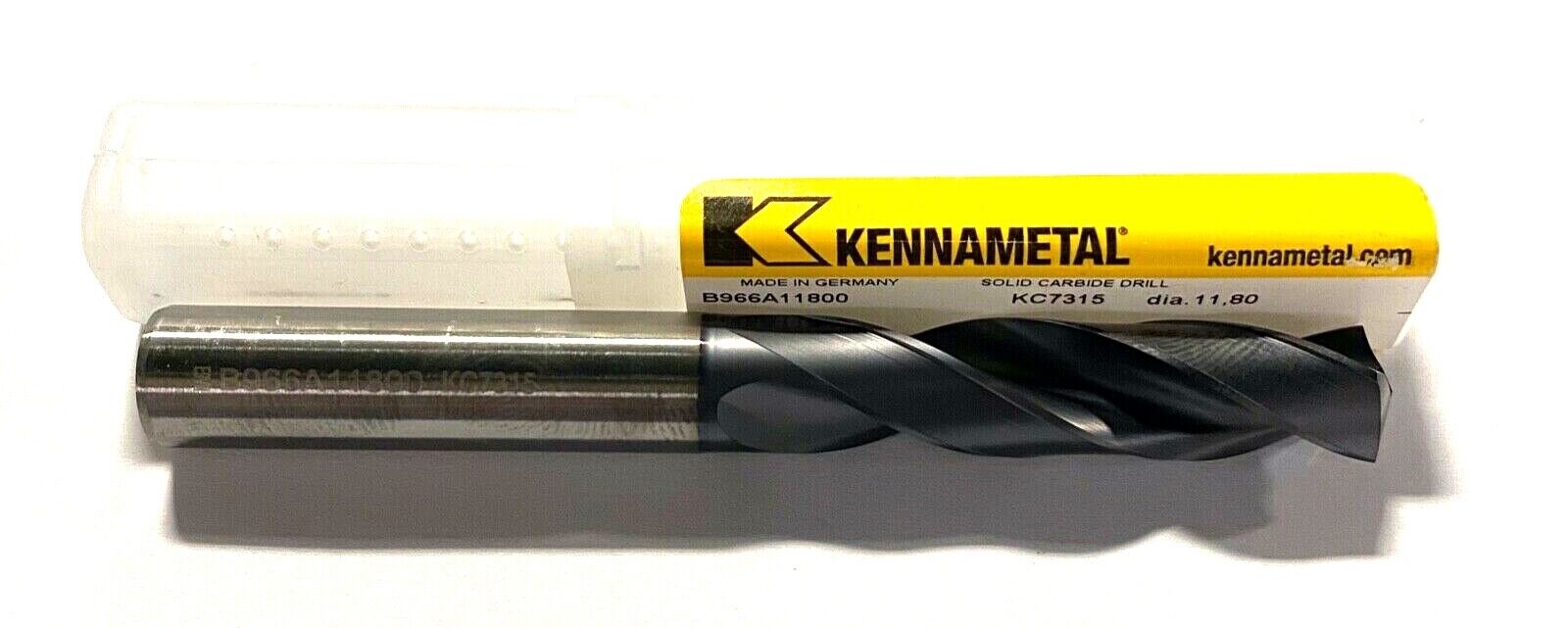

Kennametal 11.80mm Solid Carbide Drill TiAlN Coated 3xD 140° KC7315 1997391
PRODUCT DESCRIPTION
KENNAMETAL
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 11.8 mm | Length Group | 3xD |
| Coating | TiAlN | Shank Type | Round |
| Usable Length (LU) | 40 mm | Shape | Solid Carbide |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Edge Material | Carbide |
| Length Chip Flute (LCF) | 55 mm | Tool Type | Solid Carbide |
| Point Angle (SIG) | 140 Degrees | Grade | KC7315 |
| Overall Length (OAL) | 102 mm | Measurement Type | Metric |
| Flute Helix Angle (FHA) | CW | Decimal Equivalent | 0.4646″ |
| Flute Count (NOF) | 3xD |
