High Quality & High Performance

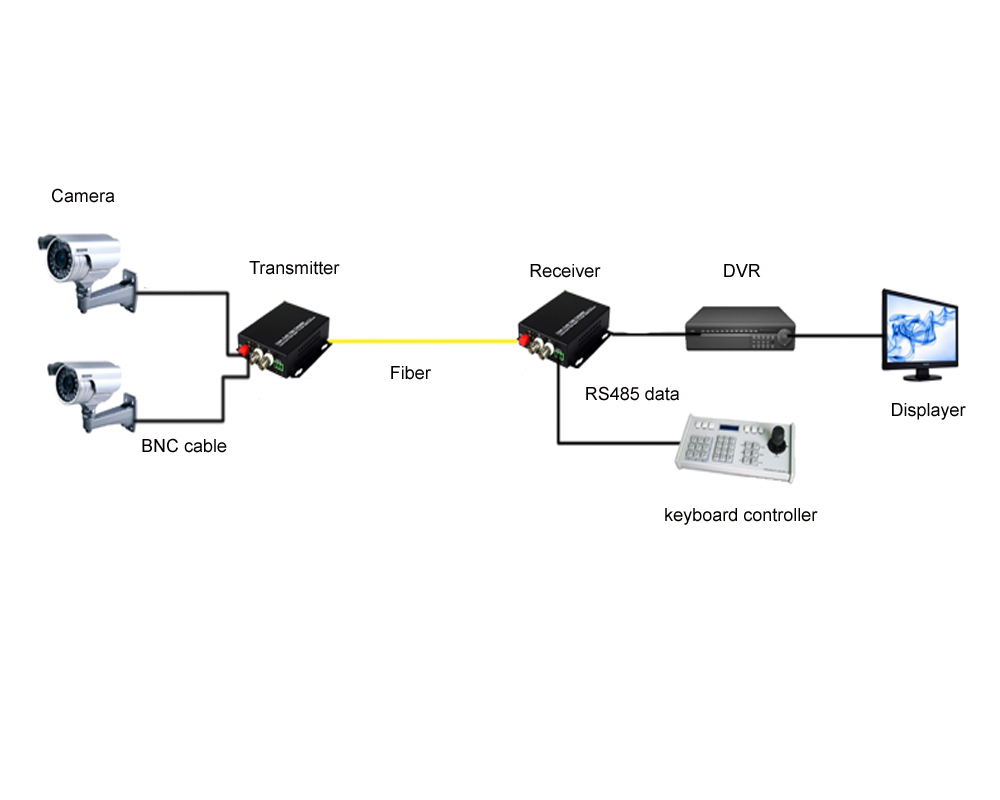

For 720P/960P HD-CVI /AHD/TVI Cameras,with RS485 data (PTZ cameras controllable)

Support Cameras:

1.      CVI : 960P (1280×960), 720P (1280×720)

2.      AHD : 960P (1280×960), 720P (1280×720)

3.      TVI: 960P (1280×960), 720P (1280×720). (Note: only support those TVI cameras which produced after Sep, 2015, and require software version V1.03 or V2.0.)

For the environment:

1.        Security Systems

2.        Radio and television transmission

3.        Video monitoring

4.        Building control systems

5.        Train/High speed road monitoring

6.        Intelligent Traffic Monitoring System (ITS)

7.        Remote multimedia teaching / campus monitoring

8.        Long-distance radio and television transmission system

Package Include:

• 1 Pair Media converters (Transmitter +Receiver)

• 2 x Power supply (US/AU/EU/UK available)

• 1 x User manual


Optical index

1.  Optical Interface : FC

2.  Wavelength : 1310/1550m

3.  Optical power:  -8 ~ -3dBm

4.  Receiver Sensitivity: -22dBm

5.  Transmission distance :  single-mode fiber type :0-20KM

Video Index:

1.  Video :2 channel

2.  Video Interface: BNC

3.  Video Input / Output Impedance : 75ohm ( unbalanced ) ;

4.  Video Bandwidth 8MHz;

5.  Video format compatible PAL, NTSC, SECAM;

6.  The sender input level: > 500mVp-p

7.  The receiver output level: 1Vp-p

8.  Input and output impedance: 75 ohm

9.  The receiver rise and fall times:<0.8ns

10.  The receiver maximum jitter:<0.2 UI

Data: RS485 reverse directional.

General index

1.  Power Adapter: 12V1A

2.  Working temperature: -40   ~ + 85

3.  Storage temperature: -40   ~ + 85

4.  Humidity: 0 ~ 95% non-condensing

5.  Time between failures: ≥100,000 hours
