12V-24V 9" IPS HD SD DVR Recording 2CH Split 4Pin Car Rear View Monitor + 18LED Waterproof AHD 1080P  Reversing Backup Camera For Bus Truck

Package Include:

　

1 x 4Pin 9" AHD DVR Monitor
1 x Dashboard Bracket
1 x Remote controller
1 x Monitor Power Video Harness Cable
2 x AHD 1080P 18 LED Front/Rear View Camera
1 x 4Pin 15M Cable
1 x 4Pin 5M Cable


　
Description:

Product Description:

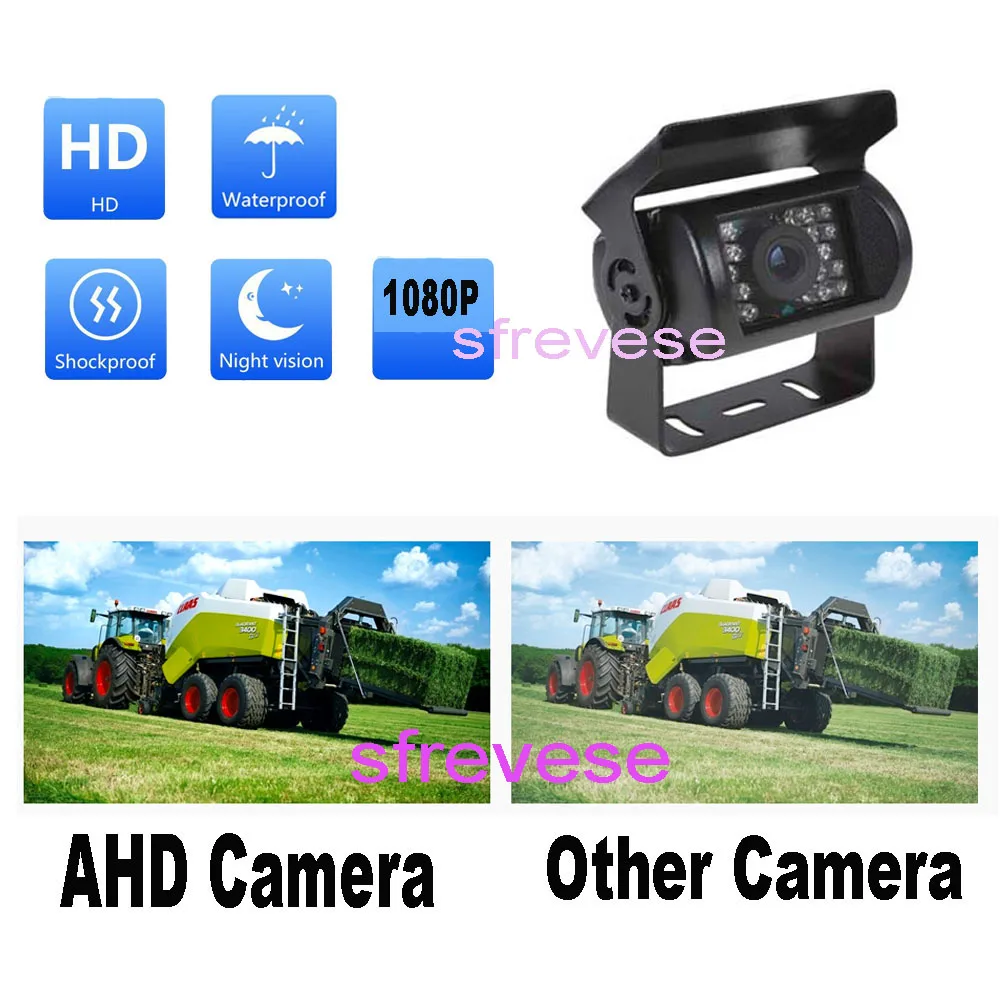

AHD technology can transmission of ultra-long-distance (500m) high-definition  video signals ; it adopts advanced Y/C signal separation and analog filtering  technology, which can effectively reduce color noise in high frequency region  and image reduction. Compared with the traditional CVI signal, Clearer and  advanced bright color separation, signal filtering, 3D noise reduction  technology, higher image clarity .
4Pin 9inch IPS DVR monitor 1080P, full color display and low power consumption,  2 channels input ,Split Screen Display,It can display two video at the same  time,AHD1 or AHD 2 Signal video also,

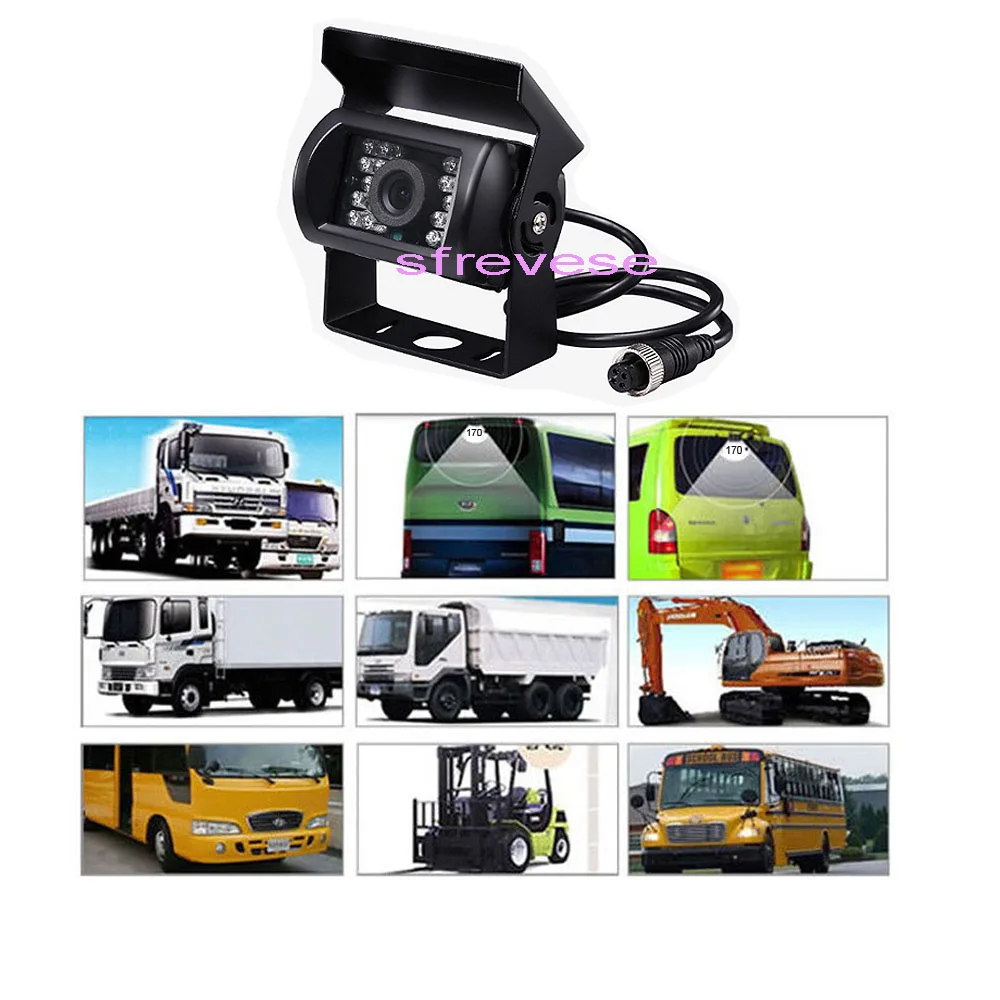

IP69 Waterproof Front Rear Camera with 4 Pin Connector, 18 LED lights Night  Vison view clearly at night, 100% Not Wash Out SHARP CCD Sensor HD Front Rear  View Camera, and 2.1mm lens (170° horizontal wide view angle )
Only need to connect the monitor power wire with car electronics sytem:
Red and yellow wire to car Positive/Live,
Black wire to GND,
Green wire to reversing gear Trigger+ (or No need to connect)
easy to install easy to use

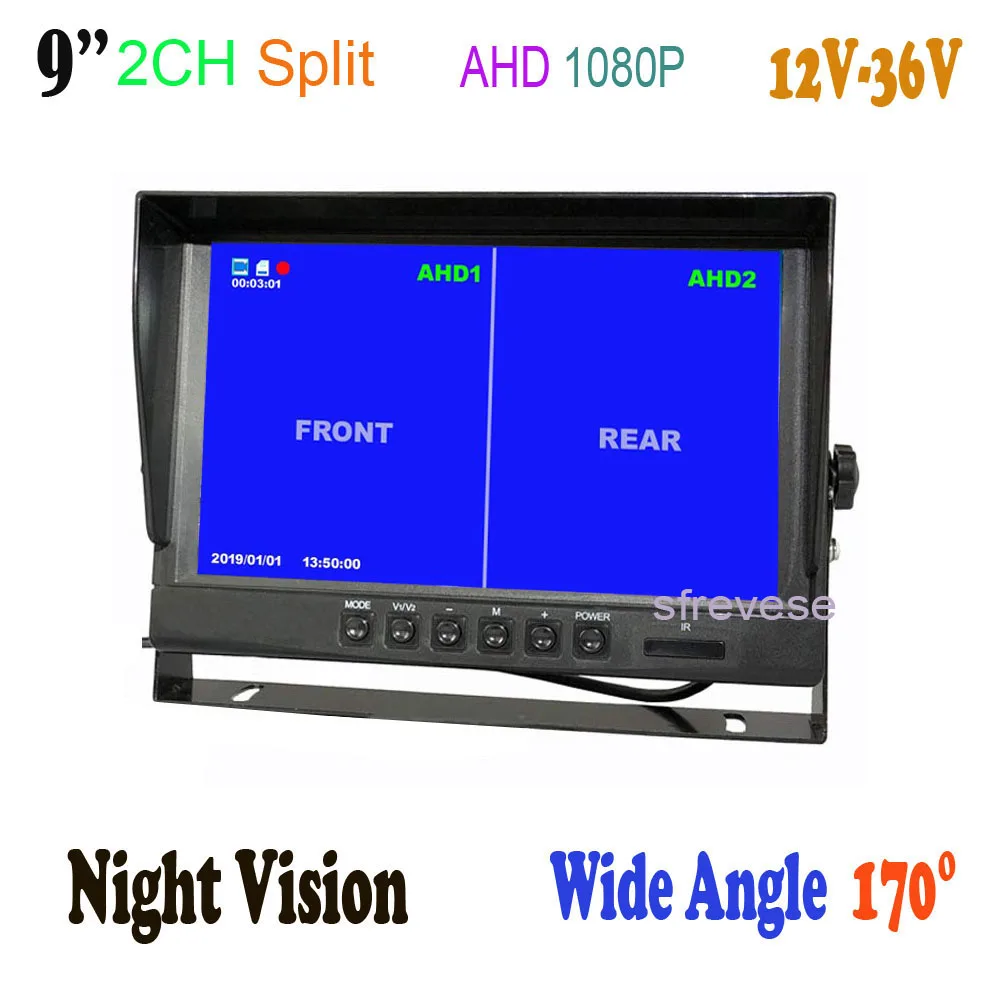

9" CAR TFT LCD MONITOR
Display Size: 9 Inch AHD DVR Screen
Power requirement:DC 12V-24V
Consumption:8W
Video:2 channelS input ,Split Screen Display
Our Split monitor can display two video at same time,you can also switch to AHD  1 or AHD 2 by "V1/V2" button
Build in SD DVR Recording functions, Max support 128GB(SD card not include)
Reversing Grid Lines Can be turn on or off
Please set it with the monitor system "Video Settings" Car reversing Line on,and  Please be sure that you need to connect the green cable with reversing trigger+
AHD 2 will show with Grid Lines if you set "reversing line on" backup view  priority
Net Weight: Approx. 1000g
Lauguage:English,Chinese



AHD Back up Camera
Image Sensor: 1/3 inch AHD
Tv System : PAL /NTCS
Effective Pixels: 1920*1080 Pixels
Sensing Area: 5.55umX5.55um
Scanning Syetem: 2:1interlace
Sync System: lnternal
Resolution: 1000+TV lines
Horizontal Sync Frequency: 15.625/15.734
Vertical Sync Frequency: 50/60Hz
Minimum illuminationK: 0.01LUX/F1.2
Gamma Consumption: 0.45
AGC: AUTO
BLC: Auto
Current Consumption: 80Ma
Power suply: DC12V-24V
Lens: 1.8mm F=2.0
　



　

　
