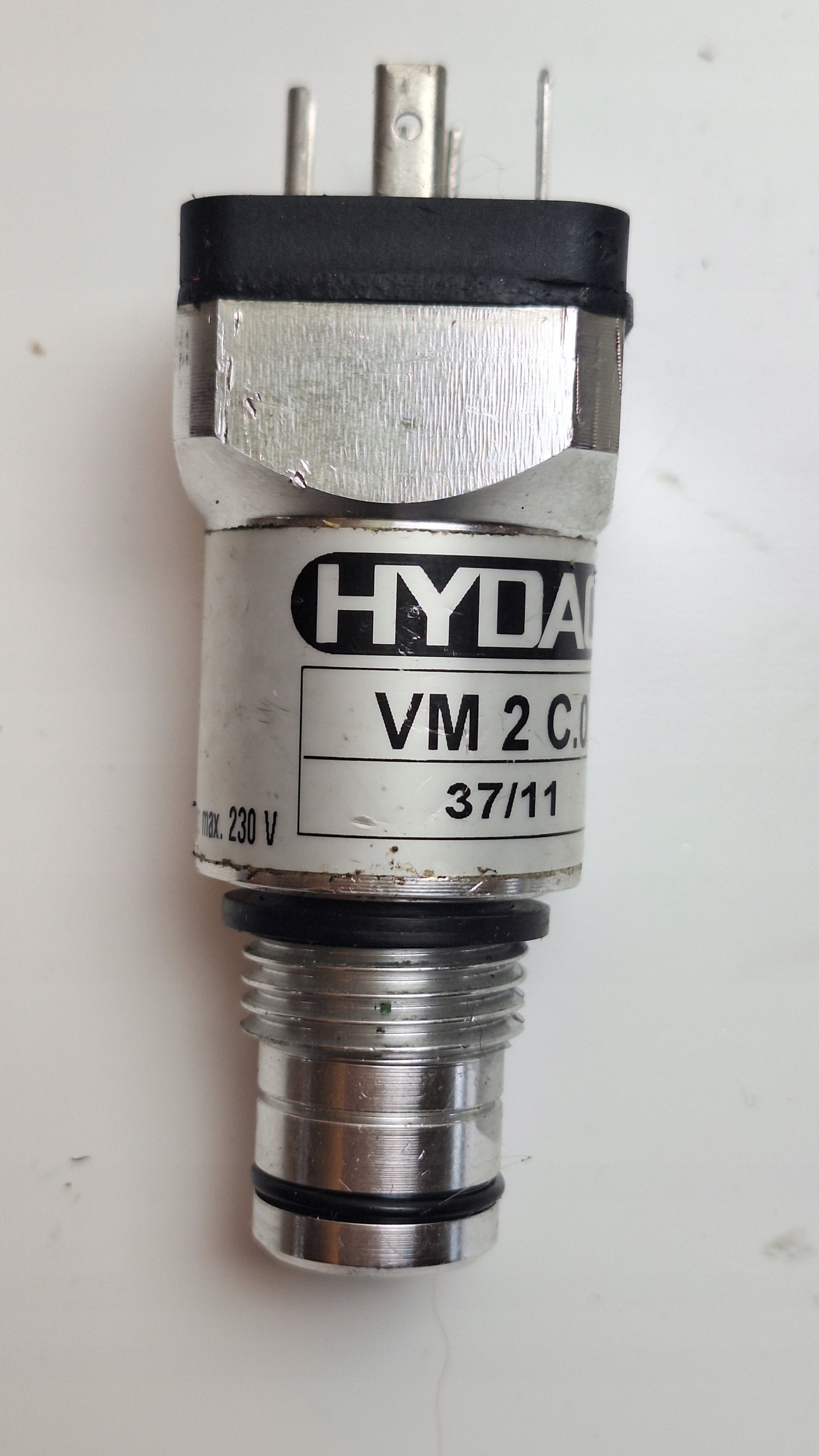

HYDAC VM2 C.0 Differential Pressure Indicator – 2 bar, SPDT Switch, G 1/2″

The HYDAC VM2 C.0 is a mechanical differential pressure clogging indicator that actuates its SPDT (single-pole double-throw) switch at a pressure drop of 2 bar (29 psi). Designed for hydraulic filters with a maximum operating pressure of 210 bar, it features a G 1/2″ thread and robust steel housing for reliable performance. :contentReference[oaicite:0]{index=0}

Features:

• Brand: HYDAC
• Model: VM2 C.0
• Type: Differential pressure clogging indicator with SPDT switch
• Trip Pressure: 2 bar (29 psi), ±10 % :contentReference[oaicite:1]{index=1}
• Max. Operating Pressure: 210 bar (3000 psi) :contentReference[oaicite:2]{index=2}
• Process Connection: G 1/2″ thread :contentReference[oaicite:3]{index=3}
• Medium: Mineral oil and hydraulic fluids
• Switch Contacts: SPDT N/O & N/C

Technical Specifications:

• Weight: 0.12 kg (120 g) :contentReference[oaicite:4]{index=4}
• Switch Connection: M20 cable entry
• Operating Temperature: –30 °C to +80 °C :contentReference[oaicite:5]{index=5}
• Housing Material: Steel
• Protection: IP65 (when wired correctly)

Key Benefits:

• Early Detection: Alerts before filter bypass to extend element life.
• Reliable Output: SPDT switch for direct PLC or control-panel integration.
• Durable Construction: Steel housing and high-pressure rating.
• Automatic Reset: Resets when pressure differential falls below set point.
• Easy Installation: Standard G 1/2″ connection and M20 cable gland.
