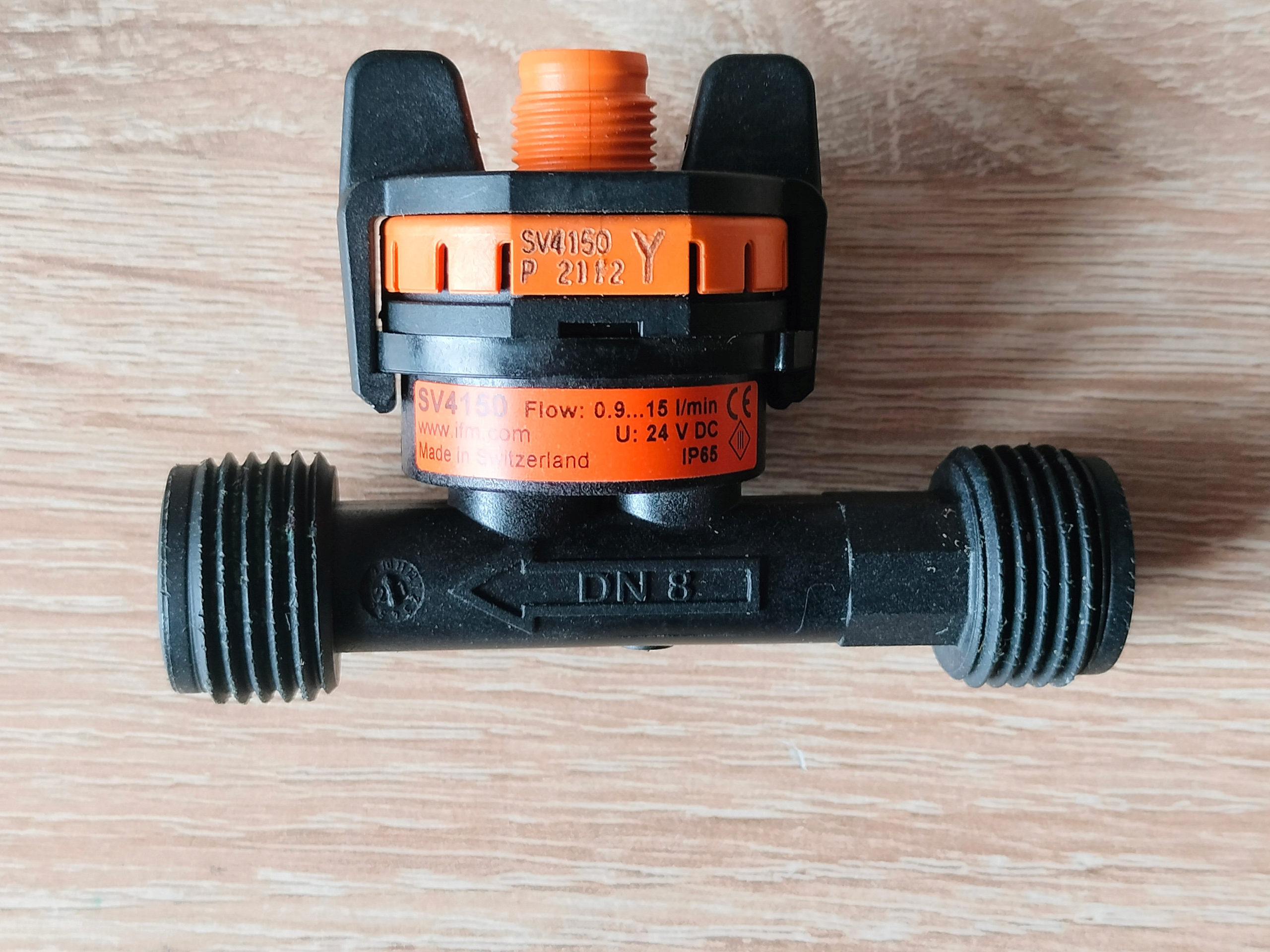

IFM SV4150 Vortex Flow Meter – DN 8 G 1/2, 0.9–15 L/min, 4–20 mA, 8–33 V DC, IP65

The IFM SV4150 is a compact vortex flow meter with threaded G 1/2 process connection and DN 8 nominal diameter. It accurately measures flow between 0.9 and 15 L/min and outputs a proportional 4–20 mA signal for seamless integration into industrial control systems.

Features:

• Brand: IFM
• Model: SV4150
• Measuring Range: 0.9–15 L/min (0.133–2.21 m/s)
• Output: 4–20 mA analog
• Power Supply: 8–33 V DC
• Process Connection: G 1/2 (DN 8) with adapter
• Protection: IP65, protection class III

Technical Specifications:

• Pressure Rating: 12 bar (up to 40 °C)
• Medium Temp. Range: –40 to +100 °C
• Accuracy: <1 % MEW for Q < 50 % MEW; <2 % MEW for Q > 50 % MEW
• Repeatability: ±0.2 %
• Max. Load: (Ub – 8 V)/20 mA (≈800 Ω @ 24 V)
• Housing Material: PA 6T; Wetted Parts: ETFE, EPDM

Key Benefits:

• High Precision: Low hysteresis and excellent linearity for stable measurements.
• Wide Conditions: Suitable for water and water-based media in harsh environments.
• Easy Integration: Standard M12 connector and 4–20 mA output simplify wiring.
• Compact & Robust: Lightweight (≈65 g) with IP65 protection.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
