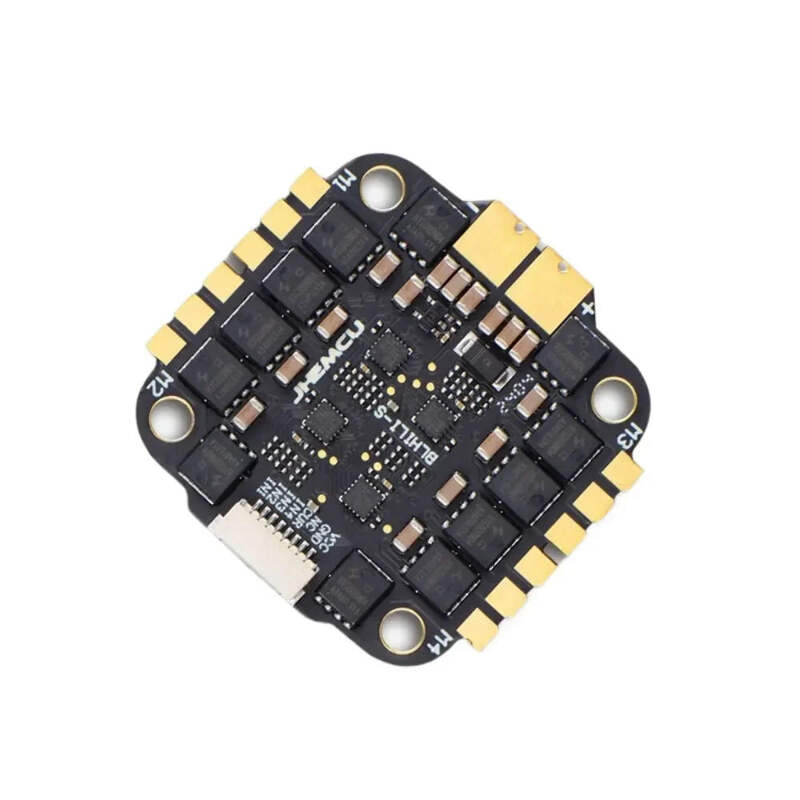

JHEMCU AM32A60 60A 4-in-1 ESC 3–6S with Current Sensor

The JHEMCU AM32A60 is a high-performance 4-in-1 ESC designed for 3–6S FPV drones, offering reliable power and smooth throttle response for freestyle, racing, and long-range builds. With a continuous current rating of 60A across four outputs and AM32 firmware preloaded, this ESC supports advanced features, efficient power delivery, and future firmware upgrades.

Built-in current sensing allows real-time telemetry through your flight controller, and the standard 30.5mm mounting makes it easy to pair with full-size stacks.

Features:

  • 60A continuous current per channel for high-power builds
  • AM32 firmware for smooth motor control and robust performance
  • Built-in current sensor for telemetry feedback
  • 30.5mm x 30.5mm mounting for standard FC compatibility
  • Durable construction in a compact 15.4g design


Specifications:

  • Input voltage: 3–6S (11–27V)
  • Continuous current: 60A x 4
  • BEC: No
  • Current sensor: Yes
  • Mounting hole pitch: 30.5mm (M4)
  • Dimensions: 44mm x 43mm
  • Firmware: AM32_AT32DEV_F421.HEX
  • Weight: 15.4g


Package Contents:

  • 1x JHEMCU AM32A60 60A 4-in-1 ESC
×
×
×
×
×
×
×
