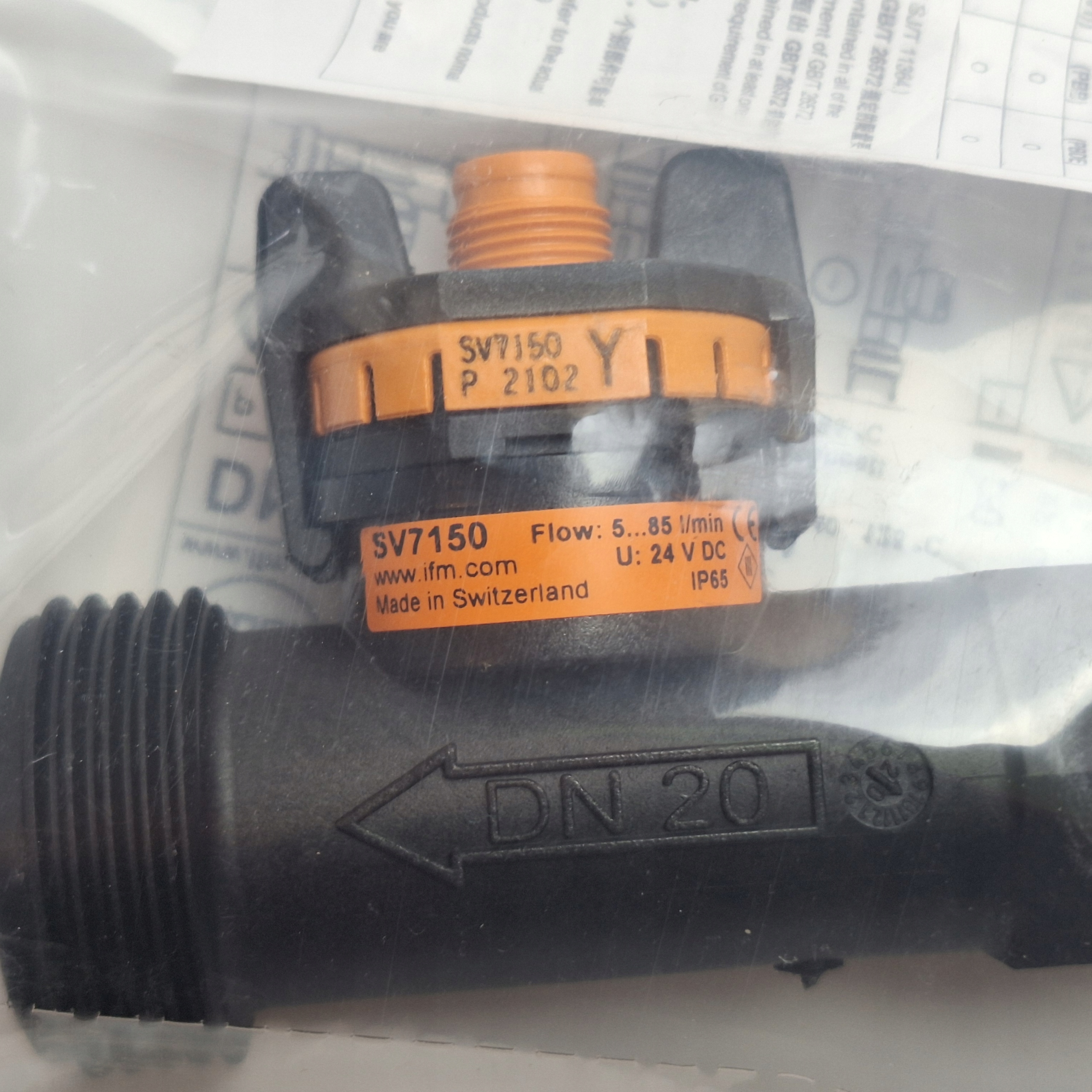

IFM SV7150 Vortex Flow Meter DN20 G1, 585 L/min, 4–20 mA, 24 V DC, IP65

The IFM SV7150 vortex flow meter excels in high-flow scenarios, offering accurate measurement up to 585 L/min for water and water-based media. Its DN20 G1 connection, robust IP65 housing, and standard 4–20 mA output at 24 V DC make it a reliable choice for industrial process control.

Features:

• Brand: IFM Electronic
• Model: SV7150
• Connection: G1 (DN20)
• Flow Range: 0.9–585 L/min
• Output: 4–20 mA analog
• Supply Voltage: 8–33 V DC (typical 24 V DC)
• Protection: IP65-rated

Technical Specifications:

• Medium: Water & water-based fluids
• Operating Temperature: –40 °C to +100 °C
• Pressure Rating: 12 bar (up to 40 °C)
• Accuracy: ±1 % MEW (<50 % MEW); ±2 % MEW (>50 % MEW)
• Response Time: < 0.5 s
• Materials: ETFE, PA 6T, EPDM

Key Benefits:

• High Capacity: Handles large flow rates with precision.
• Durability: IP65 protection and rugged construction.
• Simple Integration: Standard M12 connector for fast setup.

Important Notes:

• VAT invoice available upon request.
• 30-day returns; buyer pays return shipping.
