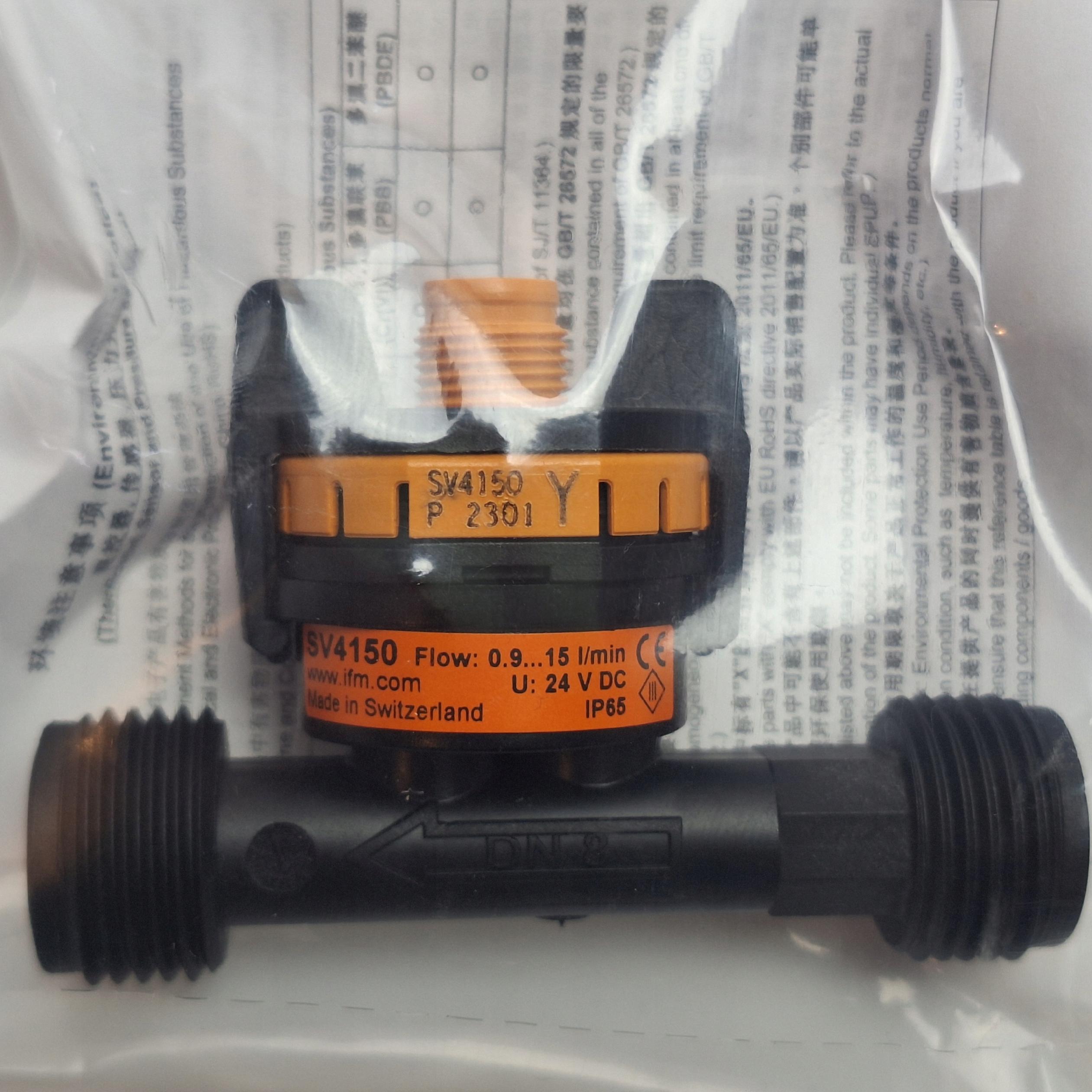

IFM SV4150 Vortex Flow Meter DN8 G1/2, 0.9–15 L/min, 4–20 mA, 8–33 V DC, IP65

The IFM SV4150 vortex flow meter provides precise, repeatable flow measurement for water and water‑based media. Its compact DN8 G1/2 connection and standard 4–20 mA output at 8–33 V DC make it ideal for tight spaces and seamless integration into industrial control systems.

Features:

• Brand: IFM Electronic
• Model: SV4150
• Connection: G1/2 (DN8)
• Flow Range: 0.9–15 L/min (0.265–4.42 m/s)
• Output: 4–20 mA analog
• Supply Voltage: 8–33 V DC
• Connector: M12 with gold‑plated contacts
• Protection: IP65

Technical Specifications:

• Medium: Water and water‑based media
• Pressure Rating: 12 bar (up to 40 °C)
• Operating Temperature: –40 °C to +100 °C
• Accuracy: ±1 % MEW (<50 % MEW); ±2 % MEW (>50 % MEW) for water
• Response Time: <0.5 s
• Materials (Wetted): ETFE, PA 6T, EPDM
• Housing: PA 6T
• Temp. Sensor: Pt1000 to DIN EN 60751 Class B

Key Benefits:

• Compact Design: Fits into tight installations without sacrificing performance.
• High Durability: IP65-rated construction withstands dust and water spray.
• Plug & Play: Standard M12 interface for quick, reliable connections.
