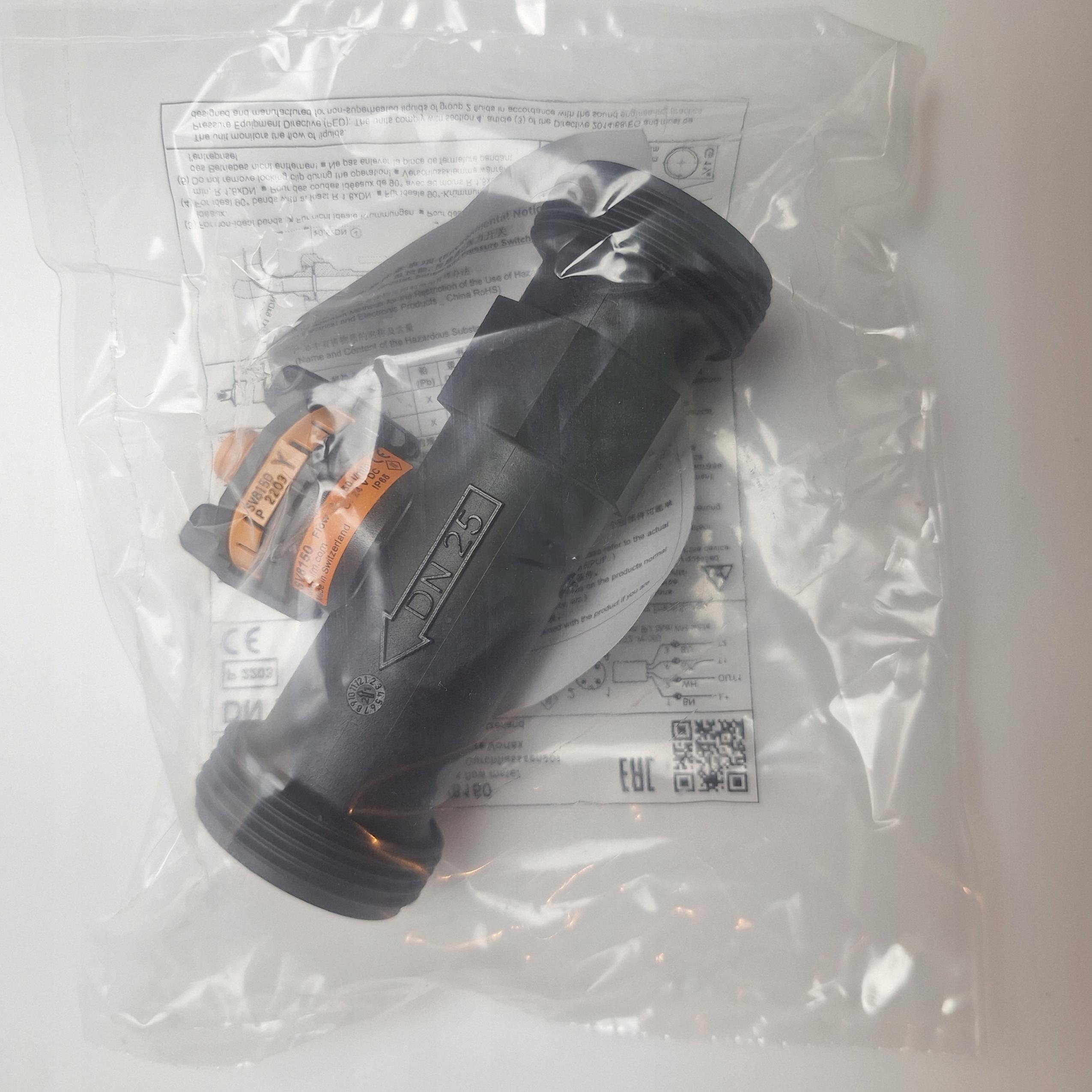

IFM SV8150 Industrial Vortex Flow Meter DN25 G 1¼, 9–150 L/min, 4–20 mA, 24 V DC

The IFM SV8150 vortex flow meter provides precise and reliable flow measurement for water and water‑based media. With a DN25 G 1¼ connection, 9–150 L/min range, and 4–20 mA output, this industrial‑grade sensor ensures robust operation in demanding environments.

Features:

• Brand: IFM Electronic
• Model: SV8150
• Connection: G 1¼ (DN25)
• Flow Range: 9–150 L/min (0.283–4.709 m/s)
• Output: 4–20 mA analog (max. load 800 Ω)
• Supply Voltage: 8–33 V DC (typical 24 V DC)

Technical Specifications:

• Medium: Water and water‑based media
• Operating Temperature: –40 °C to 100 °C
• Pressure Rating: 12 bar (up to 40 °C)
• Protection Class: IP65
• Materials: Wetted parts ETFE, PA 6T, EPDM; Housing PA 6T
• Temperature Monitoring: Pt1000 sensor to DIN EN 60751, Class B

Key Benefits:

• High Accuracy: ±1% MEW for Q < 50% MEW; ±2% MEW for Q > 50% MEW (water)
• Durable Design: Rugged materials and IP65 rating for long service life.
• Easy Installation: Quick‑disconnect M12 connector with gold‑plated contacts.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
