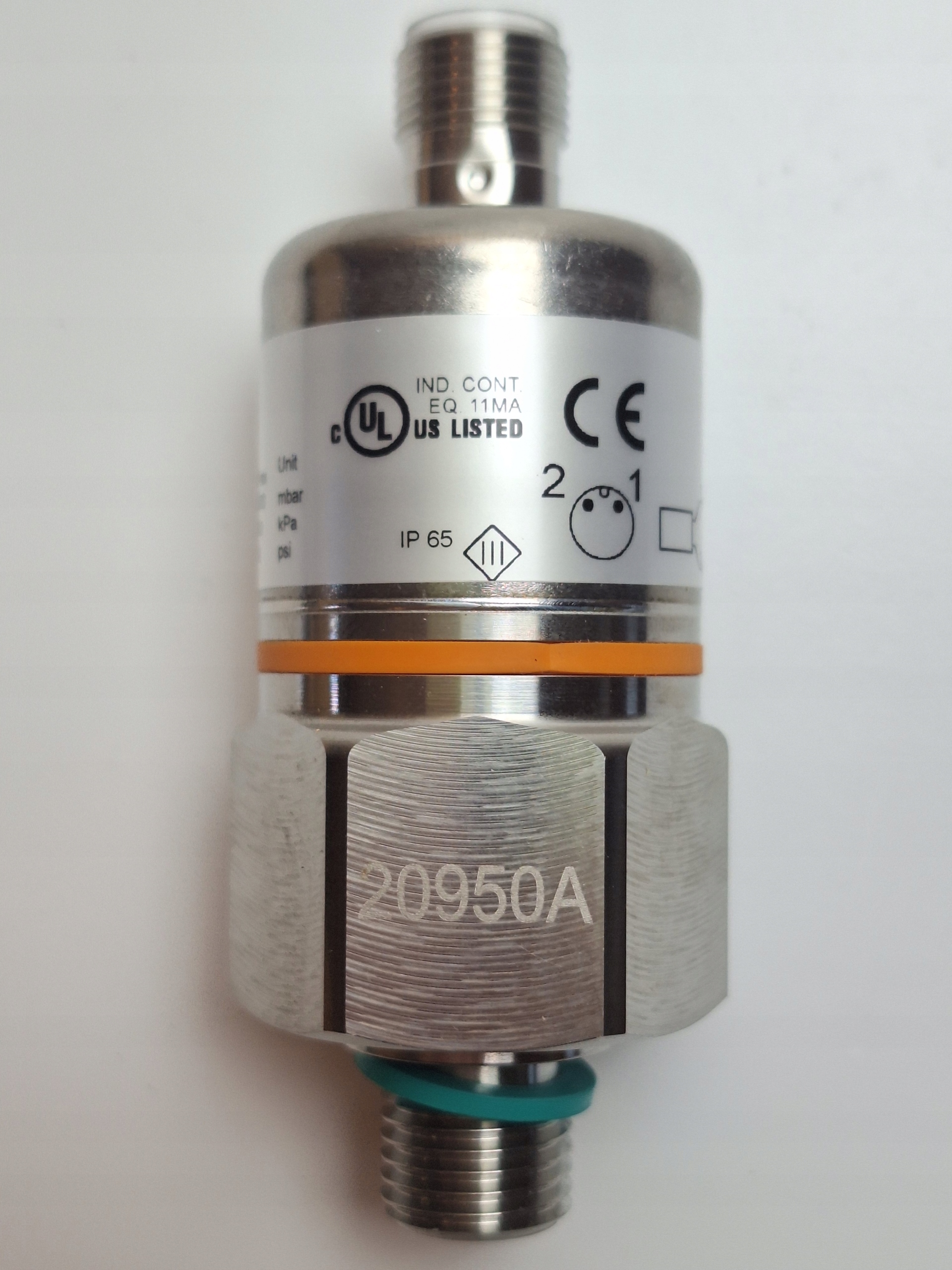

IFM PA3589 Industrial Ceramic Pressure Transmitter 0–0.1 bar G1/4 4–20 mA

Low pressure? High performance. The IFM PA3589 Industrial Ceramic Pressure Transmitter delivers precise measurements from 0 to 0.1 bar with rock-solid reliability and a robust IP68 stainless steel housing.

Features:

• Brand: IFM Electronic
• Model: PA3589
• Measuring Range: 0…0.1 bar (0–100 mbar)
• Output Signal: 4–20 mA analog
• Process Connection: G 1/4 external thread (DIN EN ISO 1179-2)
• Sensor Material: Ceramic measuring cell
• Power Supply: 9.6–32 V DC
• Protection Rating: IP68 (immersion up to 1 m for 7 days)
• Housing Material: Stainless steel

Technical Specifications:

• Accuracy: <±0.5% of span (BFSL); <±1% (LS)
• Repeatability: <0.2% of span
• Long-Term Stability: <0.1% per 6 months
• Response Time: 3 ms
• Media Compatibility: Liquids & gases
• Operating Temperature: Medium: –25…90 °C (–40…90 °C on request); Ambient: –25…80 °C
• Max. Load: 720 Ω @ 24 V
• Overload Protection: Yes
• Type of Pressure: Relative

Key Benefits:

• High Precision: Ceramic sensor ensures minimal drift.
• Durability: Stainless steel housing & gold-plated contacts resist corrosion.
• Waterproof: IP68-rated for extended immersion protection.
• Fast Response: 3 ms reaction for dynamic pressure changes.
• Versatile: Broad temperature & media compatibility.

Important Notes:

• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
• Please verify process connection and temperature requirements before ordering.
