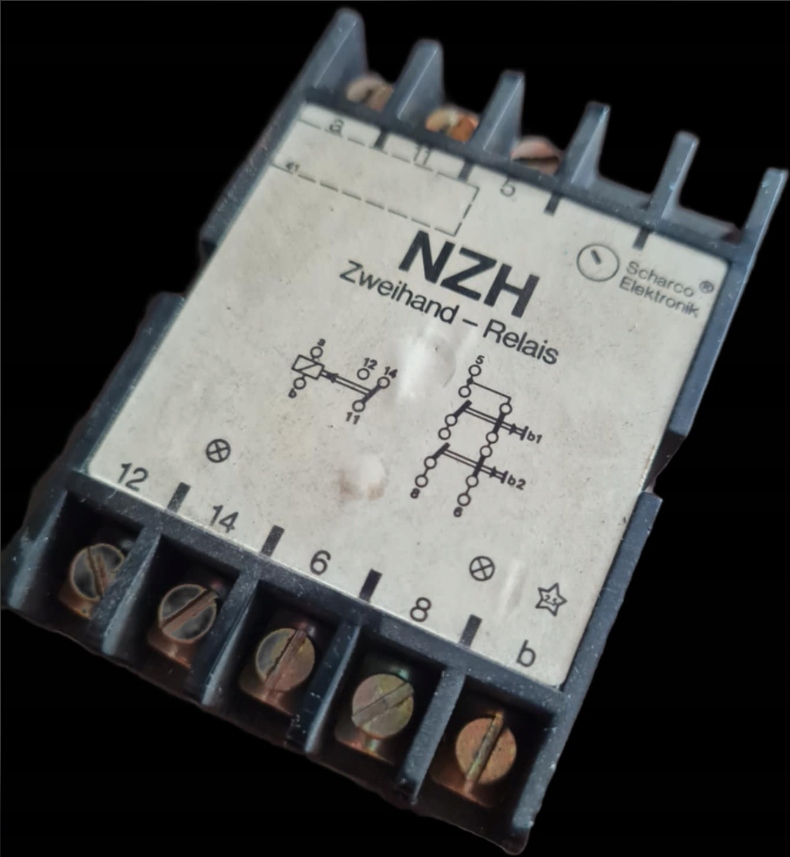

Scharco Normat NZH Two-Hand Control Safety Relay 24V AC



The Scharco Normat NZH is a critical safety component designed for two-hand control circuits on hazardous machinery like mechanical and hydraulic presses. It ensures that the machine operator must use both hands simultaneously to activate a machine cycle, keeping their hands clear of the danger zone. This relay is essential for creating a safe working environment and complying with machine safety standards.



Technical Specifications:




• Brand: Scharco Normat

• Model: NZH
• Type: Two-Hand Control Safety Relay

• Supply Voltage: 24 V AC, 40-60 Hz

• Standard Compliance: EN 574 (Type IIIC)

• Safety Level: Up to Category 4, PL e according to EN ISO 13849-1

• Simultaneity Monitoring: Requires inputs from both push-buttons within ≤ 0.5 seconds
• Outputs: 2 Normally Open (N/O) safety contacts, 1 Normally Closed (N/C) auxiliary contact
• Mounting: DIN Rail




Key Features & Applications:




• Enhanced Operator Safety: Forces the use of both hands to operate machinery, drastically reducing the risk of hand and arm injuries.

• High-Integrity Safety Function: Designed and certified for high-demand safety applications (Cat. 4 / PL e).

• Prevents Bypassing: The simultaneity check ensures the safety system cannot be easily defeated by tying down one button.
• Essential for Press Safety: A vital component for the control systems of mechanical presses, hydraulic presses, stamping machines, cutters, and other equipment with hazardous moving parts.




Important Notes:




• VAT invoices available upon request.

• Returns accepted within 30 days; buyer pays return shipping.
