Package: Nema 23 1.9Nm Motor +Driver+Power Supply
- 1 x Nema 23 Bipolar 1.9Nm(269.06oz.in) 2.8A 57x57x76.5mm 4 Wires Φ8mm Shaft
- 1 x Digital Stepper Driver 1.0-4.2A DC20V-50V for Nema 17, 23, 24 Stepper Motor
- 1 x 154.8W 36VDC 4.3A 115/230VAC Enclosed Switching Power Supply
Package: Nema 23 3Nm Motor +Driver+Power Supply
- 1 x Nema 23 Stepper Motor Bipolar 1.8deg 3.00Nm(424.83oz.in) 5.0A 57x57x100mm 4 Wires
- 1 x Digital Stepper Driver 1.7-5.6A DC20V-50V for Nema 23, 24, 34 Stepper Motor
- 1 x 154.8W 36VDC 4.3A 115/230VAC Enclosed Switching Power Supply
Nema 23 1.9Nm Motor Specification
- Manufacturer Part Number: 23HS30-2804S2
- Motor Type: Bipolar Stepper
- Step Angle: 1.8°
- Holding Torque: 1.9Nm(269.06oz.in)
- Rated Current/phase: 2.8A
- Phase Resistance: 1.13ohms
- Inductance: 4.8mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]
Physical Specification
- Frame Size: 57 x 57mm
- Body Length: 76.5mm
- Shaft Diameter: Φ8mm
- Shaft Length: 22mm
- D-cut Length: 18mm
- Number of Leads: 4
- Cable Length: 500mm
Nema 23 3Nm Motor Specification
- Manufacturer Part Number: 23HS39-5004S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8deg
- Holding Torque: 3.00Nm(424.83oz.in)
- Rated Current/Phase: 5.0A
- Phase Resistance: 0.6ohms±10%
- Inductance: 2.8mH±20%(1KHz)
- Insulation Class: B 130°C[266°F]
Physical Specification
- Frame Size: 57 x 57mm
- Body Length: 100mm
- Shaft Diameter: Φ8mm
- Shaft Length: 21mm
- D-cut Length: 15mm
- Number of Cables: 4
- Cable Length: 400mm
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|

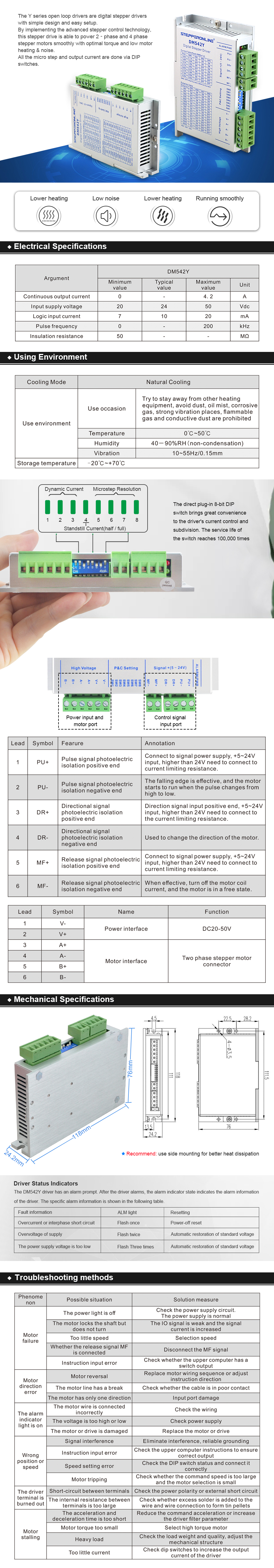

Driver Specification
Power Supply Specification
- Part Number: LRS-150-36
- 36V DC 4.3A output
- AC input voltage range: 85 ~ 132VAC
- Rated power: 154.8W
- AC input range selectable by switch
- Withstand 300VAC surge input for 5 second
- No load power consumption < 0.5W
- Protections: Short circuit / Overload / Over voltage / Over temperature
