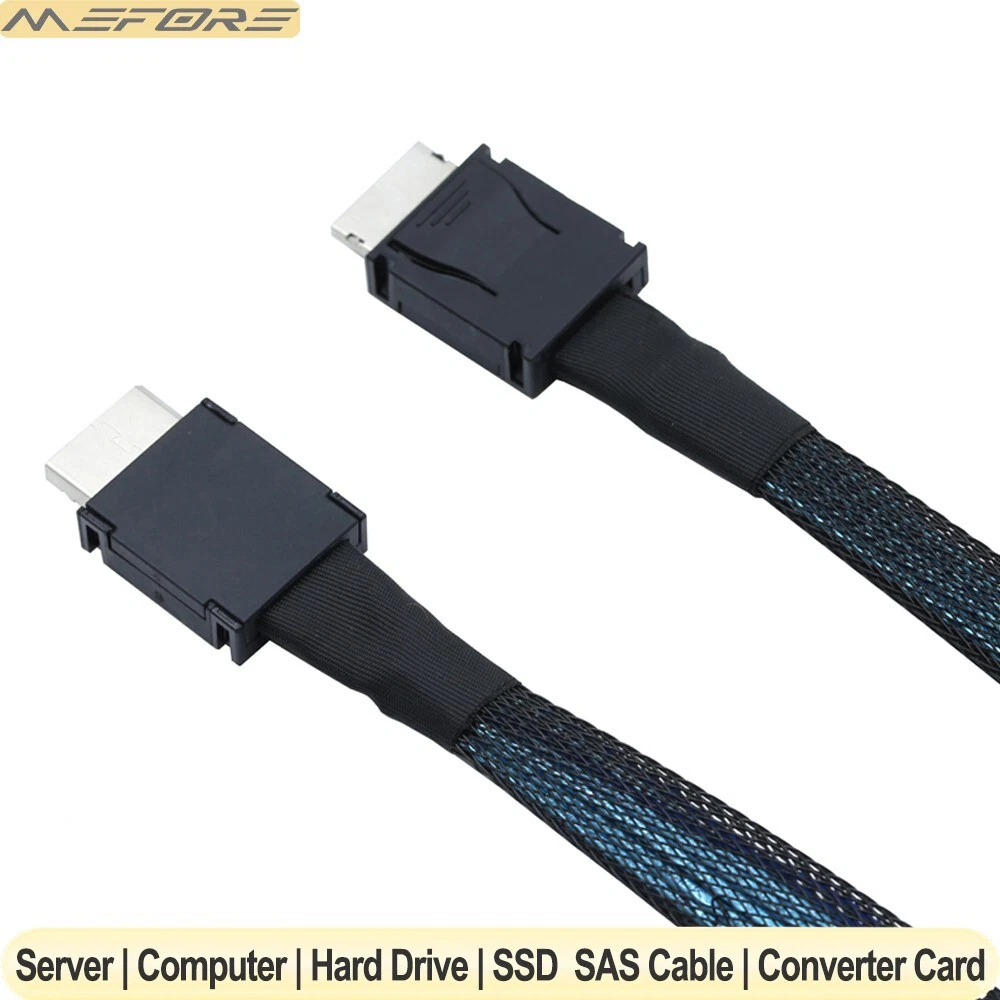

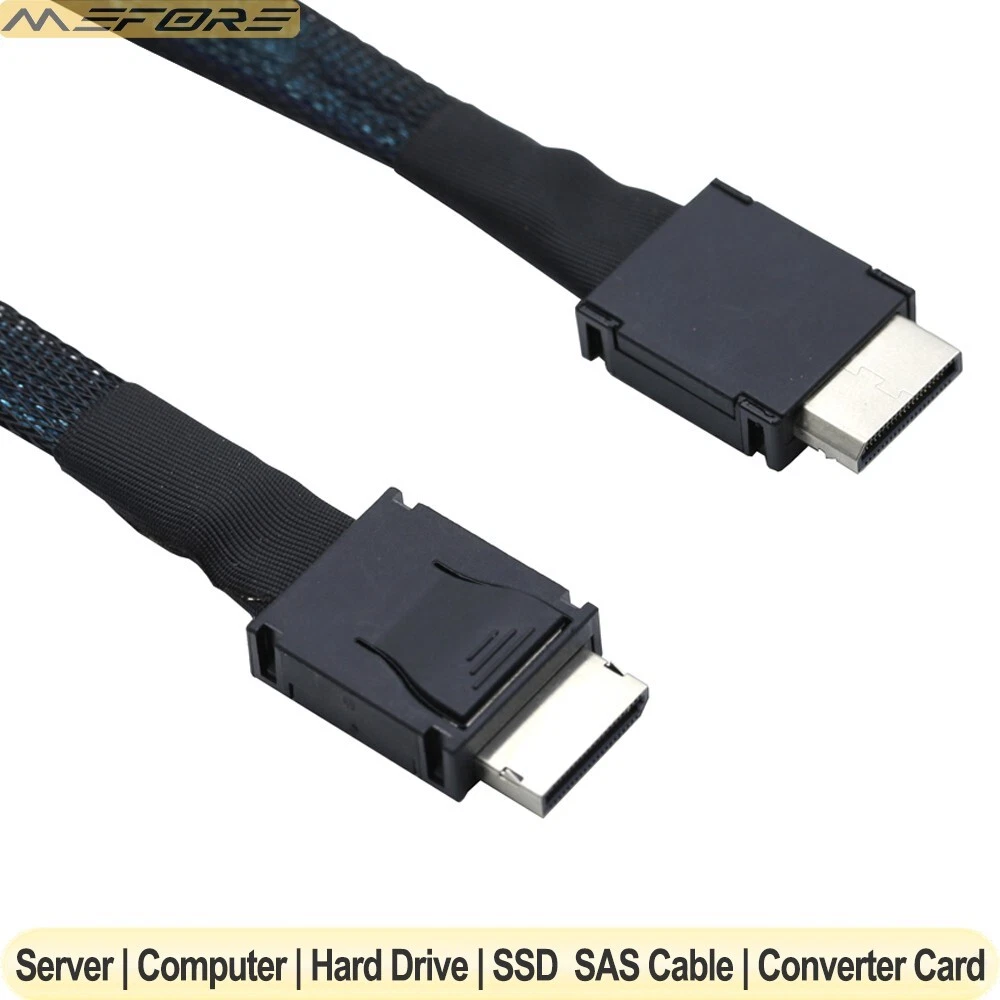

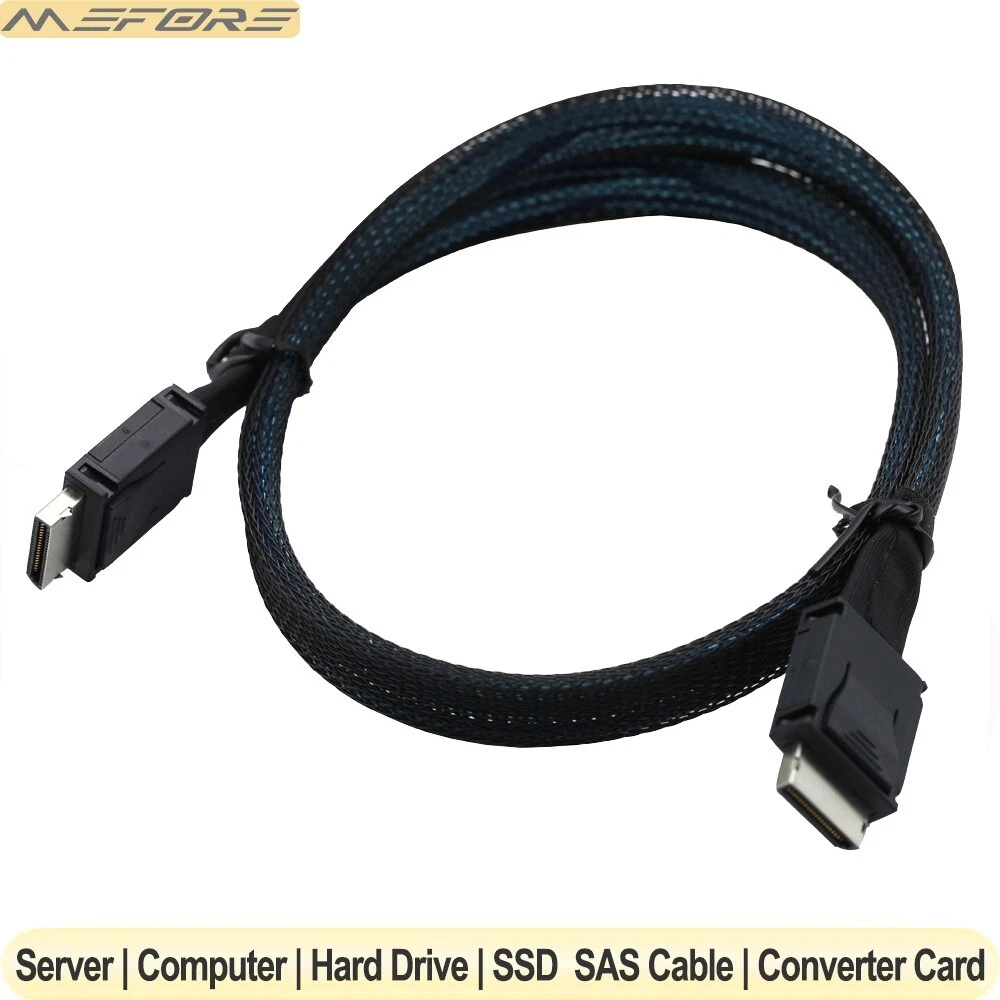

OcuLink PCIe PCI-Express SFF-8611 4i to OcuLink Sas SFF-8611 4I Server SSD Data Active Cable.

High-speed data storage interface max up to 24Gbps (actual Data transfer speed is determined by the capabilities of the connected hardware).

Supports SFF-8611 interface, compatible with SAS4.0 standard, providing up to 24Gbps data transfer rate.

Wire Size: 32AWG, Tinned Copper, OD: 0.65*1.45,MM

Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.

Mating Force: 55 N maximum for Mini SAS.

Unmating Force: 49 N maximum for Mini SAS.



Applications:

Servers

RAID systems

Storage systems

SAS/SATA HBA interfaces

Direct-attached storage (DAS)



Signal Integrity

1. Mated Connector Impedance: 85 ohm±15%

2. Cable Absolute Impedance: 85 ohm±10%

3. Cable Pair Matching: ±5 ohm

4. Common Mode Impedance: 25 to 40 ohms

5. Insertion loss: -6dB maximum up to 4.5Ghz;

6. Crosstalk: -26 dB up to 24Ghz;

Connector A: Oculink SAS SFF-8611 4i Male

Connector B: Oculink SAS SFF-8611 4i Male

Cable Length: 0.5m/1.0m

Transmission rate 24Gbps.

Meet SAS4.0 specification



Packing List: 1 x Oculink SFF-8611 4i to SFF-8611 4i Connection Cable
