Specification:

Model name: Q10821G5-1U

Dimension: 440*127*44mm(L*W*H)

Processor:

Q10821G5 : Intel Celeron Elkhart Lake J6412,2GHz,max 2.6GHz,quad core,AES-NI

Graphics : Intel UHD Graphics

Memory : One DDR4 SO-DIMM Socket (2133MHz)MAX 16G

Storage : Stata 3.0/ Msata SSD

Mini PCIE SLOT:

1 * full length Mini-PCIE for Msata SSD

SIM card slot: ONE

M.2 Slot:

1 * M.2 WIFI slot(E key 2230)

1 * M.2 Slot for 5G(B key, 3042/3052)

LAN：5* Intel I225-V/I226-V 2.5 Gigabit LAN(B3 Version)


Panel Connectors:

12V DC input (DC Jack 5.5mm,2.5mm)

RST button

2 * USB 3.0 Ports

1 *DP port

1 * VGA port

1 * HD Video port

1 * RJ45 COM( RS232) Ports

5 *Intel I225-V/I226-V 2.5 Gigabit LAN


UEFI BIOS

You can ask for changing BIOS settings such as Wake on lan,Restore from AC power Loss when you place order.

System:

We pre-install NO LICENSE win10,you can also install OS and software package by yourself. F11 key boot from USB Drive. Delete key enter into BIOS.

LOGO and OEM:

1.Some special requirements of the motherboard. MOQ changed based on your requirements.

2.LOGO printing is free.Just provide your logo documenboot logo: JPG version, black background,and resolution 800*600

Sliver logo for printing: ORIGINAL logo documents in PDF version.


Packing list:

1 x Mini PC

Some replacement screws

Plug Cord (we arrange it based on your country)

2 x rack ears

2 x Antennas Pigtails (if no wifi,no antennas)

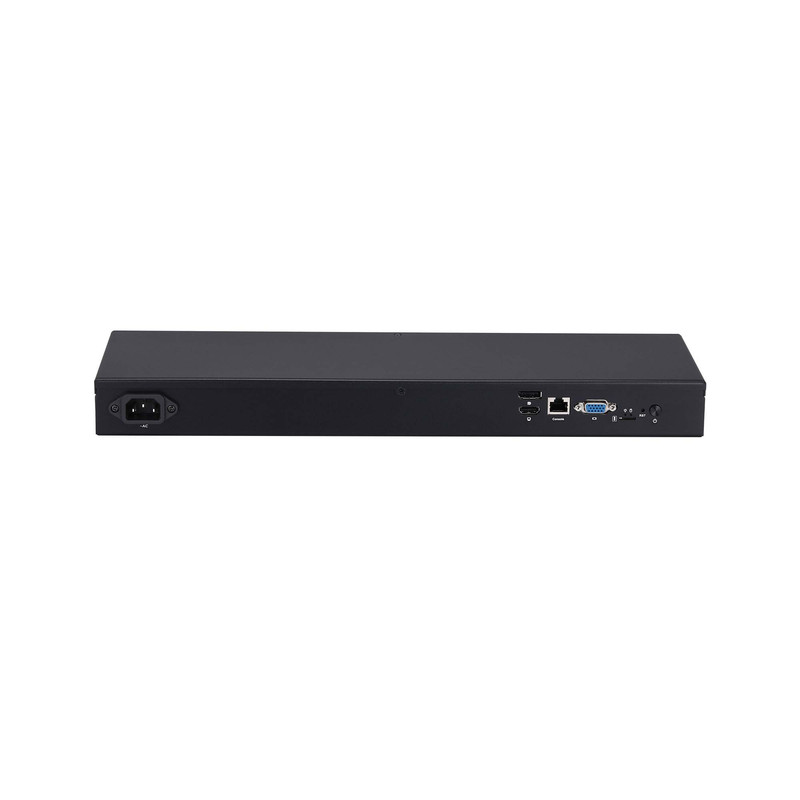

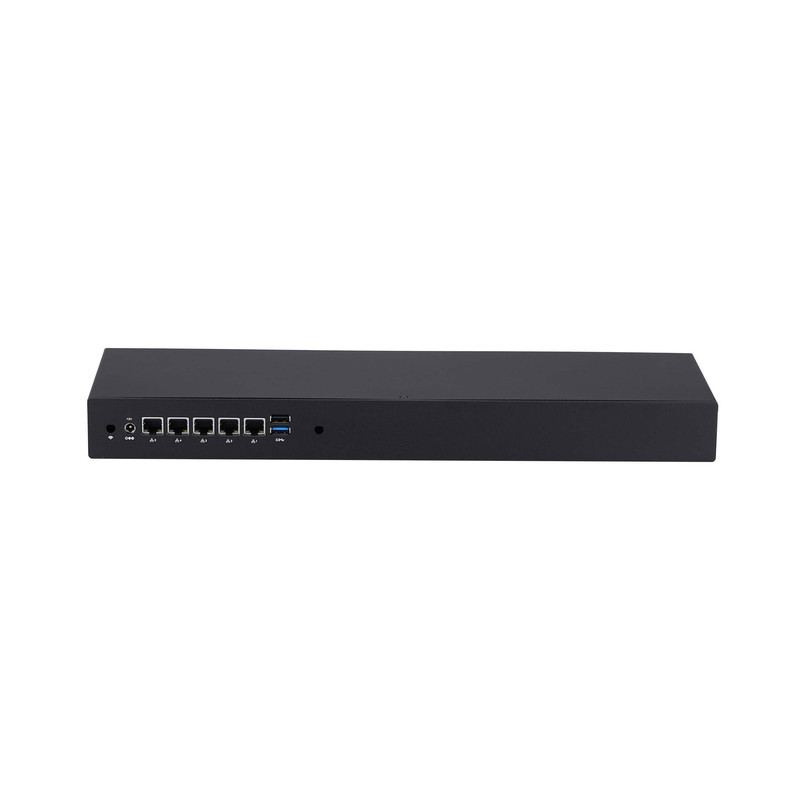

4-1  4-2

Expansion on Motherboard

Mini PCI-e

1. We don't provide SIM card and 4G/5G module.

mSATA: 1 x mSATA for SSD

M.2: 1 x M.2 for 4G/5G (B key, Type: 3042/3052)

M.2: 1 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 1)

Clear CMOS: Yes, 1 x 3Pin, Pitch 2.54mm

AutoStart Jumper: Yes, 1 x 3Pin, Pitch 2.54mm

SIM Card Slot: 0
