Package include:
1x 300W / 400W ER11/ER16 DC spindle motor (based on ur choose)
1x power supply
1x 52mm mount clamp
Product description：

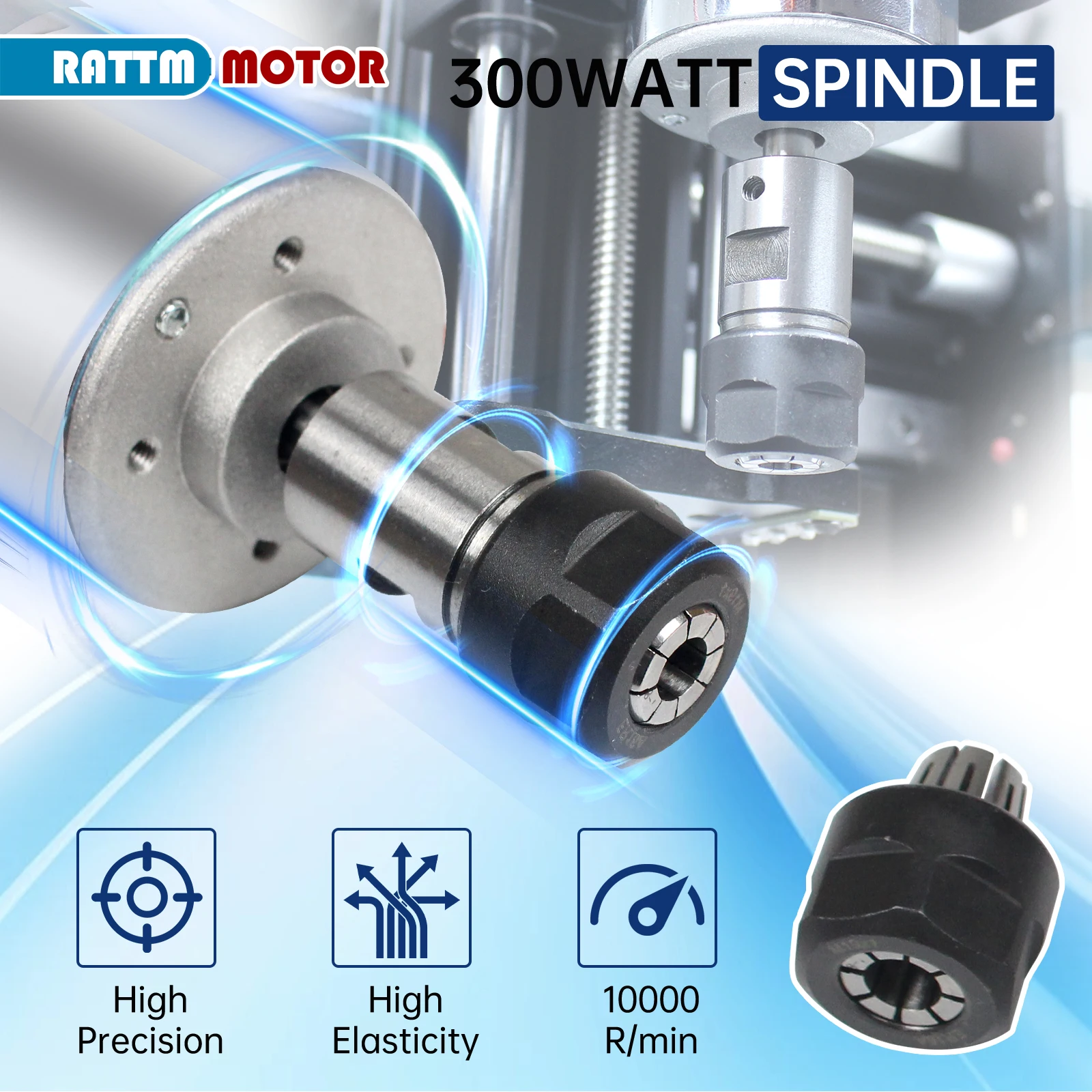

300W Spindle Kit
1.Spindle motor: brand new chrome plated DC brush motor
Working voltage: 12-48VDC (DC voltage)
Power: 300W
Speed: 3000-12000 r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
Torque: 400mN. m
Insulation resistance:>2 megaohms
Insulation dielectric strength: 400V
Diameter: 52mm
Length of the chuck section: The tool holder includes a nut and a 41mm clamp
The diameter of the chuck part is 16mm

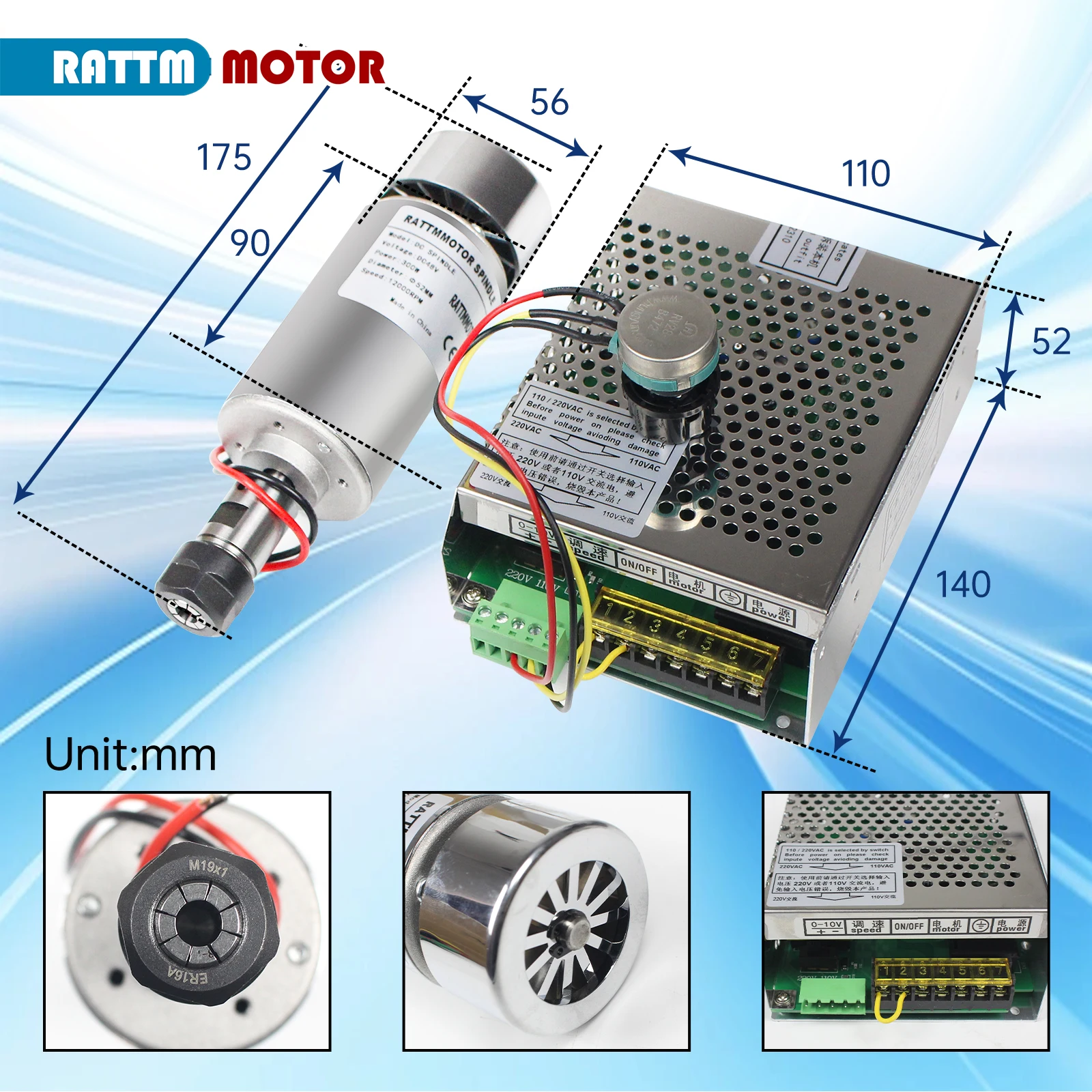

Total length of motor: 172mm (including clamping parts and motor)
Net weight of spindle: 0.8KG
The radial runout of the spindle is about 0.01-0.04
Can be used for carving materials such as metal or non-metal.
This spindle comes with forced air cooling and can work for a long time

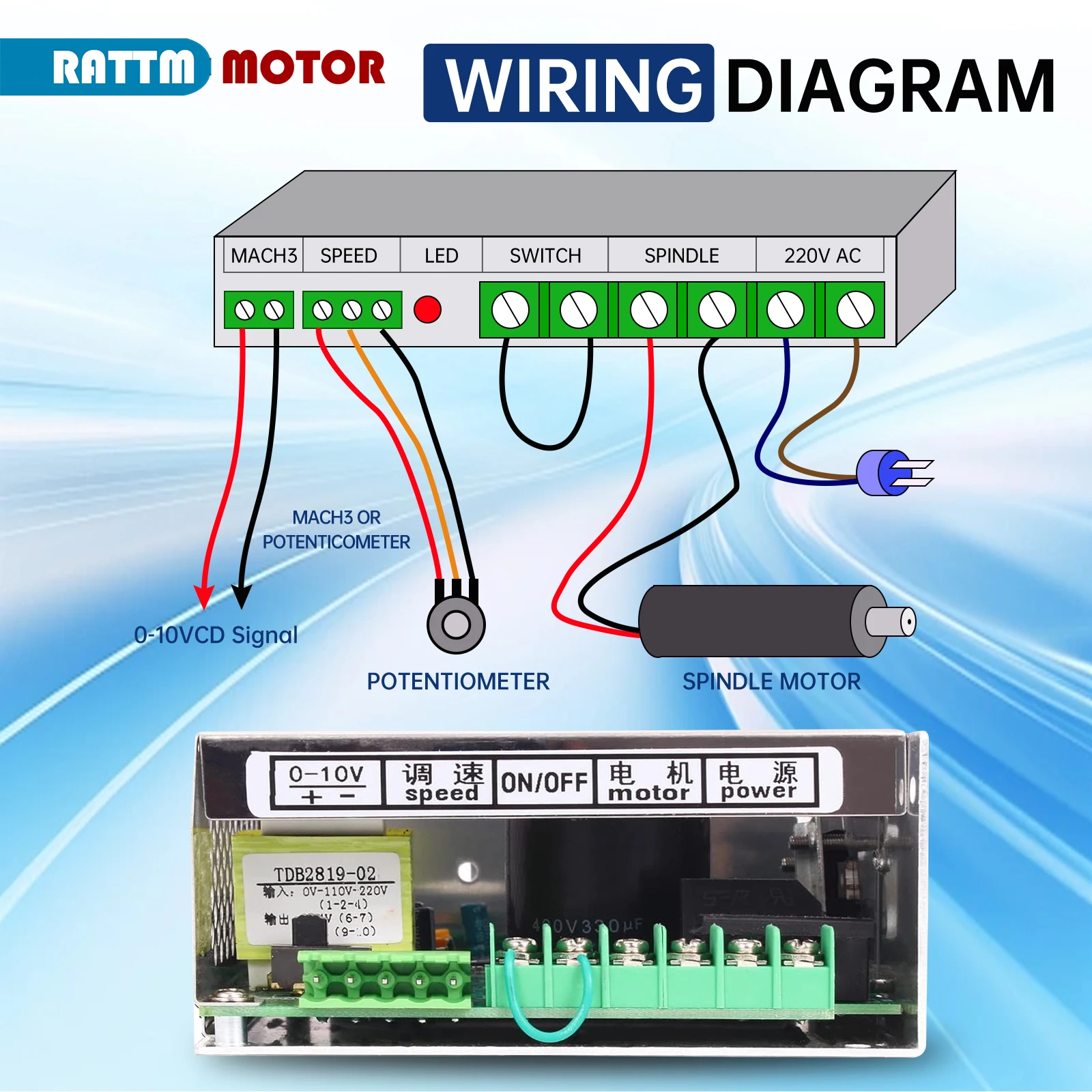

2. Power supply:

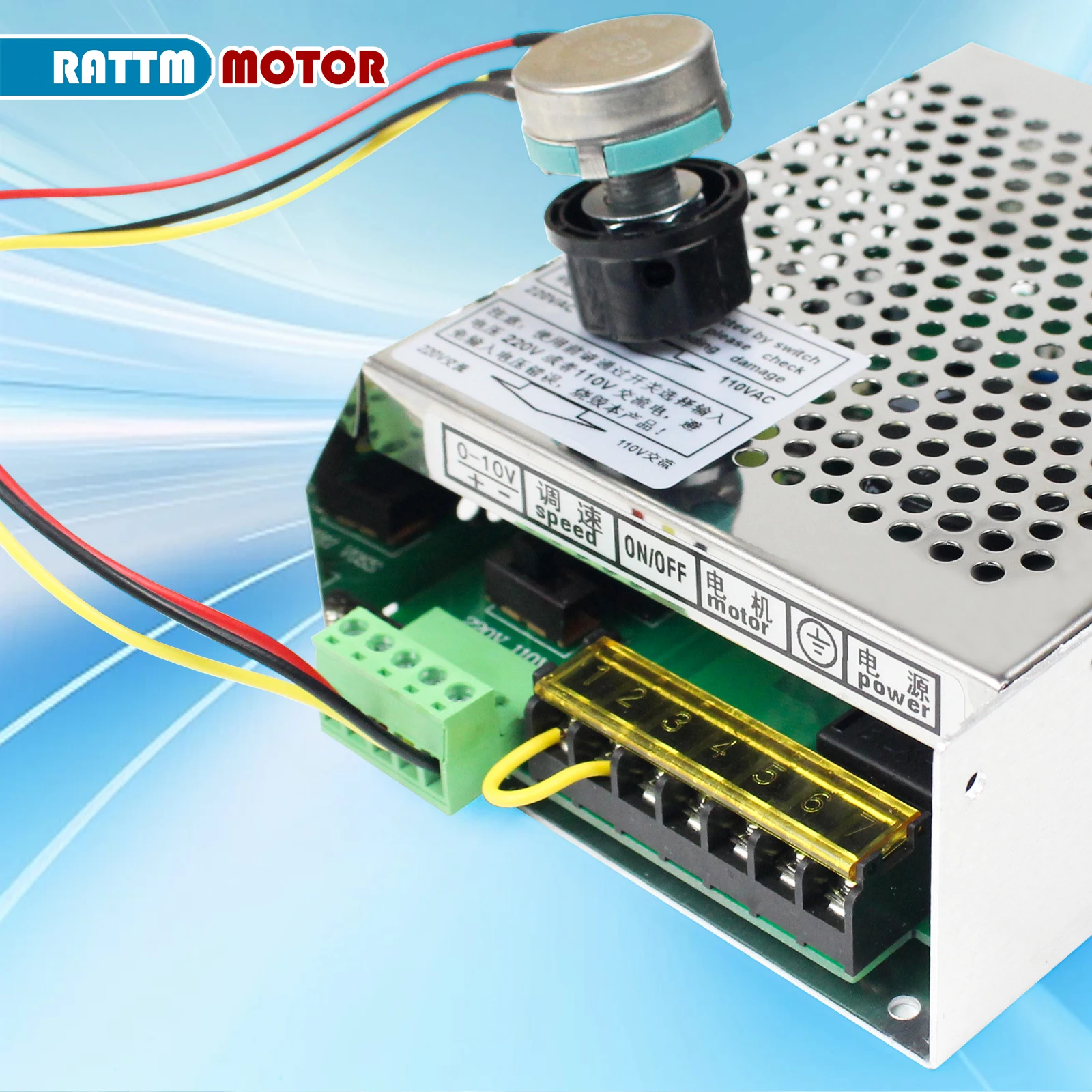

Power supply with speed regulator: (manual speed regulation)
Input: AC220V ± 10% 50/60Hz
Adapter power: 300W
Supports mach3 functionality
This power regulator can adjust 110/220V according to customer needs

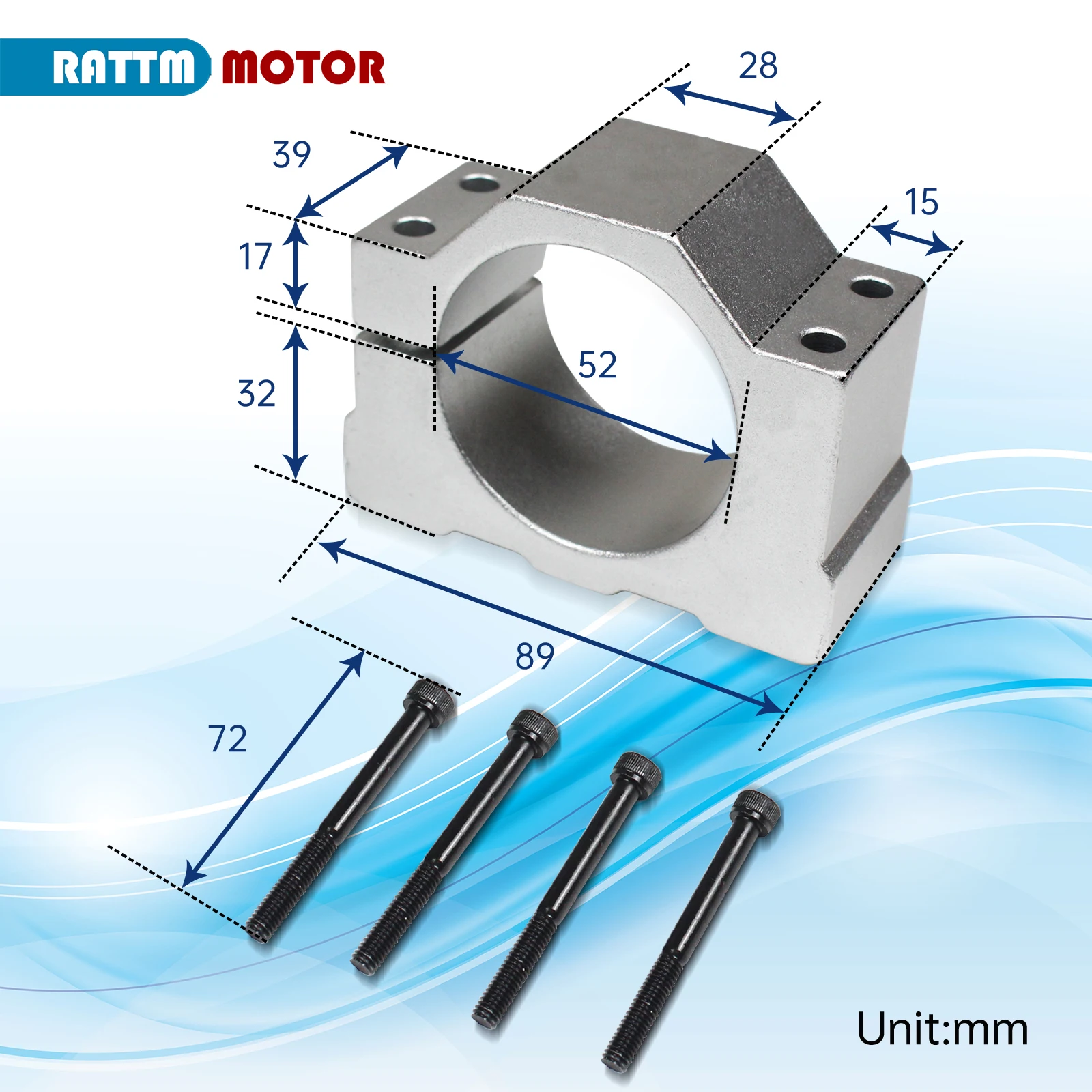

3.52mm clamp seat
1 52mm clamp holder+4 screws
Diameter: 52 millimeters
400W Spindle Kit
1.Spindle motor: brand new chrome plated DC brush motor
Working voltage: 12-48VDC (DC voltage)
Power: 400W
Speed: 3000-12000 r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
Torque: 500mN. m
Insulation resistance:>2 megaohms
Insulation dielectric strength: 400V
Diameter: 52mm
Length of the chuck section: The tool holder includes a nut and a 43mm clamp
The diameter of the chuck part is 16mm
Total length of motor: 185mm (including clamping parts and motor)
Net weight of spindle: 1KG
The radial runout of the spindle is about 0.01-0.03
Can be used for carving materials such as metal or non-metal.
This spindle comes with forced air cooling and can work for a long time
2. Power supply:
Power supply with speed regulator: (manual speed regulation)
Input: AC220V ± 10% 50/60Hz
Adapter power: 300W
Supports mach3 functionality
This power regulator can adjust 110/220V according to customer needs
3.52mm clamp seat
1 52mm clamp holder+4 screws
Diameter: 52 millimeters
