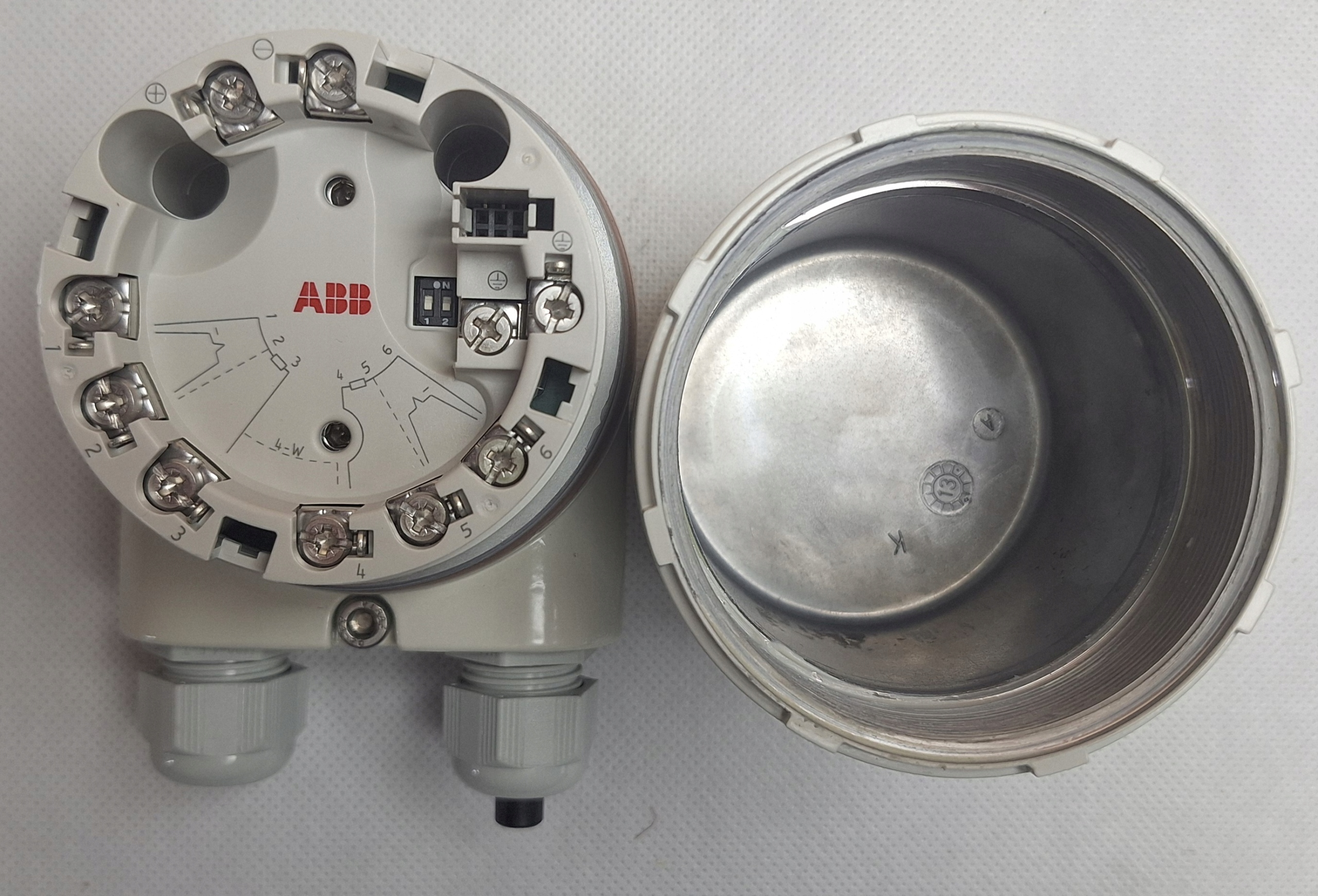

ABB TTF300 Field-Mount HART Temperature Transmitter 4-20mA IP68 -40+85°C

The ABB TTF300 field-mount temperature transmitter delivers precise temperature measurement via a two‐wire 4–20 mA loop with HART communication. Rated IP68 for full dust and water immersion protection, it operates reliably in ambient conditions from –40 °C to +85 °C, supporting both RTD and thermocouple sensors.

Features:

• Brand: ABB
• Model: TTF300
• Output: 4–20 mA two‐wire loop with HART protocol
• Ingress Protection: IP68 (dust-tight, water immersion)
• Ambient Temp Range: –40 °C to +85 °C
• Sensor Inputs: Universal for Pt100 RTD & thermocouples

Technical Specifications:

• Power Supply: 10–45 V DC loop power
• Communication: HART 5/7
• Accuracy: ±0.1 % of span
• Housing Material: Die-cast aluminium with corrosion-resistant finish
• Approvals: ATEX, IECEx, FM (optional)

Package Includes:

• 1 × ABB TTF300 Field-Mount Temperature Transmitter

Key Benefits:

• High Reliability: Two-wire design with advanced diagnostics for minimal downtime.
• Versatility: Configurable for a wide range of temperature sensors and spans.
• Rugged Design: IP68 protection and robust housing for harsh industrial environments.

Important Notes:

• Configuration via HART communicator or ABB DTM/EDD tools.
• VAT invoices available on request.
• Returns accepted within 30 days; buyer pays return shipping.
