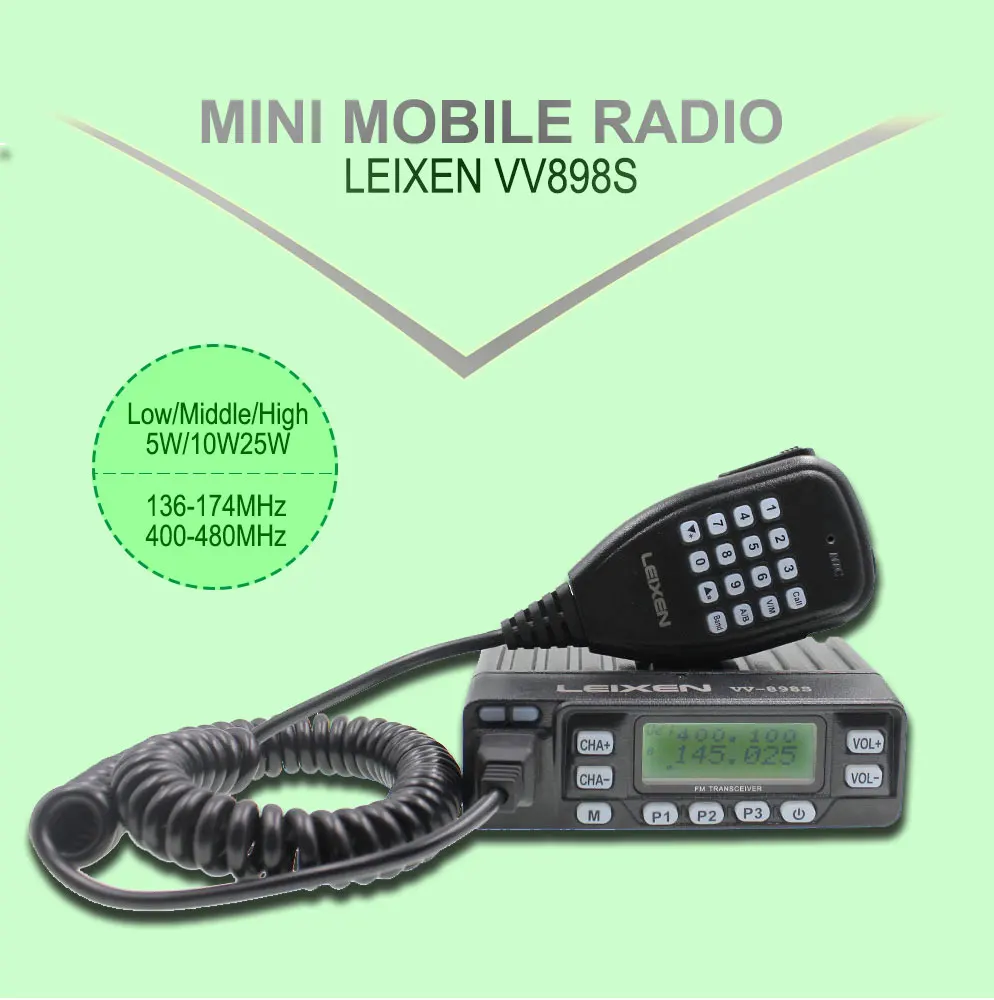

Leixen VV-898S 5W/10W/25W Tri Power Mini Radio Dual Band 136-174&400-470MHz Mobile Radio

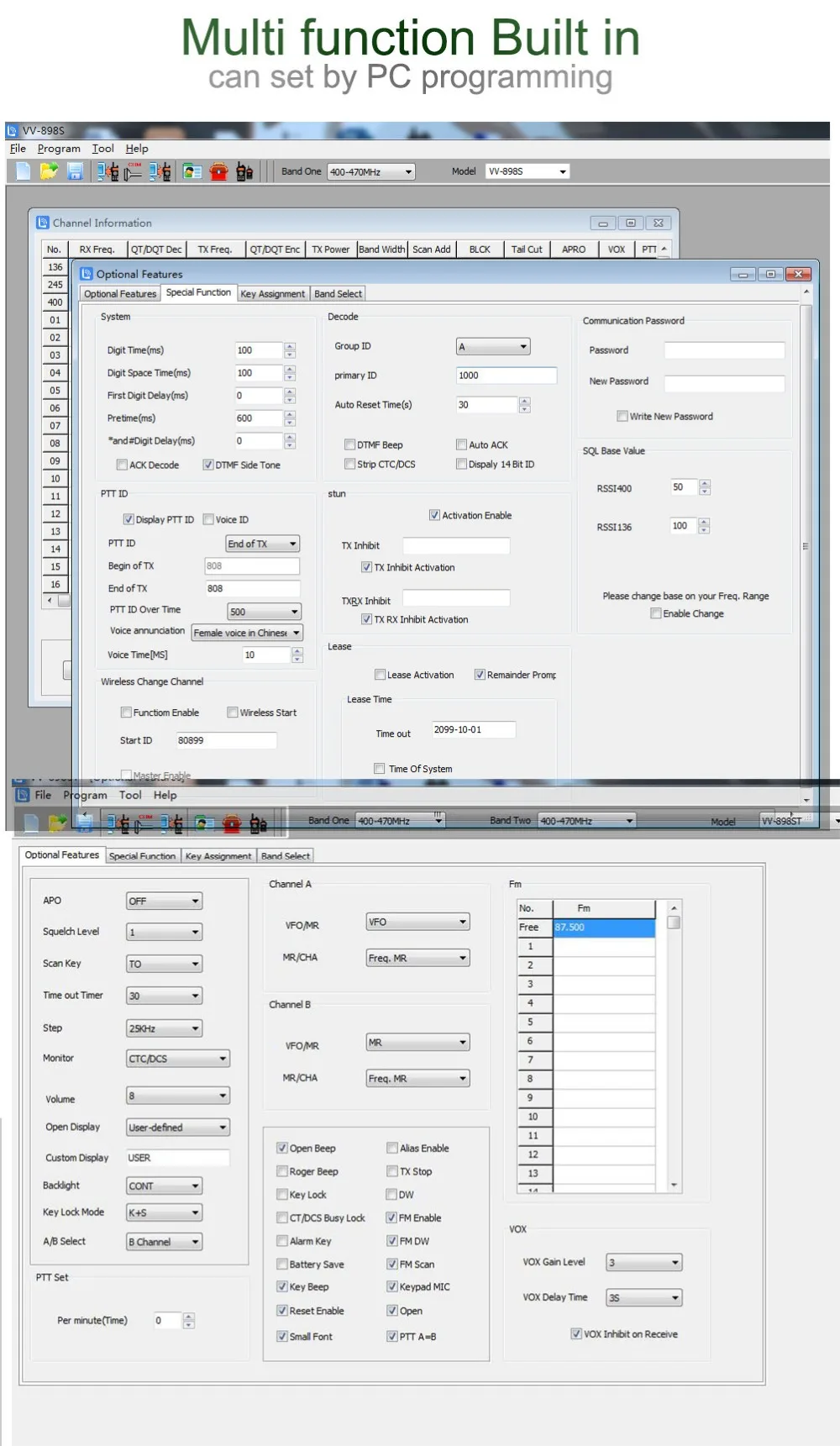

Note: if you need software, please contact us.
Functions:
Dual band: 136-174MHz/400-470MHz (program)
Multi Receive: 400-520MHz/136-174MHz/ 200-260MHz
FM Radio 87.5-108MHz
APO(Auto Power Off)
High/Low/Mid power(5W/10W/25W)
Voice Compander and Scrambler
Busy channel lockout
DTMF encoding and DTMF decoding
group calls and selective calls
Font size setting
Keyboard lock (Auto/Manual)
Multi scan mode (TO/CO)
PTT ID
Roger beep
Monitor
Emergency Alarm
Scan/Scan add
Four key programmable
1750Hz burst tone
Channel name edit available
TOT(Time-out timer)
16. Font Set(Big/Small)
VOX(Level adjustable)
Wide/Narrow band selection (25KHz/12.5KHz)
Talk Around
Reverse frequency function
Lease Function
Input frequency by using Keypad
Timepiece
Passwords for menu functions Set
All/Function reset
|
Model |
VV-898S-25W |
|
Band |
Dual Band |
|
Frequency Range |
400-470MHz, 136-174MHz (program) |
|
Channel Capacity |
199CH+3VFO |
|
Output Power |
5W/10W /25W |
|
Operation Mode |
Simplex |
|
Dimension |
120x90x40mm |
|
Weight |
315g |
|
Modulation Limitation |
<5KHz |
|
Spurious Radiation |
60dB |
|
TX Current |
3.5A |
|
Frequency Stability |
2.5PPm |
|
Rx Sensitivity |
<0.18V |
|
Modulation Type |
F3E |
|
Audio Power |
>400mW |
|
Standby Current |
78mA (Power Saving mode is 30mA) |
|
Rated Voltage |
13.8V |
