Dual NVME RAID, PCI-E X8 split card.

PCI-E X8 and X16 motherboard slots are supported.

Pci-e3.0 and PCI-e4.0 standard transmission speeds are supported.

Two X4 full-channel full-speed NVME SSD and M.2 PCI-E interface devices are supported.

High-power DC chip is adopted to ensure the stable operation of SSD and M.2 PCI-E equipment.

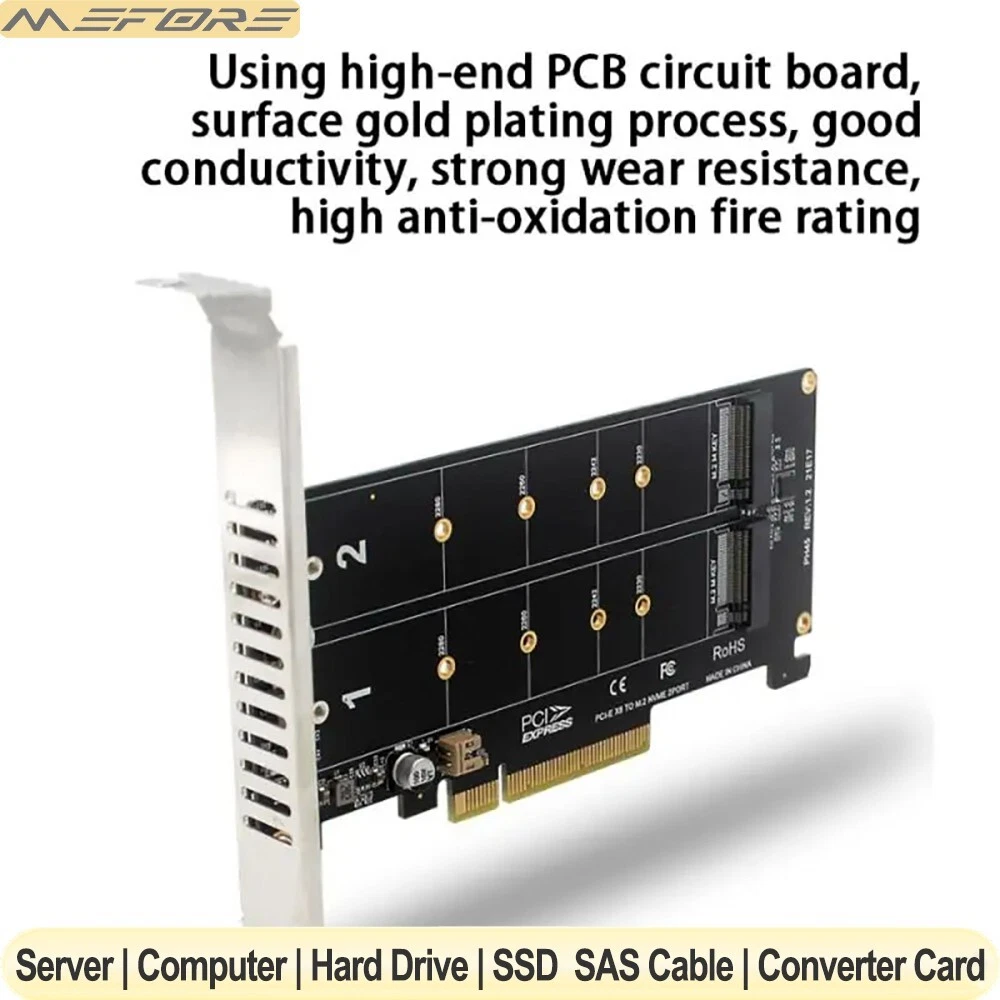

Adopt high-end PCB circuit board, surface gold plating process, with good conductivity, strong wear resistance, oxidation resistance and high fire protection level.

Thickened gold finger, PCI-E X8 interface, thick gold sinking process, better contact and more stable transmission speed.

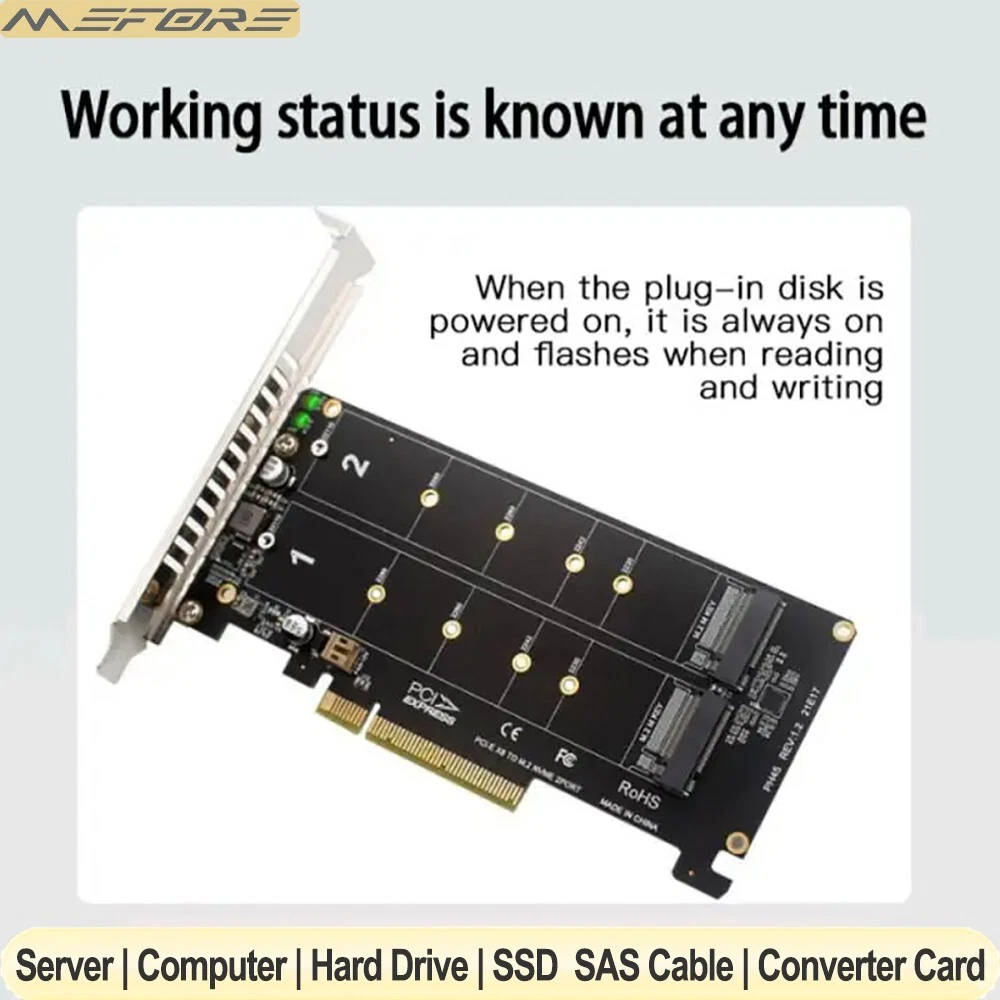

The working state is known at any time. It is always on when the plug-in tray is powered on, and flashes when reading and writing.

E-sports comes standard, abandoning SATA3 hard disk of old motherboard, upgrading M.2 hard disk interface, speeding up the startup speed, and making the game cool.

Reject the software crash, further improve the hard disk performance, meet the needs of design/video and other fields, and give full play to the computer performance.



Applications:

Name: Dual NVME RAID PCI-E X8 split card

Type: PH45

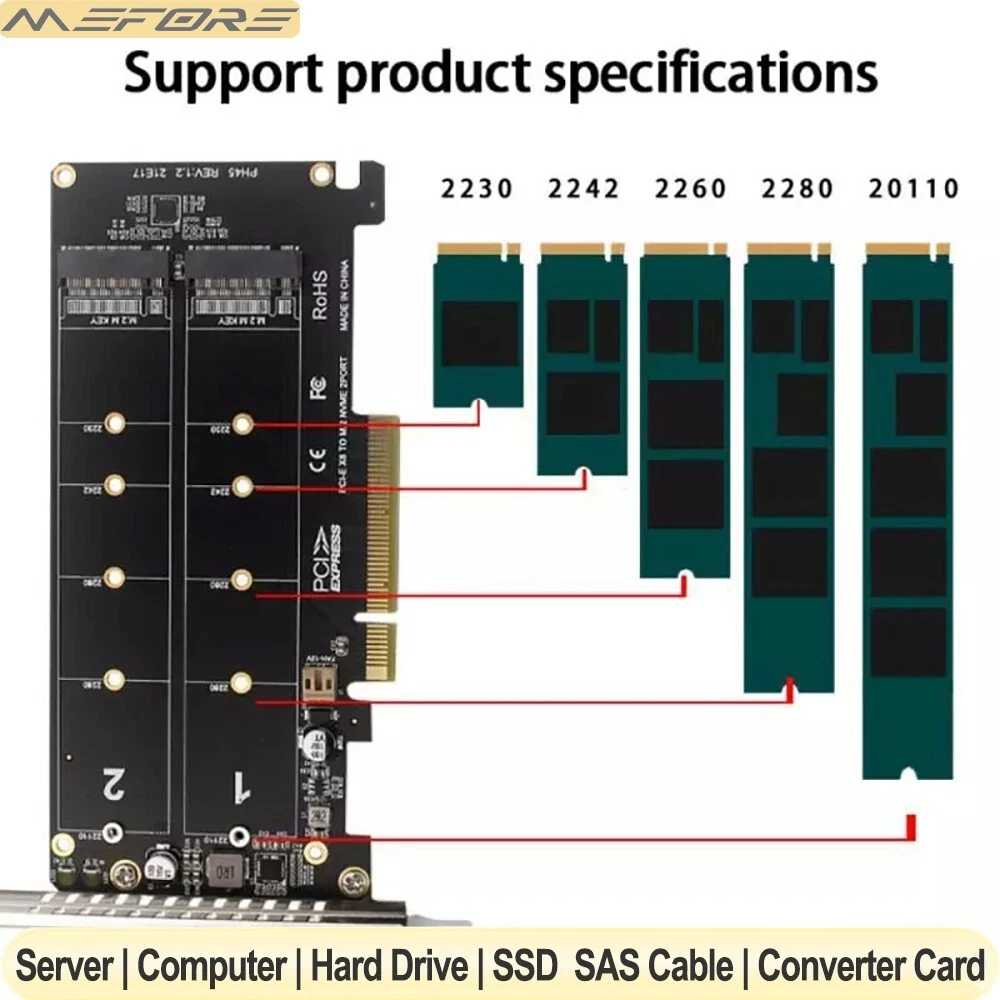

Hard disk support: M KEY hard disk

Transmission speed: 2*32Gbps

Net weight: about 52g



Package Included:

1*Dual NVME RAID PCI-E X8 Split Card

1*Baffle

1*Screwdriver

1*Set of screws

1. The motherboard must support PCI-E split function, and can set the PCI-E X4X4X4 or 4X4 mode.

1). The motherboard supports PCI-E RAID function;

2). Different motherboards have different PCI-E split channels, some motherboards PCI-E RAID is X8+X4+X4, this motherboard 4-bit M.2 card ONLY support 3 M.2 SSDs or devices, 2-bit M. 2 cards ONLY support 1 M.2 SSD or device, if you want to use this product normally, please choose the motherboard correctly;

3). Many motherboards share PCI-E channels. Make sure that the motherboard can support the PCI-E splitting function, but cannot recognize so many M.2 SSDs or devices. Please remove other PCI-E devices or replace the slots. Such as graphics card, expansion card, onboard NVME SSD, etc.

4). Many server motherboards, X299, X399 motherboards have split function;

2. CPU support is required, and the CPU must have enough channels. Generally, the low-end CPU does not have enough PCI-E channels, so it may not be able to support it. When purchasing a CPU, you can refer to the motherboard introduction to make the correct choice.

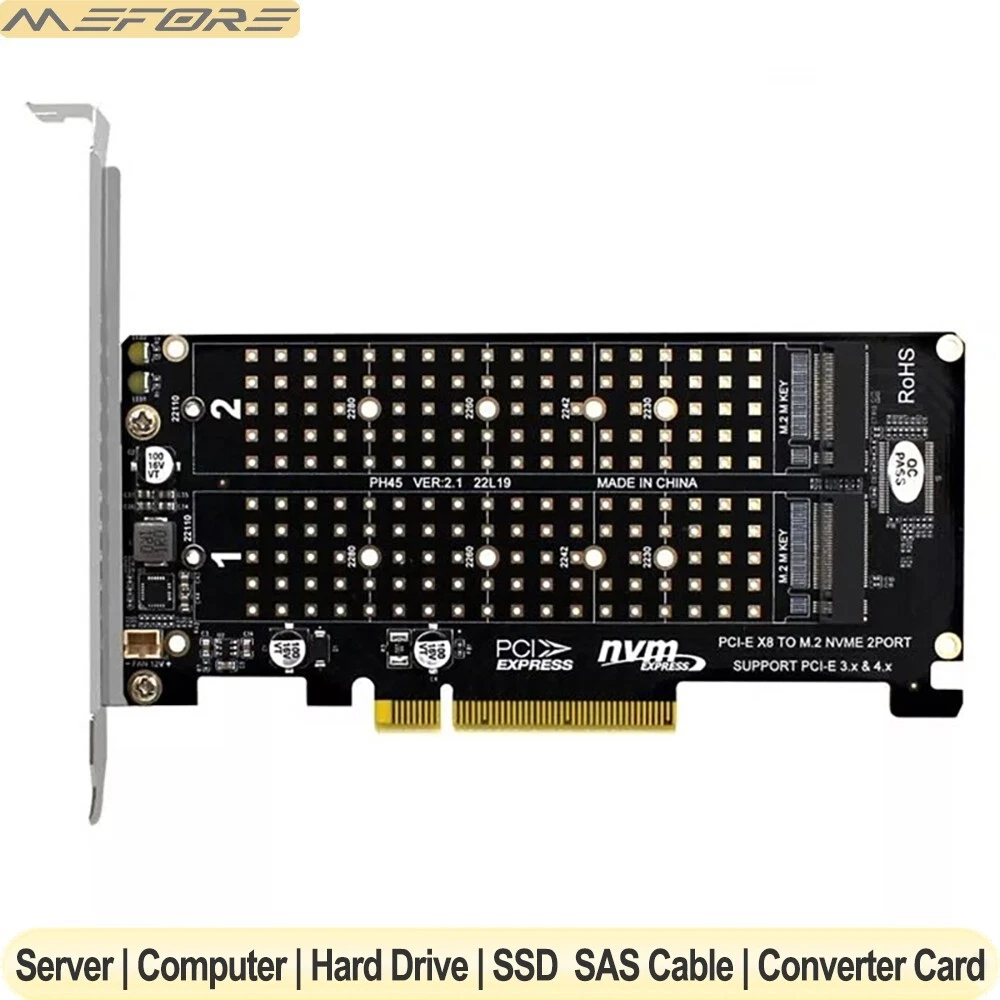

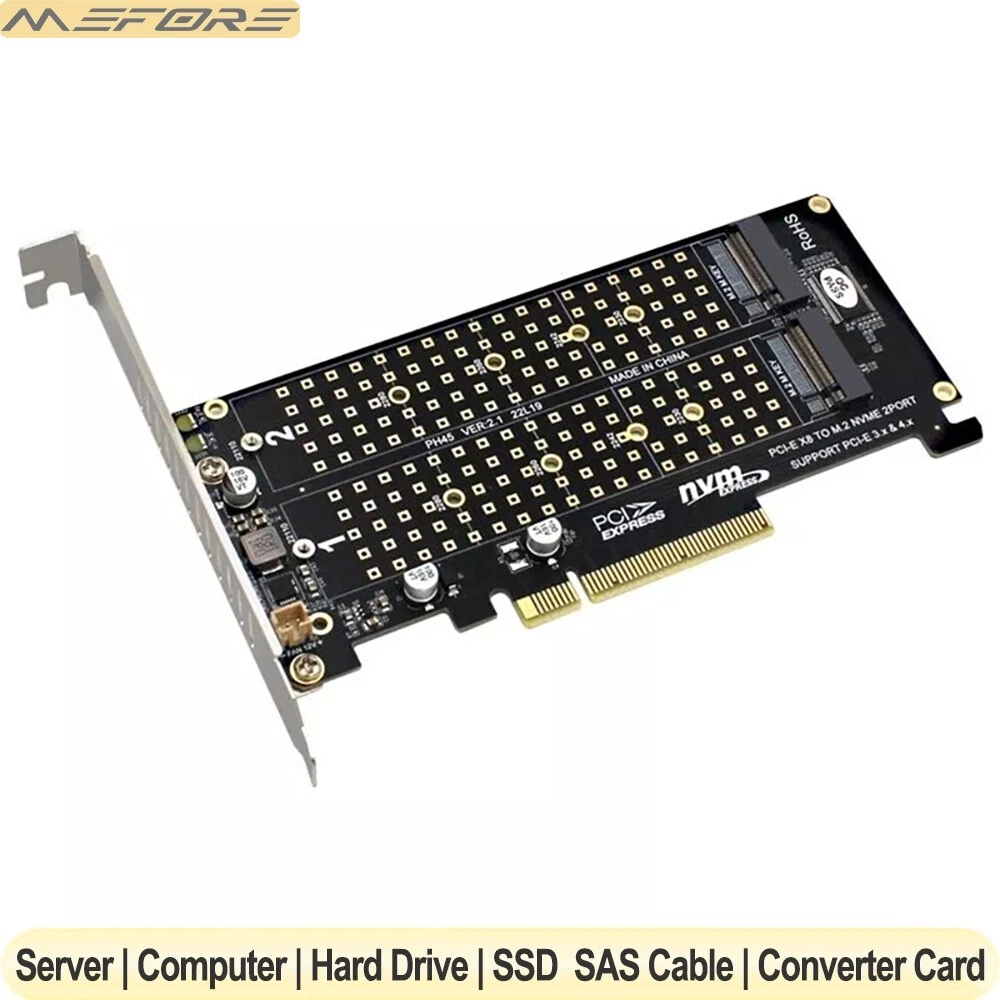

NOTE:The card board have updated by the newest version as photo 1&2,pls check it!
