The price is only Led Strip, Not Included Power Supply or Led Controller!
WS2813 Must Use DC5V Power Supply AND Led Controller to Control!
WS2815 Must Use DC12V Power Supply AND Led Controller to Control!
Every 0.5meter with solder joints, please note!

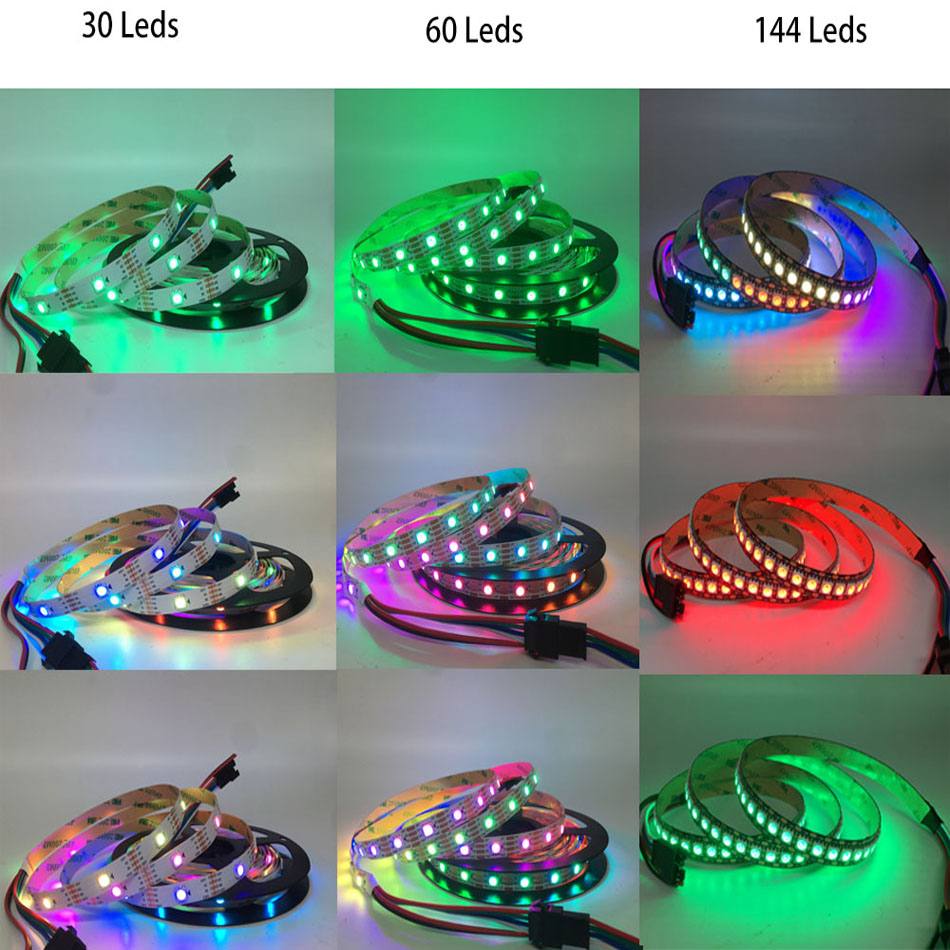

1, 30,60,144 means: 30 Leds/m, 60 Leds/m, 144 Leds/m

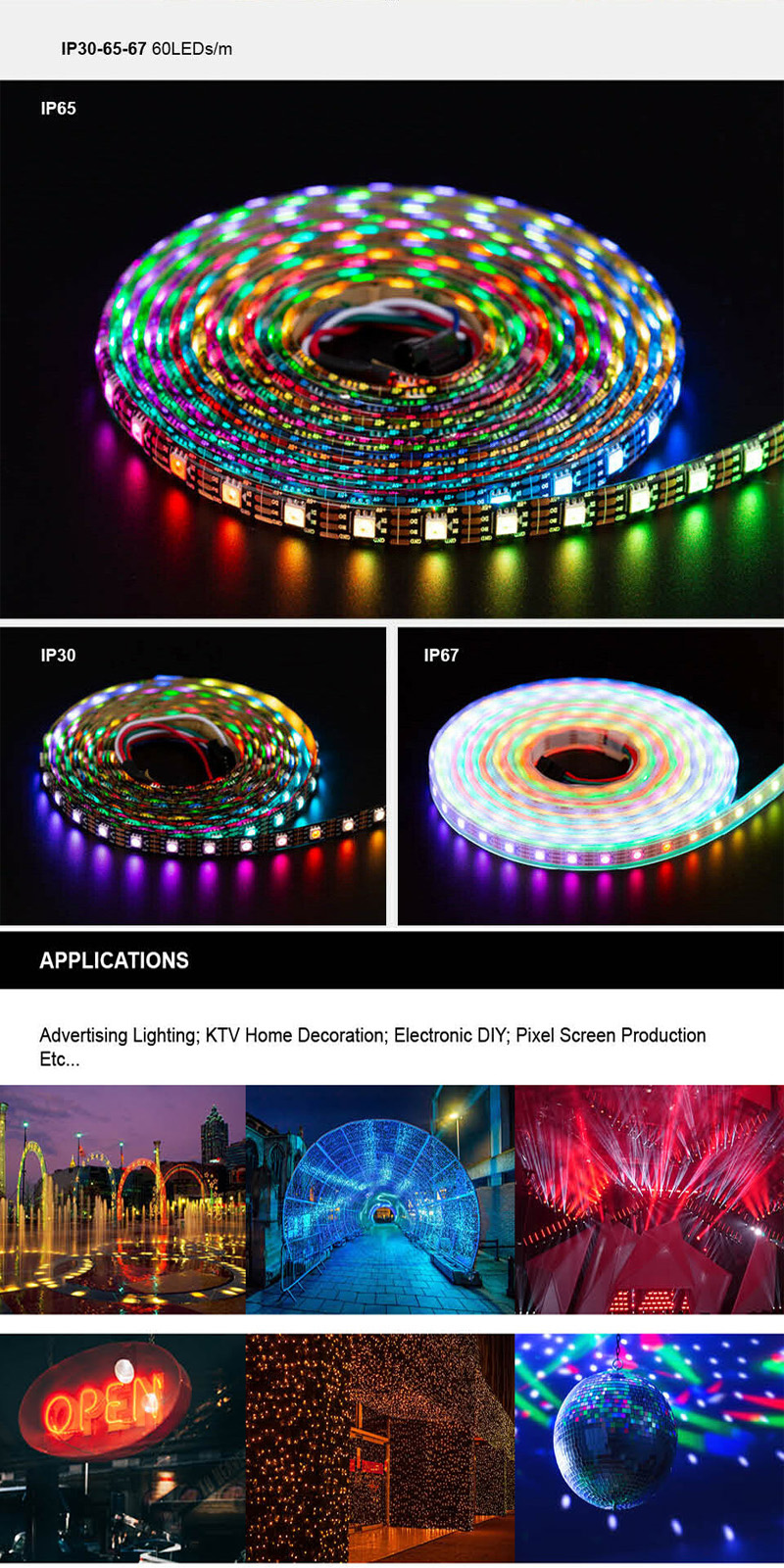

2, IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube
3, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive)
4, Each strip with one free male connector for, The length of the strip as you choose

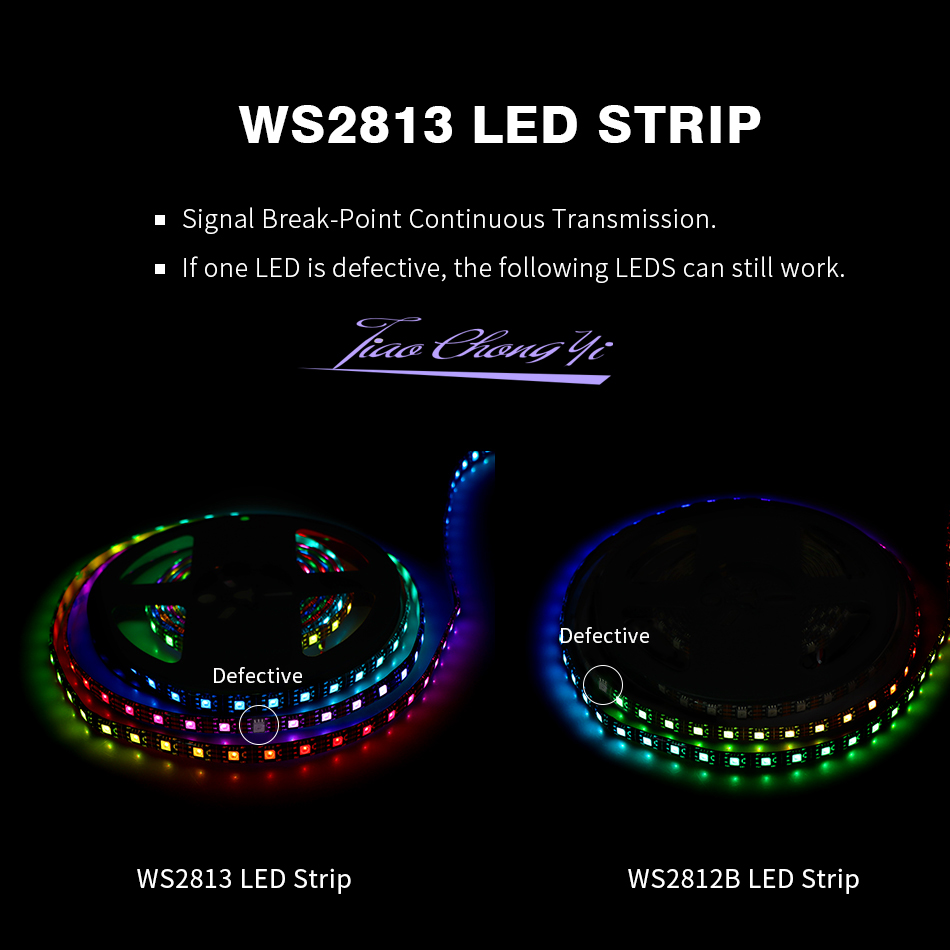

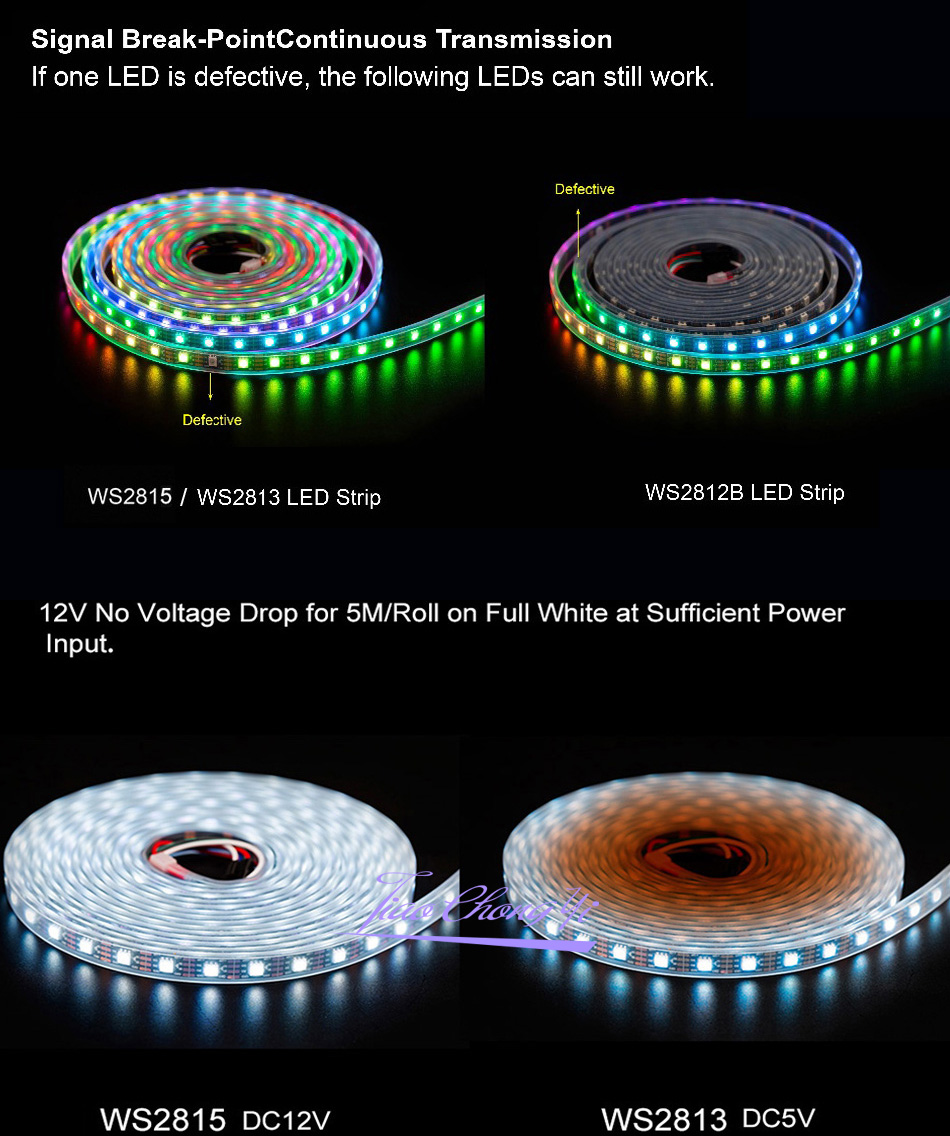

One pixel damaged will not affect the other LEDs'working, Dual signal wires version, Signal can jump to transfer
LED Light Source: WS2813 LEDs ( Same Protocol as WS2811S But With Dual-Signal Wires,So Can Be Controlled by the Same WS2811/ws2812 Controllers), ucs1903 IC for WS2815.
Input Voltage: DC5V WS2813 / DC12V WS2815.
Power: 30 Leds/M --- 9 Watt/Meter / 60 Leds/M --- 18 Watt/Meter / 144 Leds/M --- 43.2 Watt/Meter

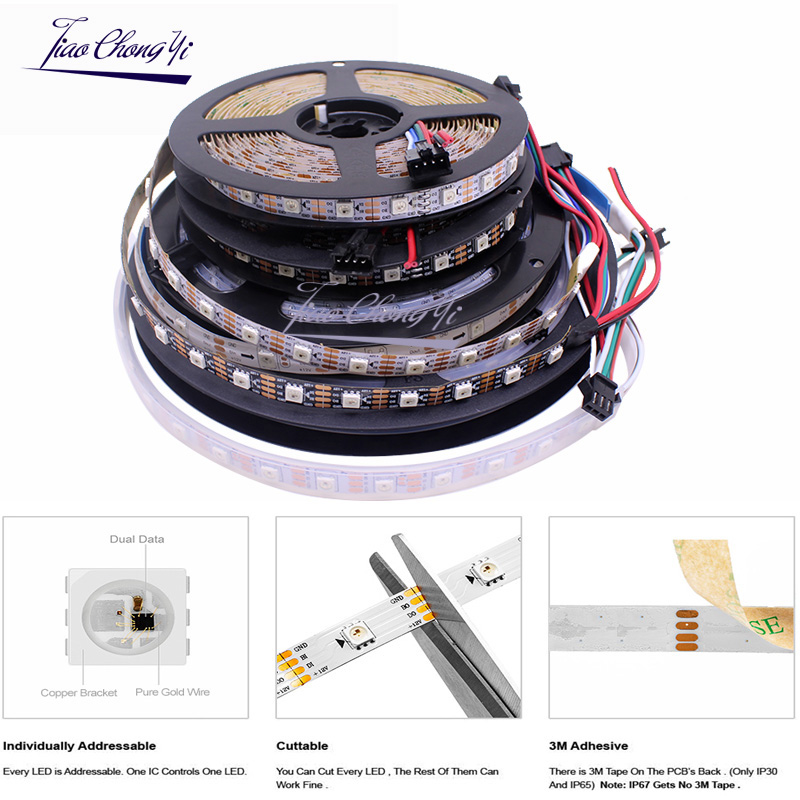

LED: Each LED is separately controlled
Of IC: (1 IC drives 1 led chip)
Pixels: 30Leds/60Leds/144Leds/meter
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Colors: Full color RGB, dream color changing
Bits/Color: 8-Bits/Color
FPC Color: Black/ White
FPC Width: 30 Leds/M --- 10 MM / 60 Leds/M --- 10 MM / 144 Leds/M --- 12 MM

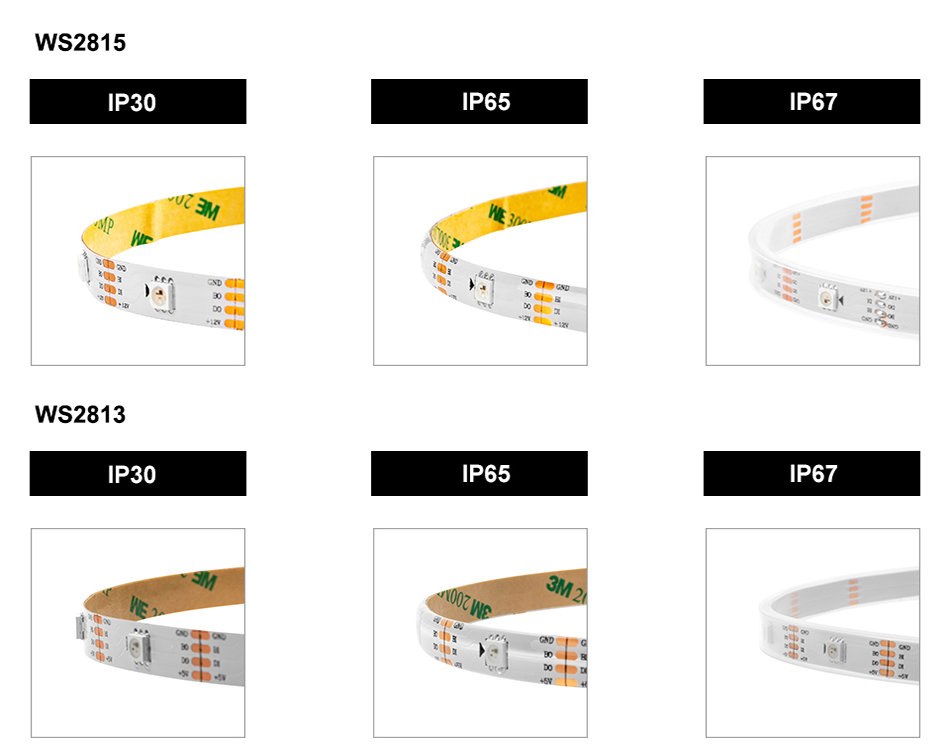

Protection Rate: IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube
Cuttable: Every LED is cuttable
Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with one free male connector for connector
Working Temperature: -40 - 70 °C
Storage Temperature: -50 - 80 °C
Source Life: 50,000 hours

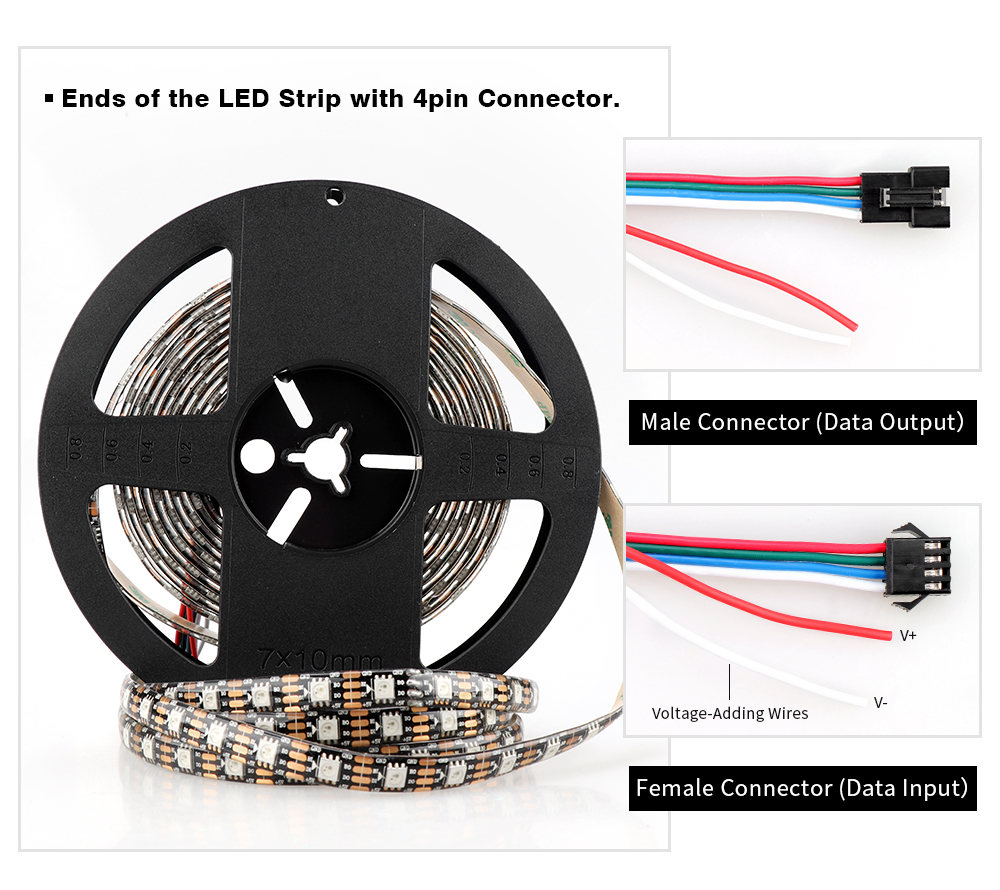

Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)
Recommand controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K

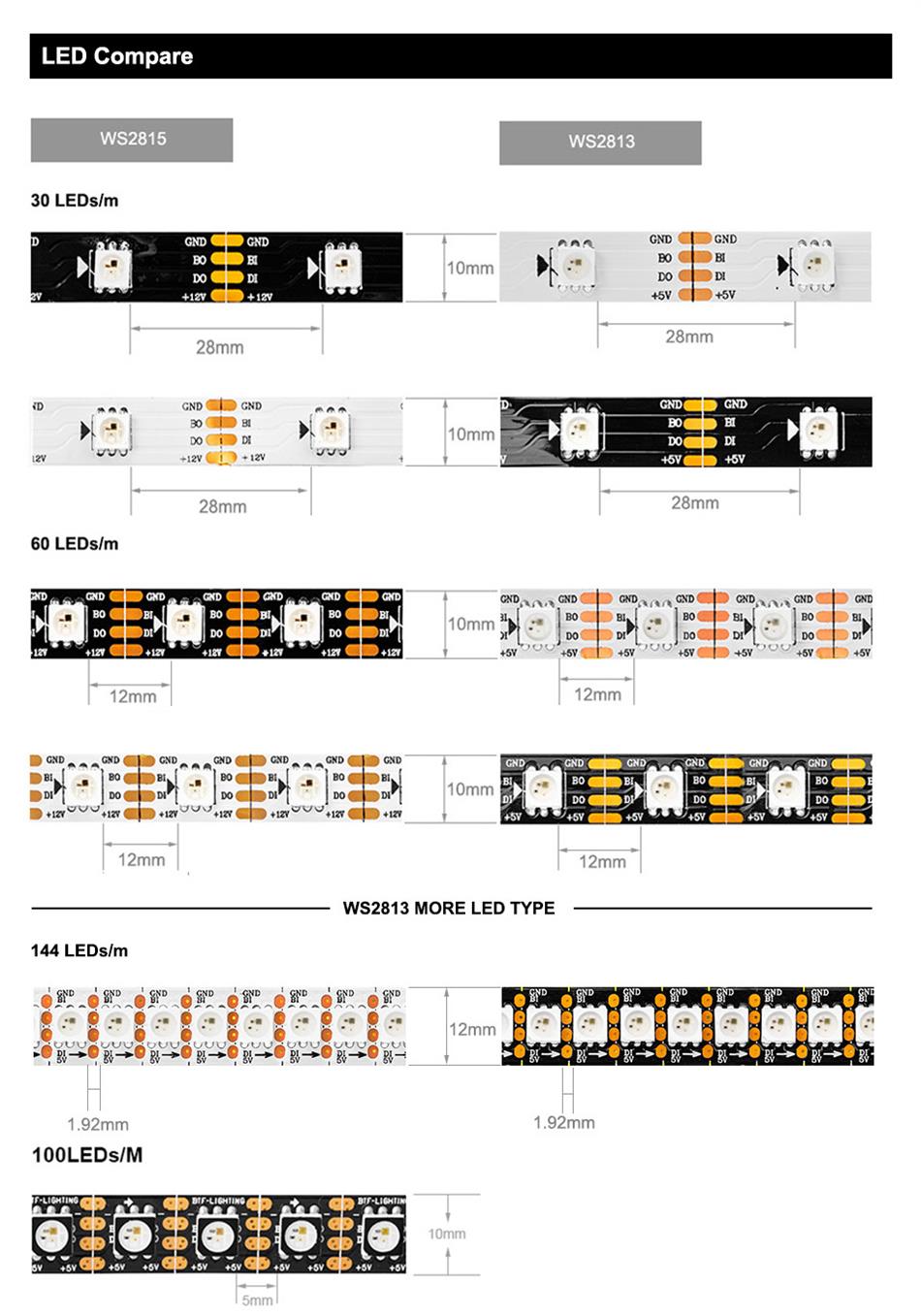

The different between the WS2815 and WS2813.
Package includes:
1 x led strip
1 x 4pin connector
Note:
1, The led strip must use with DC12V Power adapter and WS2815 pixel controller.
2, The Power adapter and controller are not included! If you need, please visit our store!
