Engine Overhaul Rebuild Kit - Crankshaft / Rods For VW Audi CNC CHH CNT 2.0TFSI

Item Detail

Crankshaft Connecting Rods Pistons Rings Timing Chain Tensioner Crankshaft Connecting Rod Bearing Shell Oil Seals Gasktets

Engine Overhaul Reconstruction Kit For VW Golf GTI AUDI A3 A4 A5 Q5 TT 2.0 TFSI TSI EA888 Gen 3

CNCB CNCD CNCE CHHA CHHB CNTA CNTC

Please confirm your original piston pin bolt is Φ23mm

Please read carefully the "Fit Car Model" in the following

Crankshaft OE#

Connecting Rods OE#

06H 198 401 D

06H 198 401 A

Pistons & Rings OE# Pistons & Rings Replacement OE#

06K 107 065 D 06K 107 065 F / T / AD

N 911 766 01 (Φ23mm) 06H 198 151 C / E / L

06H 198 151 F 06K 198 151 A

Pistons & Rings Spec

STD 0.00 spec (no fit cylinder expand)

Piston Diameter 82.5mm （3.25" / 3.25in.）

Pin bolt Diameter Φ23mm

Ring Thickness 82.5x1.2, 82.5x1.2 , 82.5x2.0

Buckle Size 23x1.5mm

Valves OE# Replacement OE#

06D 109 601 M 06D 109 611 L / T

06D 109 611 H

Bearing Shell OE# Bearing Shell Replacement OE#

06H 105 561 K N/A

06H 105 591 K N/A

06H 105 701 P GLB N/A

Seals & Gasket Kit OE# Included Parts

06K 103 383 K / 06K 103 483 Valve oil seal

06H 103 483 D / 06H 103 484 A Cylinder Head Gasket

06F 129 717 D / 06F 253 039 F Crankshaft oil seal

1K0 253 115 AB / 06J 117 070 C Camshaft oil seal

06J 115 441 A / 06J 121 119 Intake & Exhaust manifold Gasket

06H 103 121 J / 06H 103 171 F Valve Cover Gasket

06H 103 085 G / 036 109 675 A

Timing Chain Kit OE# Included Parts

06K 109 467 P / 06H 109 467 AE Timing Chain Tensioner

06K 109 158 A / 06K 109 158 F Timing Chain (Long)

06H 109 469 AQ / 06H 109 469 AH Timing Chain (Short)

06H 109 469 AP / 06H 109 469 T Timing Gear

06H 109 509 P / 06H 109 509 Q Timing Guide Set

06K 109 507 N / 06H 105 209 AQ Oil Pump Chain

06H 115 225 L Oil Pump Chain Tensioner

Package includes

1pcs x Crankshaft

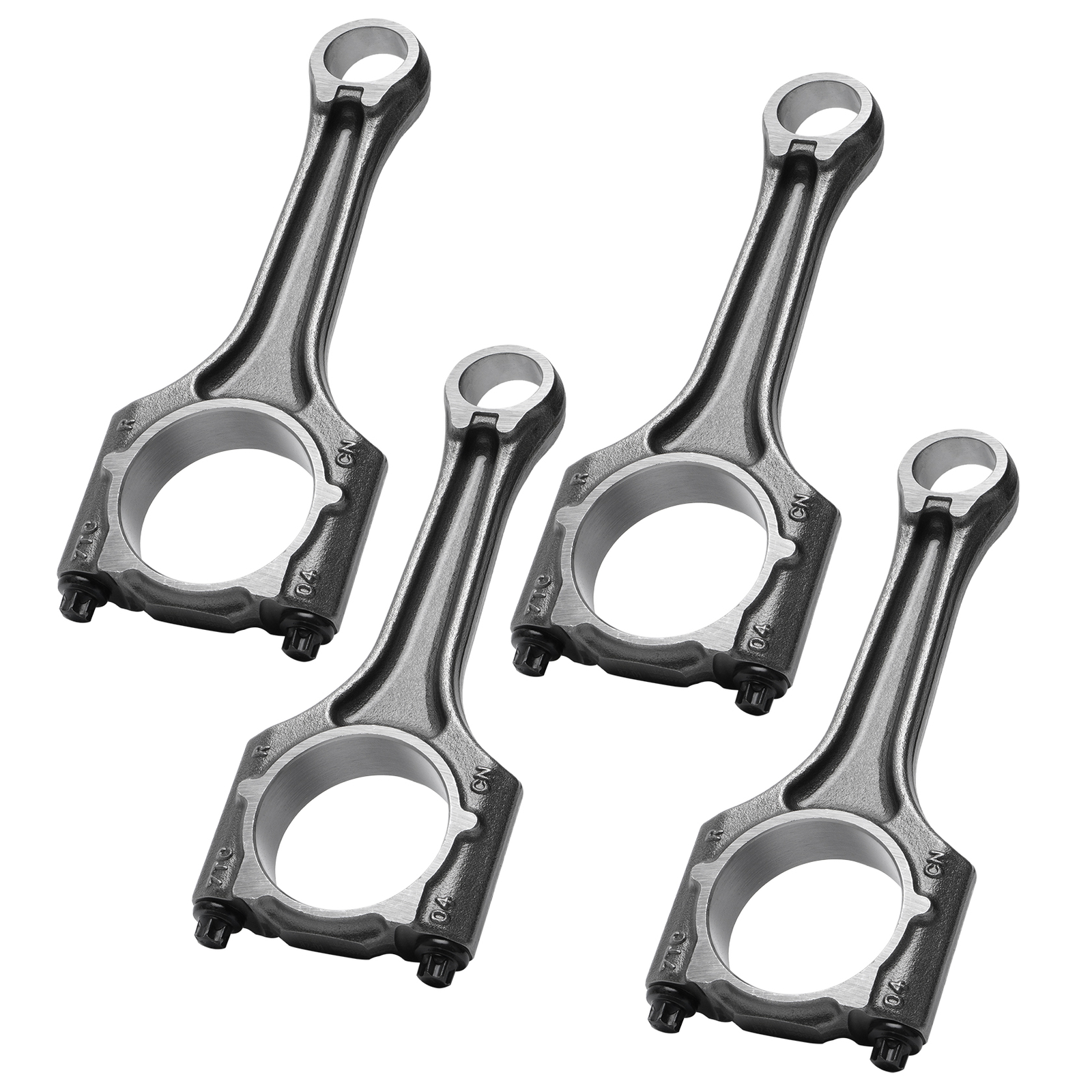

4pcs x Connecting Rods

1set x Pistons & Rings Kit

1set x Main & Rods Bearings w/ Thrust Washers

1set x Timing Kit

1 set x Gasket Seals Kit

16pcs x Intake & Exhaust Valves

10pcs x Head Bolts

Fit Car Model

Brand & Model	Produce Year	Fit Engine
AUDI		Piston pin bolt Φ23mm
A1	2015-2018	2.0 TFSI CWZA
A3 (8V)	2014-2016	2.0 TFSI CHHB CNTC
A4 (B8)	2013-2015	2.0 TFSI CNCD
A4 Allroad Quattro	2013-2016	2.0 TFSI CNCD
A5 / A5 Quattro	2013-2017	2.0 TFSI CNCD CNCE
A6 / A6 Quattro	2015-2018	2.0 TFSI
Q5	2013-2017	2.0 TFSI CNCB CNCD CNCE
TT / TT Quattro	2015-2018	2.0 TFSI CHHC CNTC

VOLKSWAGEN		Piston pin bolt Φ23mm
Golf GTI (MK7)	2014-2018	2.0 TSI CHHA CHHB CNTA

SKODA		Piston pin bolt Φ23mm
Octavia 2.0 RS	2013-2018	2.0 TSI CHHA CHHB

Please Note

We also can supply the following parts for engine rebuild , any parts you need , please let us know:
Piston , Piston ring , Cylinder liner,
Full gasket kit (including the head gasket and all necessary seal ),
Valve (intake , exhaust , seat and guide ),
Bush , Main and Con rod bearing .
Water pump , Oil pump , Fuel pump,
Crankshaft , Camshaft , Connecting rod.
