Package included :

If you choose an electric version of the sliding table:
1* Sliding Table
1* Coupling
1* Dust cover (We will ship according to your choice)
1* Nema 23/Nema34 Motor Bracket

If you choose a manual version of the sliding table:
1* Sliding Table with steel ruler
1* Handwheel
1* Dust cover (We will ship according to your choice)

Note :

1, The stepper motor and coupling are not included , if you need them , please contact us .

2, We have 100~1000mm length for choose, please contact us if you need , thank you .

3,We have installation dimension drawings, will be sent with the goods, thank you!

Features :

1, slide material: the use of high hardness aviation aluminum 6061, T6 level, precision processing, product accuracy is guaranteed, excellent quality will never be deformed.

2. The size of the slide moving panel: Width: 150mm * Length: 90mm; (In total, there are 2 HGH15 square sliders under the moving panel; the movement stability is strong and the gap is small and high precision.)

3, slide height: 71mm

4, slide floor width: 135mm

5, slide floor thickness: 11mm

6, screw configuration: standard ball screw diameter 1605 screw, screw diameter 16mm, lead 5mm (that is, the screw moves the circle to move the panel to go 5mm meaning; screw specifications can be changed)

Product parameters

Material: Super hard 6061 aviation aluminum

Screw: 1605 screw

Bearing weight: less than 250KG

Rail: 16mm square rail

Accuracy: repeat positioning 0.01-0.02mm

Real pictures effect chart:

TH20 Series Sliding Table

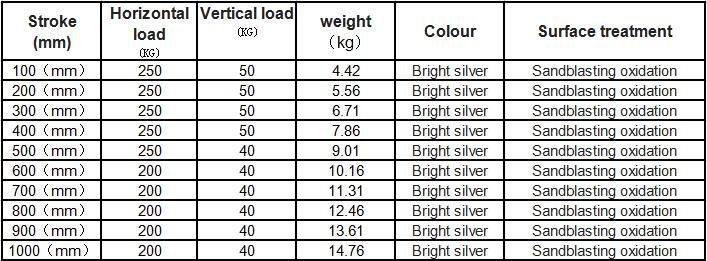

S=Effective stroke (mm)	100	200	300	400	500	600	700	800	900	1000
L(mm)	0	50	/	/	/	/	/	/	/	/
M (NO. of holes)	4	4	12	12	12	12	12	12	12	12
H(mm)	/	/	85	135	185	235	285	335	385	435
K(mm)	/	/	27	77	127	177	227	277	327	377
F(mm)	176	276	376	476	576	676	776	876	976	1076
Max. Horizontal load(kg)	250	250	250	250	200	200	200	150	150	150
Max. Vertical load(kg)	50	50	50	50	40	40	40	30	30	30
Ball screw outer diameter	Ø16-C7
Optical axis guide	Ø16

Questions & Answers :

Q1: 100mm 200mm 300mm 500mm are these travel lenths? or the total length of the slider?

Answer: Travel lengths.

Q2: Do you ship it assembled or all the pieces separatelly for us to assemble it? we prefer it separatelly.

Answer: we ship it assembled.

Q3: Does this include the stepper motor?

Answer: Does not include nema engine.

Q4: Is there a CAD model available?

Answer: You can email seller for it.

Q5: Would it includes coupling?

Answer: No, if you need this part, you can email us for it.

Q6: What size is the stepper motor mount. Is the motor included as shown in the pictures?

Answer: 57*57mm or 86*86mm, default ship 57*57mm motor base . The motor is not included.

Q7: Can i mount Nema34 (86*86mm)motor ?

Answer : Yes, you can contact the seller , they will send you the Nema34 motor base
