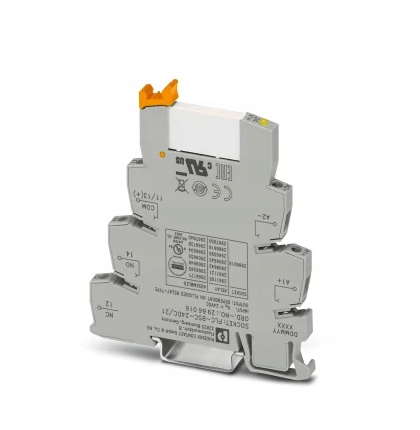

Phoenix Contact PLC-RSC-24DC/21 24V DC 6A SPDT Relay with PLC-BSC-24DC/21 DIN Rail Socket

The Phoenix Contact PLC-RSC-24DC/21 is a high-quality interface relay designed for industrial automation applications. Paired with the PLC-BSC-24DC/21 socket, this relay offers reliable performance and easy integration into DIN rail-mounted systems.

Features:

• Brand: Phoenix Contact
• Relay Model: PLC-RSC-24DC/21
• Socket Model: PLC-BSC-24DC/21
• Coil Voltage: 24V DC
• Contact Configuration: SPDT (Single Pole Double Throw)
• Maximum Switching Current: 6A
• Mounting: DIN rail (NS 35/7.5)
• Connection Type: Screw terminals

Technical Specifications:

• Relay Part Number: 2966171
• Socket Part Number: 2966016
• Nominal Input Voltage: 24V DC
• Input Voltage Range: 18.5V to 33.6V DC
• Input Resistance: 2.66 kΩ
• Turn-On Time: 5 ms
• Turn-Off Time: 8 ms
• Operating Temperature Range: -40°C to +60°C
• Dimensions: 94 mm (Height) x 6.2 mm (Width) x 80 mm (Depth)

Package Includes:

• Phoenix Contact PLC-RSC-24DC/21 Relay
• Phoenix Contact PLC-BSC-24DC/21 Socket

Key Benefits:

• Compact Design: Slim 6.2 mm width saves space in control panels.
• Easy Installation: DIN rail mounting with screw connections ensures quick setup.
• Reliable Performance: High-quality components provide consistent operation in industrial environments.

Important Notes:

• Ensure compatibility with your system's voltage and current requirements before installation.
• VAT invoices available upon request.
• Returns accepted within 30 days; buyer pays return shipping.
