Package Included :
Table Features :
Slide material: Aviation aluminum 6061(Surface sandblasting oxidation anti-rust treatment)
Stroke:100~400MM (Effective Stroke)
Mobile panel size: 150mm X 90mm
Slide height: 71mm
Floor width: 135mm
Bottom plate thickness: 10mm
Repeat positioning accuracy: 0.02mm-0.03mm
SBR Guide: 16mm
Ball screw Features:
1. Ball screw type: 1605 (Diameter 16mm, lead 5mm) /1610 (Diameter 16mm, lead 10mm)
2. Ball screw accuracy: C7
3. Repeat positioning accuracy: ± 0.02mm
|

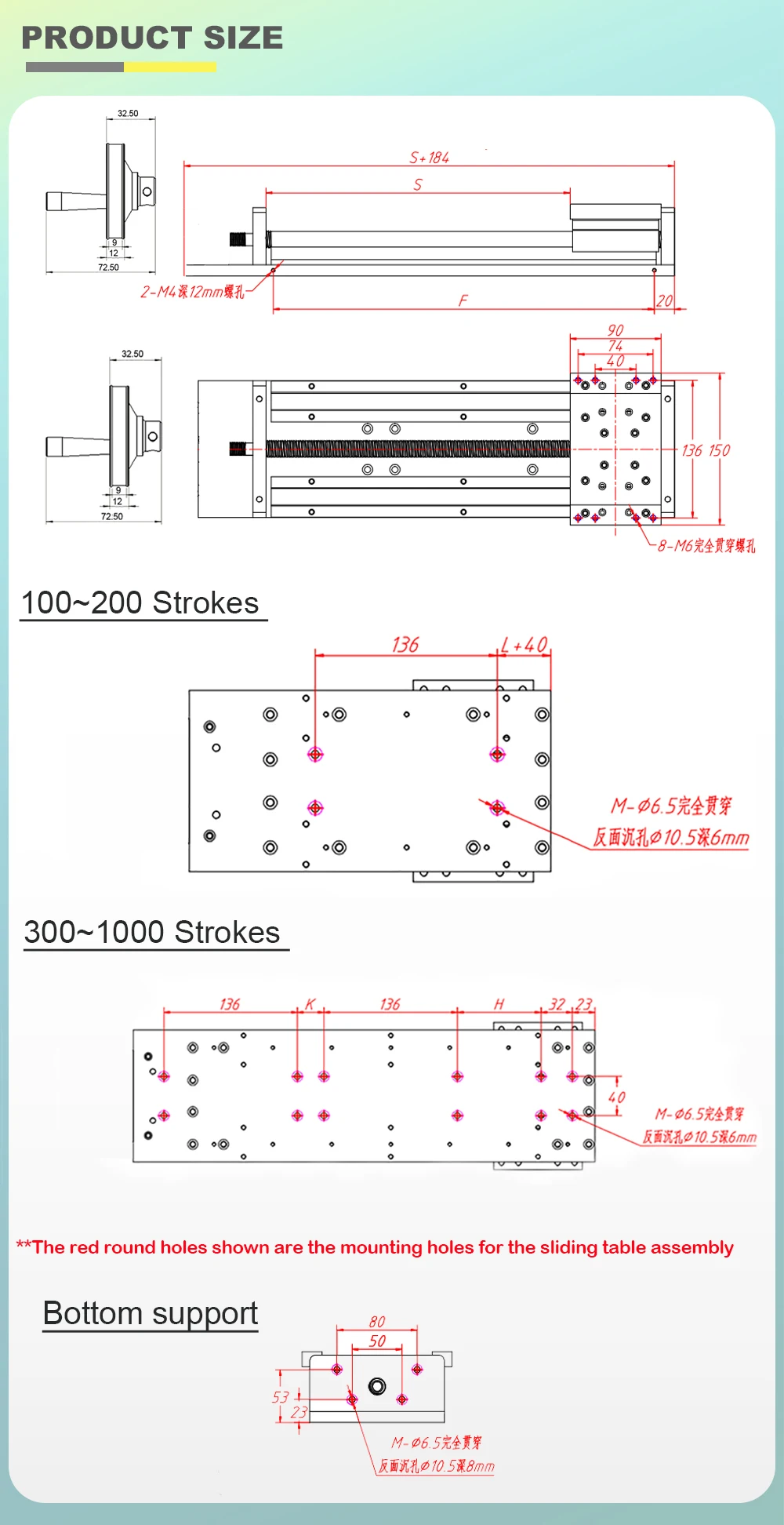

The size of the sliding table |
||||||||||
|
Effective Stroke (S) |
100mm |
200mm |
300mm |
400mm |
500mm |
600mm |
700mm |
800mm |
900mm |
1000mm |
|
L (mm) |
0 |
50 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
M(Number of holes) |
4 |
4 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
12 |
|
H(mm) |
/ |
/ |
85 |
135 |
185 |
235 |
285 |
335 |
385 |
435 |
|
K(mm) |
/ |
/ |
27 |
77 |
127 |
177 |
227 |
277 |
327 |
377 |
|
F(mm) |
176 |
276 |
376 |
476 |
576 |
676 |
776 |
876 |
976 |
1076 |
|
The weight of the sliding table (kg) |
5.2 |
6.2 |
7.3 |
8.4 |
9.5 |
10.6 |
11.7 |
12.8 |
13.9 |
14.9 |
|
Maximum Horizontal Load (kg) |
180 |
180 |
180 |
180 |
160 |
160 |
160 |
100 |
100 |
100 |
|
Maximum Vertical Load (kg) |
50 |
50 |
50 |
50 |
40 |
40 |
40 |
30 |
30 |
30 |
