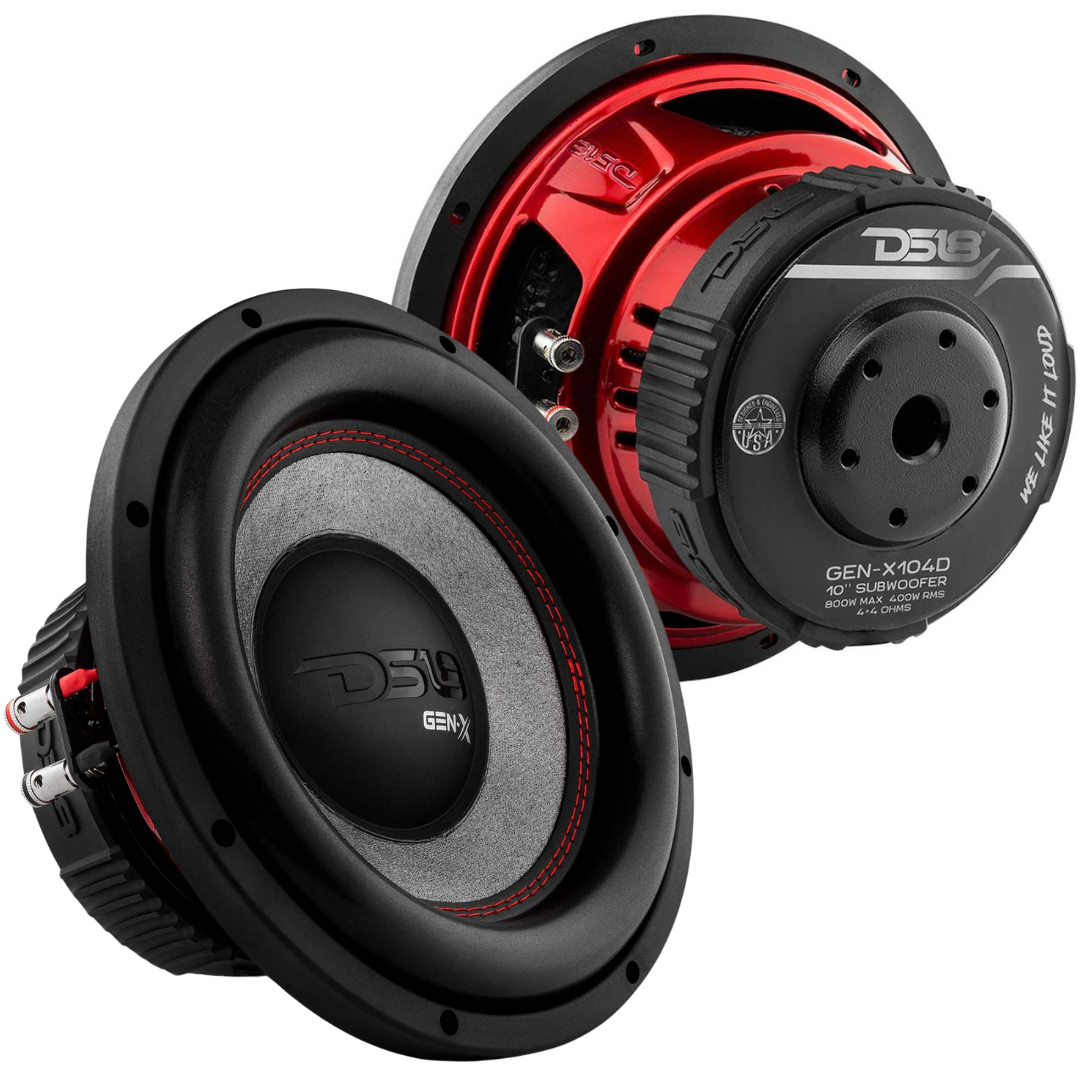

2x DS18 10" Subwoofer with 2" Aluminum Voice Coil - GEN-X104D 400W Rms 4-ohm DVC
|
The DS18 GEN-X104D 10" subwoofer with 2" aluminum voice coil delivers powerful and immersive audio. With 400W RMS power, dual 4-ohm voice coils, and precise bass reproduction, it's perfect for car audio enthusiasts. Features steel basket frame, paper and glass fiber cone, foam edge surround, high-quality ferrite motor, and dual voice coil configuration for increased wiring options and improved sound quality. With an incredible power handling of 400W RMS and a MAX power of 800W, it's perfect for delivering deep, resonating bass notes. The GEN-X104D is designed for car audio enthusiasts seeking precision and power.
Designed for car audio enthusiasts who demand nothing but the best, the GEN-X104D provides one of our most powerful, immersive audio experiences.
Crafted with meticulous attention to detail, the GEN-X104D features a steel basket frame that provides durability and stability, ensuring it can withstand the rigors of heavy use. The cone, made from a blend of paper and glass fiber, delivers exceptional rigidity and responsiveness, resulting in accurate and distortion-free bass reproduction. The foam edge surround further enhances the overall sound quality, allowing for smooth and controlled cone movement.
One of the key features that sets the GEN-X104D apart from its competition is its high-quality ferrite motor with aluminum voice coils. The dual voice coil configuration on the GEN-X104D dual voice coils offer increased wiring options, greater amplifier compatibility, higher power handling, improved sound quality, flexibility in subwoofer configuration, and enhanced bass output. This powerful combination ensures exceptional power to DB efficiency and loudness, allowing every beat to be reproduced with clarity and precision.
With an incredible power handling of 400W RMS and a MAX power of 800W, the GEN-X104D is an absolute beast when it comes to delivering deep, resonating bass notes.
With a mounting cut-out of 9.21" and a mounting depth of 5.39", the GEN-X104D can be easily installed in most car audio setups. The 10.24" overall diameter ensures a perfect fit, while the net weight of 6kg ensures that it won't add unnecessary bulk to your vehicle.
The GEN-X104D’s exceptional power handling, high-quality construction, and precise audio reproduction make it the perfect choice for any car audio enthusiast seeking an immersive bass experience. Experience the thunderous power of the GEN-X104D and let the music take control.
Specifications:
- Nominal Diameter: 10" / 254mm
- Nominal Impedance: 4+4 ohms
- RMS Power Handling: 400w
- Maximum Power Handling: 800w
- Sensitivity (1w/1m): 87 db
- Frequency Response: 25 - 300Hz
- Recommended Lo Pass Crossover: 120 Hz
Motor:
- Voice Coil Diameter: 2" / 50.8mm
- Voice Coil Former Material: Black Aluminum
- Winding Material: SV
- Cone Material: Paper
- Dust Cap Material: PPI
- Surround Material: Foam
- Basket Material: Steel Basket
- Basket Color/Finish: Glossy Red
- Frame Material: Steel
- Magnet Material: Ferrite
- Magnet Weight: 66 oz
Thiele & Small Parameters:
- Equivalent Volume Vas: 10.6L / 0.37ft3
- Excursion (one way) Xmax: 17.55mm
- Free Air Resonance Fs: 54.6Hz
- Mechanical Factor Qms: 5.191
- Electrical Factor Qes: 0.616
- Total Factor Qts: 0.551
- Moving Mass Mms: 123.04g
- Compliance Cms: 0.069mm/N
- Bl Factor Bl: 10.905
- Voice Coil Inductance Le: 8.22mH
- Diaphragm Area Sd: 330.06cm2
- DC Resistance Re: 3.2 + 3.2ohms
- Efficiency Bandwidth Product EBP: 88.6
Measurements:
- Overall Diameter: 10.24" / 260mm
- Overall Depth: 6.3" / 160mm
- Front Mount Baffle Cutout: 9.21" / 234mm
- Mounting Depth; 5.39" / 137mm
- Motor Diameter: TR6.54" / 166mm
THIS LISTING IS FOR (2) DS18 GEN-X104D 10" DUAL 4-OHM SUBWOOFERS
|
