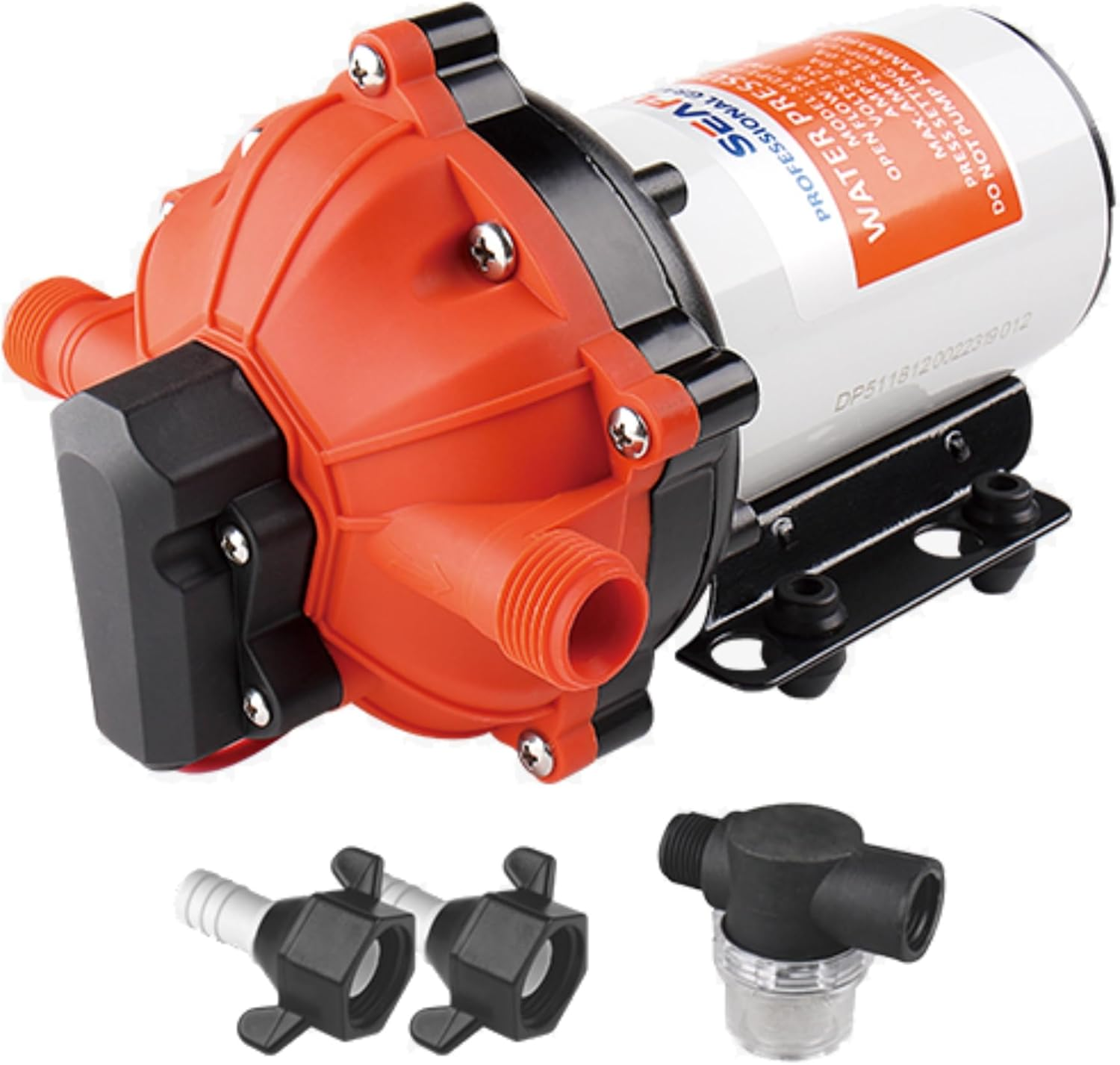

55-Series Diaphragm Pump - 12V DC, 5.5 GPM, 60 PSI with Heavy Duty Pressure Switch | Self-Priming, Quiet Operation, 4-Year | Ideal for RV, Marine, and Off-Grid Water System

Description

Item model number	-55-60-5.5
Part Number	SFDP1-055-060-55
Style	Diaphragm Pump
Maximum Lifting Height	9 Feet
Power Source	12V DC
Item Package Quantity	1
Color	Black
Product Dimensions	8.25"L x 5.3"W x 6"H
Material	Polypropylene (PP)
Batteries Required?	No
Item Weight	6.1 Pounds
Maximum Flow Rate	5.5 Gallons Per Minute
Batteries Included?	No
Voltage	12 Volts (DC)
Special Features	Pressure switch
Included Components	Water Pressure Pump, intake strainer, fittings

• Specifications: ✔️Model Number: SFDP1-055-060-55 ✔️Voltage: 12V DC ✔️Open Flow: 5.5 GPM (20.8 LPM) ✔️Shut-off Pressure: 60 PSI (4.2 BAR) ✔️Priming Capabilities: 9 FT (2.7 M) Suction Lift ✔️Max Draw: 17A ✔️Material: EPDM (Valves) / Santoprene (Diaphragm) ✔️Ports: 1/2"-14 MNPT Threaded ✔️Max Recommended Temperature: 140°F (60°C) ✔️ : 4-Year Limited
• Included Components: ✔️SEAFLO 55-Series Diaphragm Pump ✔️Installation Instructions ✔️(2) 1/2" Barbed Hose Adaptors ✔️50 Mesh Inlet Strainer ✔️16 AWG, 9" (22.8 cm) Leads
• ✔️ [ HIGH FLOW RATE WITH 5-CHAMBER DESIGN ] : The advanced 5-chamber diaphragm ensures a high flow rate of 5.5 GPM, making it capable of supplying water to up to six fixtures at once. This design not only supports various simultaneous water uses—like showering, washing, or dishwashing—but also reduces pump cycling, delivering consistent water pressure. Whether used for marine, RV, or off-grid systems, this pump ensures dependable and continuous water flow.
• ✔️ [ HEAVY-DUTY PRESSURE SWITCH WITH BUILT-IN BYPASS ]: The upgraded pressure switch offers precise pressure control and stable performance by automatically activating the pump when needed and stopping it once the desired pressure is reached. The built-in bypass mechanism minimizes rapid cycling by maintaining consistent pressure, allowing water to flow back from the outlet side to the inlet if necessary. This function extends the pump’s lifespan and ensures a seamless water supply, making it particularly beneficial for systems with multiple water outlets.
• ✔️ [ SMART PRESSURE SWITCH WITH LONG ]: The SEAFLO 55-Series features a reliable Smart Pressure Switch that activates the pump automatically when water is needed and stops it when the demand ceases. Built for endurance, it offers a of over 200,000 on/off cycles, ensuring consistent and long-lasting performance for various water systems. This non-adjustable switch provides optimal pressure control without manual adjustments.
• ✔️ [ SELF-PRIMING & RUN DRY CAPABILITY ]: This pump’s self-priming feature allows for a powerful suction lift of up to 9 feet, making it versatile for remote installations. This means the pump can be positioned above the water source, offering greater flexibility in setup without compromising performance. Additionally, the pump can run dry without damage, protecting the internal components during low-water conditions or accidental dry operation, making it a reliable solution for various water transfer tasks.
• ✔️ [ QUIET & EFFICIENT OPERATION WITH NOISE REDUCTION ]: Engineered for quiet operation, the SEAFLO 55-Series pump functions at a noise level comparable to a ceiling fan (65 dB). The semi-rigid rubber mounting base reduces vibrations, significantly lowering noise levels and ensuring a peaceful environment. This makes it particularly suitable for indoor use, such as in RVs or boats, where minimal noise is preferred.
• ✔️ [ DURABLE & CORROSION-RESISTANT MATERIALS ]: Built to withstand harsh marine and RV environments, the pump uses premium Santoprene for the diaphragm and EPDM for the valves. These materials offer excellent abrasion and corrosion resistance, making the pump suitable for both freshwater and saltwater applications. Its construction ensures durability and long-lasting reliability, even in high-moisture or corrosive conditions.
• ✔️ [ VERSATILE APPLICATIONS FOR RVs, BOATS, AND OFF-GRID SYSTEMS ]: The SEAFLO 55-Series pump is designed to cater to diverse applications, including washdown systems, potable water supply, shower drains, and water purification systems. Its robust performance makes it a perfect fit for RVs, boats, yachts, and off-grid cabins. With its ability to handle both freshwater and saltwater, it serves as a versatile solution for various liquid transfer needs
• ✔️ [ EFFICIENT HEAT DISSIPATION & LOW STARTING PRESSURE ]: The heavy-duty pressure switch is designed with efficient heat dissipation capabilities, ensuring that the pump can run continuously without overheating. It is also engineered to work with a low starting pressure, preventing unnecessary pump cycling and reducing wear and tear on the motor.
