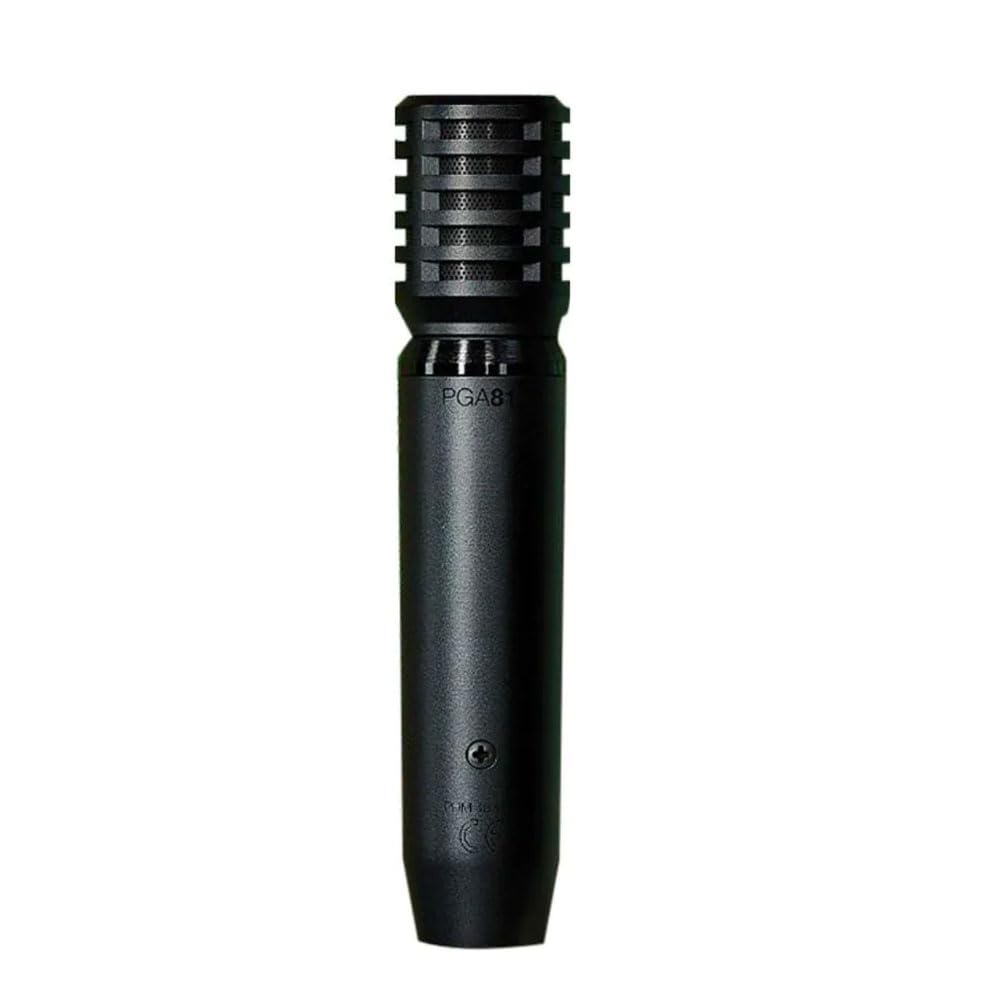

Shure PGA81-XLR | Cardioid Dynamic Instrument Microphone XLR-XLR Cable

Dynamic Microphone

The PGA81 is a professional quality instrument microphone with an updated industrial design that features a black metallic finish and grille offering an unobtrusive visual presence. Legendary Shure quality construction ensures exceptional performance in rigorous environments.

Key Features

• Mountable microphone for sensitive acoustic instrument performance and recording
• Condenser cartridge (requires phantom power) with cardioid polar pattern
• Flat-response microphone cartridge design for clear reproduction of sound sources in more sensitive environments
• Includes PGA81, microphone clip, zipper pouch and user guide

Technical Specifications

Option
PGA81-XLR: XLR-XLR cable
Type
Electret condenser
Frequency Response
40 to 18,000 Hz
Polar Pattern
Cardioid
Output Impedance
600 ohm
Sensitivity at 1 kHz, open circuit voltage
-48.5 dBV/Pa (3.8 mV)
1 Pa=94 dB SPL
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Weight
186 g (6.6 oz.)
Connector
Three-pin professional audio (XLR), male
Power Requirements
48 VDC phantom power (2.0 mA)
