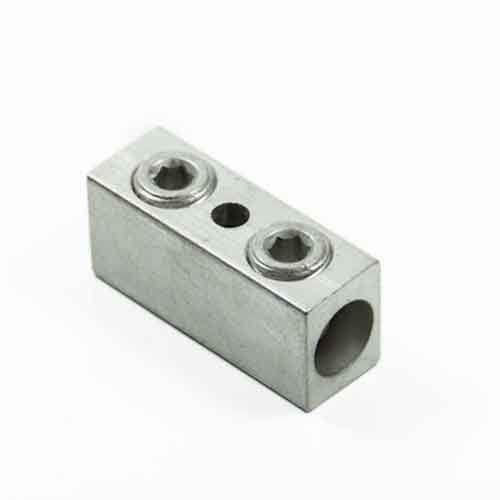

Hazlet Products Aluminum 2/0 AWG Splicer Reducer Mechanical Connector 2 Screws 2/0-8 AWG Range for Copper and Aluminum Cable.

Aluminum Splicers/Reducers 2 Screw - 2 Screw Aluminum Splice for Copper and Aluminum Cable
Aluminum Splice Reducer is AL7CU Dual Rated for both Copper and Aluminum Conductors
Manufactured from High Strength 6061-T6 Aluminum Alloy to ensure both Maximum Strength and Conductivity
Electro Tin Plated to provide low contact resistance and protection against corrosion
2 Screw Aluminum Reducer is rated 600 Volts
UL 486A -486B, Canada 22.2 No.65-03, ANCE Mexico NMX-J-543-ANCE-03 and ANCE Mexico NMX-J-543-ANCE-03 Listed
Rated for use with Cables up to 194°F(90°C)
Dimension Measurements: 1.59" (40.39mm) Length 0.70" (17.9mm) Height 0.56" (14.3mm) Width
Brand Equivalent: Morris 90615

Made in the USA

2/0 AWG Splicer-reducer, 2/0-8 AWG wire range, aluminum or copper wire, splicer or reducer CU7AL, 75C temperature rating, single #10 bolt clearance mounting hole, or wire insertion "sight" hole or wire stop hole, Voltage Rating: 600 V, 2000 V or to 35 KV (uninsulated) depending on application. Hex socket screws. Made in the USA from domestic and imported parts.

UL USA UL 486A -486B Listed Class ZMVV and Recognized Class ZMVV2, CSA Canada Canada 22.2 No.65-03 Class 6223 02, ANCE Mexico NMX-J-543-ANCE-03 and ANSI USA ANSI/UL 486A-486B-2003 Equivalent standard
