Product Introduction

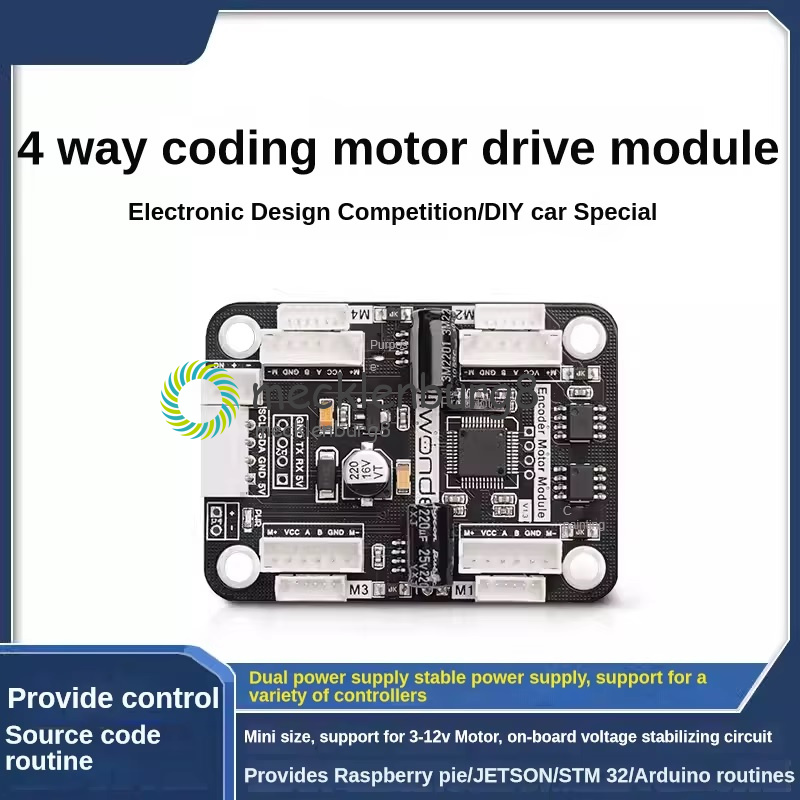

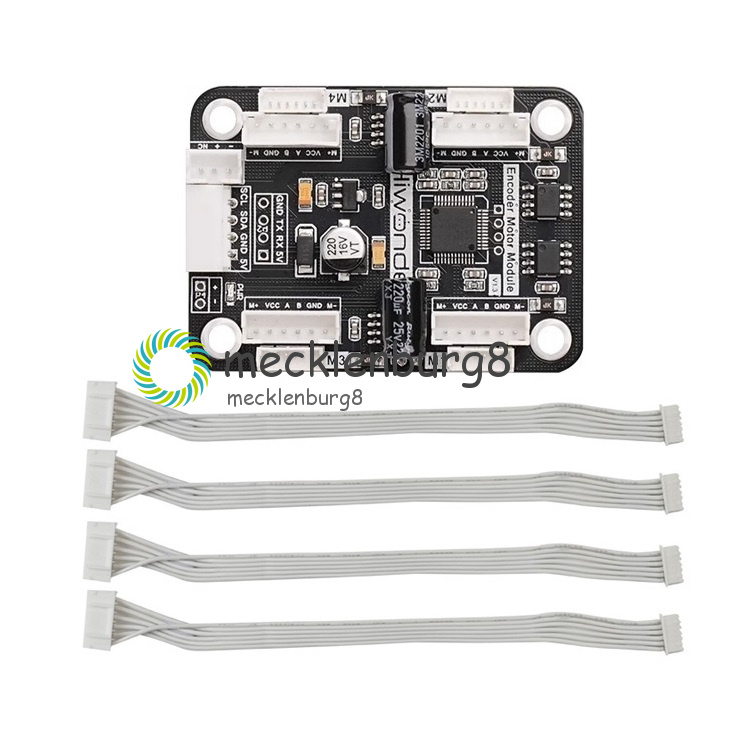

The 4-channel encoder motor driver features the SA8339 high-performance motor driver chip and is compatible with STM32 microcontrollers, Raspberry Pi, Jetson Nano, and other controllers. Moreover, it supports a variety of Hall encoder TT motors and 520/310 DC gear motors available in the market. Ideal for electronic competitions and DIY robot cars, it offers versatility and reliability.

Drive Multiple Motors

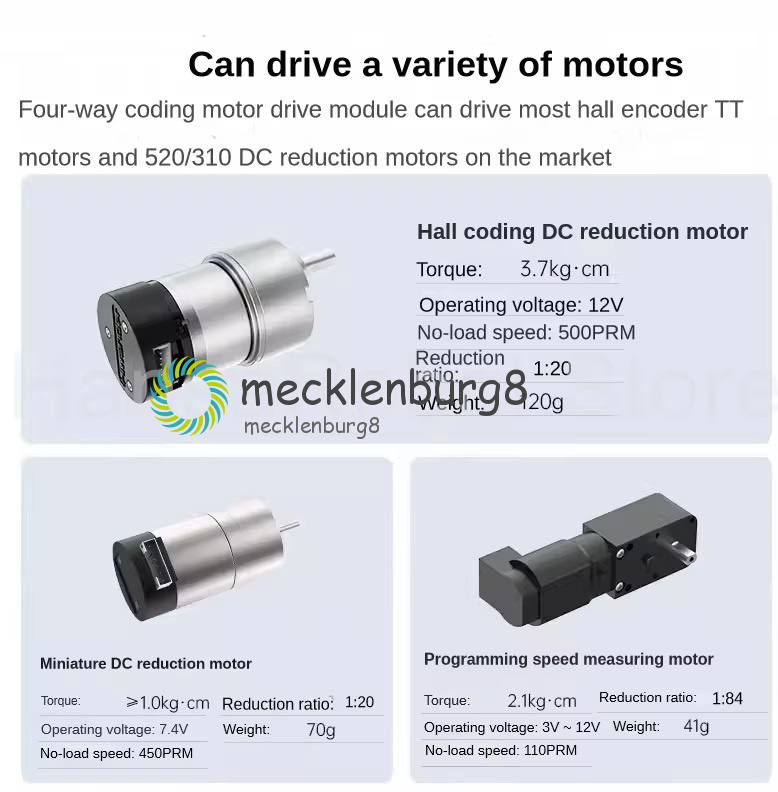

The 4-channel encoder motor driver can drive a variety of TT DC gear encoder motor and 520/310 DC gear encoder motors available in the market.

Support Various Controllers

The 4-channel encoder motor driver is compatible with STM32, Arduino microcontrollers, Raspberry Pi 5/4B, Jetson Nano, and other controllers.

Product Parameter
Motor driver chip	SA8339	VM power supply range	5-15V
Power output	VM, 5V, 3.3V	5V output current	1A
Hall signal logic output voltage	3.3V, 5V	Expansion board protection function	Input reverse connection protection
Single channel rated drive current	2A	Single channel maximum peak	2.5A

PIN Function
Port type	Symbol	Function	Port Type	Symbol	Function
Encoder	GND	Hall power supply negative electrode	IIC port	SCL	Clock line
	A	A-phase pulse signal output terminal		SDA	Bidirectional data cable
	B	B-phase pulse signal output terminal		GND	Power ground wire
	VCC	Hall power positive electrode		5V	5V DC output
	M+	Motor power positive electrode	3PIN power port	-	Power negative electrode
	M-	Motor power negative electrode		+	Power positive electrode
Power supply port	+	Power positive electrode		nc	Empty
Power supply port	-	Power negative electrode

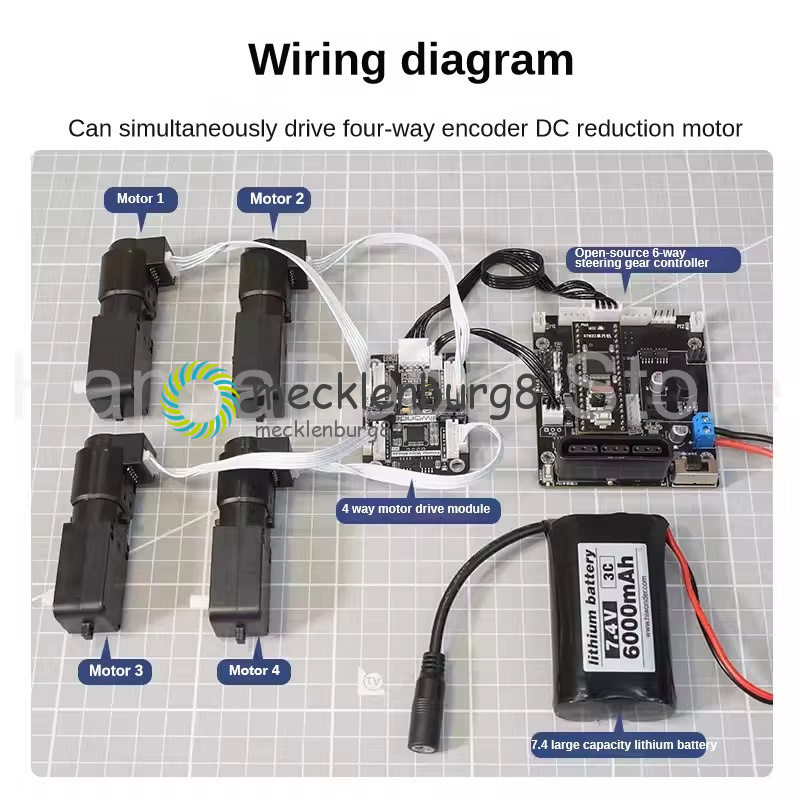

Application Scenario
