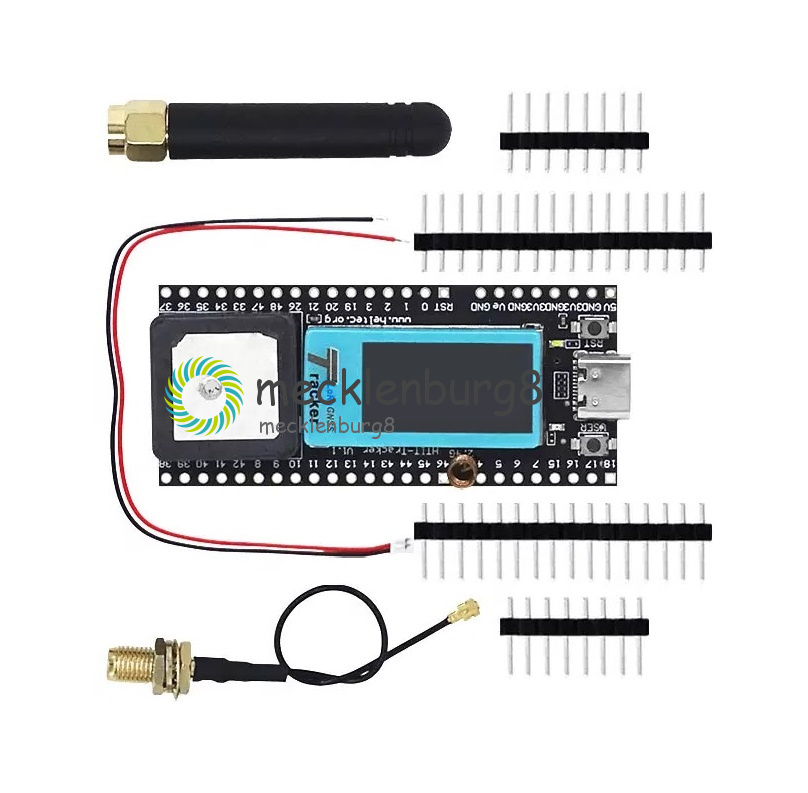

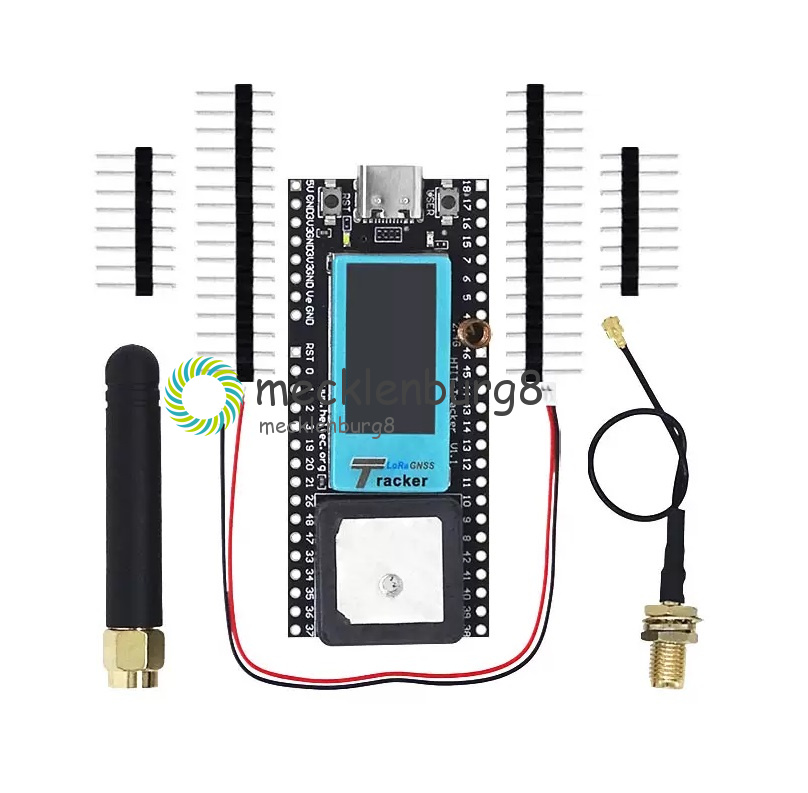

Lora Wireless Tracker ESP32-S3FN8+SX1262+UC6580 Wi-Fi, LoRa, Bluetooth, GNSS NEW

Summary

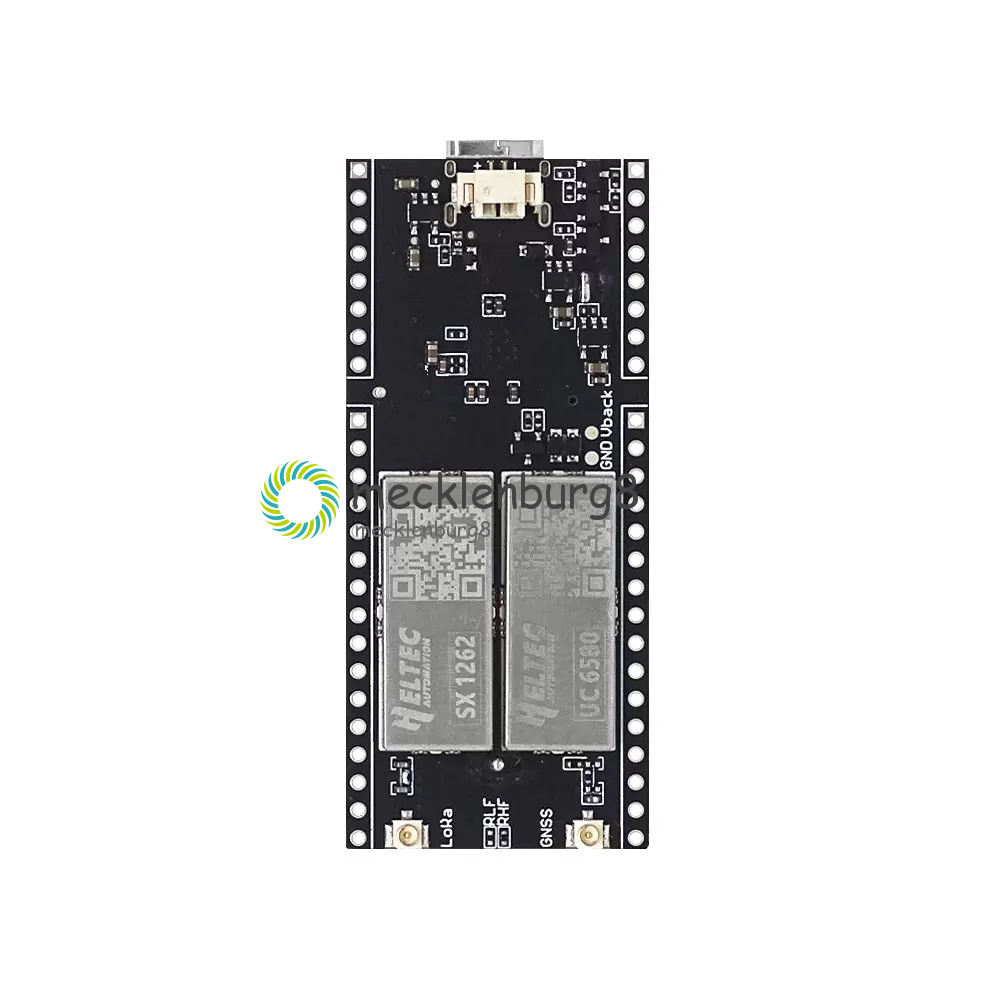

Wireless Tracker is a development kit based on ESP32-S3FN8. It integrates both SX1262 and UC6580 to provide fast GNSS solution for IoT. It can track any object and then upload that data wirelessly by Wi-Fi, Bluetooth, LoRa, and has been widely used in Meshtastick.

Wireless Tracker supports L1 + L5/L2, and supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning. It is perfectly compatible with Arduino, can be widely used in development such as bicycle sharing services, tracking pets or livestock, locating vehicles, tracking children, etc.



Main Features

  • ESP32-S3FN8+SX1262+UC6580 Chipset, supports Wi-Fi, LoRa, Bluetooth, GNSS.
  • Low power design of dual-frequency multi-system based on 22nm technology.
  • Supports L1 + L5/L2, supports GPS, GLONASS, BDS, Galileo, NAVIC, QZSS multi-system joint positioning.
  • Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.
  • Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching).
  • Onboard Wi-Fi, Bluetooth dedicated 2.4GHz metal spring antenna, reserved IPEX (U.FL) interface for LoRa and GNSS use.
  • Onboard 0.96-inch 160*80 dot matrix LCD display, which can be used to display debugging information, battery power, and other information.
  • Support the Arduino development environment.


Specifications


Parameters Description
Master Chip ESP32-S3FN8 (Xtensa®32-bit lx7 dual core processor)
LoRa Chipset SX1262
GNSS Chipset UC6580
Frequency 863~928MHz
Max. TX Power 21±1dBm
Max. Receiving Sensitivity -134dBm
Wi-Fi 802.11 b/g/n, up to 150Mbps
Bluetooth LE Bluetooth 5,
Bluetooth mesh
Hardware Resource 7*ADC1 + 2*ADC2; 7*Touch;
3*UART;
2*I2C; 2*SPI; etc.
Interface Type-C USB;
2*1.25 lithium battery interface;
LoRa ANT(IPEX1.0);
2*18*2.54 Header Pin
Battery 3.7V lithium battery power supply and charging
Operating Temperature -20 ~ 70 ℃
Dimensions 65.48 * 28.06* 13.52mm


Description

Pinout
