Broadcast grade design, Professional Quality, High end!
Features

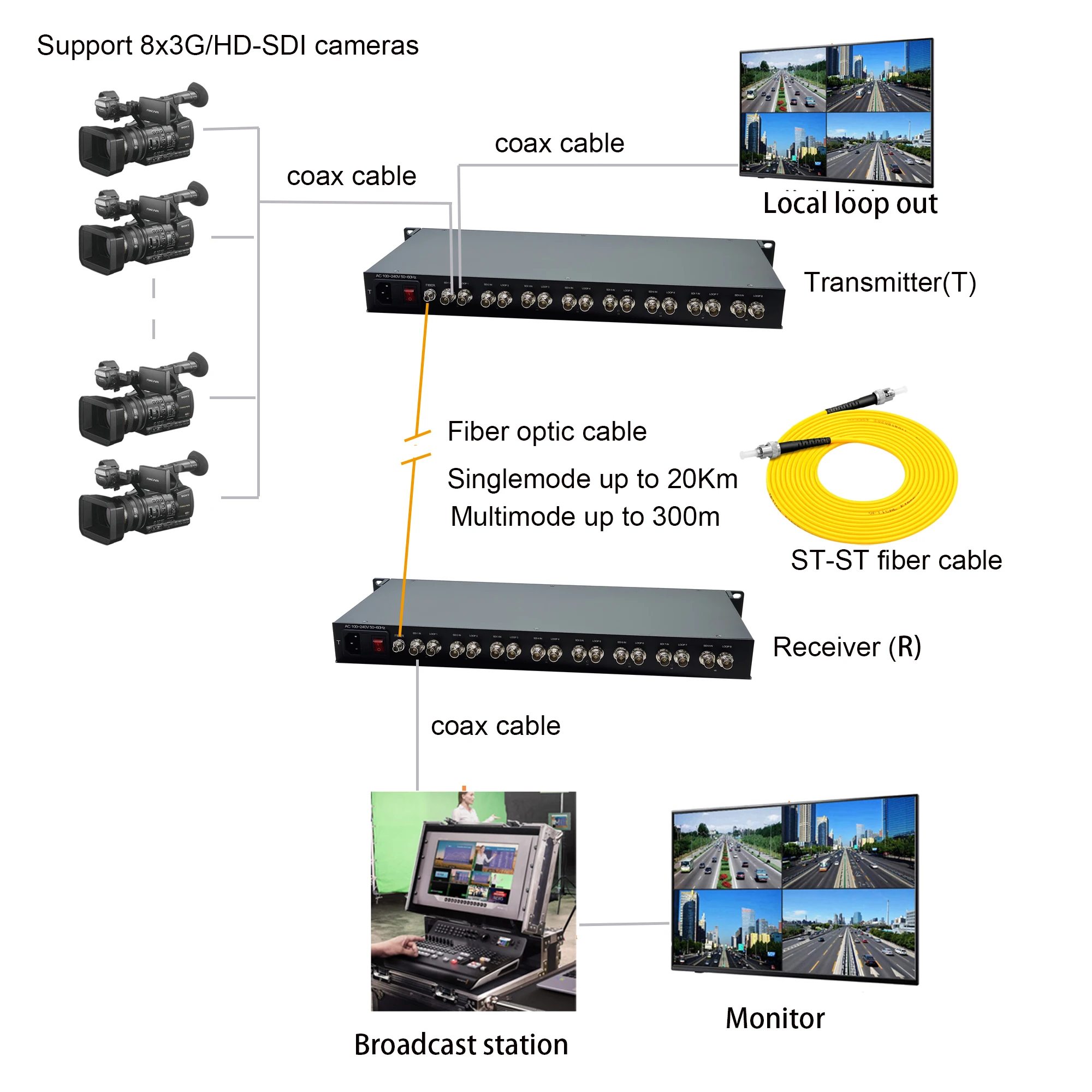

This unit can extends 8 channels of uncompressed 3G-SDI, HD-SDI or SD-SDI video over single fibercable.
Single-Mode Fiber Support for distances up to 20Km(12.4miles), Compatible with multimode fiber 0-300Meters
Support video resolution 1080P@60, 30,25,24Hz and 1080I@60,50Hz and more.
Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
With clock recovery, clock shaping design which make video visuals smoother and no flicker/no blinking,which its quality is much better than ordinaryand cheaper product in current marketing.
LED Status Provide Rapid Indication of Operating Parameters
Plug and play,No need to set up.
Specifications:
1. Optical wavelength:1310nm&1470nm-1610nm
2. Fiber Type: Single mode, Single fiber(default)
3. Working distance0~20km(12.4miles)
4. Fiber connector: ST (LC/SC/ FC is optional)
SDI Video:
1. Video Interface Number: 8
2. Physical Interface:BNC
3. Max Resolution:1920 x 1080 @ 60Hz
4. Video Input and Output Impedance:75Ω (unbalanced)
5. Video Input/output Voltage：Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp
6. Video Bits Rate: Max 2.97Gb/s
7. Video SDI standard:270Mbps(SD-SDI),1.485Gbps/M(HD-SDI),SMPTE425M3Gb/s Mapping(3G-SDI),SMPTE424M 3Gb/s serial interface(3G-SDI)
Electrical & Mechanical:
1. Input Power Requirements: DC 5V
2. Power Adapter: AC 100V~240V (US/EU/UK/AU standard is optional)
Environmental
1. Operating temperature: -20°C ~ +75°C
2. Storage temperature: -40°C ~ +85°C
3. Working humidity:0% ~ 95% (non-condensing)
4. MTBF:>100,000 hours
Package Include:

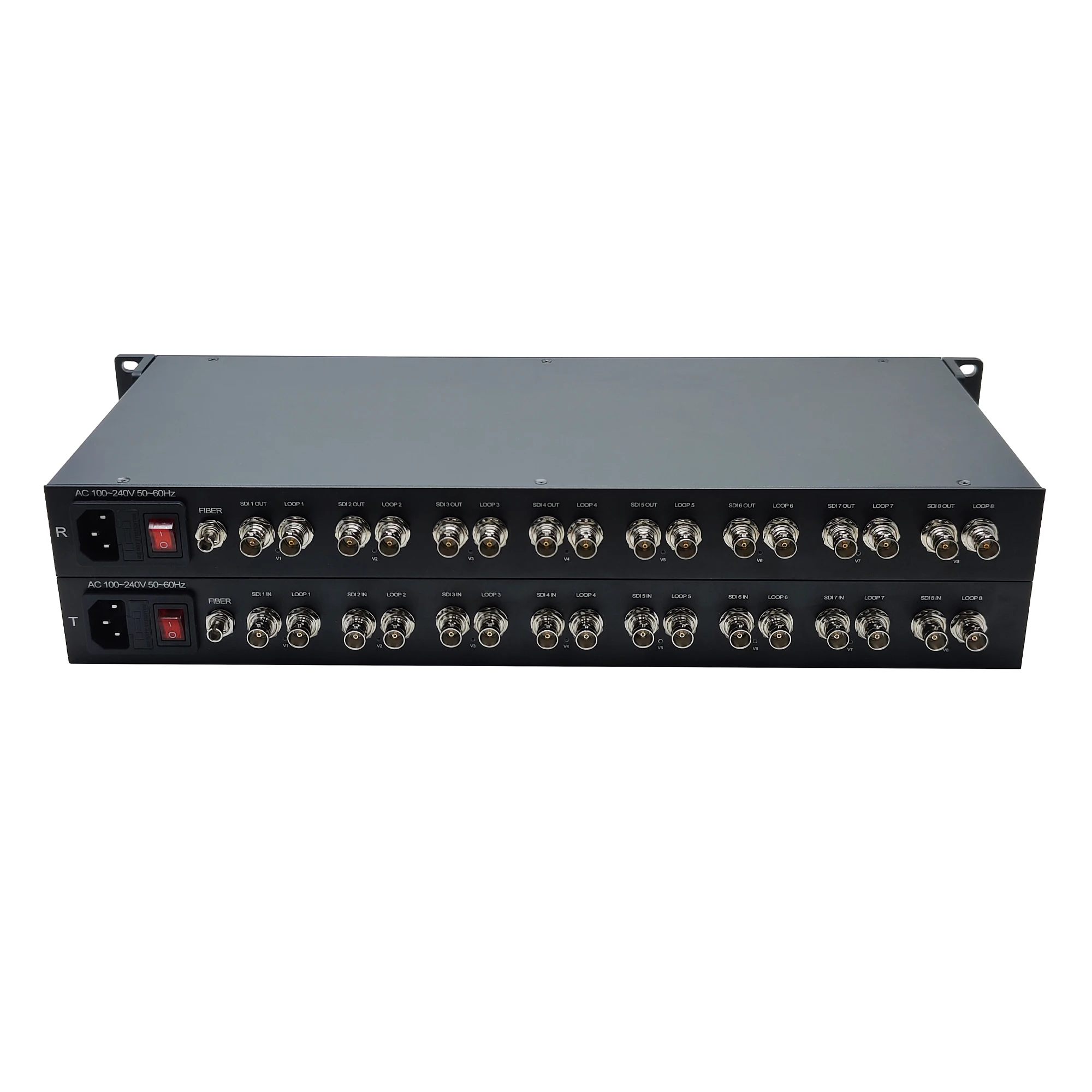

1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
1 x 3M FC-FC SM fiber patch cord
2 x External Power supply adapter (US/EU/UK/AU standard is optional)
1x User Manual
