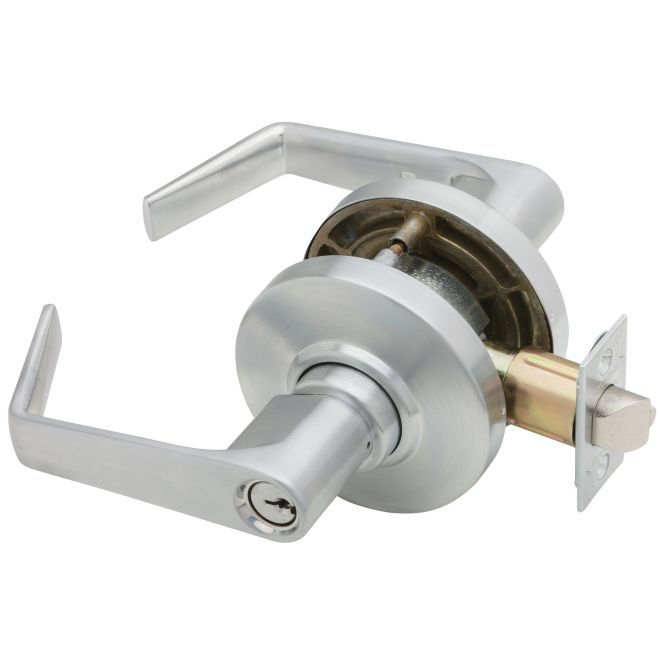

Schlage Commercial AL80PD SAT 626 AL Series Storeroom Saturn Lock C Keyway with 11096 Latch 10025 Strike Satin Chrome Finish
FEATURES
- Storeroom - Outside Lever Fixed, Entrance by Key Only, Inside Lever Always Unlocked
- Lock Chassis: Steel, zinc dichromated for corrosion resistance
- Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
- Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
- Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
- Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
- Warranty: Three-year limited.
- ANSI/BHMA Certified A156.2
- 1-3/8" to 1-7/8" Door Range
- Handing: Non-handed.
- UL Listed for 3 Hour Fire Door
- Commercial Grade 2
- Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
- Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
- Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
DESCRIPTION
AL Series Storeroom Saturn Lock C Keyway with 11096 Latch 10025 Strike Satin Chrome Finish
SPECS
| Finish | Satin Chrome |
| Function | 80-Storeroom |
| Backset | 2-3/4", 1-1/8" x 2-1/4", Square Corner |
| Strike | ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner |
| Design | Saturn |
| Series | AL Series |
| Grade | ANSI/BHMA Grade 2 |
| Color Code | 626/US26D |
| Case Length | 16.375" |
| Origin | Mexico |
| BAA Qualified | Yes |
| Package Height | 4.75" |
| Package Length | 9.5" |
| Package Width | 8.25" |
| Case Height | 10" |
| Case Width | 14.625" |
| Package Qty | 1 |
| Special Marks | Conventional cylinder |
| Base Material | Brass or Bronze |
| Keyway | Schlage C |
| Cylinder Type | P-6 Pin Conventional (Keyed 5) |
| Finish Description | Satin Chrome |
| Lever Style | SAT-Saturn |
| Keyblank Grouping | SCHL-C-6-1 |
| Rose/Escutcheon Trim | Round Rose |
| Product Type | Cylindrical Lock |
| Handing | Reversible |
| Projection | 2.5000 |
| Lever Length | 4.2500 |
| Door Thickness | 1 3/8" - 1 7/8" |
| Bore Size | 2.1250 |
| ADA Approved | True |
| Door Range | 1 3/8 to 1 7/8 |
| Keying Charges | CCAM |
| Product Material | Zinc; wrought brass or bronze |
| Strike Name | ANSI 1-1/4 x 4-7/8 |
| Latch Number | 11-096 |
| Strike Number | 10-025 |
| Box Length | 9.5000 |
| Box Width | 8.0000 |
| Box Height | 4.7500 |
| Warranty | 1 Year From Date of Purchase. |
| Aluminium Bottle Contents | Swinging |
| ProductType | Manual |
| Load Capacity | N/A |
