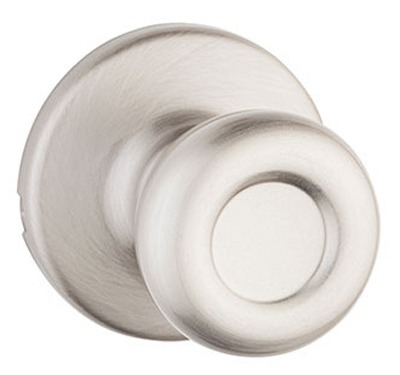

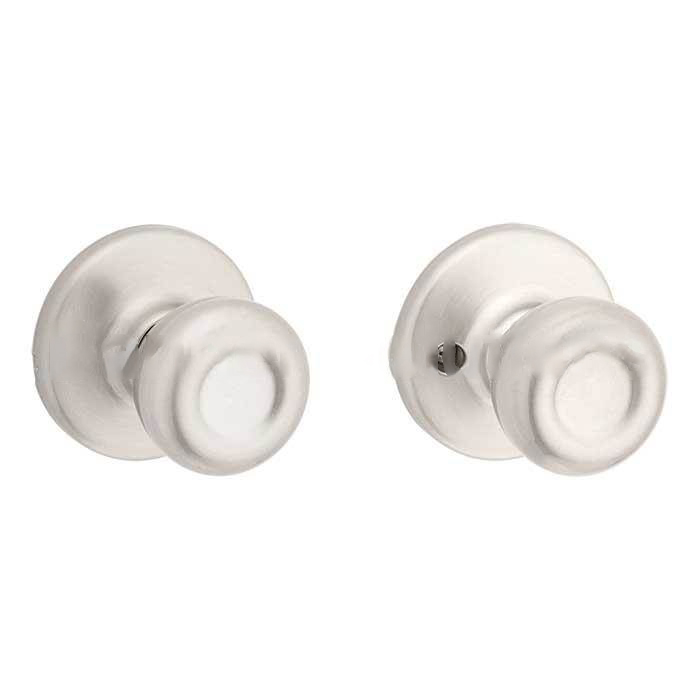

Kwikset 200T-15-6AL-RCS Tylo Passage Knob Satin Nickel
FEATURES
DESCRIPTION
Tylo KnobFeaturing SmartKey
Great hardware can transform the look of your home. With a variety of styles, functions and finishes, Kwikset's knobs are sure to define your decor from the moment someone walks into your home.
Features:- Features SmartKey® Re-key Technologywith BumpGuard™ Protection
- ANSI/BHMA Grade 3 Certified Quality & Security
- Lifetime Mechanical Warranty
- Cross Bore 2-1/8".
- Edge Bore 1".
- Adjustable 2-3/8" or 2-3/4".
- 1-3/8" to 1-3/4" standard, 2 1/4" doors optional on 200 and 400 functions only
- SmartKey or Traditional 5-pin Pin & Tumbler
- 1" x 2-1/4" Specify round corner or square corner. Also available as drive-in latch.
- 2-1/4" full lip. Specify round corner or square corner. Other options available.
- 1/2" throw.
- Reversible for right or left hand doors.
- A156.2 Grade
- (all functions except 488)
- Both knobs always free.
- Both knobs locked or unlocked by turnbutton inside. Unlocked by emergency key outside
- Both knobs locked or unlocked by key outside or turnbutton inside.
- Outside locked or unlocked by key outside or turn button inside. Inside always free.
- For doors where only a pull is required. No operation.
- Polished Brass - 3
- Antique Brass - 5
- Satin Nickel - 15
- Polished Chrome - 26
- Satin Chrome - 26D
SPECS
| Assembled Height (in.) | 2.625 |
| Assembled Width (in.) | 2.625 |
| Included | Hardware, Installation Instructions |
| Door Locks & Knobs Product Type | Passage Knobs |
| Knob Diameter (in.) | 1.875 |
| General Material | Metal |
| Hardware Finish Family | Nickel |
| Assembled Depth (in.) | 2.50 |
| Lock Type | Unkeyed |
| Commercial/Residential | Residential |
| Certifications and Listings | No Certifications or Listings |
| Pack Size | 1 |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Strike width (in.) | 1.75 |
| Manufacturer Warranty | Lifetime mechanical and finish warranty |
| Backset size (in.) | Adjustable |
| Projection | 2.5000 |
| Finish | Satin Nickel |
| Grade | ANSI/BHMA Grade 3 |
| Backset | 2-3/8 Inch or 2-3/4 Inch |
| Function | 200-Hall/Closet |
| Door Thickness | 1-3/8" to 1-3/4" |
| Knob Diameter | 1.8800 |
| Strike | RCS-Round Corner Strike |
| Bore Size | 2.1250 |
| Finish Description | Satin Nickel |
| Product Height | 2-5/8 Inch |
| Product Length | 2.6300 |
| Included Components | Passage Knobs; Roses; Latch; Strike; Mounting Hardware |
| Knob style | T-Tylo |
| Rose/Escutcheon Trim | Round Rose |
| Product Material | Zinc |
| Product Type | Cylindrical Lock |
| Series | Kwikset Series |
| Box Length | 7.3600 |
| Box Width | 3.3000 |
| Box Height | 2.7800 |
| UNSPSC | 46171500 |
| Warranty | Lifetime Limited Mechanical/Finish |
| Color Code | 619/US15 |
| Application | Interior Doors Requiring No Locking Functionality |
| Bolt Throw | 1/2" |
| Strike Type | Round |
| Finish Family | Satin Nickel |
| ANSI Function | F75 |
| Latch Type | 6-Way Adjustable |
| Door Cross Bore | 2.125 Inch |
| Standards | ANSI/BHMA |
| Faceplate Dimension | 1" x 2-1/4" |
| Function Description | Latch retracted by knobs/levers at all times |
| For Door Thickness | 1-3/8" to 1-3/4" |
| Function Family | Passage/Hall/Closet |
| Product Projection | 2-19/32 Inch |
| Manufacturer Parent | Spectrum |
| Box Dimensions (L x W x H) | 2.78x3.3x7.36 |
| Sub-Series | RL_Knob_Locksets_Kwikset_7 |
| Height | 2.78 |
| Length | 7.36 |
| Width | 3.30 |
| Hazardous Material | No |
| Country Origin Code | MX |
| MADE IN THE USA | No |
| Security Grade | ANSI Grade 3 |
| Package Quantity | 1 |
| UL Listed | No |
| Door Handing | Non-Handed |
| AbilityOne | No |
| ADA Compliant | No |
| Handle Type | Knob |
| Style | Round |
| Keying | Non-Keyed |
| Lockset Function | Passage, Hall, Closet |
| GSA Approved | No |
| Keyway | None |
| TAA/BAA Compliant | Yes |
| Backset Size | 2-3/8 in., 2-3/4 in. |
| Load Capacity | n/a |
| Features | Universal Handing; Easily Installs in Minutes |
