Hanwha Techwin SBP-156HMW Overview
The white SBP-156HMW from Hanwha Techwin is a hanging mount that is designed to be used with Wisenet PTZ Plus cameras, including the XNP-9300RW, XNP-8300RW, and XNP-6400RW. Hanging mount, Material : Aluminum, Color : White, Dimensions : ?95.5x77.0 mm( ?3.76x3.03"), Compatible with: XNP-9300RW/8300RW/6400RW
- Compatible with Wisenet PTZ Plus Models including: XNP-9300RW/8300RW/6400RW
- Mounts to a wall or pole
- Made of aluminum
- Dimensions :135(W)x183(H)x302(D)mm (5.31x7.20x11.89"
- Compatible with Wisenet PTZ Plus Cameras
- 1.5" NPT Thread Size
- Aluminum Construction
The white SBP-156HMW from Hanwha Techwin is a hanging mount that is designed to be used with Wisenet PTZ Plus cameras, including the XNP-9300RW, XNP-8300RW, and XNP-6400RW.
Environmental |
|
Operationg Temperature / Humidity | None |
Storage Temperature / Humidity | None |
Fan/Heater | None |
Certification | None |
Electrical | |
Input Voltage | None |
Power Consumption | None |

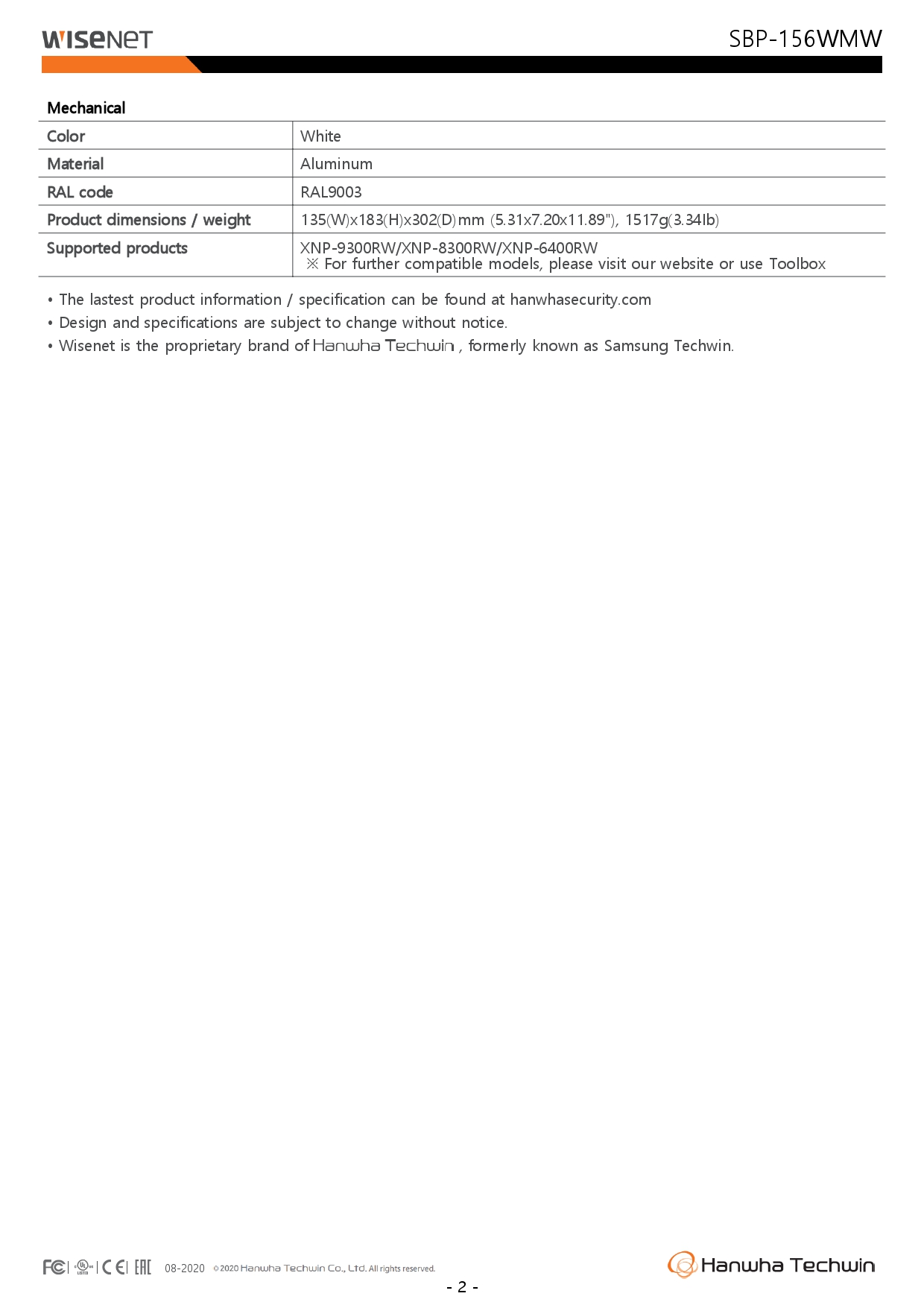

Mechanical | |
Color | White |
Material | Aluminum |
RAL code | RAL9003 |
Product dimensions / weight | 135(W)x183(H)x302(D)mm (5.31x7.20x11.89"), 1517g(3.34Ib) |
Tile thickness | None |
Mount Screw size | None |
Max. load | None |
Conduit hole | None |
Supported products | XNP-9300RW/XNP-8300RW/XNP-6400RW ※ For further compatible models, please visit our website or use Toolbox |
