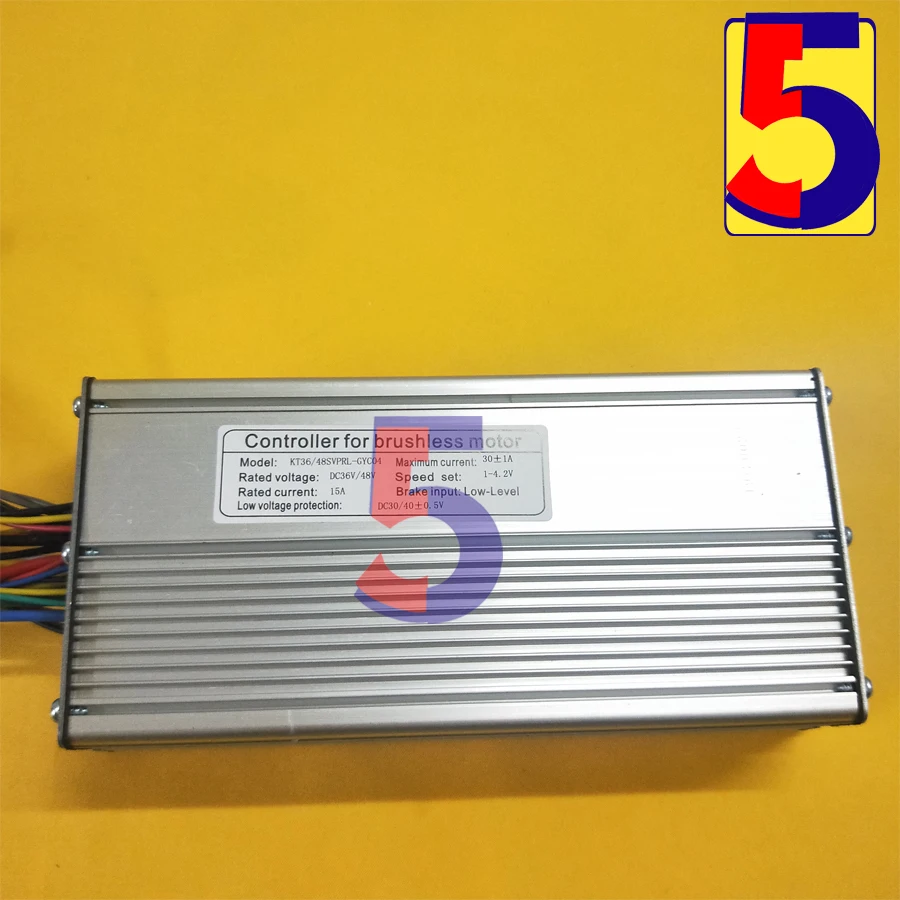

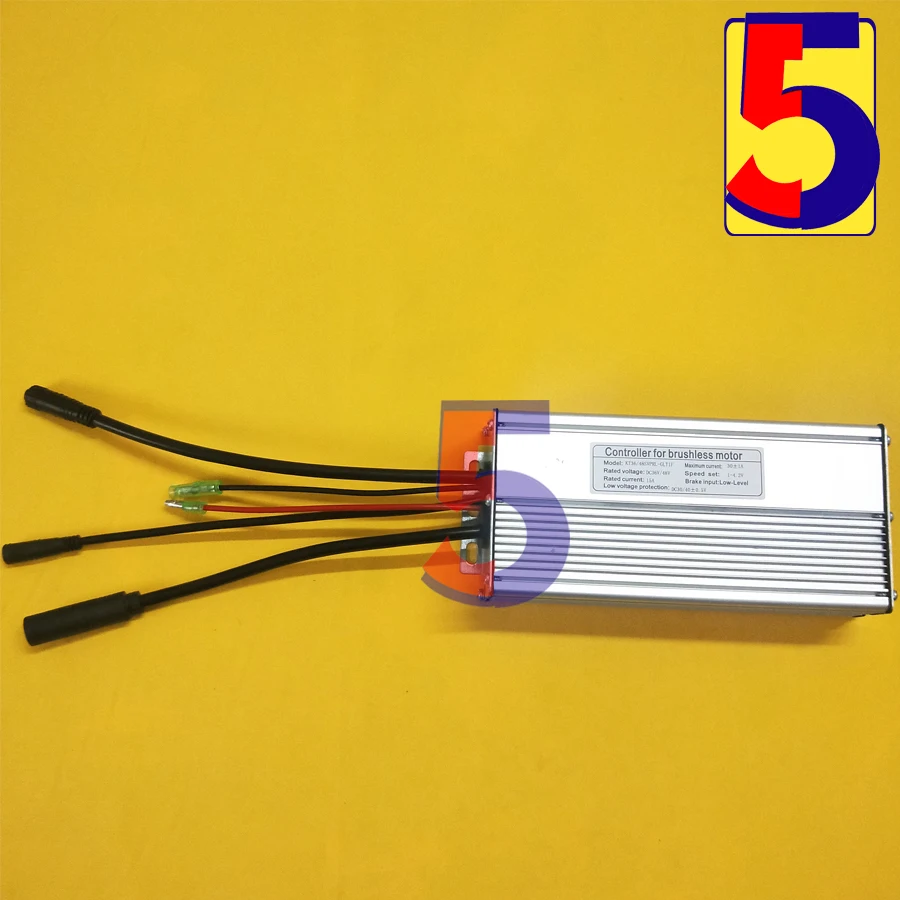

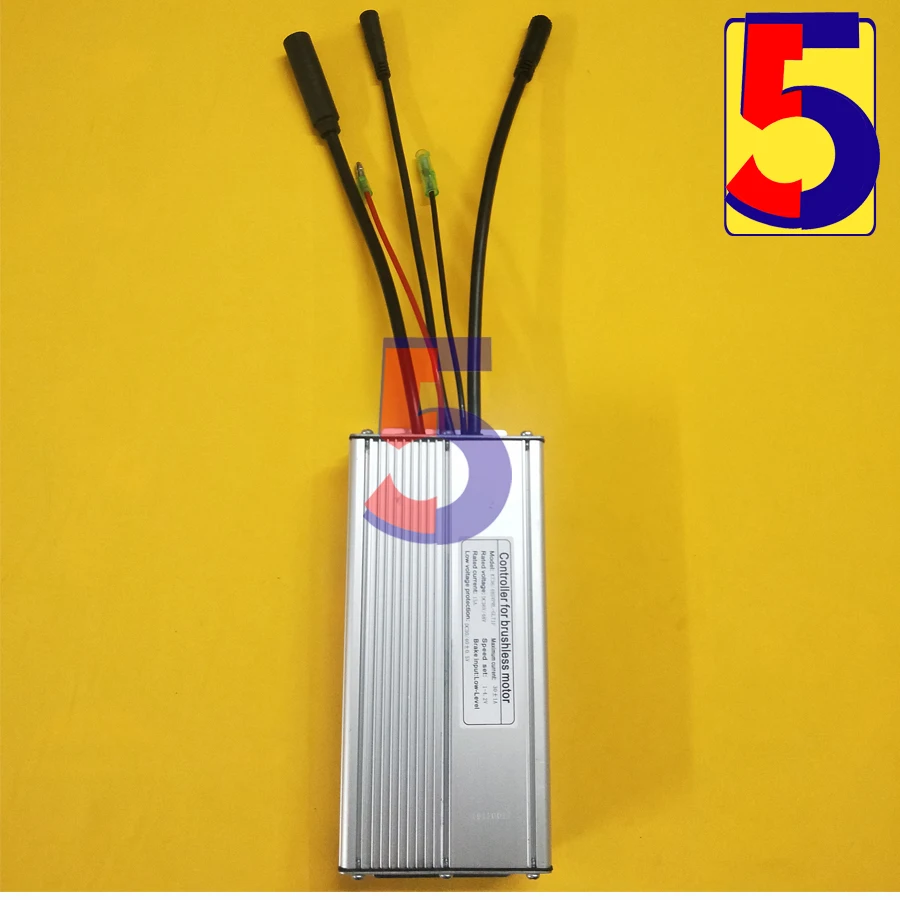

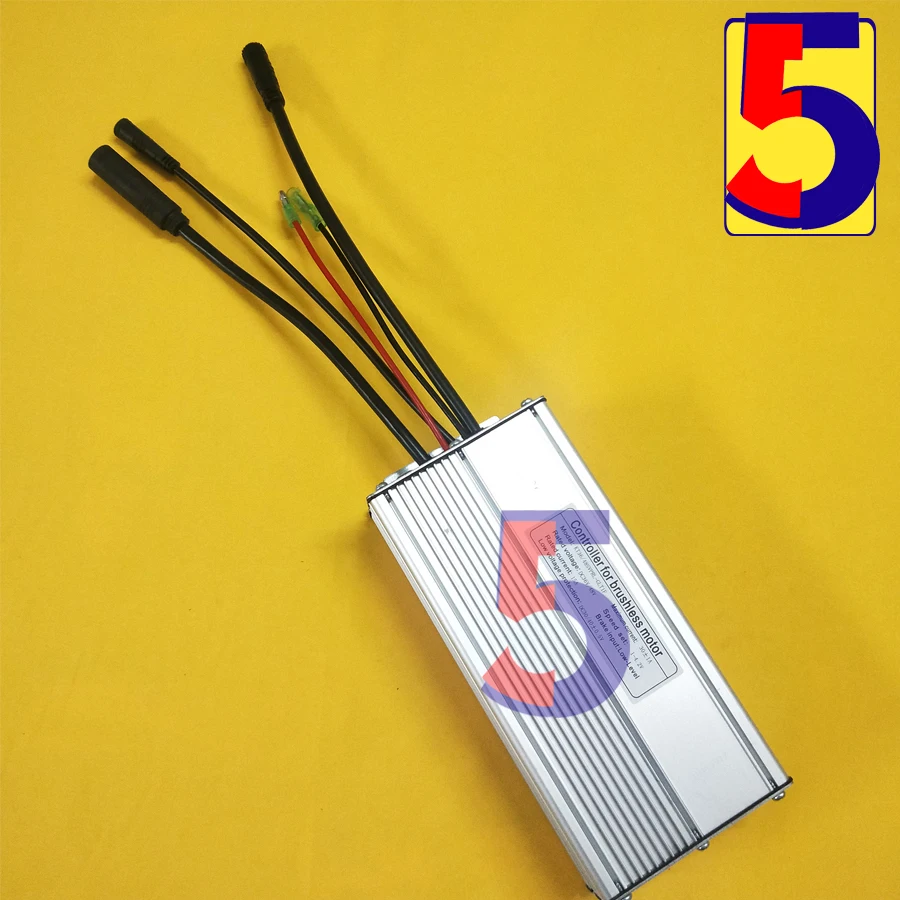

Controller 1--Rate Voltage:36V/48V2--Rated Current:15A3--Maximum Current:30±1A4--Low Voltage Protection:DC30/40±0.5V5--Speed Set:1-4.2V6--Brake input: Low-level7-- Torque Simulation Sine Wave Brushless Controller8--Suitable for 450-500W Sensor motor9--Controller waterproof connector:9holes for motor,cable length is 24cm(28cm included connector)
3holes for PAS,cable length is 18cm(22cm included connector)
8holes extend cable for 1-4/1-2,cable length is 18cm(22cm included connector)
10--1-4 extend cable is 140cm , for display, throttle and brake 1-2 extend cable is 60cm(70cm included connector),for display and throttle Please kindly note that if you don't have 1-4/1-2 extend cable, you need to choose one so that can connect the display, throttle and brake.
9--Controller waterproof connector:
9holes for motor,cable length is 24cm(28cm included connector)
3holes for PAS,cable length is 18cm(22cm included connector)
8holes extend cable for 1-4/1-2,cable length is 18cm(22cm included connector)

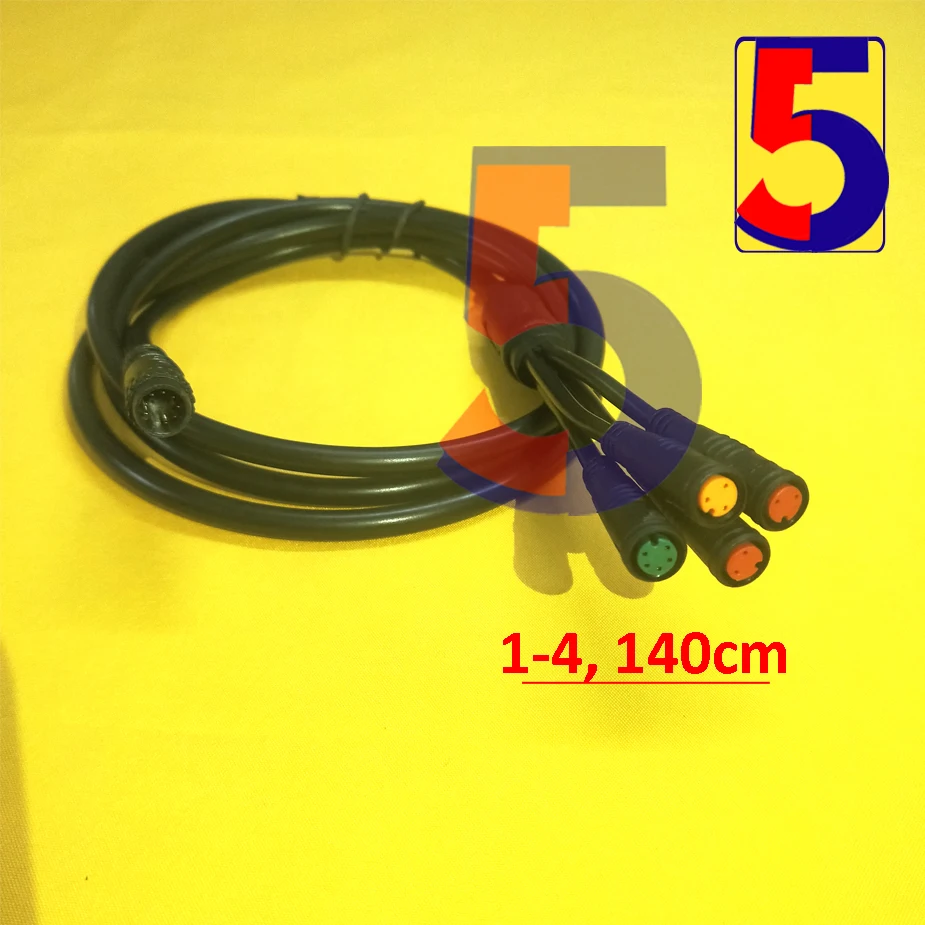

10--1-4 extend cable is 140cm , for display, throttle and brake

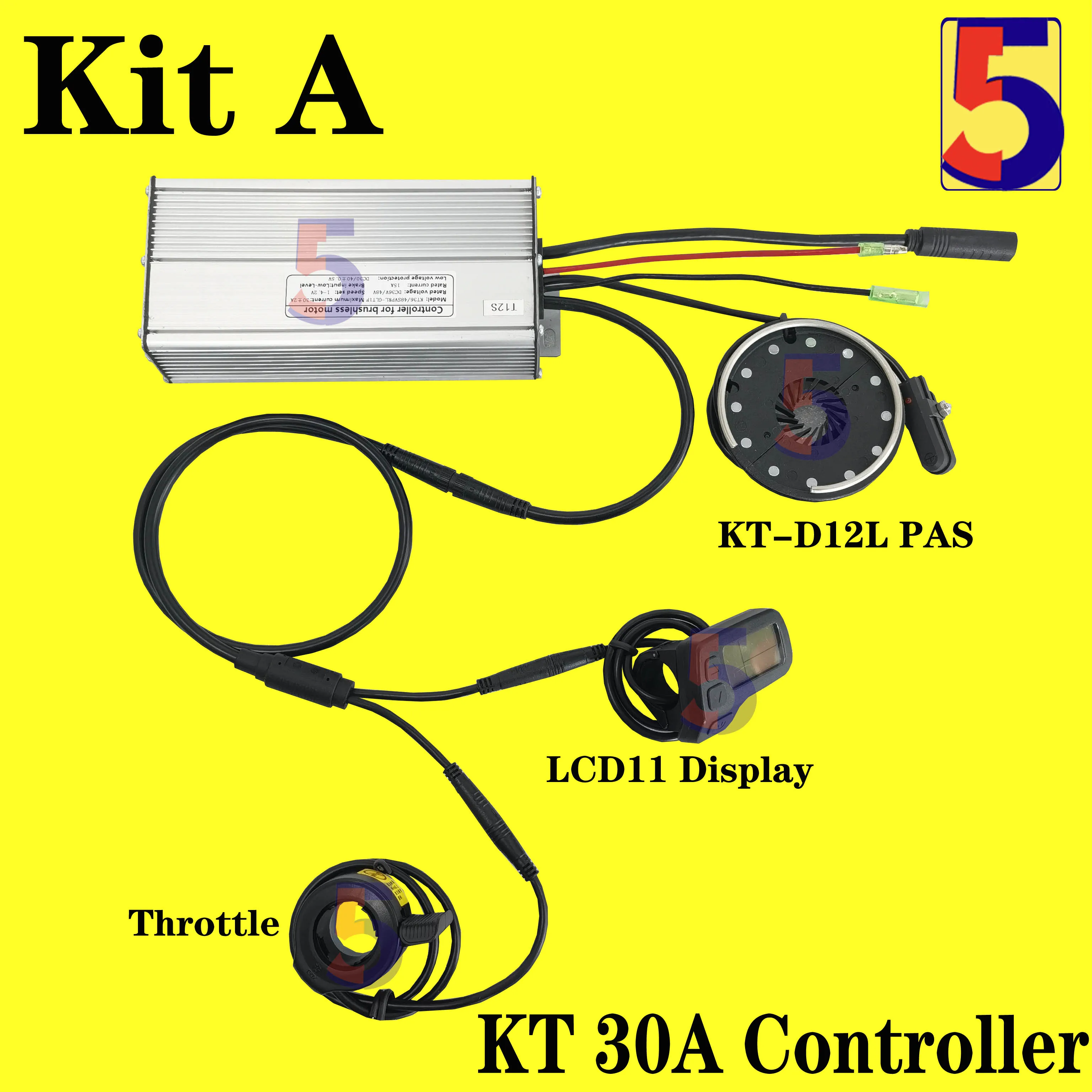

WF Controller Kit A：
KT 36/48V 30A controller 1pcs
KT-LCD11 display 1pcs
Thumb throttle 1pcs
KT D12L PAS 1pcs

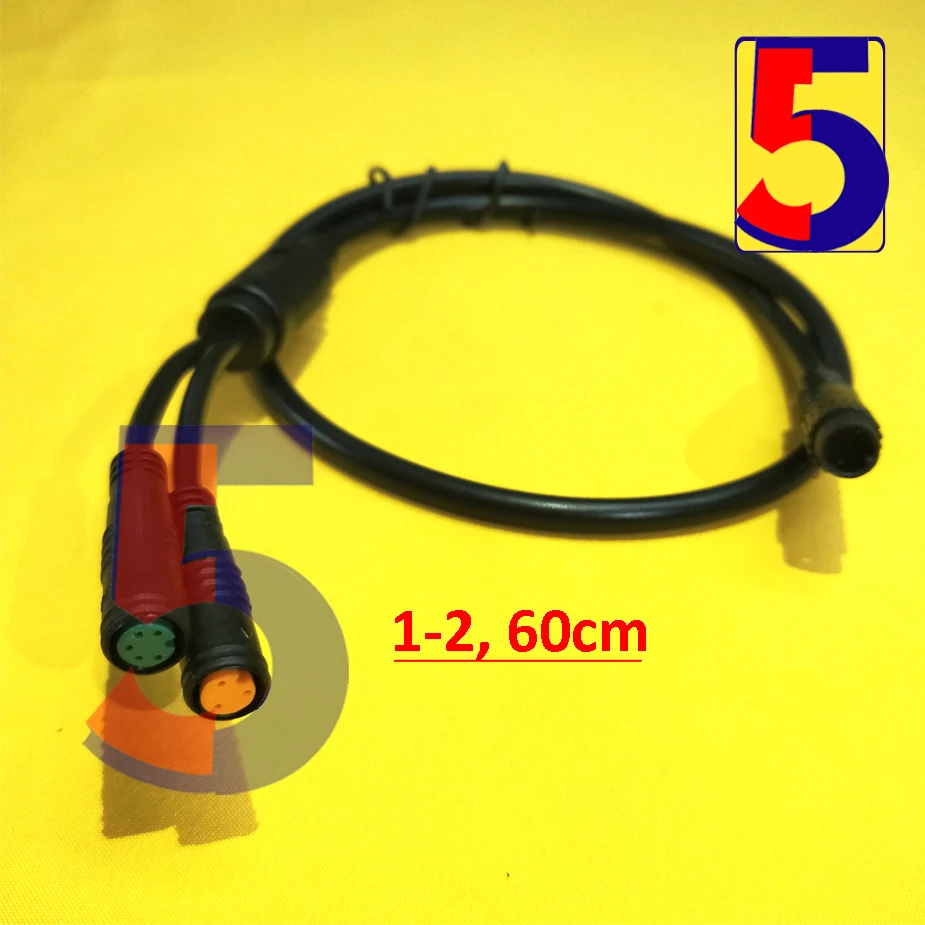

1-2 extend cable(60cm) 1pcs
9Pins extend cable(100cm) 1pcs

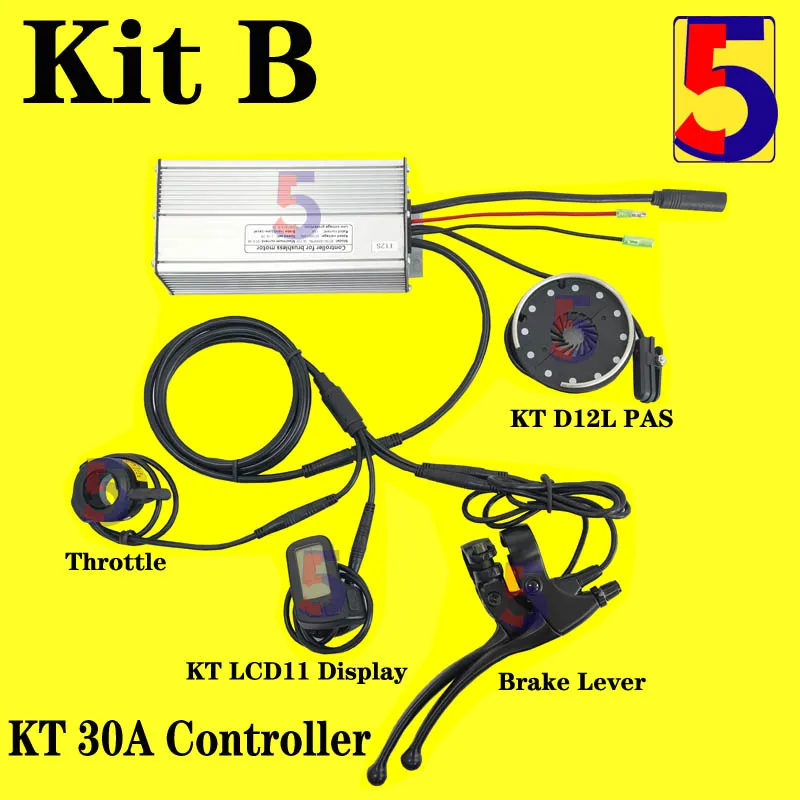

WF Controller Kit B：
KT 36V/48V 30A controller 1pcs
KT-LCD11 display 1pcs
Thumb throttle 1pcs
KT D12L PAS 1pcs
Brake leave 1pairs
1-4 extend cable(140cm) 1pcs
9Pins extend cable(100cm) 1pcs
If the PAS fails to work after installation, please check if the LCD11 parameter is set to C1=07, and at the same time check if the PAS is installed correctly.
The whole controller with waterproof connector,it can waterproof and dustproof.
Customers who are keen on electric bicycle modification should know the KT controller and ebike display,KT products price is favorable, quality is good, it is widely loved by our customers, So this is your best choice.
