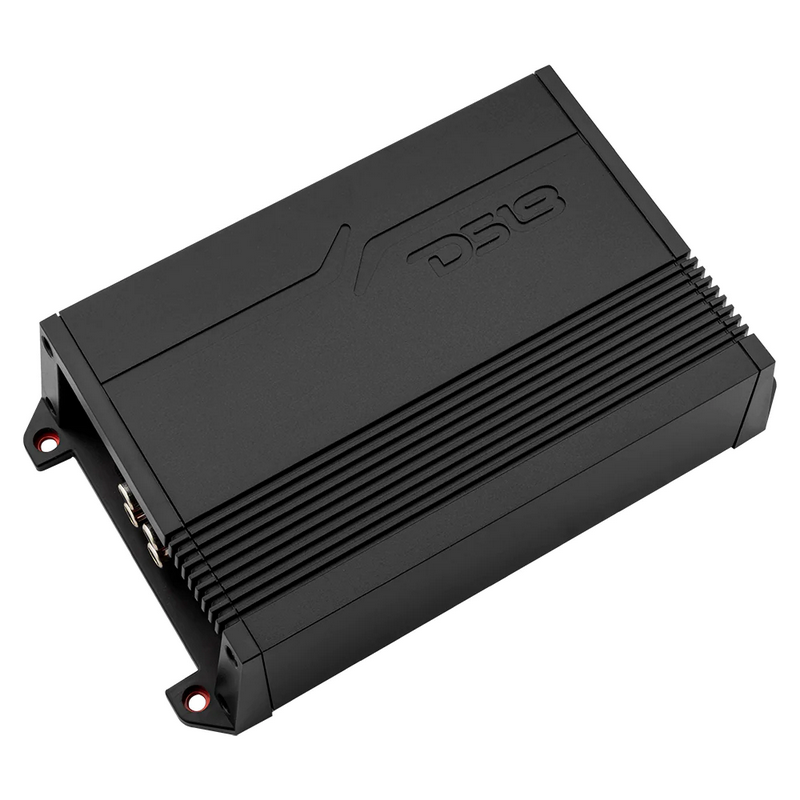

DS18 G1000.4D 4-Channel Car Amplifier. Class D, compact 8.1 x 4.72 x 1.96 in. 4 x 90W RMS at 4 ohms; 2 x 300W bridged at 4 ohms. High level input, selectable LPF/HPF/Flat crossover, LED protection indicators. Ideal for subs or full-range car audio builds with reliable power and efficiency.
DS18’s GEN-X Series is back to boost all systems to top-of-the-line performance! The brand new G1000.4D is designed for the competitor and enthusiast on the journey to creating the system of their dreams!
The G1000.4D delivers pure power with unmatched reliability and efficiency so you can trust the heart of your system will never give out. As a Class D amplifier, the G1000.4D uses Class D circuitry components significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but what it lacks in size it makes up for in power.

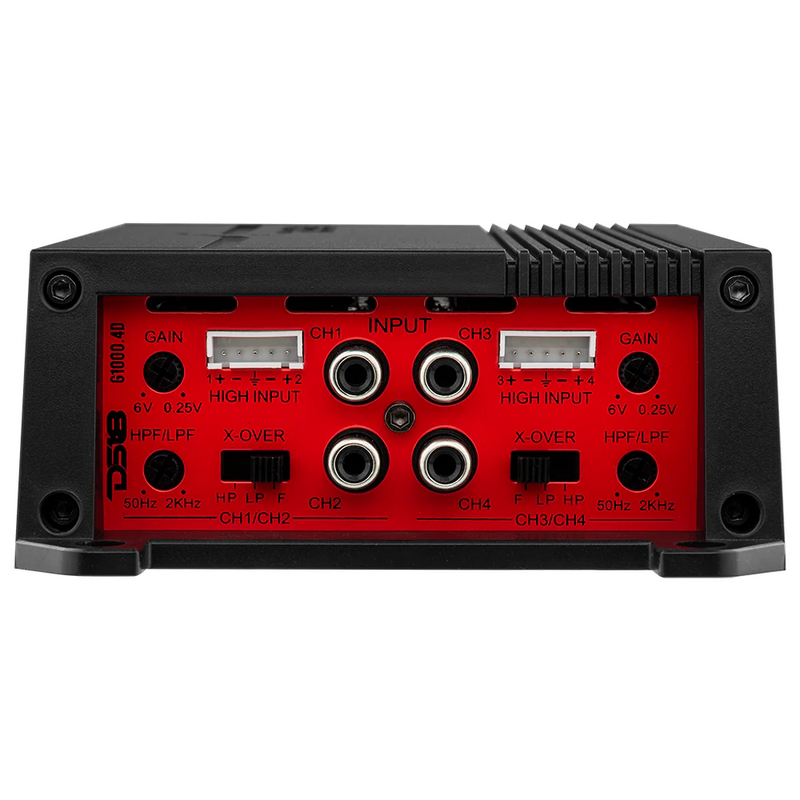

The G1000.4D comes with variable full crossover filter for crystal clear audio whenever you want it! Fully adjustable High Pass, Low Pass, and Full Filters give you control over your sound! Surface mount component technology allows for creative control over the placement and design of your build! High Level Input Compatibility for direct signaling to radio unit! Protect your equipment effectively with Protection, Clipping, and Power Indicator LED’s that notify you when your amplifier has reached it’s limit!
The G1000.4D has a power output of 300W x 2 CH bridged at 4-ohms, 150W x 4 CH at 2-ohms, 90W x 4 CH at 4-ohms: perfect power settings to supercharge any custom build.
Highlights:
- Small and powerful design so you can power your subs with great efficiency and power without taking up much space
- High quality terminals that look great and will transfer your power and signal with no loss.
- High level input for radio use
- LED Clip Indicator to easier adjustment
- Stable and Reliable Class D Circuit Design
- Sound Quality Verification Using AP Instruments

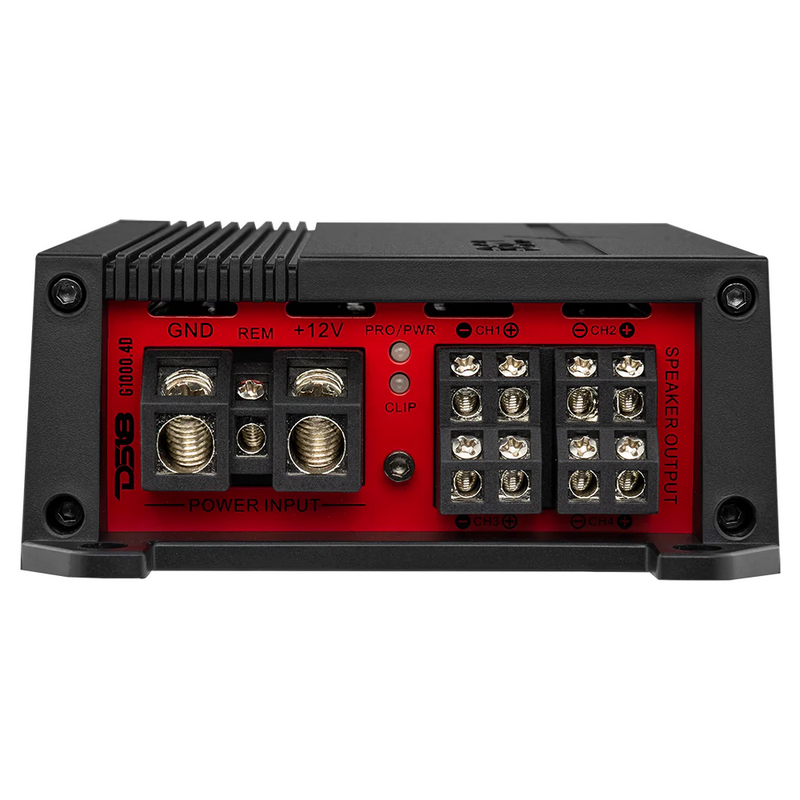

- Direct Insert Power and Speaker Terminals
- Short Circuit, Thermal, and Voltage Protection
Power:
- Total Watts (Peak): 1000W
- Rms Power @ 4 OHM: 4 x 90W
- Rms Power @ 2 OHM: 4 x 150W
- Rms Power @ 4 OHM Bridge: 2 x 300W
Audio:
- Frequency Response: 20Hz-20Khz
- Signal To Noise Ratio: >90 dB
- Efficiency @ 4 OHM: 92%
- Damping Factor: 78
- Input Impedance: 22 K
- Channel Separation: 55 dB
- Total Harmonic Distortion (THD): 0.01%
- Low Level Input Range: 0.25 - 6 V
- High Level Input: Yes
- Selectable X-over: LPF/FLAT/HPF
- X-over Filter Range: 50Hz-2KHz
Features:
- Amplifier Class: Digital (D)
- Amplifier Type: 4CH Full Range
- Number Of Channels: 4 Ch
- Minimum Impedance: 2 OHM St / 4OHM Bridge
- Led Indicator: Power | Protection | Clip
- Power Input Terminal Size: 4 GA
- Fuse Size: 2 X 25A
- Thermal Protection: Yes
- Over-Load Protection:Yes
- Dc Output Protection: Yes
- Short Circuit Output Protection: Yes
- Short Circuit Output Protection:Yes
- Clipping Protection: Yes
- Body Color Finish: Matte Black
Measurements:
- Overall Length: 8.1" / 205 mm
- Overall Wide: 4.72" / 120 mm
- Overall Height: 1.96" / 50 mm
- Heatsink Length: 6.2" / 158 mm
