2560-040 Spa Flow Switch for Sundance Spas, Sweetwater Spas, Jacuzzi Spas,
Features
1.Complete Flow Switch Replacement Kit with 0.85 inch hose connections and 0.4 inch freeze line connection.
2.High impact surgical plastic housing.
3.Clear plastic for easy viewing of any debris in switch.
4.Directional arrow labels affixed for ease of install. Displays error messages FL1 and FL2.
5.Easy to use and save your charge.
Description
Material: Premium-grade PVC Plastic, Rubber and Steel
Model Number: 2560-040
Switch Type: Flow Switch
Mounting Type：Surface Mount
Style：Direct Replacement
Technical Description
Replace Part Numbers: 2560-040
2560-040 Flow Switch comes molded with a 3/32 inch hole opening.
Prior to February 2008 a 3/32" hole had to be drilled for it to be installed on all 2002-2008 2 and 3 pump models.
Warm Tips: Cable has Curled Finger Connectors. Do not use on other models such as 800, 850, 800 Series that use a square finger connection!
Compatibility:
Used for the following Sundance Spa models:
09/2020+ 680 Series
03/2020+ 780 Series
04/2017+ 780 Dover
10/2016+ 980 Claremont/Kingston
2016+ 880 Series
09/2020+ 680 Alicia
09/2020-12/2020 680 Prado5 and Tacoma
03/2020-03/2021 780 Hanover
2019-03/2021 980 Lisbon/Odessa
03/2018-03/2021 880 Cambria
2011-2018 Select Series
2016+ 880 Series: Maxxus, Aspen, Optima, Cameo, Altamar, Marin, Capri
2011+ Select Series: Constance, Victoria
2008-03/2017 780 Series: Camden, Certa, Chelsee, Hamilton, Hamilton (Circ Pump)
Hartford (Circ Pump), Burlington (Circ Pump)
2013-03/2017 780 Montclair
2008-03/2017 780 Series
2008+ 780 Series
2008-2012 680 Burlington Models Equipped with a circulation pump
2007-2012 680 Hartford and Hawthorne Models Equipped with a circulation pump
2007 Hamilton, Chelsee, Certa, and Camden
2005-2006 780 Series Palermo, Bahia, and Cayman Models
Used for the following Jacuzzi models:
2015+ J-500 Series
09/2015+ J-400 Series
2016+ J-300 Convertible Models
02/2020+ J-300 Models
10/2020+ J-200/J-100 Models
2002-2003 J-320, J-330, and J-340 Models
2004+ J-335,J-345
2007+ J-355,J-365, J-375 Models
2007+ J-230, J-270, and J-280 Models with the Circulation Pump Option
2002-2015 J-300 LED Series (With Curled Finger Connectors)
2011+ JLX, JLXL models
Used for the following Sweetwater Models:
2003-2004 Sweetwater Models: Palermo Bahia, Cayman
All 2003-2004 Sweetwater Models

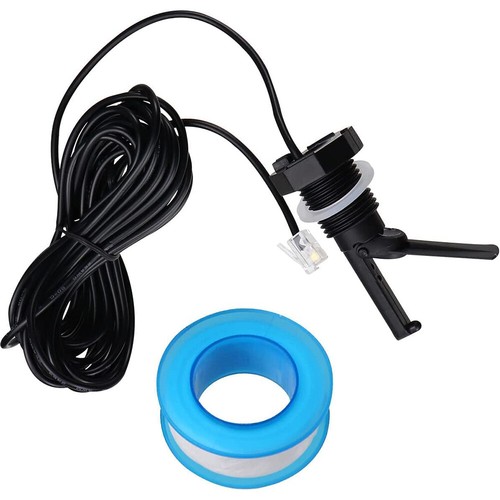

Package Includes:
1 x Flow Switch with Cable
1 x Tee Housin
