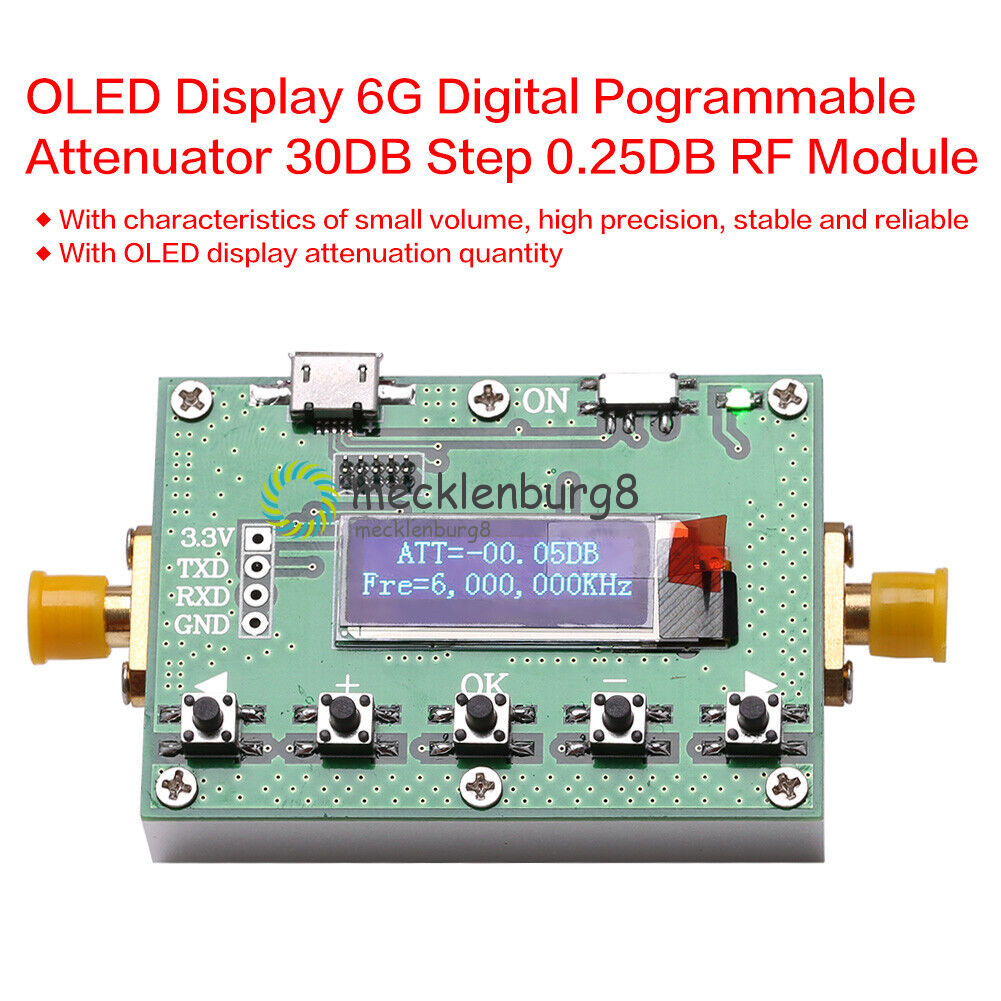

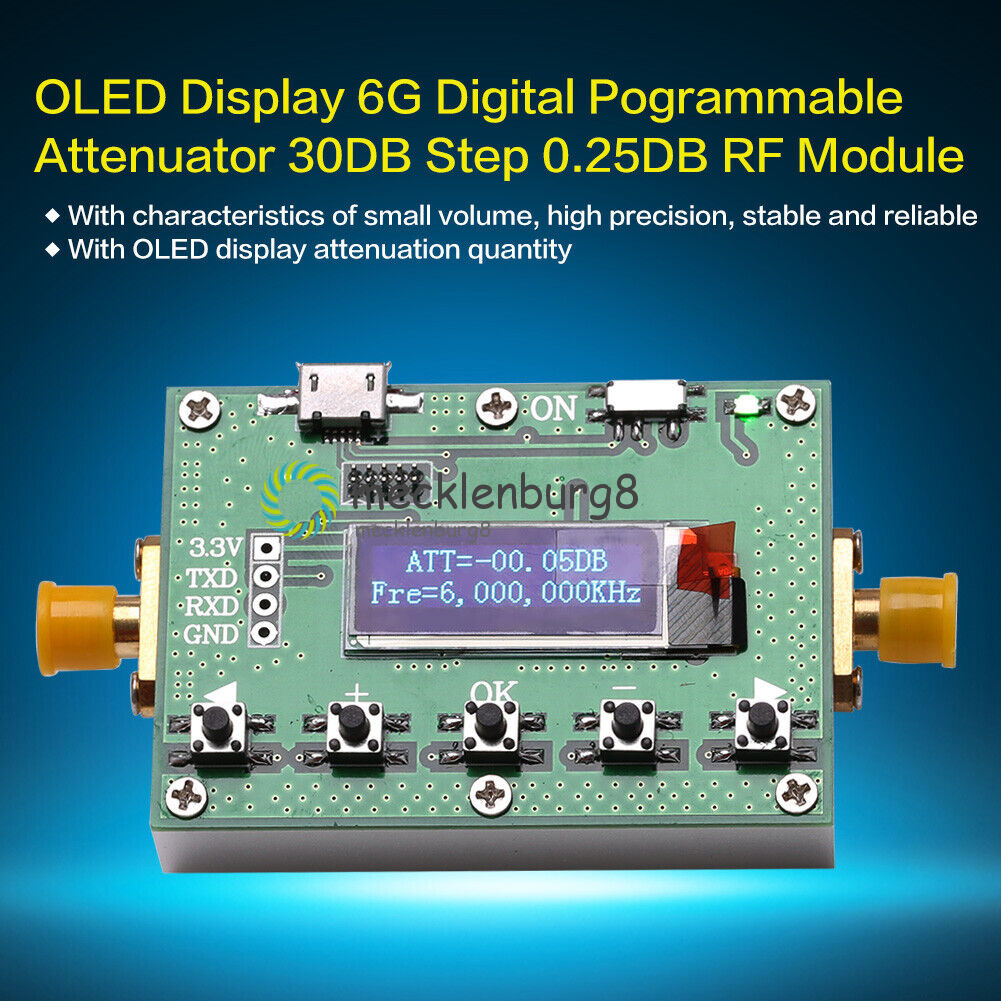

6Ghz RF Digital Attenuator 30DB Step 0.25DB OLED Pogrammable Attenuator Module M
Product Features:
Compact product
Stable and reliable performance
High precision
Exquisite craftsmanship
Adopt OLED to display the decay amount

Product description:
The digital attenuator can adjust the signal level of the circuit in 0.25dB steps without interrupting the circuit, and it can also be used as an in-circuit attenuator of instruments and equipment to adjust the power level in the test system, with small size, high precision, stability and reliability, etc. The attenuation amount is displayed by OLED, and the attenuation amount can be controlled by the upper computer.

Product parameters:
Operating frequency:LF-6GHz
Attenuation adjustment range:0-31.75dB
Attenuation step:0.25(dB)
Voltage:DC5V
Insertion loss: ≤1.5dB (insertion loss will be larger at the high frequency end)
VSWR: ≤1.4
Attenuation accuracy:±0.25dB Max
Rated power: ≤1W
Connector form: SMA (female, external screw inner hole)
Temperature range: -10℃~+50℃(Running)
-40℃~+70℃(not running)

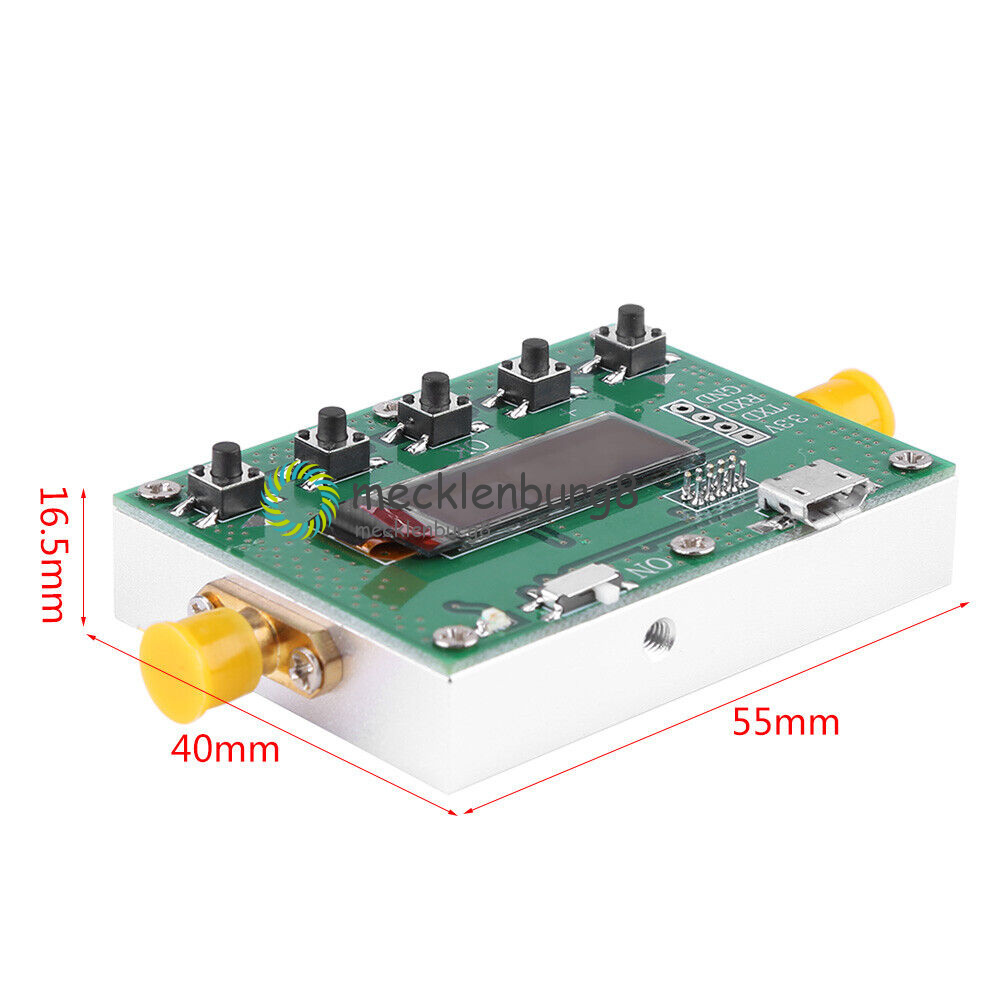

Overall dimensions: 55X40X16.5mm (without SMA interface protrusion, SMA protrusion 9mm)
Weight: 57g
Input and output impedance: 50 ohms

Package includes:
RF module x1
