Package Included:
１ x spindle unit
Specifications :
Overall size: 260x95x95mm
Axle head size: Dia 25mm * 50mm long
Central Height: 48mm
Max. Speed: 3000rpm / 6000rpm / 8000rpm
Bearing type: 6006Z*2, 6007Z*3
Max. power: 1.5kw 2HP
Run-out: 0.01mm
Spindle Material: 20CrmnTi, carburizing heat treatment
|
1PC |
BT30(165) Power Head |
2. Specifications
|
Model |
BT30(165)-1 |
BT30(165)-2 |
BT30(165)-3 |
BT30(165)-4 |
BT30(165)-5 |
BT30(165)-6 |
|
Overall size |
260x95x95mm |
260x95x95mm |
260x95x95mm |
260x95x95mm |
260x95x95mm |
260x95x95mm |
|
Axle head size |
25x50mm |
25x50mm |
25x50mm |
25x50mm |
25x50mm |
25x50mm |
|
Central height |
48mm |
48mm |
48mm |
48mm |
48mm |
48mm |
|
Run-out |
0.01mm |
0.01mm |
0.01mm |
0.01mm |
0.01mm |
0.01mm |
|
Speed |
3000rpm |
3000rpm |
6000~8000rpm |
6000~8000rpm |
5000~6000rpm |
5000~6000rpm |
|
Rising Temperature |
within 25 Degree Celsius |
within 25 Degree Celsius |
within 25 Degree Celsius |
within 25 Degree Celsius |
within 25 Degree Celsius |
within 25 Degree Celsius |
|
Spindle Material |
20CrmnTi, carburizing heat treatment |
20CrmnTi, carburizing heat treatment |
20CrmnTi, carburizing heat treatment |
20CrmnTi, carburizing heat treatment |
20CrmnTi, carburizing heat treatment |
20CrmnTi, carburizing heat treatment |
|
Bearing |
6007*1, 7007*2, 6006*2 |
6007*1, 7007*2, 6006*2 |
6007*1, 7007*2, 6006*2 |
6007*1, 7007*2, 6006*2 |
6007*1, 7007*2, 6006*2 |
6007*1, 7007*2, 6006*2 |
|
application |
Drilling Cutting Machine |
Drilling Cutting Machine |
Drilling Cutting Machine |
Drilling Cutting Machine |
Boring Milling Cutting Machine |
Boring Milling Cutting Machine |
|
waterproof |
N |
Y |
N |
Y |
N |
Y |
3.Advantage
(1) Higher precision, better stability and smoother operation.
(2) Adopting Japanese technology, double waterproof design structure, isolating cutting fluid and dust in production and processing, ensuring the good condition of the spindle head in actual work.( Waterproof function is only available on some models)
(3) The main shaft housing is cast in high-tough cast iron. After manual and natural double aging treatment, it is wear-resistant and not easily deformed.
4. Benefits for you
(1) Using better manufacturing technology, bring you a higher quality and more perfect experience.
(2) Excellent service, a variety of models to meet your needs.
5. Application area
This series of power heads is mainly suitable for drilling, boring and other work occasions.
6. Technical Support
All Products from the factory will be provided for one year warranty after sales and lifetime technical support.

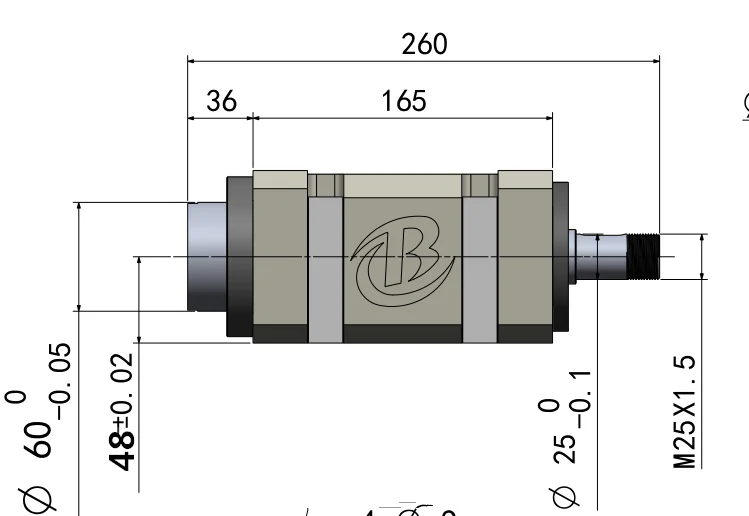

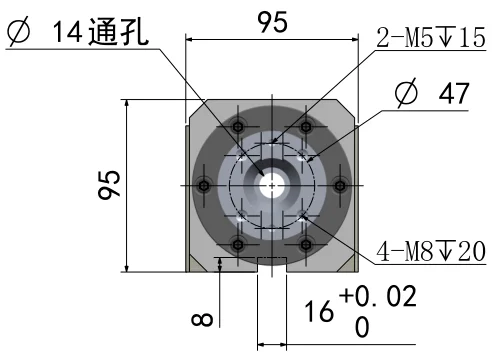

7. Dimension
