Battery Level Indicator

• Green: good.
• Orange: low.
• Red: need to replace the battery.

 If the batteries are dead or not installed, the LED will not light at all. If the batteries are not fully charged or properly installed, performance may be affected and readings might not be accurate.

Reset Function/ Automatic Circuit

If a full alarm is indicated before you have found the source of the leak, you can reset the detector to zero by pressing the reset key. This will allow you to find progressively greater concentrations, and eventually find the source of the leak.

3 Replacement Sensors

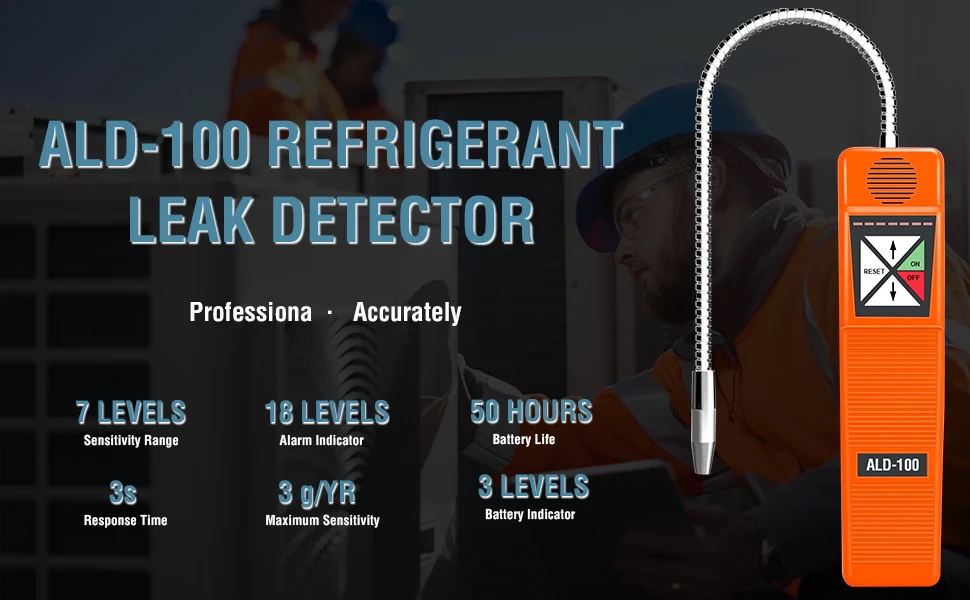

This tester will detect most gases which contain Chlorine, Fluorine or Bromine (the halogen gases). Microprocessor driven, this leak detector will identify halogenated refrigerants in concentrations as small as 3 Gr. per Yr. The microprocessor samples the halogen concentration and battery voltage level continuously, resulting in a very stable and reliable real time readout.

2C Batteries

Power supply: 2C Alkaline batteries (included in the package)

1. To install batteries, remove the battery compartment door which is at the bottom of the case by sliding it up.

2. Install two “C” batteries with both positive polarity toward the battery compartment door.
