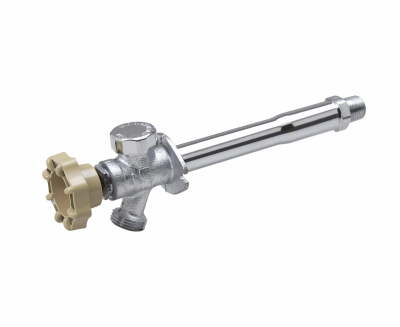

1/2 in MIP & 1/2 in Sweat. Quarter turn ceramic cartridge. Drains automatically upon water shut-off, if the hose is removed or open. Built-in backflow preventer checks siphoning back into water supply. Heavy chrome plated for appearance and corrosion protection. Notched flange allows stable installation on siding. Lead-free silver solder construction. 3/4 in hose thread outlet. Pipe threads comply with ANSI B1.20.1; Hose threads comply with ANSI B1.20.7. Solder ends comply with ANSI B16.18. ASSE 1019-A approved, IAPMO, CSA certified. Certified to NSF 61. Handy carton bin box display packaging; each valve has a data tag with installation instructions and is bar-coded for easy identification. Handy carton.
| Finish | Chrome |
| Returnable | Yes |
| End 1 Type | MPT |
| Anti-Siphon | Y |
| Frost-Proof | Yes |
| Defective Code | A |
| End 1 Size | 1/2" |
| Sub Brand | ProLine |
| End 2 Type | Compression |
| Lead Content | Leaded |
| Maximum Pressure | 125 psi |
| Packaging Type | Boxed |
| Length | 14.52 |
| Product Type | Sillcock Valve |
| Material | Brass |
| Turn Type | Quarter Turn |
| Each Weight | 1.200 LB |
| Velocity | C |
| Hazardous Material | No |
| Alternative UPC | 032888120921, 032888149083, 098268678147 |
| Width | 2.48 |
| Brand | Proline Series |
| Product Height (in.) | 3.17 |
| Product Length (in.) | 15.52 |
| Product Width (in.) | 2.48 |
| Valve Type | Sillcock |
| Indoor or Outdoor | Outdoor |
| Maximum Working Temperature (F) | 140 |
| ECCN | EAR99 |
| Product Weight (lb.) | 1.2 |
| Maximum Pressure (PSI) | 125 |
| Through Wall Length (in.) | 10 |
| Valve Handle Style | Handwheel |
| Valve Turn Type | Quarter Turn |
| Valves Product Type | Frost Free Sillcock |
| Connection | MPT or SWT |
| Country Origin Code | CN |
| Height | 3.17 |
| Dimensions | 10 in L |
| Connection Size | 1/2 x 3/4" |
| Pressure rating | 125 PSI |
| Nomenclature | 104-827HC SILLCOCK AS QT FF 10 |
| Body Material | Brass |
| Connection Type | MPT x Hose |
